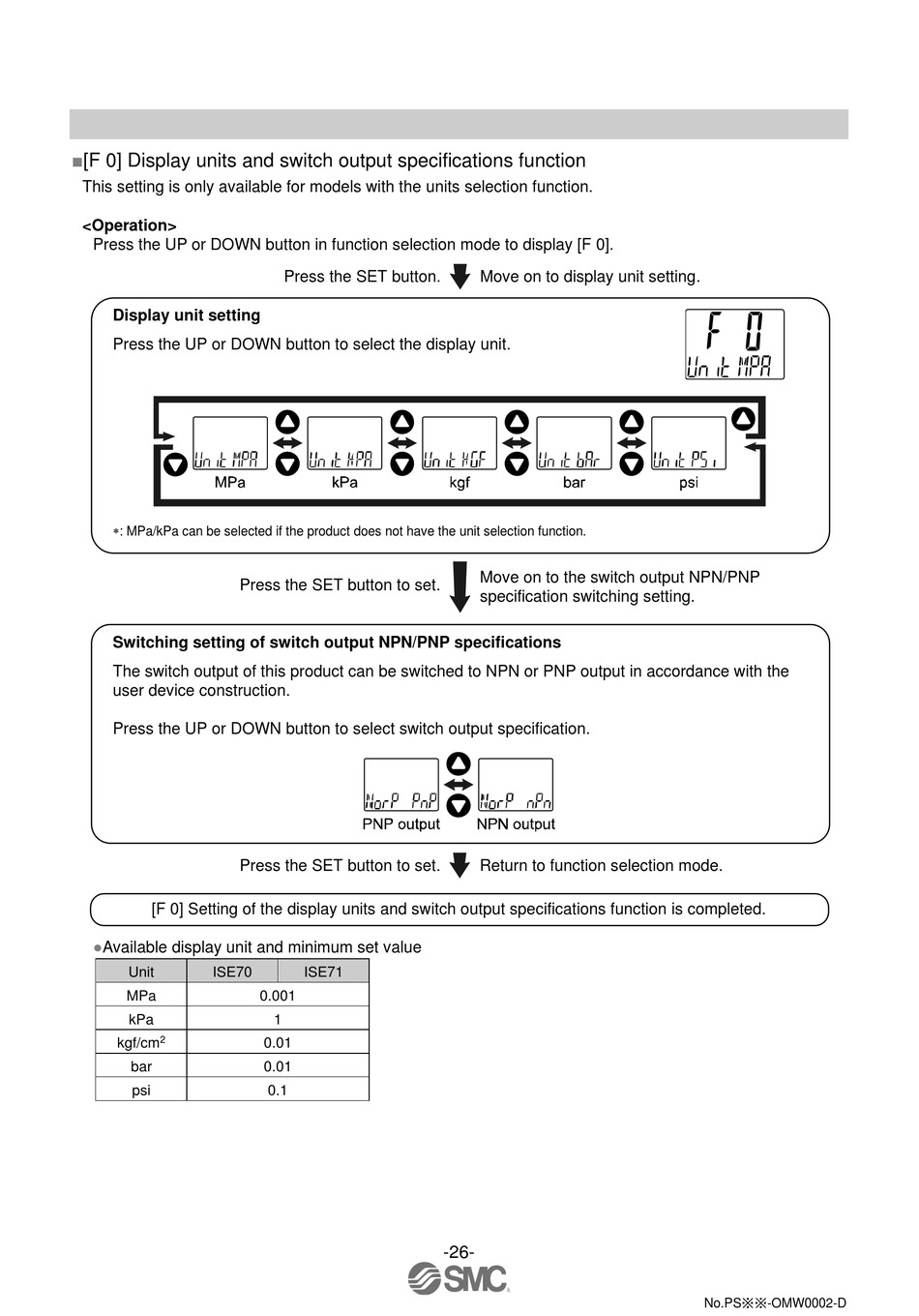

■[F 0] Display units and switch output specifications function
This setting is only available for models with the units selection function.
<Operation>
Press the UP or DOWN button in function selection mode to display [F 0].
Display unit setting
Press the UP or DOWN button to select the display unit.
: MPa/kPa can be selected if the product does not have the unit selection function.
Press the SET button to set.
Switching setting of switch output NPN/PNP specifications
The switch output of this product can be switched to NPN or PNP output in accordance with the
user device construction.
Press the UP or DOWN button to select switch output specification.
Press the SET button to set.
[F 0] Setting of the display units and switch output specifications function is completed.
●Available display unit and minimum set value
Unit ISE70
MPa
kPa
2
kgf/cm
bar
psi
Press the SET button.
ISE71
0.001
1
0.01
0.01
0.1
Move on to display unit setting.
Move on to the switch output NPN/PNP
specification switching setting.
Return to function selection mode.
