BLC
BLC ceiling motion detector 360°
BLC ceiling motion detector 360°
Order-No. : 1701 11
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

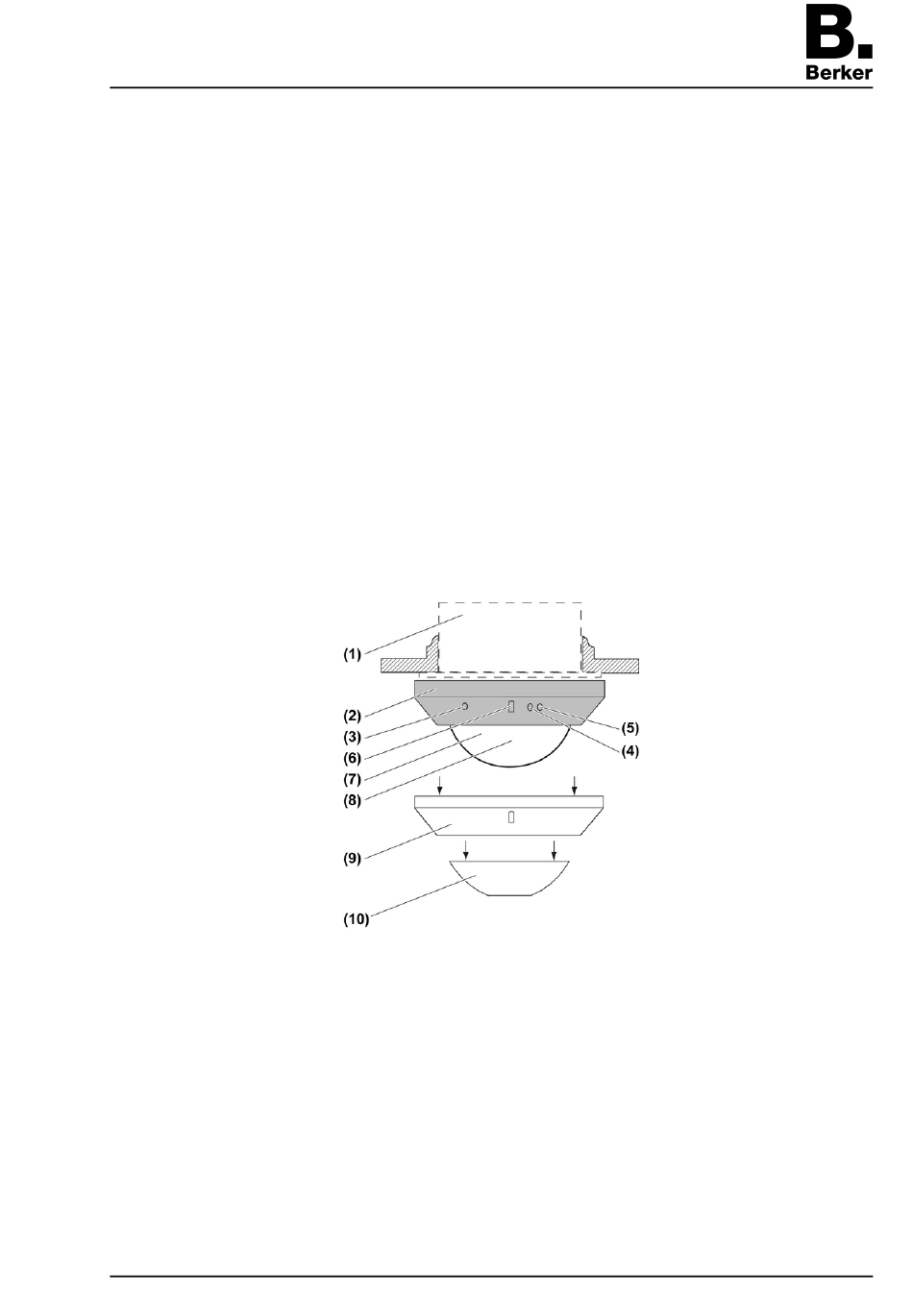

2 Device components
(1) Flush-mounted insert
(2) Motion detector cover
(3) Adjuster sens
(4) Adjuster time
(5) Adjuster lux
(6) Brightness sensor
(7) LED display, behind the lens
(8) Lens
(9) Decor ring
(10) Push-on cover
82563811
97-09889-000
Figure 1
Seite 1/8
17.11.2011
Advertisement
Table of Contents
Related Manuals for Berker 1701 11
Summary of Contents for Berker 1701 11
- Page 1 BLC ceiling motion detector 360° BLC ceiling motion detector 360° Order-No. : 1701 11 Operation- and Assembly Instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 BLC ceiling motion detector 360° 3 Function Intended use Automatic switching of lighting depending on the heat motion and ambient brightness. Operation with concealed insert for dimming, switching or extension insert, 3-wire Ceiling installation on flush-mounted insert Product characteristics Run-on time, sensitivity and brightness threshold settable Test operation for checking the detection area Short-time operation to control signal encoders Dimming phase in combination with dimming insert...
- Page 3 BLC ceiling motion detector 360° Dimming light with dimming insert The light can be dimmed using a 2-wire extension. The light remains at the dimmed value until the run-on time has elapsed. Press 2-wire insert at top or bottom until the desired brightness is reached. i An installation button cannot be used for dimming.
- Page 4 BLC ceiling motion detector 360° Figure 3: Detection area dependent on the direction of movement i Note direction of motion (Figure 3). Motions that are transverse to the motion detector (Drawing B) can be detected better than motions towards or away from the motion detector (Drawing A).
- Page 5 BLC ceiling motion detector 360° 5.2 Commissioning Testing the detection area Figure 4: Test setting The motion detector is fitted and connected. Pull off push-on cover (10) Pull off decor ring (9). Set sens adjuster (3) to max(Figure 4). Set time adjuster (4) to test. Set lux adjuster (5) to 3 for brightness-independent switching.
- Page 6 BLC ceiling motion detector 360° Limiting the detection area Figure 5: Push-on cover The push-on cover can be used to limit the detection area, e.g. in order to mask out interference sources. Cover size Detection area on the floor Complete push-on cover Ø...
- Page 7 BLC ceiling motion detector 360° Attach decor ring. i To make the short-time operation independent of brightness, turn lux adjuster (5) to 3. Setting the brightness threshold Only when the brightness drops below the threshold will the light be switched on when there is motion in the detection area.
- Page 8 Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative. Berker GmbH & Co. KG Klagebach 38 58579 Schalksmühle/Germany...
