BLC presence detector with constant light control
BLC presence detector with constant light control
Order No. : 1701 10
Assembly Instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

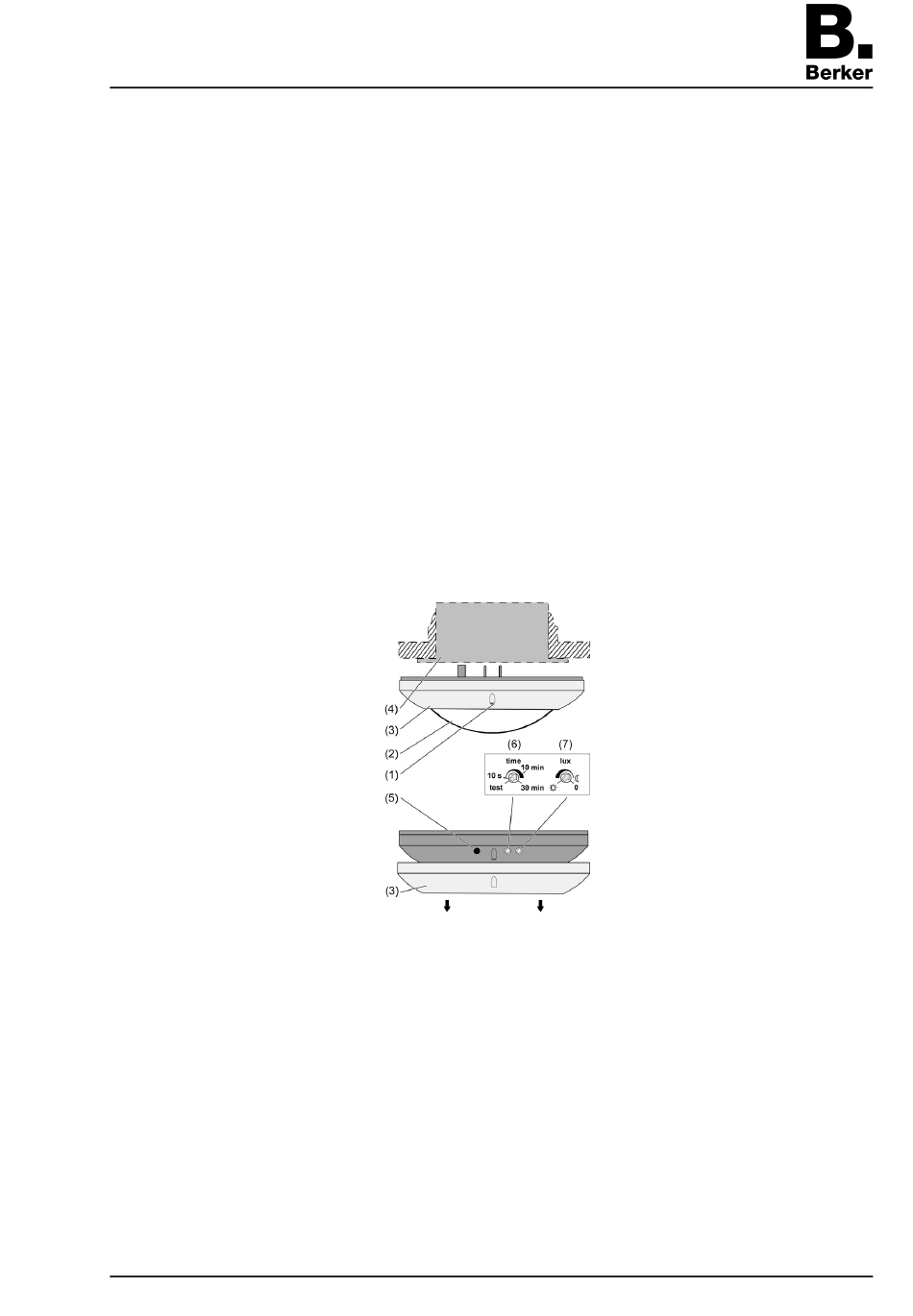

2 Device components

(1) Brightness sensor
(2) Sensor window
(3) Decor ring
(4) Up insert
(5) LED
(6) Adjuster time, run-on time
(7) Adjuster lux, Brightness
82542821
97-09550-000
Figure 1: Device components
Seite 1/8
18.09.2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1701 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Berker 1701 10

  • Page 1 BLC presence detector with constant light control BLC presence detector with constant light control Order No. : 1701 10 Operation- and Assembly Instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
  • Page 2 BLC presence detector with constant light control 3 Function Intended use Automatic switching of lighting depending on the heat motion and ambient brightness. Operation with flush-mounted insert for switching or dimming or 3-wire extension insert to expand the detection area. Ceiling installation on flush-mounted insert.
  • Page 3 BLC presence detector with constant light control i If motions are detected, the light remains on after the 2 minutes have elapsed. The run-on time is set to the time specified on the adjuster. i If the time adjuster is set to test, then the light remains switched on for approx. 1 seconds, even if the button is pressed for longer.
  • Page 4 BLC presence detector with constant light control 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers.
  • Page 5 BLC presence detector with constant light control These data are applicable for installation on the ceiling at an installation height of 2.5 m. At installation heights greater than 2.5 m the detection area becomes larger, while at the same time the detection density and sensitivity are reduced. i If necessary, the detection area can be limited using the push-on cover (see Limiting the detection area).
  • Page 6 BLC presence detector with constant light control Cover size Detection area on the floor Complete cover Ø approx 2.2 m Area I cut out Ø approx 4 m Areas I + II cut out Ø approx 6 m Without cover Ø...
  • Page 7 BLC presence detector with constant light control LED on Monitored surface is bright enough due to lighting that is switched on, load remains switched on when motion detected. When no motion is detected, it is switched off after the run-on time elapses. LED flashes Monitored surface is very bright due to lighting that is switched on or extraneous light, load...
  • Page 8 Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative. Berker GmbH & Co. KG Klagebach 38 58579 Schalksmühle/Germany...
