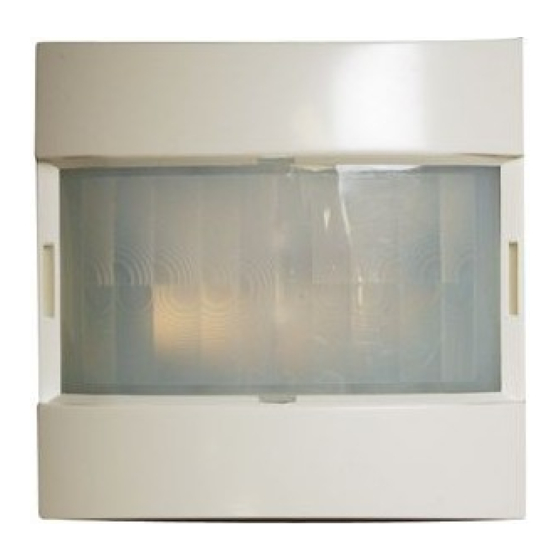

BLC motion detector 1.1 m
BLC motion detector 1.1 m
Order-No. : 1783 ..
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

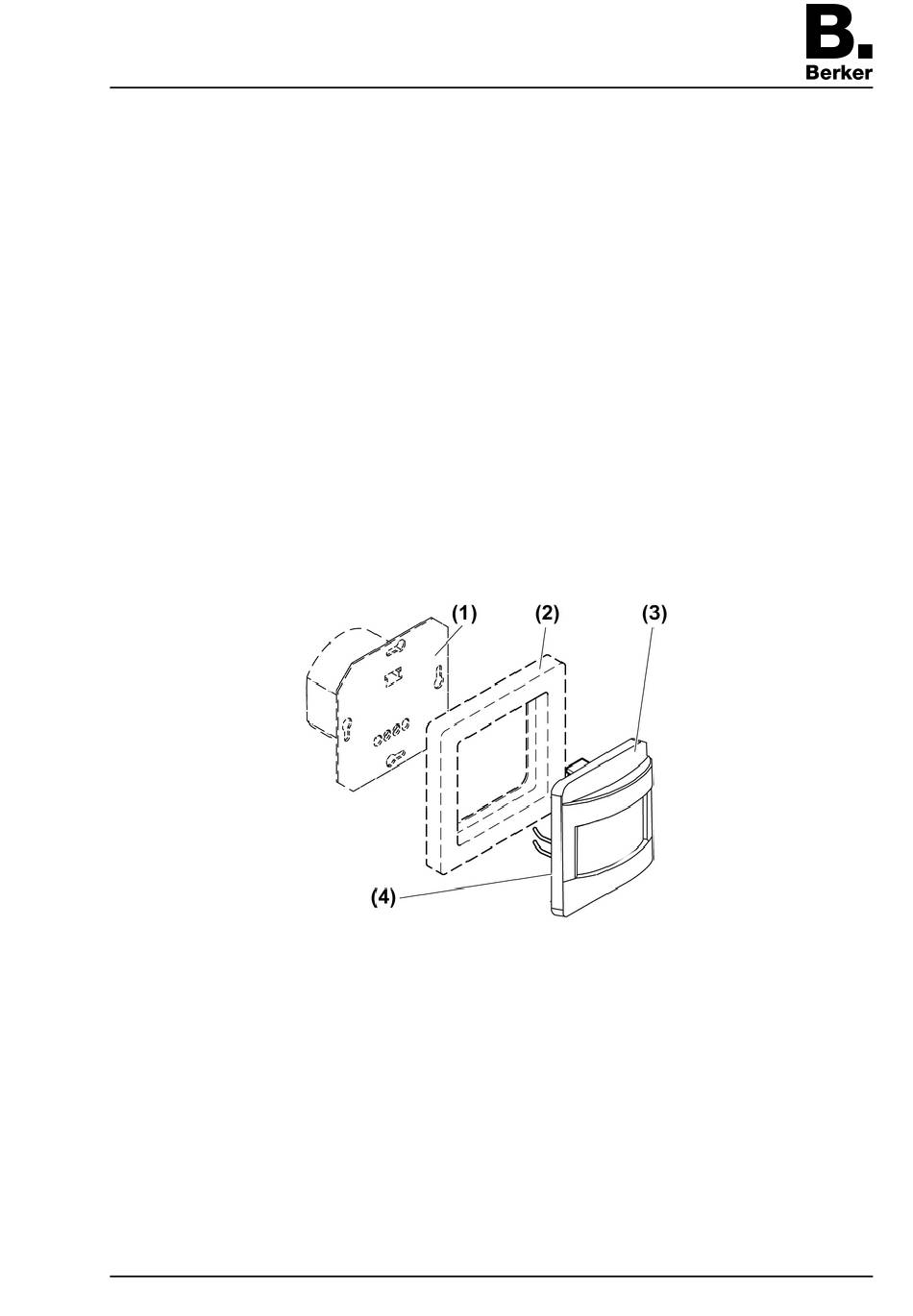

(1) Flush-mounted insert
(2) Frame
(3) Motion detector cover
(4) Adjusters on the rear
3 Function
Intended use
-
Automatic switching of lighting depending on the heat motion and ambient brightness.
-
Operation with concealed insert for dimming, switching or extension insert, 3-wire
-
Interior mounting on concealed insert
i Dimming inserts can only execute switching functions.
82541031
97-82641-001
picture 1
Seite 1/6
26.07.2010
