BLC

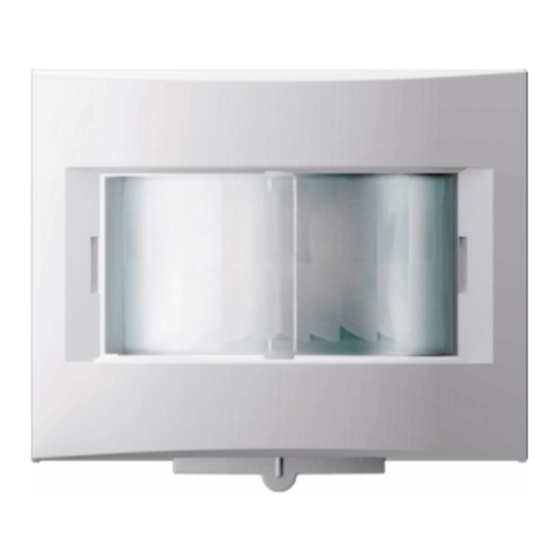

BLC motion detector comfort 1.1 m
BLC motion detector comfort 1.1 m
Order-No. : 1784xx
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82540231
97-82640-201
picture 1
Seite 1/10
22.07.2010
Advertisement
Related Manuals for Berker BLC 1784 Series
Summary of Contents for Berker BLC 1784 Series
- Page 1 BLC motion detector comfort 1.1 m BLC motion detector comfort 1.1 m Order-No. : 1784xx Operation- and Assembly Instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 BLC motion detector comfort 1.1 m picture 2: Adjusters on the rear (1) Flush-mounted insert (2) Frame (3) Motion detector cover (4) Operating mode switch (5) Adjuster, run-on time (6) Adjuster, brightness (7) Adjuster, sensitivity 3 Function Intended use Automatic switching of lighting depending on the heat motion and ambient brightness. Operation with concealed insert for dimming, switching or extension insert, 3-wire Interior mounting on concealed insert Product characteristics...
-
Page 3: Operation
BLC motion detector comfort 1.1 m High protection against ambient light: To prevent the motion detector from switching to Night mode is there is brief shadow or Day mode if there is brief light, the Day/Night and Night/Day switchover takes place only after 10 seconds. Behaviour in case of a mains failure Less than 0.2 seconds: the old switching position is restored after mains return. - Page 4 BLC motion detector comfort 1.1 m Setting the operating modes picture 3: Operating mode switch Three operating modes can be set using the operating mode switch (4) on the motion detector (picture 3). Setting the Continuous off operating mode Switch the operating mode switch (4) to the O position (picture 3). The lighting is switched off permanently.
- Page 5 BLC motion detector comfort 1.1 m picture 4 The operating mode switch can be locked in the AUTO position using a locking screw (8) on the back of the top. For this, screw in the supplied screw from the rear side of the cover into the intended opening (8).
- Page 6 BLC motion detector comfort 1.1 m The Teach function is active. As confirmation, the switched-off lighting is switched on for approx. 3 seconds or switched-on lighting switched off and then switched on for approx. 3 seconds. Move away from the motion detector for the next minute, so that it can measure the current brightness without being shaded.
- Page 7 BLC motion detector comfort 1.1 m picture 7: Detection planes Select a vibration-free installation location. Vibrations can lead to unwanted switching. Avoid interference sources in the detection area. Interference sources, e.g. heaters, ventilation, air conditioners, and cooling light bulbs can lead to unwanted switching. i If necessary, the detection area can be limited using the push-on top (see Limiting the detection area).
- Page 8 BLC motion detector comfort 1.1 m 5.2 Commissioning DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers. Cover up live parts in the working environment. Testing the detection area picture 8: Adjusters on the rear The insert is installed correctly.
- Page 9 BLC motion detector comfort 1.1 m i To make the setting for stairwells according to DIN EN12464-1, 2003-3, turn the adjuster (6) to the 150 Lux mark. Setting the sensitivity The motion detector possess automatic adjustment to the ambient conditions. Normally, the adjuster Sens.
-
Page 10: Troubleshooting
Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative. Berker GmbH & Co. KG Klagebach 38 58579 Schalksmühle/Germany...
