radio bus
Radio motion detector flat
Radio motion detector flat
Order-No. : 9420 xx xx
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
These instructions are an integral part of the product, and must remain with the end
customer.

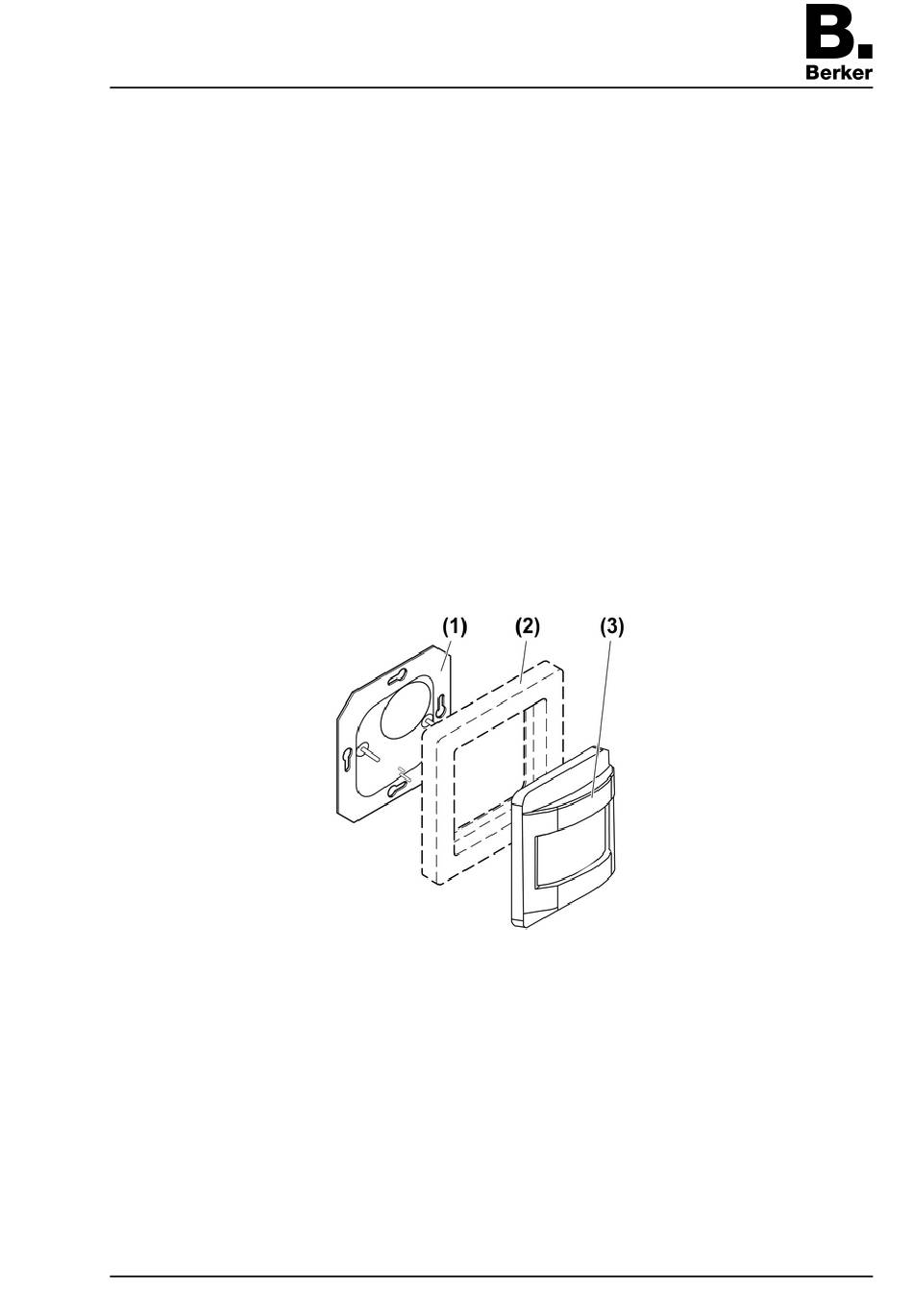

2 Device components
(1) Base plate
(2) Frame
(3) Radio motion detector
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
82552821
97-09580-000
picture 1
Seite 1/9
12.08.2010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Berker 9420 Series
Summary of Contents for Berker 9420 Series
- Page 1 radio bus Radio motion detector flat Radio motion detector flat Order-No. : 9420 xx xx Operation- and Assembly Instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 radio bus Radio motion detector flat The range of the system can be optimised by selecting the optimal installation location, taking into account the structural circumstances. picture 2: Reduced range due to structural obstacles Example of penetration of various materials: Material Penetration Wood, Plaster, Plasterboard...
- Page 3 radio bus Radio motion detector flat 4 Information for electrically skilled persons 4.1 Fitting and electrical connection Selecting the installation location picture 3: Detection planes At an installation height of 1.10 m the motion detector has a detection field with an aperture angle of 180°...
- Page 4 radio bus Radio motion detector flat picture 5: Installing the motion detector laterally to the direction of movement The motion detector can detect motions optimally if it is installed laterally to the direction of movement. Otherwise detection is likely to occur too late (picture 5). Do not touch the sensor window.
- Page 5 radio bus Radio motion detector flat Glue or screw the base plate (1) of the motion detector (3) directly to an even surface. Carefully fit motion detector with frame (2) on the guide pins of the base plate. The battery holder must fit in the corresponding aperture in the base plate.
- Page 6 radio bus Radio motion detector flat Apply new battery to the positive contact of the battery holder. Observe correct polarity: the positive pole of the battery must be at the top. Press gently on battery to snap it in. Carefully fit motion detector with frame on the guide pins of the base plate. The battery holder must fit in the corresponding aperture in the base plate.
- Page 7 radio bus Radio motion detector flat Setting the sensitivity and brightness setpoint picture 9: Adjusters on the rear Carefully pull motion detector with frame off of the base plate. Use the sensitivity controller Sens. (6) to adjust the sensitivity of the sensor between maximum and minimum sensitivity (picture 9).
-
Page 8: Technical Data
radio bus Radio motion detector flat Limiting the detection area picture 10 The supplied cover plate (9) can be used to mask unwanted detection areas (picture 10). The cover plate can cover up the left (7) or right half (8) of the detection fields, 90° in each case. i Always use the entire cover plate! Cutting out the cover plate to a smaller angle will result in malfunctions. -
Page 9: Warranty
Our products are under guarantee within the scope of the statutory provisions. If you have a warranty claim, please contact the point of sale or ship the device postage free with a description of the fault to the appropriate regional representative. Berker GmbH & Co. KG Klagebach 38 58579 Schalksmühle/Germany...
