MULTISPAN 2303-3C-M1 Installation Manuallines page 6

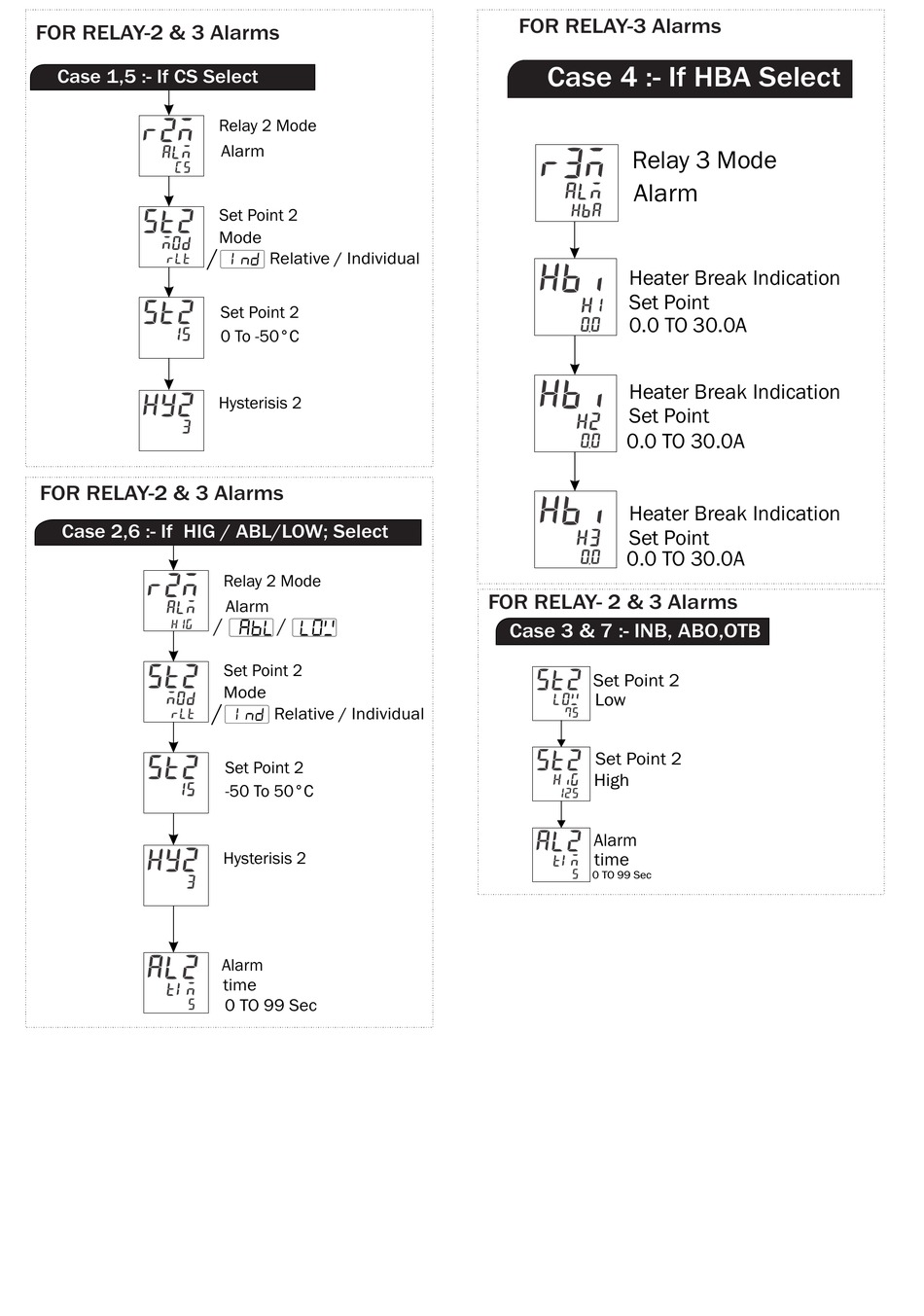

FOR RELAY-2 & 3 Alarms
Case 1,5 :- If CS Select
FOR RELAY-2 & 3 Alarms
Case 2,6 :- If HIG / ABL/LOW; Select
Relay 2 Mode
Alarm
Set Point 2
Mode
IND Relative / Individual
Set Point 2
0 To -50°C
Hysterisis 2
Relay 2 Mode
Alarm
/ aBL / LOW
Set Point 2
Mode
IND Relative / Individual
Set Point 2
-50 To 50°C
Hysterisis 2
Alarm
time
0 TO 99 Sec
FOR RELAY-3 Alarms
Case 4 :- If HBA Select
Relay 3 Mode
Alarm
Heater Break Indication
Set Point
0.0 TO 30.0A
Heater Break Indication
Set Point
0.0 TO 30.0A
Heater Break Indication
Set Point
0.0 TO 30.0A
FOR RELAY- 2 & 3 Alarms
Case 3 & 7 :- INB, ABO,OTB
Set Point 2
Low
Set Point 2
High
Alarm
time
0 TO 99 Sec
