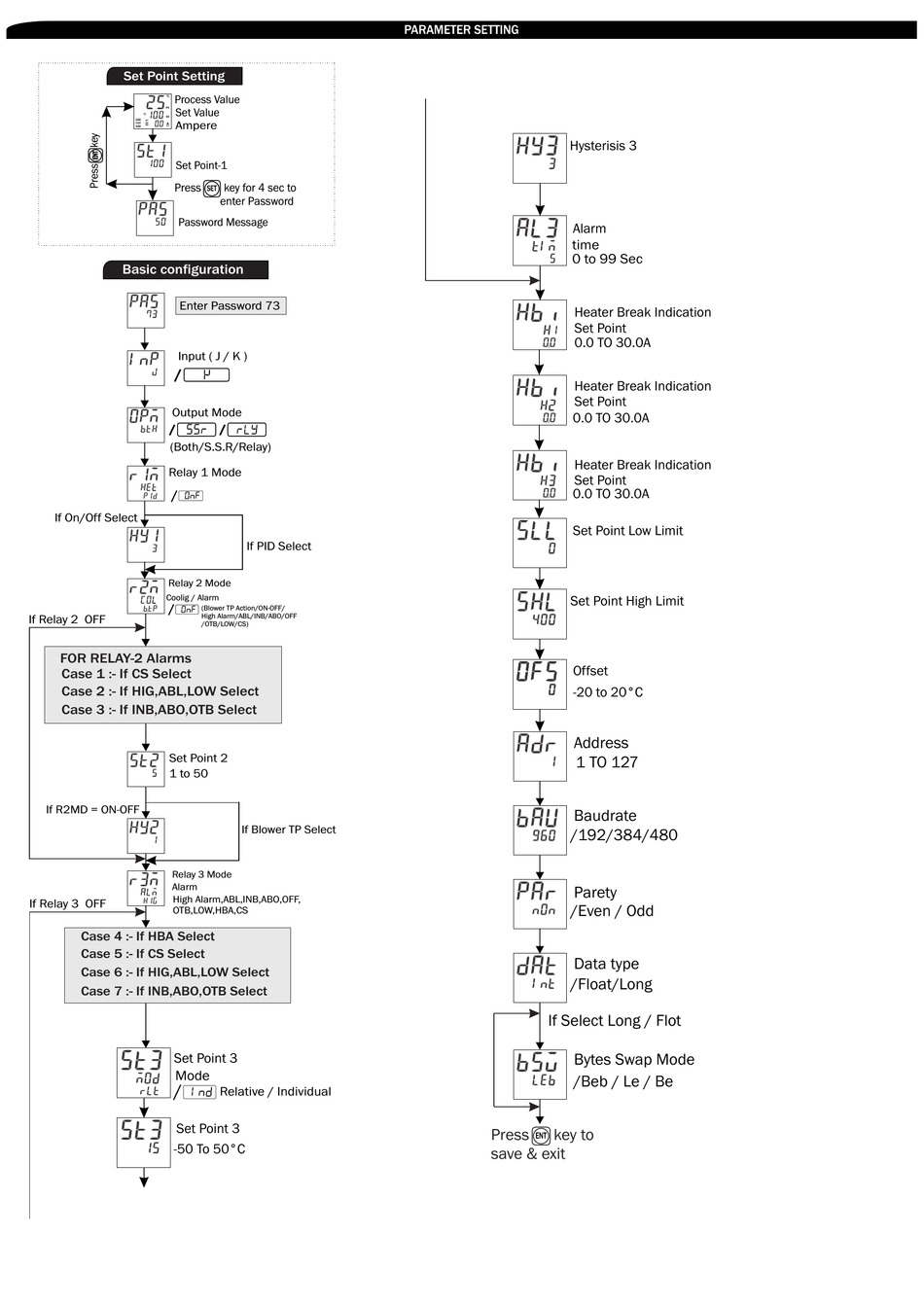

MULTISPAN 2303-3C-M1 Installation Manuallines page 5

Set Point Setting
c
°
Process Value
PV
Set Value
SV
OUT 1
H 1
Ampere
OUT 2 H 2
A
3
OUT 3 H ~
Set Point-1
Press
Password Message
Basic configuration
Enter Password 73
Input ( J / K )
Output Mode
SSR
(Both/S.S.R/Relay)
Relay 1 Mode
ONF
If On/Off Select
Relay 2 Mode
Coolig / Alarm
ONF (Blower TP Action/ON-OFF/
High Alarm/ABL/INB/ABO/OFF
If Relay 2 OFF
/OTB/LOW/CS)
FOR RELAY-2 Alarms
Case 1 :- If CS Select
Case 2 :- If HIG,ABL,LOW Select
Case 3 :- If INB,ABO,OTB Select
Set Point 2
1 to 50
If R2MD = ON-OFF
Relay 3 Mode
Alarm
High Alarm,ABL,INB,ABO,OFF,
If Relay 3 OFF
OTB,LOW,HBA,CS
Case 4 :- If HBA Select
Case 5 :- If CS Select
Case 6 :- If HIG,ABL,LOW Select
Case 7 :- If INB,ABO,OTB Select
Set Point 3
Mode
IND
Set Point 3
-50 To 50°C
key for 4 sec to
SET
enter Password
RLY
If PID Select
If Blower TP Select
Relative / Individual
PARAMETER SETTING
Hysterisis 3
Alarm
time
0 to 99 Sec
Heater Break Indication
Set Point
0.0 TO 30.0A
Heater Break Indication
Set Point
0.0 TO 30.0A
Heater Break Indication
Set Point
0.0 TO 30.0A
Set Point Low Limit
Set Point High Limit
Offset
-20 to 20°C
Address
1 TO 127
Baudrate
/192/384/480
Parety
/Even / Odd
Data type
/Float/Long
If Select Long / Flot
Bytes Swap Mode
/Beb / Le / Be
Press key to
ENT
save & exit
