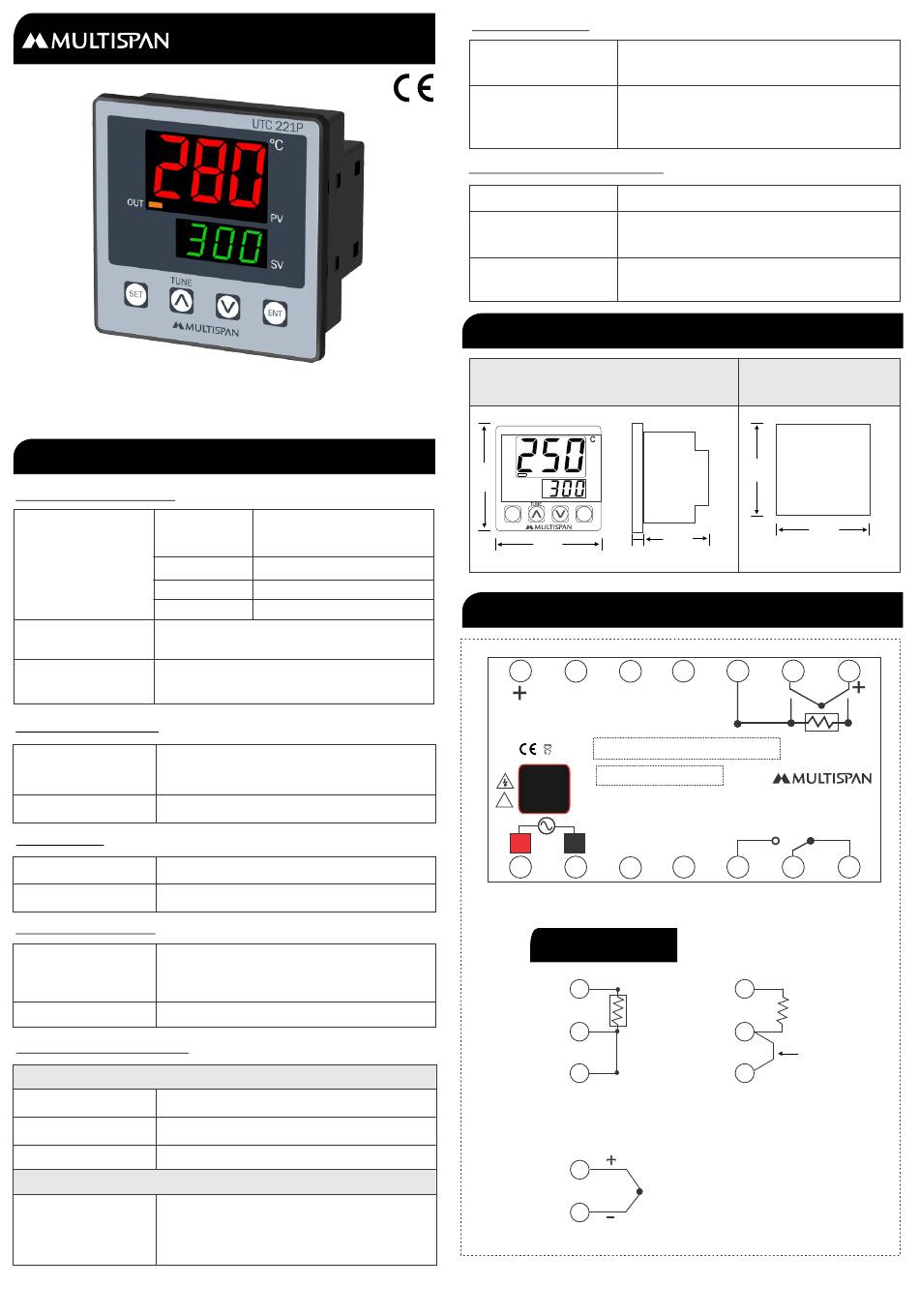

MULTISPAN UTC-221P Manual

PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
PT.1 = 0.1°C
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:-Full Scale Deflection)
DISPLAY AND KEYS:
Upper: 3 digit, 7 segment, 0.80"
Display
Lower: 3 digit, 7 segment, 0.40"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 45 (D) mm
Panel Cutout 68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
Cooling ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay 1 Nos
Relay Type 1C/O (NO-C-NC)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
Output Signal
(On-Off condition)

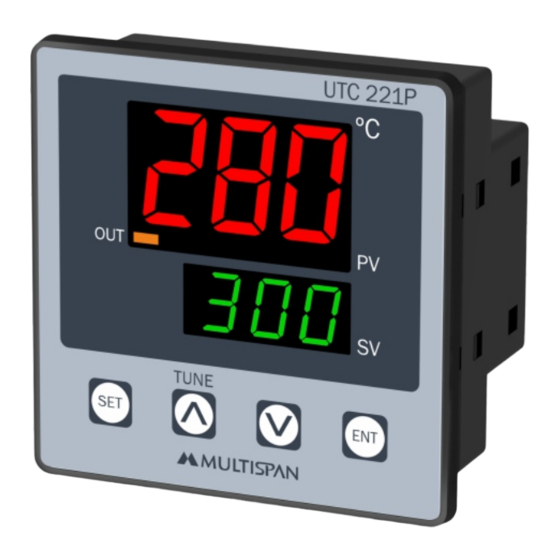

TEMPERATURE CONTROLLER
UTC-221P
Display Color:
Upper : RED/WHITE
Lower: Green
Range
J 0 to 600°C,
K 0 to 999°C,
-99 to 400°C,
-19.9 to 99.9°C,
POWER SUPPLY:
Supply
100 to 270V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
(As per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 221P
°
PV
72 OUT
SV
SET ENT
72
3
TERMINAL CONNECTION
14 12
13
-
S.S.R
O/P
Control Action: T.P, ON-OFF, PID
Made in India
100 ~
Sensor: J, K, PT-100
270V AC
50/60 Hz
!
4VA
L N
1 2 3
Sensor Input
8
9
10
3-Wire RTD
8
9
Thermocouple
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
68
68
45
11 10 9
-
T/C
RTD
www.multispanindia.com
Relay
NO C
4 5 6
8
9
Install jumper
when using
10
2 Wire RTD
2-Wire RTD
8
NC
7
