Model SG13A
Instruction Manual for the Globe Slicer
Models:
For all after sales support, visit www.globefoodequip.com
For additional Technical Support call Globe at 1-866-260-0522.
This manual contains important safety instructions that
must be strictly followed when using this equipment.
Maintain and use this manual as a reference for training.
S13, SG13, S13A & SG13A
•
Complete the Warranty Registration
•
Find an Authorized Servicer
•
View Parts Catalogs
- IMPORTANT SAFETY NOTICE -
Model #:
Serial #:
Advertisement
Table of Contents
Related Manuals for Globe S13
Summary of Contents for Globe S13
- Page 1 • Find an Authorized Servicer • View Parts Catalogs For additional Technical Support call Globe at 1-866-260-0522. - IMPORTANT SAFETY NOTICE - This manual contains important safety instructions that must be strictly followed when using this equipment. Maintain and use this manual as a reference for training.
-
Page 2: Additional Features
Additional Features (Models SG13 & SG13A only) 1. Four-hour cleaning timer. This timer compliments any HAACP procedures your business has in place, by alerting the users when they are getting near to four hours since making their first slice and stopping the slicer for cleaning when four hours is reached. 2. -
Page 3: Table Of Contents
TROUBLESHOOTING GUIDE .......................... 31 LIMITED SLICER WARRANTY ......................... GLOBE FOOD EQUIPMENT CO. 2153 DRYDEN RD. DAYTON, OH 45439 Toll Free: 800-347-5423 PHONE: 937-299-5493 FAX: 937-299-8623 E-MAIL: info@globefoodequip.com WEBSITE: www.globefoodequip.com © Globe Food Equipment Company, 2023 980316 Ver. Rev. B 3-2023 Page... -
Page 4: Attention Owners And Operators
Attention Owners and Operators Globe’s equipment is designed to provide years of safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Importantly, unless the operator is adequately trained and supervised, there is a possibility of serious injury. -
Page 5: Key Components Of The Slicer

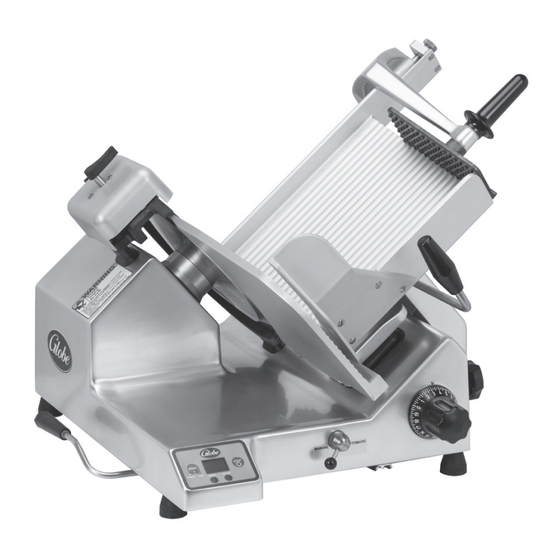

Key Components of the Slicer Knife Sharpener Carriage Receiving Area Warning Label Power Cord Lift Lever Slice Thickness Dial Overload Reset Button (On bottom) Start Button Auto Engage Lever Power Indicator Stop Light (Plugged in) Button Run Indicator Speed Stroke Display Light (Knife running) Button... - Page 6 Intentionally Left Blank...
-
Page 7: Globe Slicer Safety Tips
It is the responsibility of the slicer owner/operator to follow all guidelines, instructions and laws as established by your local and state health departments and the manufacturers of chemical sanitizers. • USE ONLY PROPERLY INSTALLED GLOBE SLICER ACCESSORIES. Page... -
Page 8: Installation
Contact your local representative or Globe first. Make sure to clean and sanitize your entire slicer before use. Refer to this manual for cleaning and sanitizing guidelines. - Page 9 10. Refer to the procedures outlined in Cleaning & Sanitizing section to clean the slicer before use. 11. Contact your local representative, or Globe directly, if you have questions or problems with the installation or operation of the slicer.
-
Page 10: Operating Instructions
BEFORE CLEANING, SERVICING, OR REMOVING ANY PARTS always turn knife motor OFF, turn slice thickness dial clockwise until it stops and unplug power cord. MANUAL SLICER OPERATION (S13, SG13, S13A& SG13A) Note: The slicer is equipped with a four hour cleaning timer. After the four hour cleaning timer expires, all slicer functions will stop and the operator must follow the cleaning steps provided in order to reset the four hour cleaning timer (Models SG13 &... - Page 11 Operating Instructions 3. Refer to Cleaning and Sanitizing. 4. Plug in power cord (Models S13, SG13, S13A and SG13A). Note: When the slicer is plugged in the white POWER indicator light will illuminate. Note: If knife cover is not secure the knife motor will not start and the display will show ''ATTENTION Knife Cover Removed Install Knife Cover'' (Models S13A, SG13 &...
- Page 12 Operating Instructions AUTOMATIC SLICER OPERATION (Models S13A and SG13A) Note: Model SG13A. The slicer is equipped with a four hour cleaning timer. After the four hour cleaning timer expires, all slicer functions will stop and the operator must follow the cleaning steps provided in order to reset the four hour cleaning timer.
- Page 13 Operating Instructions 10. To adjust the speed of the carriage, select the SPEED button (Fig. 13-2). Note: When the auto engage lever is in the AUTOMATIC position, up to four speed settings are available with the SPEED button (Model SG13A only). Note: When the auto engage lever is in the AUTOMATIC position, up to two speed settings are available with the SPEED button (Model S13A only).
-
Page 14: Cleaning & Sanitizing
Cleaning & Sanitizing SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY TO THE SLICER OPERATOR AND CUSTOMERS: • NEVER touch slicer before reading and completely understanding everything in this instruction manual. You must be at least 18 years old and have had proper training and authorization from your supervisor. •... - Page 15 Cleaning & Sanitizing DISASSEMBLY & CLEANING Note: The slicer is equipped with a four hour cleaning timer. After the four hour cleaning timer expires, all slicer functions will stop and the operator must follow the cleaning steps provided in order to reset the four hour cleaning timer (Models SG13 and SG13A).
- Page 16 Cleaning & Sanitizing BE ALERT. Slicer knife edge is exposed. Always be aware of the placement of your hands/fingers in relation to knife. Place all removable parts in a three compartment sink with warm water and a mild detergent solution; soak, clean, and thoroughly scrub all surfaces using a solution of mild detergent and warm water.
- Page 17 Note: If knife cover is not secure the knife motor will not start and the green RUN indicator light will flash (Model S13). Note: When carriage is not returned to operating position (to the left), the knife motor will not start and display will show ''ATTENTION Carriage Tilted Secure Carriage to Start'' (Models SG13, S13A and SG13A).
-
Page 18: Knife Sharpening
Knife Sharpening SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • NEVER touch slicer before reading and completely understanding everything in this instruction manual. You must be at least 18 years old and have had proper training and authorization from your supervisor. •... - Page 19 Knife Sharpening SHARPENING THE KNIFE Knife Note: Sharpening and honing stones will perform correctly ONLY Sharpener when free from dirt, grease and built-up food residue. Use the wire brush included with your slicer to periodically Handle clean the stones BEFORE sharpening the knife blade. 1.
-
Page 20: Inspections, Simple Maintenance And Repair
INSPECT THE SLICER FOR DAMAGED OR BROKEN PARTS INCLUDING GASKETS & SEALS. A thorough visual inspection should be made of the entire slicer and its parts. Globe urges the owner/operator to inspect all components often and for an authorized service agent to inspect the entire slicer at least every months, including all parts that are detachable for cleaning and sanitizing. - Page 21 Figure 21-2 End Weight Slide Rod The end weight slide rod should be lubricated with a few drops of Globe oil, every week or when excessive drag is felt. 1. Apply a few drops of Globe oil to end weight slide rod (Fig. 21-3).
-
Page 22: Removable Carriage Option
Removable Carriage Option REMOVABLE CARRIAGE OPTION A factory available, removable carriage option allows the carriage to be removed. Removal of Removable Carriage Carriage 1. Push STOP button to turn off knife motor. Release Knob 2. Turn slice thickness dial clockwise past zero (0) until it stops Figure 22-1 so gauge plate covers knife edge. - Page 23 Removable Carriage Option Installation of Removable Carriage After cleaning, sanitizing, and allowing the removable carriage to air dry, it must be reinstalled. 1. Use two hands to install removable carriage (Fig. 23-1). 2. Align peg on bottom of the removable carriage with slot in the carriage arm (Fig.
-
Page 24: Knife Removal Option
Knife Removal Option KNIFE REMOVAL OPTION A factory available, knife removal option allows the knife to be removed. Knife Removal Figure 24-1 Use two hands when handling knife removal tool. If dropped, damage to knife and knife removal tool can occur. - Page 25 If dropped, damage to knife and knife removal tool can occur. Replace knife removal tool. 1. Place one drop of Globe oil (special food grade lubricating oil) on the knife shaft (Fig. 25-1). 2. On the shaft under the knife, align (+) with (▲) (Fig. 25-2).
- Page 26 Intentionally Left Blank Page 26...
-
Page 27: Maintenance Mode
2. Hold down the STOP button. An ''*'' in the top left corner of the display screen will appear. Release the STOP button when the ''*'' disappears from the display. 3. When the Globe logo appears, press and hold the STOP button. The display will show ''Entering Maintenance Mode.'' 4. - Page 28 Maintenance Mode (Models SG13, S13A & SG13A only) MENUS OPTIONS ACTION System Counters Counter Mode Examine (Models SG13 and SG13A only) Powered Up Total Displays the total amount of time the No action required. slicer has been plugged in. Knife On Total Displays the total amount of time in No action required.
- Page 29 Maintenance Mode (Models SG13, S13A & SG13A only) MENUS OPTIONS ACTION Reset Knife Motor Displays the Reset Knife Timer. Press STOP to verify reset operation. Auto Mode Motor Displays the Auto Timer Motor. Press STOP to verify reset operation. (Model SG13A only) Language Setup ''ATTENTION'' screens will alternate No action required.
- Page 30 Intentionally Left Blank Page...
-
Page 31: Troubleshooting Guide
Hard to sharpen Stones dirty, wet or clogged with Clean stones with warm water grease and a brush. Allow stones to air dry. Lubricate shafts with Globe oil afterwards Knife dirty Clean top and bottom of knife Worn stones Have stones replaced... -
Page 32: Limited Slicer Warranty
Limited Slicer Warranty Globe Food Equipment Company (''GFE'') warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of months from date of factory shipment, or 24 months from date of installation, whichever comes first.
