Summary of Contents for IEI Technology MPCIE-CAN-R10
Page 1

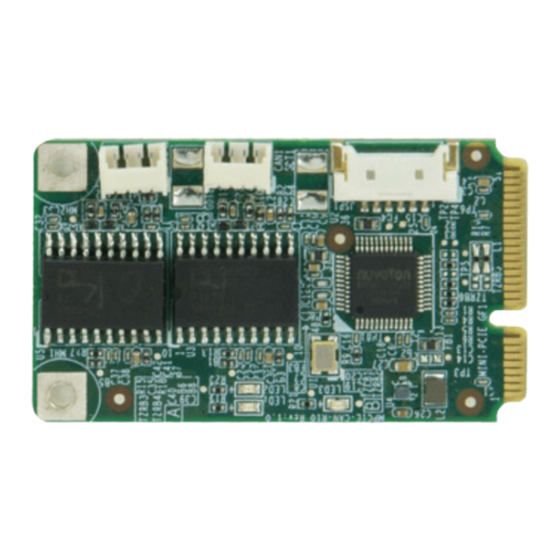

MPCIE-CAN PCIe Mini CAN Bus Card Quick Installation Guide Version 1.00 April 26, 2019 Features Supports dual CAN 2.0B port USB 2.0 based; no additional driver required Galvanic isolation 2500 V Operation temperature: -20°C to 60°C Packing List 1 x MPCIE-CAN card ...
Page 2
- Complies with EN61000-4-5 2.5kV surge protection - Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection - Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV Ordering Information MPCIE-CAN-R10: PCI Express Mini dual CAN bus module, full size, RoHS 32133-026500-100-RS: ...
Page 3
Connector Pinouts CAN1 & CAN2: CAN bus connector (p=1.25 mm) Description Description CAN_H CAN_L DB-9 connector of CAN bus cable CAN_L CAN_H JSP1: SPI flash connector (p=1.25 mm) Description Description +VDD TICERST TICEDAT TICECLK Dimensions (Unit: mm)
Page 4
