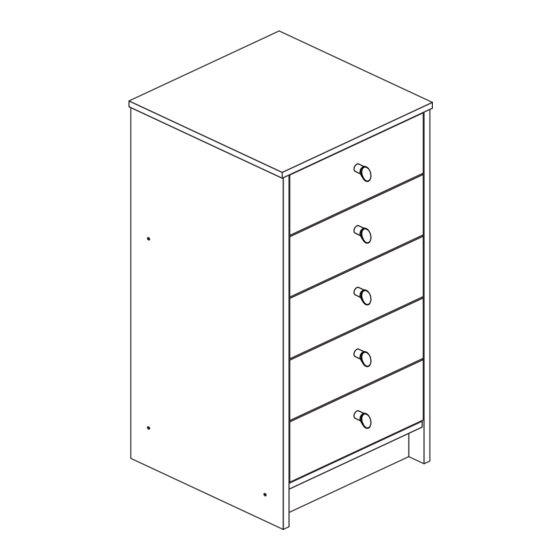

Malibu - 5 Drawer Chest
Assembly Instructions -
Dimensions
Width - 39cm
Depth - 40cm
Height - 92.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
238/7154
246/2299
249/5943
247/3903
246/7476
MADE IN
BRITAIN
Issue 4 - 22/07/14
Advertisement
Related Manuals for Argos Malibu 238/7154
Summary of Contents for Argos Malibu 238/7154
- Page 1 Malibu - 5 Drawer Chest Assembly Instructions - 238/7154 Please keep for future reference 246/2299 249/5943 247/3903 246/7476 Dimensions Width - 39cm Depth - 40cm MADE IN Height - 92.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 22/07/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 21kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below 3 Top (D2823A) (388 x 396mm) 4 Plinth (D2825A) (349 x 92mm) Rail (D2826A) (349 x 72mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 5 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place 5 runners the left side shown. Slide back the top of runner and use the 2nd hole from the front Finished to fit the 1st screw front edge Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and Finished fit the 2nd screw into...
- Page 9 Assembly Instructions Step 11 Fit the rail to the right side Push the rail onto the right side Finished front edge p l a i n c h i p a r d s u r f a c Finished front edge Step 12 Fit the plinth and back...
- Page 10 Assembly Instructions Step 13 Fit the left side Push the left side onto the unit and secure it with 3 screws Step 14 Prepare the top Screw 2 metal dowels into the top Fix the bracket in the middle of the top Finished flush to the back edge, front edge...
- Page 11 Assembly Instructions Step 15 Fit the top Push the top onto the side panels. Use a screwdriver to tighten the large locking fitted to each side. Note: Turn the large locking nut as far as it will go - more than 1/2 a turn.
- Page 12 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3026...
