New Hallingford

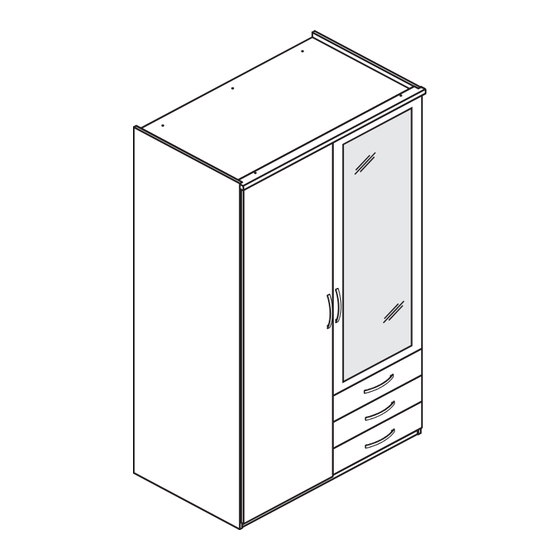

2 Door 3 Drawer Wardrobe
Assembly Instructions
Dimensions
Width - 99,7cm
Depth - 60,3cm
Height -205,7cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
- Please keep for future reference
Tip: To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
2274951
2498696
2684321
2599409
2328450
Issue 7 20-12-2016
Advertisement
Related Manuals for Argos 2274951
Summary of Contents for Argos 2274951
- Page 1 Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on •To reduce the components and tools listed on likelihood of the product, this could cause pages 2 and 3.
- Page 3 Components - Panels For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the panels listed below Door x 1 Left side Right side Mirror door small (205.6 x 58cm) (205.6 x 58cm) (199.2 x 48.8cm) (151.2 x 48.8cm)
- Page 4 Components - Fittings For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Drawer assembly x 3 Insert two small locking nuts J into drawer wrap Make sure the ‘arrow’ on is pointing towards the hole in the edge of 0. Screw 24mm locking screws H into holes shown on back of drawer front !.
- Page 6 Assembly Instructions Step 1 - continued Turn the drawer wrap assembly over and push onto the drawer front !. Use a phillips or flatblade screwdriver, that is a good fit to turn 24mm locking srew I as far as it will go - more than 1/2 turn.
- Page 7 Assembly Instructions Step Step 2 - continued Slide top of runners R back. Fix through 3rd hole of runner R and pre-drilled holes of right side 2 using 10mm fixing screw drawer Fix through 1st and 7th hole of runners R using 15mm screw O.
- Page 8 Assembly Instructions Step 4 Attaching plinths Allign the sides of plinth front # with bottom 5 as shown and attach using 40mm screw A. Unfinished back edge Note: there are no predrilled holes for 40mm screw A. Top side Note: top and bottom panels 5 are identical.
- Page 9 Assembly Instructions Step 7 Step Insert locking screws Screw 24mm locking screw H into upright small 6. Unfinished back edge Step 8 Attaching panels Two people are needed here. Position upright small 6 onto bottom 5 and small horizontal 8. Insert two Large locking nuts I into upright small 6 and small horizontal 8...
- Page 10 Assembly Instructions Step 10 Attaching panel Two people are needed here. Position left side 1 onto bottom/top 5 and large horizontal 7. Insert large locking nuts I in top/bottom 5 and large horiziontal 7. Use a screwdriver to turn locking nuts I clockwise to lock.
- Page 11 AssemblyInstructions S S tep 12 Attaching pelment and L-bracket Position pelment % onto top % as shown, fix by using 40mm screws A. Position L-Bracket G onto top 5 as shown, fix by using 15mm screw D. Note: there are no pre-drilled holes for 15mm screw D.
- Page 12 Assembly Instructions Step 16 See page 1 for link to instruction video! Hanging doors With help, slot hinge door Q onto hinge back Tighten screw shown to lock hinges in position. Repeat a and b for other door. See ‘Hinge adjustment’ in step 17 if the doors need adjusting.
- Page 13 AssemblyInstructions Step 17 Warning: Do not use an electric screwdriver to attach the hinges as this can weaken the fixing. Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, re-tighten.
- Page 14 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are suitable for supporting your unit.
