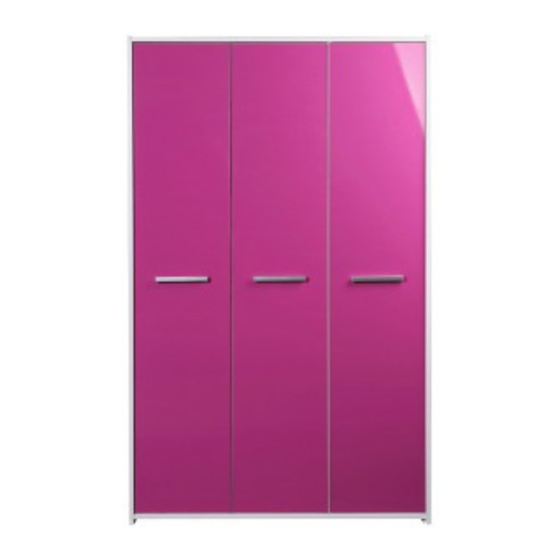

Kids Sywell - 3 Door Robe

Assembly Instructions -

Dimensions

Width - 104cm

Depth - 50cm

Height - 172cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

246/7634

228/8318

238/7460

238/9341

MADE IN

BRITAIN

Issue 5 - 31/10/14

Need help?

Do you have a question about the Kids Sywell 246/7634 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Kids Sywell 246/7634

Page 1 Kids Sywell - 3 Door Robe Assembly Instructions - 246/7634 Please keep for future reference 228/8318 238/7460 238/9341 Dimensions Width - 104cm Depth - 50cm MADE IN Height - 172cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 5 - 31/10/14...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 59kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Upright Door (D2560A) (D2569A) (D2923A) (D2563A) (1711 x 496mm) (1711 x 496mm) (1656 x 468mm)
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the upright Insert 4 large locking nuts into the upright Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Page 6 Assembly Instructions Step 2 Prepare the top Tap 4 wooden dowels into the top Insert 4 large locking nuts into the top Screw 2 metal dowels Finished into the top front edge Note: Tighten the metal dowels up fully against the panels.
Page 7 Assembly Instructions Step 4 Fit the top and base to the upright Push the top and the base onto the upright Use a screwdriver to tighten the 4 large locking nuts fitted to Finished front edge the upright Finished front edge Note: Turn the large locking nuts as far as...
Page 8 Assembly Instructions Step 6 Prepare the right side Screw 4 metal dowels into the right side Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge. Finished front edge Step 7 Fit the right side Push the right side...
Page 9 Assembly Instructions Step 9 Fit the rail Push the rail onto the upright Use a screwdriver to tighten the large locking fitted to the rail Note: Support the rail until the left side has been fitted in the next step. Step 10 Fit the left side Push the left side...
Page 10 Assembly Instructions Step 11 Fit the back panel Square up the unit by making sure that The measurement from top corner X to bottom corner X must be measurement x to x equal to the measurement from top corner Y to bottom corner Y equals y to y.
Page 11 Assembly Instructions Step 12 Fit the plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 13 Fit the hanging rail Push the hanging rail into the rail holders...
Page 12 Assembly Instructions Step 14 Fit the shelves and door stops For each shelf , insert 4 shelf studs at the required height. Lower the 3 shelves down onto the shelf studs Push the other 2 shelf studs down into the holes in the base act as door stops.
Page 13 Assembly Instructions Step 16 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
Page 14 Assembly Instructions Step 17 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
Page 15 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
Page 16 ALR3021...
Page 17 Kids Sywell - 3 Door Robe Assembly Instructions - 246/7634 Please keep for future reference 228/8318 238/7460 238/9341 Dimensions Width - 104cm Depth - 50cm MADE IN Height - 172cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 6 - 18/11/14...
Page 18 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 59kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 19 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Upright Door (D2560A) (D2569A) (D2923A) (D2563A) (1711 x 496mm) (1711 x 496mm) (1656 x 468mm)
Page 20 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 21 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the upright Insert 4 large locking nuts into the upright Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Page 22 Assembly Instructions Step 2 Prepare the top Tap 4 wooden dowels into the top Insert 4 large locking nuts into the top Screw 2 metal dowels Finished into the top front edge Note: Tighten the metal dowels up fully against the panels.
Page 23 Assembly Instructions Step 4 Fit the top and base to the upright Push the top and the base onto the upright Use a screwdriver to tighten the 4 large locking nuts fitted to Finished front edge the upright Finished front edge Note: Turn the large locking nuts as far as...
Page 24 Assembly Instructions Step 6 Prepare the right side Screw 4 metal dowels into the right side Fit 3 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge. Finished front edge Step 7 Fit the right side Push the right side...
Page 25 Assembly Instructions Step 9 Fit the rail Push the rail onto the upright Use a screwdriver to tighten the large locking fitted to the rail Note: Support the rail until the left side has been fitted in the next step. Step 10 Fit the left side Push the left side...
Page 26 Assembly Instructions Step 11 Fit the back panel Square up the unit by making sure that The measurement from top corner X to bottom corner X must be measurement x to x equal to the measurement from top corner Y to bottom corner Y equals y to y.
Page 27 Assembly Instructions Step 12 Fit the plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 13 Fit the hanging rail Push the hanging rail into the rail holders...
Page 28 Assembly Instructions Step 14 Fit the shelves and door stops For each shelf , insert 4 shelf studs at the required height. Lower the 3 shelves down onto the shelf studs Push the other 2 shelf studs down into the holes in the base act as door stops.
Page 29 Assembly Instructions Step 16 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
Page 30 Assembly Instructions Step 17 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
Page 31 If in doubt, consult an expert. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
Page 32 ALR3021...

This manual is also suitable for:

Kids sywell 228/8318 Kids sywell 238/7460 Kids sywell 238/9341
