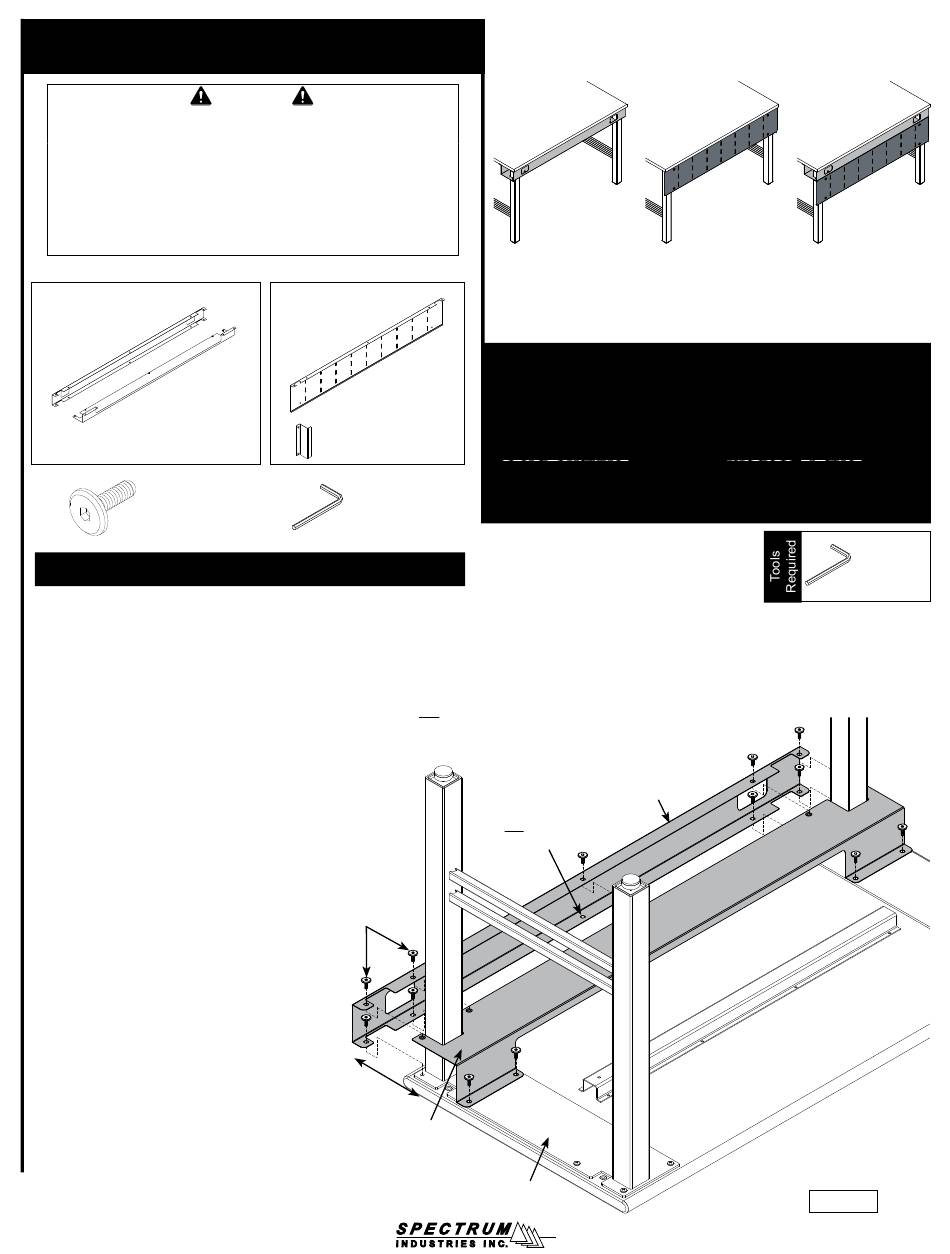

Spectrum Industries 37257 Assembly Instructions

Assembly Instructions Assembly Instructions
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(One or both of the following may be included)
(1) Rear Cord Channel
0106722 (72")
0106719 (60")
(1) Front Cord Channel
0106723 (72")
0106720 (60")
(13) 044541
1/4-20 x 20mm
JC bolt
Installation - Cord Channel only
1. Flip the table upside-down onto a non-abrasive surface.
2. Remove the four rear-most PHM screws from each leg mounting plate.
3. Attach the front half of the cord channel to the worksurface (through the leg mounting plates) as shown
using 1/4-20 JC bolts and tighten securely. Figure 1.
4. Attach the rear half of the cord channel to the worksurface (through the leg mounting plates) as shown
using 1/4-20 JC bolts and tighten securely.
Note: The hole in the middle of the mounting flange does not require a JC bolt into the worksurface.
5. Align the cord channel mounting holes from both halves, and attach together with JC bolts.
Note: The rear half will overlap the front, and the JC bolts will thread into the front half.
Important
(1) Modesty Panel
0106721 (72")
0106718 (60")
(2) 0106717
Modesty Panel Brace
(1) 025039
4mm Hex
wrench
1/4-20 JC bolts
Front half of
cord channel
Cord Channel
Cord Channel / Modesty Panel
for Flex Training Tables
Cord Channel
37257 - for 60" table
37258 - for 72" table
Rear half of
cord channel
Do not install
JC bolt here
Leg Mounting Plate
Modesty Panel Cord Channel &
Modesty Panel
Modesty Panel
37254 - for 60" table
37255 - for 72" table
Worksurface
Figure 1
0106710R1 Page 1 of 3
4mm Hex
wrench
(included)
