protech prox PA-6980 Quick Reference Manual

PA-6980
Quick
Reference
Guide
Specifications
Intel ® Core
Intel ® Core
CPU Support
Pentium ® G4400
Celeron ® G3900
Intel ® H110 Chipset
Core Logic
System Memory 2 x DDR4 SO-DIMM slots (up to 32GB)
Network 10/100/1000Mbps Base-T Fast Ethernet
Power Supply 120 Watt power
BIOS AMI SPI BIOS, 8Mbits with VGA BIOS
8.86 kg (Printer Stand POS), 6.6 kg (Normal Stand POS),
System Weight
5.3 kg (PPC)
367.49 x 281.95 x 303.04 mm (Normal Stand POS)
Dimension 367.49 x 281.95 x 205.08 mm (Printer Stand POS)
367.49 x 281.95 x 74.88 mm (PPC)
POSReady7 / Win7 / Win8.1 / Win 10
O.S. Support
* 7th Gen. processor supports Win 10 only.
Storage
HDD 1 x 2.5" SATA HDD or SSD (option)
USB 2 x USB 2.0 ports, 2 x USB 3.0 ports on rear
eSATA 1 x eSATA (external SATA) port
Serial Port 2 + 1(option) x DB9 (+5V/12V selectable), 1 x RJ45 (COM1)
I/O Ports
LAN 1 x RJ-45
VGA 1 x DB-15 VGA Interface
Line-Out 1 x phone jack
Cash Drawer 1 + 1 (option, with Y cable) x RJ11 (+12V/+24V selectable)
DC IN 1 x 4 pin DC Power Jack
Customer Display
VFD kit, 20 columns and 2 lines, each column is 5 x 7 dots
Printer 2" or 3" easy loading thermal printer with Auto cutter
Peripheral
MSR & iButton
Fingerprint 8-bit grayscale reader
LCD 15" TFT XGA LCD
Max. Resolution 1024x768
Display
Brightness 300 cd/m²
5-wire Analog Resistive or Projected Capacitive
Touch Screen
Tilt Angle 0 ~ 68 degree
EMC & Safety CE / FCC
Operating Temp.
0°C ~ 35°C
Environment
Storage Temp. -20°C ~ 60° C
Humidity 20% ~ 90%
All Rights Reserved. Copyright 2019
PA-6980
6th Gen. Skylake 7th Gen. Kabylake
Intel ® Core
TM
i5-6500 TM
i7-7700
Intel ® Core
TM
i3-6100 TM
i5-7500
Intel ® Core
TM
i3-7101E
Pentium ® G4560
Celeron ® G3930E
ISO I,II,III; JIS I,II and support information key
Packing Checklist
If you discover any item below are damaged or
lost, please contact your vendor immediately.
PA-6980
This Quick Reference Guide
AC Power Adaptor
Manual/Driver CD
Ver. Q4
System View
Front View
367.49
Side View
I/O View
option
PRINT
PWR
Rear View

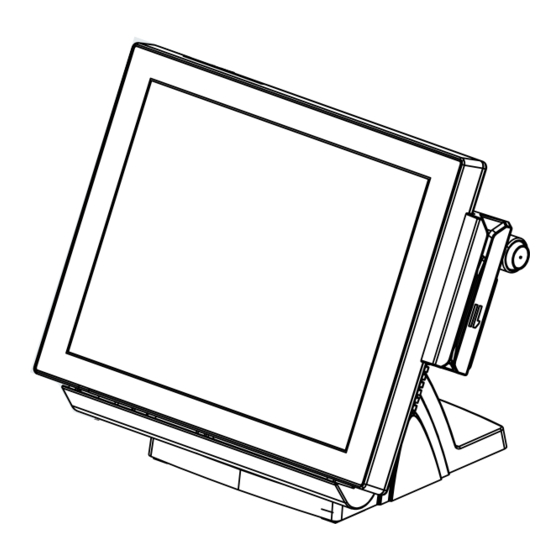

Quarter View
USB1
USB0
DC IN
COM1 VGA
DRW1
COM3 COM2 LAN
option
COM4
PA-6980
x1
x1
x1
x1
PA-6980
Unit: mm
LINE-OUT
USB2
USB3
eSATA
