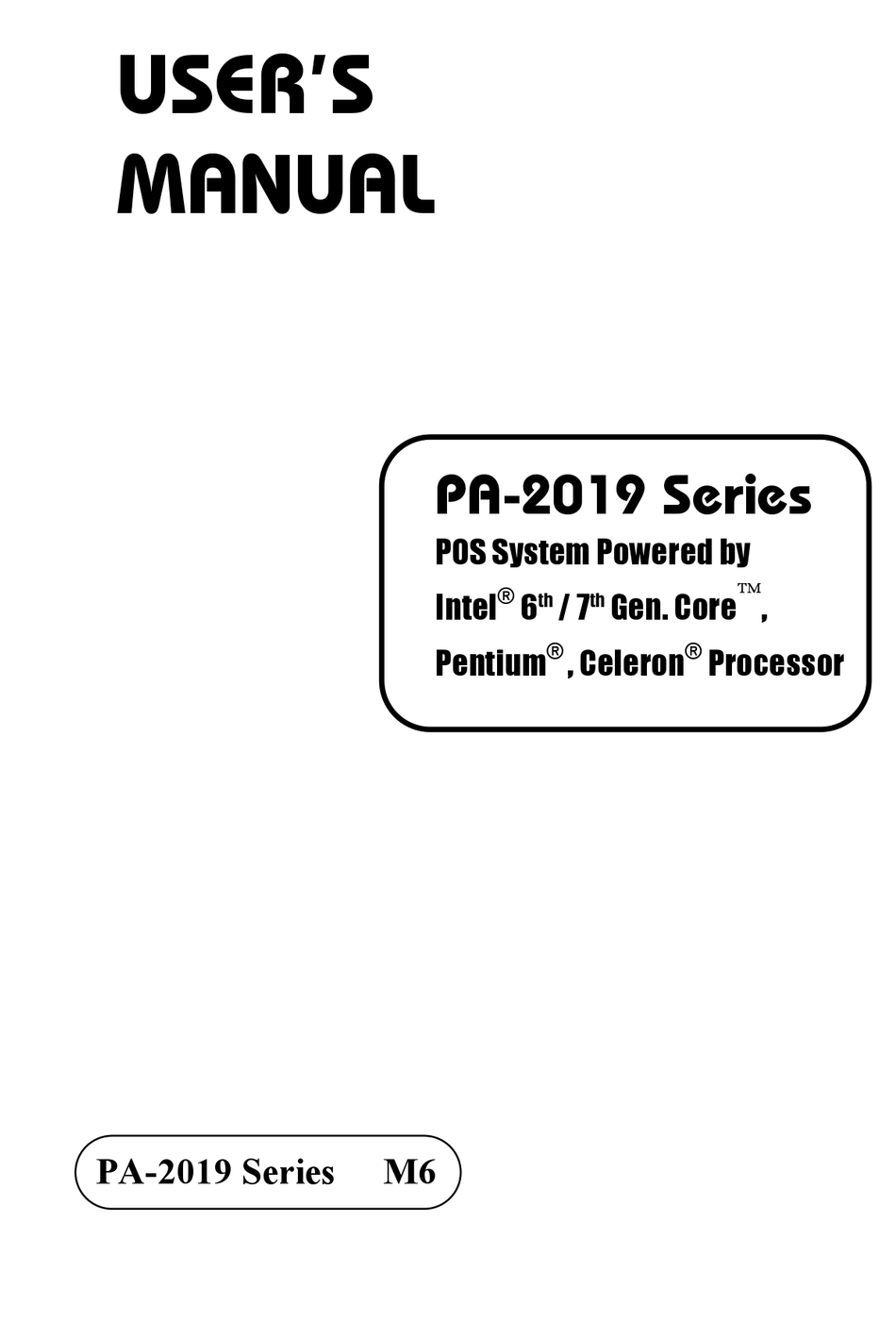

USER'S
MANUAL
PA-2019 Series
PA-2019 Series
POS System Powered by
®
Intel
6
th
®
Pentium
M6
/ 7
Gen. Core
th
®
, Celeron
Processor
,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-2019 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for protech PA-2019 Series

Summary of Contents for protech PA-2019 Series

  • Page 1 USER’S MANUAL PA-2019 Series POS System Powered by  ® Intel Gen. Core ® ® Pentium , Celeron Processor PA-2019 Series...
  • Page 2 PA-2019 Series POS System With LCD / Touchscreen COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in July 2019. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual…............POS System Illustration…..........1-2-1 Panel PC………………………………………... 1-2-2 Normal Stand…………………………………… 1-2-3 POS with 2nd Display………………………….. 1-2-4 Rear I/O View………………………………….. System Specifications…........... Safety Precautions…............1-10 CHAPTER 2 SYSTEM CONFIGURATION Jumper & Connector Quick Reference Table…....Main Board Component Locations….......
  • Page 5 Contents 2-4-24 Card Reader Connector………………....2-33 2-4-25 SATA & SATA Power Connector……………. 2-34 2-4-26 Touch Panel Connector……………………….. 2-35 2-4-27 Touch Panel and USB9-1 Selection…………... 2-36 2-4-28 LVDS Output Resolution Selection…………... 2-37 2-4-29 Mini-PCIe / SATA Connector………………… 2-38 2-4-30 Mini-PCIe and USB6 Selection………………. 2-39 2-4-31 Embedded Display Port (EDP) Connector 2-40...
  • Page 6 Contents APPENDIX A SYSTEM ASSEMBLY Easy Maintenance – HDD…………..........Easy Maintenance – Back Cover……………………………….. Easy Maintenance – CPU and Memory…………......Exploded Diagrams for 5-wire Analog Resistive Touch Panel: Exploded Diagram for PA-2019 POS Open & Close…………... Exploded Diagram for PA-2019 POS Stand……………………. Exploded Diagram for PA-2019 120W Power Adapter………...

  • Page 7: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for the PA-2019. It also outlines the system specifications. The following sections are included: About This Manual  POS System Illustration  - Panel PC - Normal Stand - POS with 2nd Display - Rear I/O View System Specifications ...
  • Page 8 Chapter 1 Introduction 1-1. ABOUT THIS MANUAL Thank you for purchasing our PA-2019 Series System. The PA-2019 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The PA-2019 provides faster processing speed, greater expandability and can handle more tasks than before.
  • Page 9 Chapter 1 Introduction 1-2. POS SYSTEM ILLUSTRATION Unit: mm 1-2-1. Panel PC 367.49 74.88 30.43 Page: 1-3 ′ PA-2019 SERIES USER S MANUAL...
  • Page 10 Chapter 1 Introduction 1-2-2. Normal Stand Unit: mm 15” Touch & Optional: MSR & Stand iButton Adjustable angle 0-68 degree 367.49 215.31 Page: 1-4 ′ PA-2019 SERIES USER S MANUAL...
  • Page 11 Chapter 1 Introduction 1-2-3. POS with 2nd Display Unit: mm 200.47 367.49 49.75 Display 215.31 ′ Page: 1-5 PA-2019 SERIES USER S MANUAL...
  • Page 12 Chapter 1 Introduction 1-2-4. Rear I/O View USB0 DC IN LINE-OUT COM1 USB2 USB3 DRW1 option eSATA COM2 PRINT COM3 option COM4 RJ45 RJ11 DRW1-1 P/N:27-024-27403111 P/N:27-026-29616111 Page: 1-6 ′ PA-2019 SERIES USER S MANUAL...

  • Page 13: System Specifications

    6.6 kg (POS), 6.8 kg (POS + 2nd Display), 5.3 kg (PPC) Dimensions (WxHxD) 367.49 x 281.95 x 303.04mm (Normal Stand POS) • 417.24 x 352.38 x 215.31mm (POS + 2nd Display) • 367.49 x 281.95 x 74.88mm (PPC) • Certificate FCC/CE Page: 1-7 ′ PA-2019 SERIES USER S MANUAL...
  • Page 14 Signal Interface: LVDS (18/24bit) Touchscreen 5-wire Analog resistive or Projected Capacitive Brightness Resistive Touchscreen: • Minimum 160 cd/m Projected Capacitive Touchscreen: • Minimum 180 cd/m Tilt Angle 0-68 degree with normal stand • Page: 1-8 ′ PA-2019 SERIES USER S MANUAL...
  • Page 15 866, CP-1250, CP-1251, CP-1252, CP-1253, CP-1254, CP-1255, CP-1257 International Characters • USA, FRANCE, GERMANY, UK, DENMARK I, SWDEN, ITALY, SPAIN I, JAPAN, NORWAY, DENMARK II, SPAIN II, LATIN, KOREA, RUSSIA, SLAVONIC Fingerprint 8-bit grayscale reader Page: 1-9 ′ PA-2019 SERIES USER S MANUAL...

  • Page 16: Safety Precautions

    (1) Place your PA-2019 on a sturdy, level surface. Be sure to allow enough space around the system to have easy access needs. (2) Avoid installing your PA-2019 Series POS system in extremely hot or cold places. (3) Avoid exposure to sunlight for a long period of time (for example, in a closed car in summer time.
  • Page 17 (3) If heavy stains are present, moisten a cloth with diluted neutral washing agent or alcohol and then wipe thoroughly with a dry cloth. (4) If dust is accumulated on the case surface, remove it by using a special vacuum cleaner for computers. Page: 1-11 ′ PA-2019 SERIES USER S MANUAL...

  • Page 18: Chapter 2 System Configuration

    CHAPTER SYSTEM CONFIGURATION Helpful information that describes the jumper and connector settings, and component locations. The following sections are included: Jumper & Connector Quick Reference Table  Main Board Component Locations  Main Board Configuration and Jumper settings  Main Board Connector Pin Assignments ...

  • Page 19: Jumper & Connector Quick Reference Table

    Card Reader Connector PS2_1 SATA & SATA Power Connector SATA1, SATA2, SATA_PWR1, SATA_PWR2 Touch Panel Connector TOUCH1 Touch Panel and USB9-1 JP18, JP19 Selection LVDS Output Resolution Selection JP8, JP9 Mini-PCIe/mSATA Connector M_PCIE1, M_PCIE2 ’ Page: 2-2 PA-2019 SERIES USER S MANUAL...
  • Page 20 Mini-PCIe and USB6 Selection JP21 EDP Connector (option) Configuration / Recovery Selection JP11 VCCIO / REFIN Selection JP10 Clear CMOS Data Selection JCMOS1 General Purpose Input / Output GPIO1 (GPIO) Connector Audio Jack LINE-OUT1 ’ Page: 2-3 PA-2019 SERIES USER S MANUAL...

  • Page 21: Main Board Component Locations

    SATA1 SATA_PWR2 SATA2 JP21 PWR_LED M_PCIE1 SYS_FAN1 JP10 GPIO1 I-BUT USB6 COM5 JP19 JP25 JP18 JP26 LVDS1 JINV1 SPK1 USB7 PS2_1 HDD_LED SPK2 TOUCH1 USB9-1 PB-6980 Front Connector, Jumper and Component Locations ’ Page: 2-4 PA-2019 SERIES USER S MANUAL...
  • Page 22 Chapter 2 System Configuration M_PCIE2 PB-6980 Rear Connector, Jumper and Component Locations ’ Page: 2-5 PA-2019 SERIES USER S MANUAL...

  • Page 23: How To Set The Jumpers

    PIN1 & PIN2 to create one setting and shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent. ’ Page: 2-6 PA-2019 SERIES USER S MANUAL...
  • Page 24 Chapter 2 System Configuration JUMPER DIAGRAMS JUMPER SETTINGS ’ Page: 2-7 PA-2019 SERIES USER S MANUAL...

  • Page 25: Main Board Connectors And Jumpers

    COM_VGA: COM2 & D-Sub 15-pin VGA Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT HSYNC GREEN VSYNC COM2/ BLUE DDCA CLK DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 RI/+5V/+12V DDCA DATA selectable ’ Page: 2-8 PA-2019 SERIES USER S MANUAL...
  • Page 26 The pin assignments are as follows: ASSIGNMENT ASSIGNMENT COM3_DCDJ_I COM3_DSRJ_I COM3_RX_I COM3_RTSJ_I COM3_TX_I COM3_CTSJ_I COM3_1 COM3_DTRJ_I COM3_RI_SEL COM4_1: COM4_1 Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT COM4_DCDJ_I COM4_DSRJ_I COM4_RX_I COM4_RTSJ_I COM4_TX_I COM4_CTSJ_I COM4_1 COM4_DTRJ_I COM4_RI_SEL ’ Page: 2-9 PA-2019 SERIES USER S MANUAL...
  • Page 27 Chapter 2 System Configuration COM5: COM5 Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT COM5_DCDJ_I COM5_DSRJ_I COM5_RX_I COM5_RTSJ_I COM5_TX_I COM5_CTSJ_I COM5 COM5_DTRJ_I COM5_RI_SEL ’ Page: 2-10 PA-2019 SERIES USER S MANUAL...

  • Page 28: I-Button Connector

    The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION VCC12 Note: Manufacturing Default is RI. 2-4-3. i-BUTTON CONNECTOR I-BUT: i-Button Connector The pin assignments are as follows: ASSIGNMENT COM3_DTR_R_I I-BUT COM3_RXD_R_I ’ Page: 2-11 PA-2019 SERIES USER S MANUAL...

  • Page 29: I-Button Function Selection

    The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION COM2 JP22/JP23/JP24 i-Button* JP22/JP23/JP24 Note: Manufacturing Default is COM2. *When these jumpers are set as ‘i-Button’, the COM3_1 connector will not function. ’ Page: 2-12 PA-2019 SERIES USER S MANUAL...
  • Page 30 LAN Message Active No LAN Message Active Right Side LAN LED Indicator Green Color On 10/100Mbps LAN Speed Indicator Orange Color On Giga LAN Speed Indicator No LAN switch / hub connected ’ Page: 2-13 PA-2019 SERIES USER S MANUAL...

  • Page 31: Internal Usb 2.0 Connector

    USB6 signal is shared from "MINI-PCIE" port. USB9-1 USB6 could be functioned when JP21 are set 1-3, 2-4 [short]. USB9-1 signal is shared from "MINI-PCIE" port. USB9-1 could be functioned when JP18, JP19 are set 1-2 [short]. ’ Page: 2-14 PA-2019 SERIES USER S MANUAL...

  • Page 32: Usb 3.0 Connector

    (external Serial Advanced Technology Attachment) is a 7-wire/7-pin technology. The maximum cable length is 6 1/2 feet (2 meters). eSATA and SATA have the same number of wires/pins and their signal formats are the same ’ Page: 2-15 PA-2019 SERIES USER S MANUAL...
  • Page 33 DRW1: RJ-11 Cash Drawer Connector (+12V/+24V selectable, default: +12V). DRW1 is used by default. The pin assignments are as follows: ASSIGNMENT DRW2 Sense GPIO1 / DRW1 DRW1 Sense DRW1 12V/24V (Max. current 1A) GPIO2 / DRW2 ’ Page: 2-16 PA-2019 SERIES USER S MANUAL...

  • Page 34: Cash Drawer Selection

    You can split DRW1 into two channels of DRW1-1 & DRW1-2 using the Y-Cable (option). JP17: Cash Drawer 2 Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Casher Drawer 2 JP17 Casher Drawer1 JP17 Note: Manufacturing Default is Cash Drawer 1. ’ Page: 2-17 PA-2019 SERIES USER S MANUAL...
  • Page 35 (1) Enter the extended function mode To place the chip into the Extended Function Mode, two successive writes of 0x87 must be applied to Extended Function Enable Registers (EFERs, i.e. 2Eh or 4Eh). ’ Page: 2-18 PA-2019 SERIES USER S MANUAL...
  • Page 36 ;------ Open the Cash drawer 1 -------------------------------------------- mov al, 91h out dx, al inc dx mov al, 04h out dx, al ;------ Exit the extended function mode -------------------------------------------------------- dec dx mov al, 0aah out dx, al ’ Page: 2-19 PA-2019 SERIES USER S MANUAL...

  • Page 37: Cash Drawer Power Selection

    Chapter 2 System Configuration 2-4-10. CASH DRAWER POWER SELECTION JP16: Cash Drawer Power Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION JP16 JP16 Note: Manufacturing Default is 12V. ’ Page: 2-20 PA-2019 SERIES USER S MANUAL...

  • Page 38: 2Nd Display Power Port

    2-4-11. 2nd Display Power Port 2nd DIS PWR: DC12V power supply for 2nd display. ASSIGNMENT ASSIGNMENT VCC12 VCC12 2-4-12. Printer Power Port (Option) PRINT PWR: DC24V power supply for the stand-printer. ASSIGNMENT +24V PRINT PWR (Option) ’ Page: 2-21 PA-2019 SERIES USER S MANUAL...

  • Page 39: Led Connector

    2-4-13. LED CONNECTOR PWR_LED: Power indication LED Connector The pin assignments are as follows: ASSIGNMENT PWR_LED VCC5 HDD_LED (option): HDD indication LED Connector The pin assignments are as follows: ASSIGNMENT VCC3_3 HDD_LED PCH_SATA_LED_N (option) ’ Page: 2-22 PA-2019 SERIES USER S MANUAL...

  • Page 40: System / Cpu Fan Connector

    2-4-14. SYSTEM / CPU FAN CONNECTOR SYS_FAN1: System Fan Connector 1 The pin assignments are as follows: ASSIGNMENT VCC12 SYS_FAN1 SYS_FANIN SYS_FANOUT CPU_FAN1: CPU Fan Connector 1 ASSIGNMENT VCC12 CPU_FANIN CPU_FANOUT CPU_FAN1 ’ Page: 2-23 PA-2019 SERIES USER S MANUAL...

  • Page 41: Power Input Connector

    2-4-15. POWER INPUT CONNECTOR PWR_IN1: Power Input Connector 1 The pin assignments are as follows: ASSIGNMENT PWR_IN1 24VIN 24VIN PWR_IN2: Power Input Connector 2 The pin assignments are as follows: ASSIGNMENT PWR_IN2 24VIN 24VIN ’ Page: 2-24 PA-2019 SERIES USER S MANUAL...

  • Page 42: Power Connector

    The pin assignments are as follows: ASSIGNMENT 24VIN DC24V 24VIN DC12V: DC 12Voltage Provider Connector The pin assignments are as follows: ASSIGNMENT VCC12_GT DC5V: DC 5Voltage Provider Connector The pin assignments are as follows: ASSIGNMENT V_5P0_A DC5V ’ Page: 2-25 PA-2019 SERIES USER S MANUAL...

  • Page 43: Power Switch Connector

    Chapter 2 System Configuration 2-4-17. POWER SWITCH CONNECTOR SW1: Power Switch Connector 1 The pin assignments are as follows: ASSIGNMENT LPC_PWRBTNJ (option) SW2: Power Switch Connector 2 The pin assignments are as follows: ASSIGNMENT LPC_PWRBTNJ ’ Page: 2-26 PA-2019 SERIES USER S MANUAL...

  • Page 44: External Speaker Connector

    2-4-18. EXTERNAL SPEAKER CONNECTOR SPK1: External Speaker Connector The pin assignments are as follows: PIN ASSIGNMENT HD_FRONT-OUT1-R SPK1/ HD_FRONT-OUT1-L SPK2 SPK2: External Speaker Connector (option) The pin assignments are as follows: PIN ASSIGNMENT HD_FRONT-OUT2-R HD_FRONT-OUT2-L ’ Page: 2-27 PA-2019 SERIES USER S MANUAL...

  • Page 45: Speaker Selection

    Chapter 2 System Configuration 2-4-19. SPEAKER SELECTION JP13: SPK1/SPK2 Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION SPK1&SPK2 JP13 Only SPK1 Open JP13 Note: Manufacturing Default is SPK1&SPK2. ’ Page: 2-28 PA-2019 SERIES USER S MANUAL...

  • Page 46: Inverter Connector

    Chapter 2 System Configuration 2-4-20. INVERTER CONNECTOR JINV1: Inverter Connector The pin assignments are as follows: PIN ASSIGNMENT JINV1 VCC12 VCC12 VCC12 LED_PWM PANLE_BKLTEN ’ Page: 2-29 PA-2019 SERIES USER S MANUAL...

  • Page 47: Lvds Connector

    LVDS1: LVDS Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS_CLKAP LVDS_CLKAM LVDS_CLKBM LVDS_CLKBP LVDS_YAP2 LVDS_YAM2 LVDS_YBM2 LVDS_YBP2 LVDS_YAP1 LVDS_YBM1 LVDS_YBP1 LVDS_YAP0 LVDS_YBP3 LVDS_YAM0 LVDS_YBM3 LVDS_YAP3 LVDS_YBP0 LVDS_YAM3 LVDS_YBM0 LVDS_VCC LVDS_VCC ’ Page: 2-30 PA-2019 SERIES USER S MANUAL...

  • Page 48: Lvds Power Selection

    Chapter 2 System Configuration 2-4-22. LVDS POWER SELECTION JP25: LVDS Power Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V JP25 JP25 Note: Manufacturing Default is 3.3V. ’ Page: 2-31 PA-2019 SERIES USER S MANUAL...

  • Page 49: Lvds Backlight Type Selection

    Chapter 2 System Configuration 2-4-23. LVDS BACKLIGHT TYPE SELECTION JP26: LVDS Backlight Type Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V JP26 JP26 Note: Manufacturing Default is 3.3V. ’ Page: 2-32 PA-2019 SERIES USER S MANUAL...
  • Page 50 Chapter 2 System Configuration 2-4-24. CARD READER CONNECTOR PS2_1: Card Reader Connector The pin assignments are as follows: PIN ASSIGNMENT PS2_1 KCLK_KB (Output) KCLK_C (Input) KDAT_C (Input) KDAT_KB (Output) ’ Page: 2-33 PA-2019 SERIES USER S MANUAL...
  • Page 51 SATA1, SATA2: Serial ATA Connectors The pin assignments are as follows: SATA1/ PIN ASSIGNMENT SATA2 SATA_PWR1, SATA_PWR 2: Serial ATA Power Connectors The pin assignments are as follows: PIN ASSIGNMENT SATA_PWR1 VCC12 SATA_PWR2 ’ Page: 2-34 PA-2019 SERIES USER S MANUAL...
  • Page 52 Chapter 2 System Configuration 2-4-26. TOUCH PANEL CONNECTOR TOUCH1: Touch Panel Connector The pin assignments are as follows: TOUCH1 PIN ASSIGNMENT ’ Page: 2-35 PA-2019 SERIES USER S MANUAL...
  • Page 53 JP18, JP19: Touch Panel and USB9-1 Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION USB9-1 Connector (Capacitor Panel JP18/JP19 Selection) TOUCH1 (Resistor Panel Selection) JP18/JP19 Note: Manufacturing Default is TOUCH1. ’ Page: 2-36 PA-2019 SERIES USER S MANUAL...
  • Page 54 JP8 & JP9: LVDS Output Resolution Selection JUMPTER SELECTION JUMPER ILLUSTRATION SETTING JP8(3-5) 1024x768 JP8(2-4) (24 bit) JP9(3-5) JP9 (4-6) JP8(1-3) 1024x768 JP8(4-6) (18 bit) JP9(3-5) JP9(4-6) JP8(3-5) 800x600 JP8(4-6) (18 bit) JP9(3-5) JP9(4-6) ’ Page: 2-37 PA-2019 SERIES USER S MANUAL...
  • Page 55 Reserved PETn2 +1.5V SMB_DATA CLKREQ# PETp2 Reserved Reserved USB D- REFCLK1- Reserved USB D+ REFCLK1+ +3.3V Reserved +3.3V Reserved Reserved Reserved Reserved Reserved Reserved Reserved PERST# +1.5V PERn0 +3.3SB PERp0 Reserved +3.3V ’ Page: 2-38 PA-2019 SERIES USER S MANUAL...
  • Page 56 The selection is as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION USB signal to USB6 wafer 1-3, 2-4 JP21 USB signal to mini-PCIe 3-5, 4-6 (Disabled) JP21 USB signal to mini-PCIe (Disabled) Note: Manufacturing Default is ’ Page: 2-39 PA-2019 SERIES USER S MANUAL...
  • Page 57 It has advanced power-saving features including seamless refresh rate switching. It has become the new mainstream display panel interface for LCD panels with the realized higher resolution. ’ Page: 2-40 PA-2019 SERIES USER S MANUAL...
  • Page 58 Chapter 2 System Configuration 2-4-32. CONFIGURATION / RECOVERY SELECTION JP11: Configuration / Recovery Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION Normal JP11 Configure JP11 Recovery Open JP11 ’ Page: 2-41 PA-2019 SERIES USER S MANUAL...
  • Page 59 2-4-33. VCCIO / REFIN SELECTION JP10: VCCIO / Refine Selection The jumper settings are as follows: SELECTION JUMPER SETTING JUMPER ILLUSTRATION 1.0V JP10 0.95V JP10 1.0V Open JP10 Note: Manufacturing Default is 1.0V. ’ Page: 2-42 PA-2019 SERIES USER S MANUAL...
  • Page 60 Note 2: To clear CMOS data, users must power off the computer and set the jumper to “Clear CMOS Data” as shown above. After five to six seconds, set the jumper back to “NC” and power on the computer. ’ Page: 2-43 PA-2019 SERIES USER S MANUAL...
  • Page 61 The pin assignments are as follows: ASSIGNMENT 3.3V(Maximum current: 0.5A) GPIO1 GPIO 2-4-36. AUDIO JACK LINE-OUT1: External audio phone jack port The pin assignments are as follows: ASSIGNMENT HD_GND LINE-OUT-R VCC_AUD LINE-OUT-L LINE-OUT1 ’ Page: 2-44 PA-2019 SERIES USER S MANUAL...
  • Page 62 When adjustment item is selected, these two keys are Down defined to decrease or increase the value of each selected item. ’ Page: 2-45 PA-2019 SERIES USER S MANUAL...
  • Page 63 Chapter 2 System Configuration VFD Board Component Locations & Pin Assignment 2-6. VFD Board: MB-4103, LD720 (option) JP12V Figure 2-1. MB-4103 & LD720 VFD Board Component Locations ’ Page: 2-46 PA-2019 SERIES USER S MANUAL...
  • Page 64 Chapter 2 System Configuration Jumper & Connector Quick Reference Table Jumper / Connector NAME Power Switch Selection JP12V RS-232 Serial Interface Connector ’ Page: 2-47 PA-2019 SERIES USER S MANUAL...
  • Page 65 Chapter 2 System Configuration Setting MB-4103 & LD720 VFD Board Connectors and Jumpers 2-6-1. Power Switch Selection JP12V: Power Switch Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION JP12V (Default) JP12V ’ Page: 2-48 PA-2019 SERIES USER S MANUAL...
  • Page 66 Chapter 2 System Configuration 2-6-2. RS-232 Serial Interface Connector CN1: RS-232 serial interface wafer ASSIGNMENT ASSIGNMENT +12V/+5V ’ Page: 2-49 PA-2019 SERIES USER S MANUAL...
  • Page 67 The following sections are included: Driver  ® Intel Chipset Software Installation Utility VGA Driver Utility LAN Driver Utility Sound Driver Utility Touch Screen Driver Utility Embedded Peripheral Device  - VFD  PA-2019 SERIES USER MANUAL Page: 3-1...
  • Page 68 Chapter 3 Software Utilities 3-1. DRIVER 3-1-1. INTRODUCTION Enclosed with the PA-2019 Series package is our driver utilities, which comes in a DVD-ROM disc. See the following table for driver locations. FILE NAME PURPOSE (Assume that DVD-ROM drive is D:) ...
  • Page 69 3. Click Setup.exe file for driver installation. 4. Follow the on-screen instructions to complete the installation. 5. Once the installation is completed, shut down the system and restart the PA-2019 for the changes to take effect. Page:3-3 ′ PA-2019 SERIES USER S MANUAL...
  • Page 70 Chapter 3 Software Utilities 3-1-3. VGA DRIVER UTILITY The VGA interface embedded with the PA-2019 series can support a wide range of display types. You can have dual displays via CRT and LVDS interfaces work simultaneously. Installation of VGA Driver To install the VGA Driver, follow the steps below: 1.
  • Page 71 Chapter 3 Software Utilities 3-1-4. LAN DRIVER UTILITY The PA-2019 Series is enhanced with LAN function that can support various network adapters. Installation platform for the LAN driver is listed as follows: For more details on the Installation procedure, please refer to the Readme.txt file found on LAN Driver Utility.
  • Page 72 3. Click Setup.exe file for driver installation. 4. Follow the on-screen instructions to complete the installation. 5. Once the installation is completed, shut down the system and restart the PA-2019 for the changes to take effect. Page:3-6 ′ PA-2019 SERIES USER S MANUAL...
  • Page 73 3. Click Setup.exe file for driver installation. 4. Follow the on-screen instructions to complete the installation. 5. Once the installation is completed, shut down the system and restart the PA-2019 for the changes to take effect. Page:3-7 ′ PA-2019 SERIES USER S MANUAL...
  • Page 74 Click Setup.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart PA-2019 for the changes to take effect. Page:3-8 ′ PA-2019 SERIES USER S MANUAL...
  • Page 75 Port COM1 Stop OPOS VFD Service Object and Method Relations Method Status of Support Notes Open ○ Close ○ ClaimDevice ○ ReleaseDevice ○ Enable ○ Disable ○ DisplayText ○ DisplayTextAt ○ ClearText ○ Page:3-9 ′ PA-2019 SERIES USER S MANUAL...
  • Page 76 Follow the wizard instructions to complete the installation. • 2. Launching the Program The steps below guide you to load the Prox-PMP4000 program. Click the LineDisplay folder from the path: Start/Programs/Protech OPOS. • Click Prox-PMP4000 to launch the program. •...
  • Page 77 Default Value Note BaudRate String 9600 UART Baud Rate (default) BitLength String UART Data Bit (default) Parity String UART Parity Bit (default) Port String COM1 UART Port (default) Stop String UART Stop Bit (default) Page:3-11 ′ PA-2019 SERIES USER S MANUAL...
  • Page 78 Not Applicable Properties specific bool CapICharWait Read only Not Applicable Properties specific long CapReadBack Read only Not Applicable Properties specific long CapReverse Read only Not Applicable Properties specific bool CapVMarquee Read only Not Applicable Page:3-12 ′ PA-2019 SERIES USER S MANUAL...
  • Page 79 Not Applicable Methods common DirectIO Not Applicable Methods specific DisplayText Supported Methods specific DisplayTextAt Supported Methods specific ClearText Supported Methods specific ScrollText Not Applicable Methods specific SetDescriptor Not Applicable Methods specific ClearDescriptors Not Applicable Page:3-13 ′ PA-2019 SERIES USER S MANUAL...
  • Page 80 Not Applicable Methods specific DefineGlyph Not Applicable Events common DataEvent Not Applicable Events common DirectIOEvent Not Applicable Events common ErrorEvent Not Applicable OutputComplete Events common Not Applicable Event StatusUpdate Events common Not Applicable Event Page:3-14 ′ PA-2019 SERIES USER S MANUAL...
  • Page 81 Chapter 3 Software Utilities 3-3 API 3-3-1 API Package Content You can find the enclosed API Package files in the Protech Manual /Driver CD. Depending on the machine types, the API Package may include the following files: Function DLL Directory...
  • Page 82 Text1.text = “cash drawer1 close” ‘enter text into textbox. End if ‘========================================= Receive_Status2 = CashDrawerOpen(&H2) If Receive_Status2 = true then Text2.text = “cash drawer2 open” ‘enter text into textbox. Else Text2.text = “cash drawer2 close” ‘enter text into textbox. End if Page:3-16 ′ PA-2019 SERIES USER S MANUAL...
  • Page 83 Public static extern bool GetCashDrawerStatus() [DllImport(“CashDrawer.dll”,EntryPoint = “CashDrawerOpen”)] Public static extern bool CashDrawerOpen(short num_drawer);} (2) Call Function Open cash drawer1 PortAccess.CashDrawerOpen(0x01); //check cash drawer1 status Open cash drawer2 PortAccess.CashDrawerOpen(0x02); //check cash drawer2 status Page:3-17 ′ PA-2019 SERIES USER S MANUAL...
  • Page 84 As Boolean VB 6 external function: Declare Function CashDrawerOpen Lib "CashDrawer.dll" (ByVal num_drawer As Integer) As Boolean Declare Function GetCashDrawerStatus Lib "CashDrawer.dll" (ByVal num_drawer As Integer) As Boolean Note: VB.net short = integer VB6 Page:3-18 ′ PA-2019 SERIES USER S MANUAL...
  • Page 85 Cash drawer status will be displayed after OPEN is Cash Drawer Status tapped. Cash Drawer is closed when the following picture is • shown: Cash Drawer is opened when the following picture is • shown: Page:3-19 ′ PA-2019 SERIES USER S MANUAL...
  • Page 86 • START: Tap to start the watchdog timer. Meanwhile, the REFRESH and STOP buttons will be enabled. • STOP: Tap to stop the watchdog timer. • REFRESH: Tap to restart the watchdog timer. Page:3-20 ′ PA-2019 SERIES USER S MANUAL...
  • Page 87 GetCashDrawerStatus (short num_drawer); Purpose: Get the cash drawer status. Value: num_drawer = 1 (Get the Cash Drawer1 status) num_drawer = 2 (Get the Cash Drawer2 status) Return: True (1) on success, False (0) on failure Page:3-21 ′ PA-2019 SERIES USER S MANUAL...
  • Page 88 Return: True (1) on success, False (0) on failure Watchdog_Stop bool Watchdog_Stop (void); Purpose: Stop the watchdog timer Value None Return: True (1) on success, False (0) on failure Watchdog_Recount bool Watchdog_Recount (void); Page:3-22 ′ PA-2019 SERIES USER S MANUAL...
  • Page 89 Chapter 3 Software Utilities Purpose: Restart the watchdog timer Value None Return: True (1) on success, False (0) on failure Page:3-23 ′ PA-2019 SERIES USER S MANUAL...
  • Page 90 CHAPTER BIOS SETUP This chapter shows how to set up the AMI BIOS. The following sections are included: Introduction  Entering Setup Utility  Main  Advanced  Chipset  Security  Boot  Save & Exit  Page: 4-1...
  • Page 91 These elements have combined to provide a standard environment for booting the operating system and running pre-boot applications. The diagram below shows the Extensible Firmware Interface’s location in the software stack. ′ Page: 4-2 PA-2019 SERIES USER S MANUAL...
  • Page 92 After the system is powered on, users can access the BIOS setup menu by pressing <Del> or <Esc> immediately while the POST message is running before the operating system is loading. ′ Page: 4-3 PA-2019 SERIES USER S MANUAL...
  • Page 93 POST message will be displayed: POST Screen Press the <Del> or <Esc> key to access the Setup Utility program and the Main menu of the Aptio Setup Utility will appear on the screen as below: ′ Page: 4-4 PA-2019 SERIES USER S MANUAL...
  • Page 94 You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. ′ Page: 4-5 PA-2019 SERIES USER S MANUAL...
  • Page 95 Project Version No changeable options Displays the version of the BIOS currently installed on the platform. Build Date and No changeable options Displays the date that the current BIOS Time version is built. ′ Page: 4-6 PA-2019 SERIES USER S MANUAL...
  • Page 96 System Time Hour, minute, second Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter values or use <+> or <-> arrow keys to increase/decrease it. ′ Page: 4-7 PA-2019 SERIES USER S MANUAL...
  • Page 97 Wake Settings, Network Stack Configuration and USB Configuration. Advanced Menu Screen BIOS Setting Options Description/Purpose CPU Configuration Sub-Menu CPU Configuration Parameters. SATA Configuration Sub-Menu SATA Device Options Settings. Management Engine Technology PCH-FW Configuration Sub-Menu Parameters. ′ Page: 4-8 PA-2019 SERIES USER S MANUAL...
  • Page 98 Sub-Menu Monitor hardware status. F81866 Watchdog Sub-Menu F81866 Watchdog Parameters. S5 RTC Wake Settings Sub-Menu S5 RTC Wake Settings. Network Stack Sub-Menu Network Stack Settings. Configuration USB Configuration Sub-Menu USB Configuration Parameters. ′ Page: 4-9 PA-2019 SERIES USER S MANUAL...
  • Page 99 No changeable options Displays the CPU Speed. Displays the number of cores of the Processor Cores No changeable options processor. No changeable options Reports if Intel VT-x Technology is supported by the processor. ′ Page: 4-10 PA-2019 SERIES USER S MANUAL...
  • Page 100 - 1 to n (depend on CPU) processor package. Intel (VMX) - Disabled When enabled, a VMM (Virtual Virtualization - Enabled Machine Monitor) can utilize the Technology additional hardware capabilities provided by Vanderpool Technology (VT). ′ Page: 4-11 PA-2019 SERIES USER S MANUAL...
  • Page 101 Enables or Disables SATA Device. - Enabled - AHCI Determines how SATA controller(s) SATA Mode Selection - RAID operate. Serial ATA Port 1 – 2, No changeable options Displays the SATA device’s name. ′ Page: 4-12 PA-2019 SERIES USER S MANUAL...
  • Page 102 Enables or Disables SATA Port 1 or 2 Port 1 - 2 - Enabled Device. Hot Plug - Disabled Enables or Disables Hot Plug function to - Enabled designate a SATA port device as hot- pluggable. ′ Page: 4-13 PA-2019 SERIES USER S MANUAL...
  • Page 103 Serial ATA Port 1 – 2, No changeable options Displays the SATA device’s name. External SATA Port 1 Software Preserve No changeable options Indicates whether or not a connected device supports Software Setting ′ Page: 4-14 PA-2019 SERIES USER S MANUAL...
  • Page 104 Enables or Disables SATA Port 1 or 2 Port 1 - 2 - Enabled device. Hot Plug - Disabled Enables or Disables Hot Plug function to - Enabled designate a SATA port device as hot- pluggable. ′ Page: 4-15 PA-2019 SERIES USER S MANUAL...
  • Page 105 ME FW Version No changeable options Display the ME Firmware Version. ME Firmware Mode No changeable options Display the ME Firmware Mode. ME Firmware SKU No changeable options Display the ME Firmware SKU. ′ Page: 4-16 PA-2019 SERIES USER S MANUAL...
  • Page 106 SUSPEND button is pressed. Lock Legacy - Disabled Enables or Disables Lock of Legacy Resources - Enabled Resources. S3 Video Repost - Disabled Enables or Disables S3 Video Repost. - Enabled ′ Page: 4-17 PA-2019 SERIES USER S MANUAL...
  • Page 107 Sets parameters of Serial Port 3 (COMC). Configuration Serial Port 4 Sub-menu Sets parameters of Serial Port 4 (COMD). Configuration Serial Port 5 Sub-menu Sets parameters of Serial Port 5 (COME). Configuration ′ Page: 4-18 PA-2019 SERIES USER S MANUAL...
  • Page 108 Serial Port 1. - Auto Change Settings Selects IRQ and I/O resource - IO=3F8h; IRQ=4; settings for Serial Port 1. - IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; ′ Page: 4-19 PA-2019 SERIES USER S MANUAL...
  • Page 109 Serial Port 2. Change Settings - Auto Selects IRQ and I/O resource - IO=2F8h; IRQ=3; settings for Serial Port 2. - IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; ′ Page: 4-20 PA-2019 SERIES USER S MANUAL...
  • Page 110 Serial Port 3. Change Settings - Auto Selects IRQ and I/O resource - IO=3E8h; IRQ=7; settings for Serial Port 3. - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; ′ Page: 4-21 PA-2019 SERIES USER S MANUAL...
  • Page 111 Serial Port 4. Change Settings - Auto Selects IRQ and I/O resource - IO=2E8h; IRQ=10; settings for Serial Port 4. - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; ′ Page: 4-22 PA-2019 SERIES USER S MANUAL...
  • Page 112 Serial Port 5. Change Settings - Auto Selects IRQ and I/O resource - IO=2F0h; IRQ=6; settings for Serial Port 5. - IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; - IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; ′ Page: 4-23 PA-2019 SERIES USER S MANUAL...
  • Page 113 Displays the system's temperature. CPU Fan Speed No changeable options Display CPU Fan speed. System Fan Speed No changeable options Display System Fan speed VCORE No changeable options Detects and displays the VCORE CPU ′ Page: 4-24 PA-2019 SERIES USER S MANUAL...
  • Page 114 No changeable options Detects and displays 3V voltage. Detects and displays the voltage level VSB3V No changeable options of VSB3V in supply. Detects and displays the battery VBAT No changeable options voltage. ′ Page: 4-25 PA-2019 SERIES USER S MANUAL...
  • Page 115 Selects Smart Fan Mode for System Control - Auto Duty-Cycle Mode Fan. Manual mode fan control. Users can Manual Duty Mode Numeric (from 1 to 100) write expected duty cycle (PWM fan type) from 1 to 100. ′ Page: 4-26 PA-2019 SERIES USER S MANUAL...
  • Page 116 Watchdog timer unit - 60s the time unit of Watchdog timer. Count for Timer Sets the timeout for Watchdog timer. Numeric (from 1 to 255) (Seconds) (Max. value: 255 seconds or minutes) ′ Page: 4-27 PA-2019 SERIES USER S MANUAL...
  • Page 117 + Increase minute(s). Wake up hour Numeric (from 0 to 23) Enters 0-23 to set the wake-up hour, e.g.: enters 3 for 3 am. and 15 for 3 pm. ′ Page: 4-28 PA-2019 SERIES USER S MANUAL...
  • Page 118 Numeric (from 0 to 59) Enters 0-59 to set the wake-up second. Wake up minute Enters 1-5 to set the increased Numeric (from 1 to 5) increase minute(s) for dynamic wake-up time. ′ Page: 4-29 PA-2019 SERIES USER S MANUAL...
  • Page 119 A PXE-enabled workstation connects its NIC to the LAN via a jumper, which keeps the workstation connected to the network even when the power is turned off. Network Stack Configuration Screen ′ Page: 4-30 PA-2019 SERIES USER S MANUAL...
  • Page 120 Number of seconds to wait for PXE boot to Numeric (from 0 to 5) time abort after the Esc key is pressed. Media detect Number of times that the media presence Numeric (from 1 to 50) count will be checked. ′ Page: 4-31 PA-2019 SERIES USER S MANUAL...
  • Page 121 Legacy USB support. USB Configuration Screen BIOS Setting Options Description/Purpose - Disabled Sets to “Enabled” if you want to use USB Legacy USB Support - Enabled device in the legacy operating system. - Auto ′ Page: 4-32 PA-2019 SERIES USER S MANUAL...
  • Page 122 This menu allows users to configure advanced Chipset settings such as System Agent (SA) and PCH-IO configuration parameters. Chipset Screen BIOS Setting Options Description/Purpose System Agent (SA) Sub-menu System Agent (SA) parameters. Configuration PCH-IO Configuration Sub-menu PCH parameters. ′ Page: 4-33 PA-2019 SERIES USER S MANUAL...
  • Page 123 VT-d extends Intel's Virtualization Technology (VT) roadmap by providing hardware assists for virtualization solution, and helps end users improve security and reliability of the systems and also improves performance of ′ Page: 4-34 PA-2019 SERIES USER S MANUAL...
  • Page 124 Description/Purpose I/O devices in virtualized environment. - Disabled VT-d Enables or Disables VT-d function. - Enabled Memory Displays the DRAM information on the Sub-menu Configuration platform. Graphics Configures Graphics Settings. Sub-menu Configuration ′ Page: 4-35 PA-2019 SERIES USER S MANUAL...
  • Page 125 Total Memory No changeable options Displays the total system memory. Memory Timings No changeable options Displays the Memory (RAM) timings and (tCL-tRCD-tRP- latency. tRAS) • CAS Latency (tCL) - This is the most ′ Page: 4-36 PA-2019 SERIES USER S MANUAL...
  • Page 126 Displays the status of SO-DIMM#1. Size No changeable options Displays the size of SO-DIMM#1. SO-DIMM#2 No changeable options Displays the status of SO-DIMM#2. Size No changeable options Displays the size of SO-DIMM#2. ′ Page: 4-37 PA-2019 SERIES USER S MANUAL...
  • Page 127 LCD Control Sub-menu LCD Control sub-menu. Allows users to adjust the backlight of the LVDS Backlight Numeric (from 10 to 100) LCD panel brightness ranging from 10 to Control 100 in scale. ′ Page: 4-38 PA-2019 SERIES USER S MANUAL...
  • Page 128 BIOS Setting Options Description/Purpose Primary IGFX - VBIOS default Selects Primary Display device. Boot Display - VGA - LVDS Secondary IGFX - Disabled Selects Secondary Display device. Boot Display - VGA - LVDS ′ Page: 4-39 PA-2019 SERIES USER S MANUAL...
  • Page 129 Intel PCH SKU No changeable options Displays the Intel PCH SKU Name. Name Intel PCH Rev ID No changeable options Displays the Intel PCH Revision ID. PCI Express Sub-menu PCI Express Configuration settings. Configuration ′ Page: 4-40 PA-2019 SERIES USER S MANUAL...
  • Page 130 Specifies the Power On/Off state that the - Power On State After G3 system will go to when the power is re- - Power Off applied following a power failure (G3 state). ′ Page: 4-41 PA-2019 SERIES USER S MANUAL...
  • Page 131 Displays which PCIE Port assigned to assigned to LAN LAN. Mini PCI Express Sub-menu Mini PCI Express Port 1 settings. Port 1 Mini PCI Express Sub-menu Mini PCI Express Port 2 settings. Port 2 ′ Page: 4-42 PA-2019 SERIES USER S MANUAL...
  • Page 132 Selects PCI Express L1 Substates - L1.1 settings. - L1.2 - L1.1 & L1.2 Hot Plug - Disabled Enables or Disables Hot Plug function to - Enabled designate PCI Express port 1 device as hot-pluggable. ′ Page: 4-43 PA-2019 SERIES USER S MANUAL...
  • Page 133 Express port. If enabled, it will take more time during POST. Chipset > PCH-IO Configuration > PCI Express Menu Path Configuration > Mini PCI Express Port 2 Mini PCI Express Port 2 Configuration Screen ′ Page: 4-44 PA-2019 SERIES USER S MANUAL...
  • Page 134 - Gen3 Detect Non- - Disabled Detects a Non-Compliance PCI Express Compliance - Enabled device that is connected to the PCI Device Express port. If enabled, it will take more time during POST. ′ Page: 4-45 PA-2019 SERIES USER S MANUAL...
  • Page 135 Setup utility. Security Screen BIOS Setting Options Description/Purpose Administrator Password can be 3-20 Specifies the administrator password. Password alphanumeric characters. Password can be 3-20 User Password Specifies the user password. alphanumeric characters. ′ Page: 4-46 PA-2019 SERIES USER S MANUAL...
  • Page 136 BBS option priorities, and setting CSM (Compatibility Support Module) configuration parameters to support legacy BIOS operation systems, various VGA, bootable devices and add-on devices for achieving better compatibility. Boot Screen ′ Page: 4-47 PA-2019 SERIES USER S MANUAL...
  • Page 137 Hard Drive BBS Sub-Menu Defines the boot order for all the hard Priorities drives connected to the system, e.g. SATA, USB drive. Sub-Menu CSM configuration: Enable/Disable, Option Configuration ROM execution settings, etc. ′ Page: 4-48 PA-2019 SERIES USER S MANUAL...
  • Page 138 <↑> or <↓ > arrow keys to select the device. Another way is to press <+> or <-> to move the selected device up/down in the priority list. ′ Page: 4-49 PA-2019 SERIES USER S MANUAL...
  • Page 139 Option ROM execution, etc. CSM Configuration Screen BIOS Setting Options Description/Purpose CSM Support - Disabled Enables or Disables CSM Support. - Enabled CSM16 Module No changeable options Displays the CSM 16 Module version. ′ Page: 4-50 PA-2019 SERIES USER S MANUAL...
  • Page 140 Discard Changes and Reset to cancel the changed settings and restore the factory BIOS defaults. Load User Defaults You may simply press F3 at any time to load the Optimized Values which resets all BIOS settings to the factory defaults. ′ Page: 4-51 PA-2019 SERIES USER S MANUAL...
  • Page 141 No changeable options Defaults Defaults. Restore User Restores the User Defaults to all the BIOS No changeable options Defaults settings. Forces to boot the system from selected Boot Override - [Drive(s)] [drive(s)]. ′ Page: 4-52 PA-2019 SERIES USER S MANUAL...

  • Page 142: Appendix A System Assembly

    APPENDIX SYSTEM ASSEMBLY This appendix contains exploded diagrams and part numbers of the 5-wire analog resistive touch panel and projected capacitive touch panel for PA-2019 system. The following sections are included: Easy Maintenance  Hard Drive  Back Cover  CPU and Memory ...
  • Page 143 Exploded Diagram for PA-2019 Metal Back Cover  Exploded Diagram for PA-2019 2.5” SATA HDD Module  Exploded Diagram for PA-2019 MSR Module  Exploded Diagram for PA-2019 2nd Display  Exploded Diagram for PA-2019 VFD Module  Page: A-2 ′ PA-2019 SERIES USER S MANUAL...

  • Page 144: Easy Maintenance - Hdd

    Appendix A System Assembly Easy Maintenance Step 1. Open the HDD cover. Step 3. Release HDD fixing screws. Step 2. Pull out HDD module. Step 4. Remove the HDD drive. ′ Page: A-3 PA-2019 SERIES USER S MANUAL...
  • Page 145 Appendix A System Assembly Back Cover Step 1. Open the HDD cover. Step 2. Remove the screws on the back cover. Step 3. Lift up the back cover. Back Cover ′ Page: A-4 PA-2019 SERIES USER S MANUAL...
  • Page 146 Remove the screws on the Top Metal Cover. Top Metal Cover Step 5. Remove the screws on the side of the Top Metal Cover. Step 6. Lift up the Top Metal Cover. ′ Page: A-5 PA-2019 SERIES USER S MANUAL...
  • Page 147 Appendix A System Assembly CPU and Memory Step 8. Remove the CPU FAN. Step 7. Remove the RAM. Step 9. Remove the CPU. Page: A-6 ′ PA-2019 SERIES USER S MANUAL...

  • Page 148: Exploded Diagram For Pa-2019 Pos Open & Close

    Appendix A System Assembly Projected Resistive Touch Screen EXPLODED DIAGRAM FOR PA-2019 POS OPEN & CLOSE Component Name P/N No. Q’ty STAND UNIT PA-2019 PPC M4_H2.2_L4_I_Ni 22-272-40004911 M3_L5_W_B 22-235-30015011 ′ Page: A-7 PA-2019 SERIES USER S MANUAL...

  • Page 149: Exploded Diagram For Pa-2019 Pos Stand

    EXPLODED DIAGRAM FOR PA-2019 POS STAND Component Name P/N No. Q’ty POS6920-STAND-COVER 30-002-28710226 PA-6920 STAND BASE 210W 20-032-03001226 M4_L8_R+S+W_Ni 22-232-40008211 TS_L8_R_B 22-122-30080011 Rubber 35x15x8t 30-004-01600000 120W Power Adapter 52-002-02900101 6980_120W_LEVEL6_HOLDER 20-029-03001226 M3_L5_W_Ni 22-242-30005311 Page: A-8 ′ PA-2019 SERIES USER S MANUAL...

  • Page 150: Exploded Diagram For Pa-2019 120W Power Adapter

    EXPLODED DIAGRAM FOR PA-2019 120W Power Adapter Component Name P/N No. Q’ty M8_NUT 23-142-80081291 Washer_OD15.9_ID8.2_T1.25 23-205-08090168 Washer_D8_D19_T1.5_Ni 23-202-08150191 6920-ROTATE_SUPPORT_TYPE2 80-002-03004226 Rubber_40_12_1.5 90-013-06100226 M8_H141_L13_Hex_Ni 22-252-80154005 PS5000-HINGE-SPACER 30-041-04100139 R_SUPPORT 80-002-03001226 Washer_id_8_5_od_24_2 23-202-09150247 POS6920-PIPE 80-056-02001226 L_SUPPORT 80-002-03002226 6920-ROTATE_COVER_TYPE2 30-002-28111326 ′ Page: A-9 PA-2019 SERIES USER S MANUAL...

  • Page 151: Exploded Diagram For Pa-2019 Ppc Open & Close

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 PPC Open and Close Page: A-10 ′ PA-2019 SERIES USER S MANUAL...
  • Page 152 Appendix A System Assembly ′ Page: A-11 PA-2019 SERIES USER S MANUAL...

  • Page 153: Exploded Diagram For Pa-2019 Mainboard

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 MAIN BOARD Page: A-12 ′ PA-2019 SERIES USER S MANUAL...
  • Page 154 Appendix A System Assembly ′ Page: A-13 PA-2019 SERIES USER S MANUAL...

  • Page 155: Exploded Diagram For Pa-2019 Lcd Holder

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 LCD HOLDER Page: A-14 ′ PA-2019 SERIES USER S MANUAL...
  • Page 156 Appendix A System Assembly ′ Page: A-15 PA-2019 SERIES USER S MANUAL...

  • Page 157: Exploded Diagram For Pa-2019 Lcd Assembly

    EXPLODED DIAGRAM FOR PA-2019 LCD ASSEMBLY Component Name P/N No. Q’ty PORON_314.9x8x0.5(cut242) 30-013-24100000 PORON_314.9x8x0.5(cut316) 30-013-24100000 15” LCD panel 52-351-03015021 M3_L6_R+S_W_Ni 22-232-30060211 POS6980-LCD_holder 20-029-03001377 panel_led_cable 27-055-37703071 PA-6980_lvds_cable 27-020-37704111 Cable clip(fcm-25snqw) 90-042-04200000 Led_holder(CLED-1) 30-014-04100009 PA-6980_led_cable 27-018-24707071 Page: A-16 ′ PA-2019 SERIES USER S MANUAL...

  • Page 158: Exploded Diagram For Pa-2019 Touch Panel Assembly

    94-026-04901220 (For ELO) DOUBLE_COATED_TAPE_B For Abon 94-026-05001220 (For Abon) DOUBLE_COATED_TAPE_B For ELO 94-026-04902220 (ForELO) DOUBLE_COATED_TAPE_B For Abon 94-026-05002220 (For Abon) 15”_Flat_resistive_touch (ELO) 52-380-00114701 ELO Touch 15”_Flat_resistive_touch (Abon) 52-380-00200114 Abon Touch PA-6920_led_lens 30-021-02130269 ′ Page: A-17 PA-2019 SERIES USER S MANUAL...

  • Page 159: Exploded Diagram For Pa-2019 Hdd Module

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 HDD MODULE Page: A-18 ′ PA-2019 SERIES USER S MANUAL...

  • Page 160: Exploded Diagram For Pa-2019 Metal Back Cover

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 METAL BACK COVER ′ Page: A-19 PA-2019 SERIES USER S MANUAL...

  • Page 161: Exploded Diagram For Pa-2019 2.5" Sata Hdd

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 2.5” SATA HDD Page: A-20 ′ PA-2019 SERIES USER S MANUAL...

  • Page 162: Exploded Diagram For Pa-2019 Pos Open & Close

    Appendix A System Assembly Projected Capacitive Touch Screen EXPLODED DIAGRAM FOR PA-2019 POS OPEN & CLOSE Component Name P/N No. Q’ty STAND UNIT PA-2019 PPC M4_H2.2_L4_I_Ni 22-272-40004911 M3_L5_W_B 22-235-30015011 ′ Page: A-21 PA-2019 SERIES USER S MANUAL...

  • Page 163: Exploded Diagram For Pa-2019 Pos Stand

    EXPLODED DIAGRAM FOR PA-2019 POS STAND Component Name P/N No. Q’ty POS6920-STAND-COVER 30-002-28710226 PA-6920 STAND BASE 210W 20-032-03001226 M4_L8_R+S+W_Ni 22-232-40008211 TS_L8_R_B 22-122-30080011 Rubber 35x15x8t 30-004-01600000 120W Power Adapter 52-002-02900101 6980_120W_LEVEL6_HOLDER 20-029-03001226 M3_L5_W_Ni 22-242-30005311 Page: A-22 ′ PA-2019 SERIES USER S MANUAL...

  • Page 164: Exploded Diagram For Pa-2019 120W Power Adapter

    EXPLODED DIAGRAM FOR PA-2019 120W POWER ADAPTER Component Name P/N No. Q’ty M8_NUT 23-142-80081291 Washer_OD15.9_ID8.2_T1.25 23-205-08090168 Washer_D8_D19_T1.5_Ni 23-202-08150191 6920-ROTATE_SUPPORT_TYPE2 80-002-03004226 Rubber_40_12_1.5 90-013-06100226 M8_H141_L13_Hex_Ni 22-252-80154005 PS5000-HINGE-SPACER 30-041-04100139 R_SUPPORT 80-002-03001226 Washer_id_8_5_od_24_2 23-202-09150247 POS6920-PIPE 80-056-02001226 L_SUPPORT 80-002-03002226 6920-ROTATE_COVER_TYPE2 30-002-28111326 ′ Page: A-23 PA-2019 SERIES USER S MANUAL...

  • Page 165: Exploded Diagram For Pa-2019 Ppc Open & Close

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 PPC OPEN & CLOSE Page: A-24 ′ PA-2019 SERIES USER S MANUAL...
  • Page 166 Appendix A System Assembly ′ Page: A-25 PA-2019 SERIES USER S MANUAL...

  • Page 167: Exploded Diagram For Pa-2019 Mainboard

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 MAINBOARD Page: A-26 ′ PA-2019 SERIES USER S MANUAL...
  • Page 168 Appendix A System Assembly ′ Page: A-27 PA-2019 SERIES USER S MANUAL...

  • Page 169: Exploded Diagram For Pa-2019 Lcd Holder

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 LCD HOLDER Page: A-28 ′ PA-2019 SERIES USER S MANUAL...
  • Page 170 Appendix A System Assembly ′ Page: A-29 PA-2019 SERIES USER S MANUAL...

  • Page 171: Exploded Diagram For Pa-2019 Lcd Assembly

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 LCD ASSEMBLY Page: A-30 ′ PA-2019 SERIES USER S MANUAL...

  • Page 172: Exploded Diagram For Pa-2019 Touch Panel Assembly

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 TOUCH PANEL ASSEMBLY Component Name P/N No. Q’ty PA-6980_lcd_front over over 30-002- PA-6920_led_len 30-021-02130 DOUBLE APE_349.3x4.5.x1.1t 5.x1.1t 94-0 DOUBLE APE_272.8x4.5x1.1t 5x1.1t 94-026 15” lat_Capacitive_Touch 52-380-00150 ′ Page: A-31 PA-2019 SERIES USER S MANUAL...

  • Page 173: Exploded Diagram For Pa-2019 Hdd Module

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 HDD MODULE Page: A-32 ′ PA-2019 SERIES USER S MANUAL...

  • Page 174: Exploded Diagram For Pa-2019 Metal Back Cover

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 METAL BACK COVER ′ Page: A-33 PA-2019 SERIES USER S MANUAL...

  • Page 175: Exploded Diagram For Pa-2019 2.5" Sata Hdd

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 2.5” SATA HDD Page: A-34 ′ PA-2019 SERIES USER S MANUAL...

  • Page 176: Exploded Diagram For Pa-2019 Msr Module

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 MSR MODULE Component Name P/N No. Q’ty MSR Module PA-6980RZ-48A/48B M3_L12_I_B 22-2753010120 PA-6970 Back Cover 30-002-28110253 Top Metal Module Assy Main Module Assy ′ Page: A-35 PA-2019 SERIES USER S MANUAL...

  • Page 177: Exploded Diagram For Pa-2019 2Nd Display

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 2ND DISPLAY Component Name P/N No. Q’ty PA-2019_PPC 2ND_DISPLAY (8”) 52-380-06080316 2ND_DIS_SUPPORT_BRACKET 80-006-03061226 F_SCREW_M4_L8mm 22-215-40008711 R_SCREW_M4_L8mm 22-245-40008011 POWER CABLE 27-012-24710111 Page: A-36 ′ PA-2019 SERIES USER S MANUAL...

  • Page 178: Exploded Diagram For Pa-2019 Vfd Module

    Appendix A System Assembly EXPLODED DIAGRAM FOR PA-2019 VFD MODULE Component Name P/N No. Q’ty PA-2019_PPC VFD_DISPLAY 52-901-24001703 VFD_SUPPORT_BRACKET 80-006-03062226 F_SCREW_M4_L8mm 22-215-40008711 ′ Page: A-37 PA-2019 SERIES USER S MANUAL...
  • Page 179 APPENDIX TECHNICAL SUMMARY This appendix will give you a brief introduction of the allocation maps for the system resources. The following sections are included: Block Diagram  Interrupt Map  I / O Map  Memory Map  Watchdog Timer Configuration ...

  • Page 180: Appendix B Technical Summary

    Appendix B Technical Summary BLOCK DIAGRAM Page: B-2 PA-2019 SERIES USER ′ S MANUAL...

  • Page 181: Interrupt Map

    Microsoft ACPI-Compliant System IRQ 86 Microsoft ACPI-Compliant System IRQ 87 Microsoft ACPI-Compliant System IRQ 88 Microsoft ACPI-Compliant System IRQ 89 Microsoft ACPI-Compliant System IRQ 90 Microsoft ACPI-Compliant System IRQ 91 Microsoft ACPI-Compliant System ′ Page: B-3 PA-2019 SERIES USER S MANUAL...
  • Page 182 Microsoft ACPI-Compliant System IRQ 112 Microsoft ACPI-Compliant System IRQ 113 Microsoft ACPI-Compliant System IRQ 114 Microsoft ACPI-Compliant System IRQ 115 Microsoft ACPI-Compliant System IRQ 116 Microsoft ACPI-Compliant System IRQ 117 Microsoft ACPI-Compliant System ′ Page: B-4 PA-2019 SERIES USER S MANUAL...
  • Page 183 Microsoft ACPI-Compliant System IRQ 138 Microsoft ACPI-Compliant System IRQ 139 Microsoft ACPI-Compliant System IRQ 140 Microsoft ACPI-Compliant System IRQ 141 Microsoft ACPI-Compliant System IRQ 142 Microsoft ACPI-Compliant System IRQ 143 Microsoft ACPI-Compliant System ′ Page: B-5 PA-2019 SERIES USER S MANUAL...
  • Page 184 Microsoft ACPI-Compliant System IRQ 164 Microsoft ACPI-Compliant System IRQ 165 Microsoft ACPI-Compliant System IRQ 166 Microsoft ACPI-Compliant System IRQ 167 Microsoft ACPI-Compliant System IRQ 168 Microsoft ACPI-Compliant System IRQ 169 Microsoft ACPI-Compliant System ′ Page: B-6 PA-2019 SERIES USER S MANUAL...
  • Page 185 IRQ 4294967292 Intel(R) USB 3.0 eXtensible Host Controller IRQ 4294967293 Intel(R) HD Graphics 510 IRQ 4294967291 Intel(R) Management Engine Interface Note: These resource information were gathered using Windows 7 (the IRQ could be assigned differently depending on OS) ′ Page: B-7 PA-2019 SERIES USER S MANUAL...

  • Page 186: I/O Map

    Intel(R) 100 Series/C230 Series Chipset Family SMBus - A123 0x0000002E-0x0000002F Motherboard resources 0x0000004E-0x0000004F Motherboard resources 0x00000061-0x00000061 Motherboard resources 0x00000063-0x00000063 Motherboard resources 0x00000065-0x00000065 Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000080-0x00000080 Motherboard resources 0x00000092-0x00000092 Motherboard resources ′ Page: B-8 PA-2019 SERIES USER S MANUAL...
  • Page 187 0x00000028-0x00000029 Programmable interrupt controller 0x0000002C-0x0000002D Programmable interrupt controller 0x00000030-0x00000031 Programmable interrupt controller 0x00000034-0x00000035 Programmable interrupt controller 0x00000038-0x00000039 Programmable interrupt controller 0x0000003C-0x0000003D Programmable interrupt controller 0x000000A0-0x000000A1 Programmable interrupt controller 0x000000A4-0x000000A5 Programmable interrupt controller ′ Page: B-9 PA-2019 SERIES USER S MANUAL...
  • Page 188 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer ′ Page: B-10 PA-2019 SERIES USER S MANUAL...
  • Page 189 Motherboard resources 0xFED90000-0xFED93FFF Motherboard resources 0xFED45000-0xFED8FFFF Motherboard resources 0xFF000000-0xFFFFFFFF Motherboard resources 0xFF000000-0xFFFFFFFF Intel(R) 82802 Firmware Hub Device 0xFEE00000-0xFEEFFFFF Motherboard resources 0xDFFE0000-0xDFFFFFFF Motherboard resources 0xDF04A000-0xDF04A0FF Intel(R) 100 Series/C230 Series Chipset Family SMBus - A123 ′ Page: B-11 PA-2019 SERIES USER S MANUAL...
  • Page 190 0xFE03D000-0xFE3FFFFF Motherboard resources 0xFE410000-0xFE7FFFFF Motherboard resources 0xDE000000-0xDEFFFFFF Intel(R) HD Graphics 510 0xC0000000-0xCFFFFFFF Intel(R) HD Graphics 510 0xDF04E000-0xDF04EFFF Intel(R) 100 Series/C230 Series Chipset Family Thermal subsystem - A131 0xFE40F000-0xFE40FFFF Intel(R) Management Engine Interface ′ Page: B-12 PA-2019 SERIES USER S MANUAL...

  • Page 191: Watchdog Timer Configuration

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. ′ Page: B-13 PA-2019 SERIES USER S MANUAL...
  • Page 192 ; ----------------------- Select Logical Device 7 of watchdog timer --------------------- ;---------------------------------Enable Watch dog feature ------------------------------ 030h ;------------------------------- Enable Watch PME-------------------------------------------- 0FAh ;-------------------------- Set second as counting unit -------------------------------------- 0F5h ; ---------------- Set timeout interval as 30seconds and start counting -------------- 0F6h ′ Page: B-14 PA-2019 SERIES USER S MANUAL...
  • Page 193 Appendix B Technical Summary ;---------------------------------Exit the extended function mode ------------------------- 0AAh ′ Page: B-15 PA-2019 SERIES USER S MANUAL...

  • Page 194: Flash Bios Update

    (3) System will go into the BIOS setup menu. (4) Select [Boot] menu and enter into [CSM Configuration] menu. (5) Select [Boot option filter] to [UEFI Only] and press <F4> key to save configuration and restart the system. ′ Page: B-16 PA-2019 SERIES USER S MANUAL...
  • Page 195 (7) Select [Boot] menu and set [UEFI: Built-in EFI Shell] to be the 1 boot device. (8) Press <F4> key to save configuration and restart the system to boot into EFI Shell environment. ′ Page: B-17 PA-2019 SERIES USER S MANUAL...
  • Page 196 /?” to see all the definition of each control options. The recommended options for BIOS ROM update include following parameters: Program main BIOS image /B: Program Boot Block /N: Program NVRAM /X: Do not check ROM ID ′ Page: B-18 PA-2019 SERIES USER S MANUAL...
  • Page 197 Restart the system and boot up the system with new BIOS now. The BIOS Update procedure is completed after the system is restarted. Reboot the system and verify if the BIOS version shown on the initialization screen has been updated. ′ Page: B-19 PA-2019 SERIES USER S MANUAL...
  • Page 198 Appendix B Technical Summary ′ Page: B-20 PA-2019 SERIES USER S MANUAL...

Table of Contents
