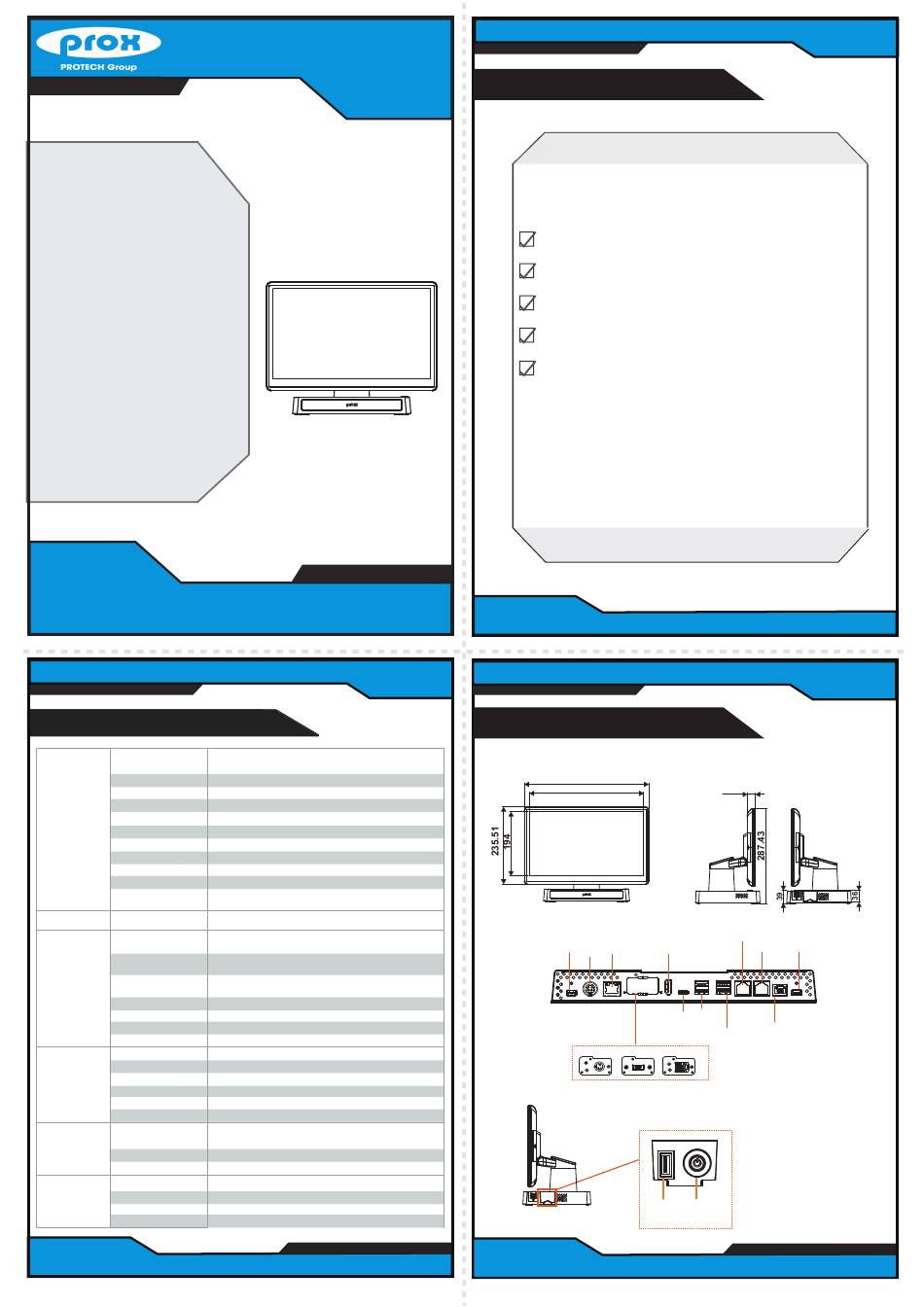

protech prox PA-J500 Quick Reference Manual

PA-J500
Quick
Reference
Guide

Specifications

Intel ® Core™ i5-1145G7E / i3-1115G4E /
CPU Support
Pentium ® 7505 (fanless) / Celeron ® 6305E (fanless)
Memory
1 x DDR4 260-pin SO-DIMM slot (up to 16GB)
Storage 1 x M.2 2242 / 1 x M.2 2280
Network 1 x RJ45, 10/ 100/1000 Mbps / 1 x M.2 (Key E, 2230)
System
O.S. Support Windows 10
Primary Display 15.6", 1366 x 768 or 1920 x 1080
2nd Display 10.1" Monitor with Touch
Wall Mount Type VESA 75 x 75mm
Audio
1 x 2W Speaker
System Weight POS: 4.23 kg / POS + 2nd Display: 5.33 kg
POS: 375.68 x 287.43 x 194.95 mm
Dimensions (WxHxD)
POS + 2nd Display: 375.68 x 287.43 x 213.26 mm
Storage
SATA 1 x M.2 2242 / 1 x M.2 2280, SATA interface

Display

1 x Mini DP for Primary/ 2nd display(for Protech original display only)
1 x HDMI 1.4
Rear I/O: 2 x USB 2.0 / 2 x USB 3.1 / 1 x USB Type-C
USB
Side I/O: USB 2.0
I/O Ports
2 x RJ45 (all support 5V/12V selectable by jumper)
Serial Ports
(RS-232 interface)
LAN 1 x Giga LAN (RJ45) for 10/100/1000 Mbps
Cash Drawer 1 x RJ11 (+12V or +24V selectable) (default at +24V)
DC In 1 x 4-pin DC power jack (4pin, DIN)
Option 1 x USB 2.0 or 1 x 24V Power USB (1A) or 1 x DC Out (1A)
Customer Display VFD kit, 20 columns x 2 lines STN LCD display
MSR JIS I,II, ISO Track1+2+3 (USB interface)

Add-ons

2nd Display 10.1" with P-cap touch
Fingerprint Silicon Fingerprint Module (USB interface)
iButton iButton module (USB interface)
Scanner 2D: PDF417, QR Code, Micro QR, Data Matrix
15.6", TFT LCD (Resolution: 1366 x 768 or 1920 x 1080)
Primary Display
Brightness: 220 cd/m²
Display
Touchscreen Bezel-free P-CAP touch panel (USB interface)
2nd Display 10.1" Monitor with Touch
EMC & Safety CE / FCC
Operating Temp. 0°C ~ 35°C (32°F ~ 95°F)

Environment

Storage Temp. -5°C ~ 60°C (23°F ~ 140°F)
Humidity 20% ~ 90%
Ver. Q5
All Rights Reserved. Copyright 2023
All Right Reserved Copyright 2016 All Right Reserved Copyright 2015
PA-J500
322

Packing Checklist

If you discover any of the items below are damaged or lost,
please contact your vendor immediately.
PA-J500
This Quick Reference Guide
Power Adaptor
AC Power Cord
Driver DVD

System View

Front View
375.68
345

REAR I/O

1st Display
Port
LAN
DC In
1st Dis. DC In LAN
(optional)
DC OUT USB

SIDE I/O

Open up the cover from the right side of PA-J500 Box as shown
and find the Side I/O USB7 and Power Button.
USB7 Power
PA-J500
X 1
X 1
X 1
X 1
X 1
PA-6322 PA-J500
PA-63
Unit: mm
Side View
24.50
COM2 2nd Display
Port
HDMI COM1
USB USB
USB
Type C
HDMI
COM2 COM1 DRW 2nd Dis.
USB 2.0
USB
Type C
DRW
USB 3.0
Power USB
Button
