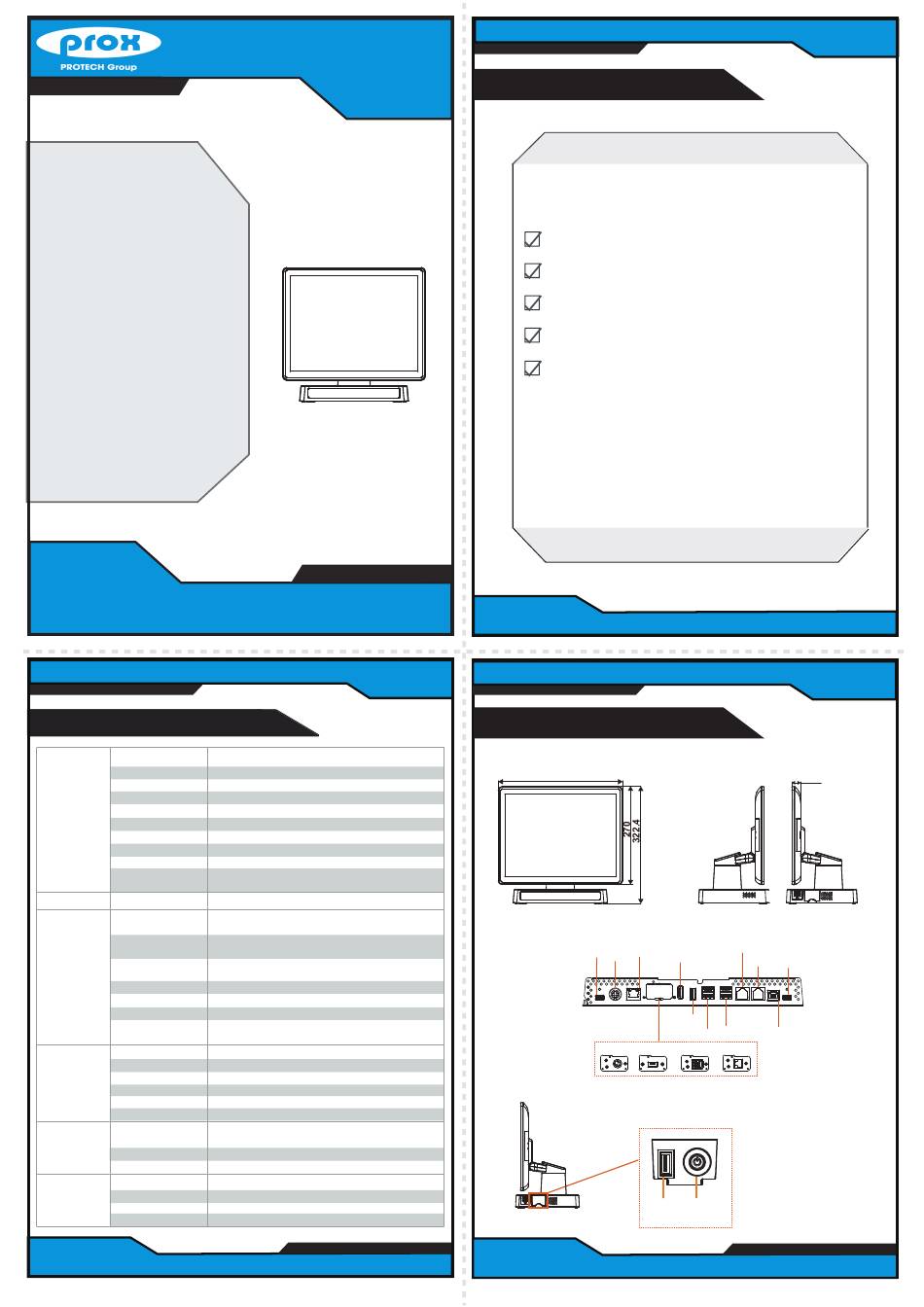

protech prox PA-J511 Quick Reference Manual

PA-J511
Quick
Reference
Guide
Specifications
Intel ® Celeron ® J6412 (fanless)
CPU Support
Memory
1 x DDR4 SO-DIMM slot (up to 16GB)
Power Supply
1 x 60/90 watt power adapter
Network Intel I225 2.5GbE 1 x M.2 (Key E, 2230)
System
O.S. Support Windows 11 / Windows 10 IoT Enterprise
Primary Display 15", 1024 x 768
2nd Display 10.1" Monitor with Touch
Audio
1 x 2W Speaker
System Weight POS: 4.3 kg / POS + 2nd Display: 5.3 kg
POS: 342 x 270 x 195 mm (with 45 degree)
Dimensions (WxHxD)
POS + 2nd Display: 342 x 291 x 237 mm (with 45 degree)
Storage
SATA 1 x M.2 2280, SATA interface
2 x Mini DP for Primary/ 2nd display
Display
1 x HDMI 1.4
Rear I/O: 3 +1 (optional) USB 2.0 x / 2 x USB 3.1
USB
Side I/O: 1 x USB 2.0
1 x RJ45 (support 5V/12V selectable under BIOS)
Serial Port
I/O Ports
(RS-232 interface)
LAN 1 x 2.5 GbE LAN (RJ45)
Cash Drawer 1 x RJ11 (+12V or +24V selectable) (default at +24V)
DC In 1 x 4-pin DC power jack (4pin, DIN)
1 x USB 2.0 or 1 x 24V Power USB (1A) or 1 x DC Out (1A)
Option
or 1 x RJ-45 (RS-232 interface)
Customer Display 20 columns x 2 lines STN LCD display
MSR JIS I,II, ISO Track1+2+3 (USB interface)
Add-ons
2nd Display 10.1" with P-cap touch
Fingerprint Silicon Fingerprint Module (USB interface)
iButton iButton module (USB interface)
Scanner 2D scanner (USB interface)
15" IPS LCD (Resolution: 1024 x 768)
Primary Display
Brightness: 400 cd/m²
Display
Touchscreen Bezel-free projected capacitive
2nd Display 10.1" Monitor with Touch
EMC & Safety CE / FCC
Operating Temp. 0°C ~ 35°C (32°F ~ 95°F)
Environment
Storage Temp. -5°C ~ 60°C (23°F ~ 140°F)
Humidity 20% ~ 90%
Ver. Q1
All Rights Reserved. Copyright 2023
All Right Reserved Copyright 2016 All Right Reserved Copyright 2015
PA-J511
322
Packing Checklist
If you discover any of the items below are damaged or lost,
please contact your vendor immediately.
PA-J511
This Quick Reference Guide
Power Adaptor
AC Power Cord
Driver DVD
System View
Front View
342
REAR I/O
1st Display
Port
LAN
DC In
1st Dis. DC In
LAN
(optional)
DC OUT USB
SIDE I/O
Open up the cover from the right side of PA-J511 Box as shown
and find the Side I/O USB7 and Power Button.
USB7 Power
PA-J511
X 1
X 1
X 1
X 1
X 1
PA-6322 PA-J511
PA-63
Unit: mm
Side View
24.4
COM2
2nd Display
HDMI
Port
COM1
USB
USB
USB
HDMI
COM2 COM1 DRW 2nd Dis.
USB 2.0
USB 3.0
DRW
USB 2.0
Power USB COM
Button
3
