Danfoss VLT HVAC Drive FC 102 Instruction Manual page 35

Application Set-up Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39

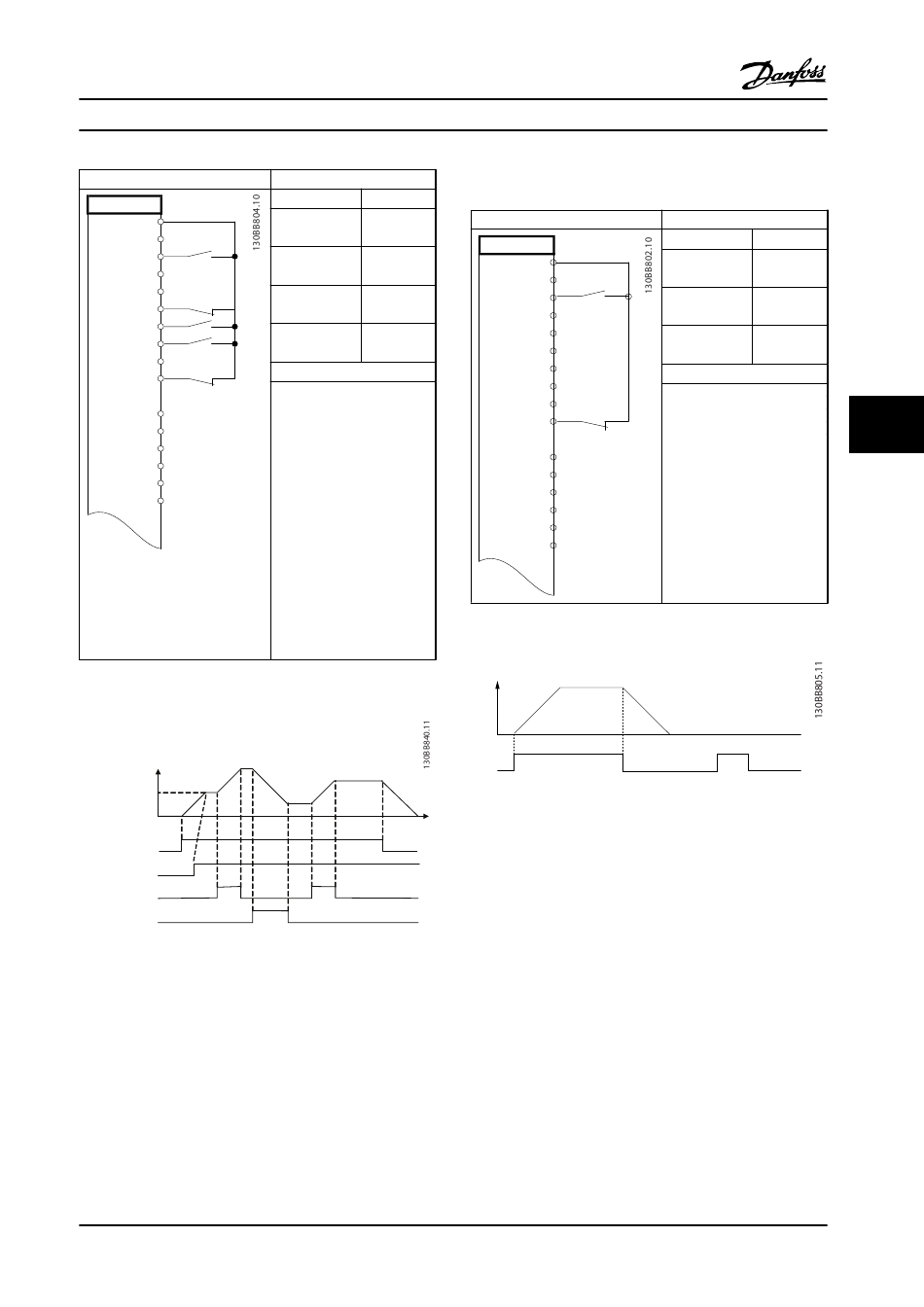

Table 6.4 Speed Up/Down
Speed
Reference
Start ( 18)
Freeze ref ( 27)
Speed up ( 29 )
Speed down ( 32 )
Figure 6.1 Speed Up/Down
MG11AK22
Instruction Manual
Parameters
Function Setting
5-10 Terminal [8] Start*
18 Digital Input
5-12 Terminal [19] Freeze
27 Digital Input Reference
5-13 Terminal [21] Speed
29 Digital Input Up
5-14 Terminal [22] Slow
32 Digital Input
* = Default Value
Notes/comments:
D IN 37 is an option.
Danfoss A/S © 03/2015 All rights reserved.
6.1.2 Start/Stop
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.5 Start/Stop Command with Safe Stop Option
Speed
Start (18)
Figure 6.2 Start/Stop Command with Safe Stop
Parameters
Function Setting
5-10 Terminal [8] Start*
18 Digital Input
5-12 Terminal [0] No
27 Digital Input operation
5-19 Terminal [1] Safe
37 Safe Stop Stop Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital
Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
D IN 37 is an option.
