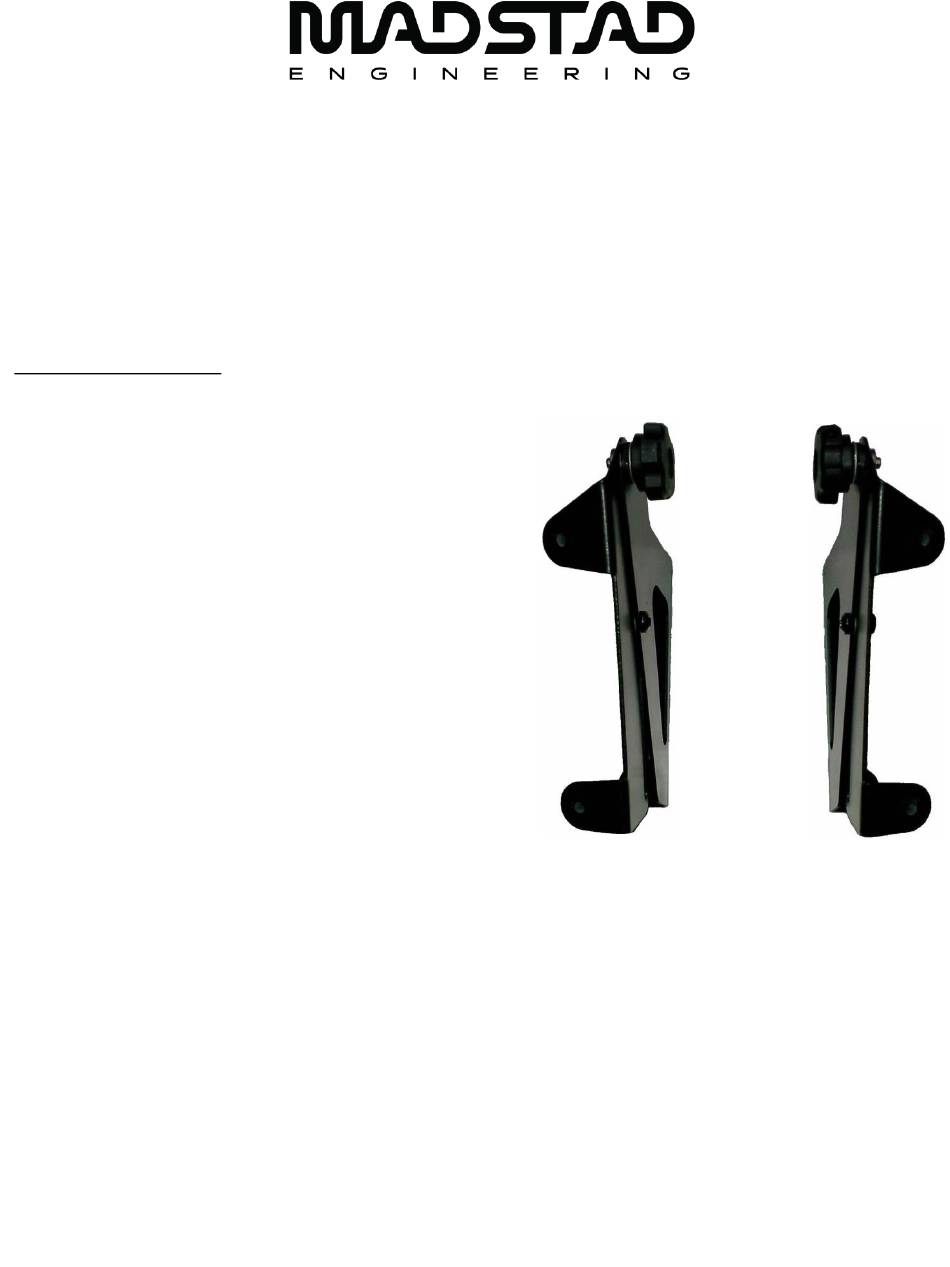

Adjustable Windshield System
Honda Gold Wing GL1800 / GL1500
Please read this entire manual before proceeding with installation.
What is in the box:

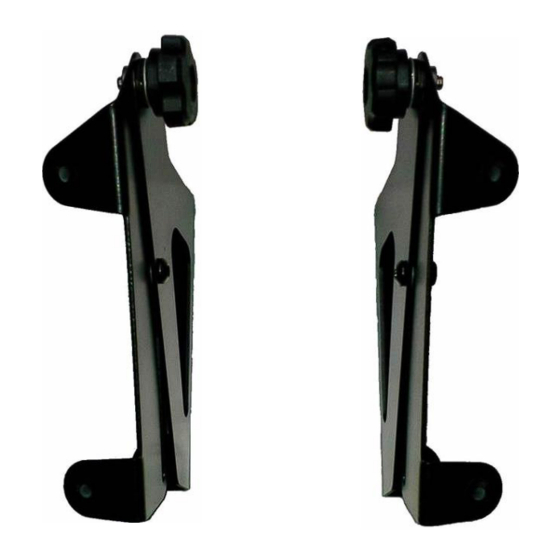

(1) Set of preassembled MadStad
adjustable windshield brackets
(1) Gloss black mounting plate
(4) M6 x 16 mounting screws
(4) M6 flat washers
(4) M6 lock nuts
Windshield Screws:
(4) M5 x 20 Phillips truss screws
(4) M5 plastic washers
(4) M5 soft rubber washers
(Actual brackets may be slightly
different than shown here.)
Tools Needed:
- 4 mm Allen wrench (hex key)
- 10 mm wrench (open-end, box, or small adjustable crescent)
- #2 Phillips screwdriver
Advertisement
Table of Contents
Related Manuals for MadStad Engineering GL1800
Summary of Contents for MadStad Engineering GL1800
- Page 1 Adjustable Windshield System Honda Gold Wing GL1800 / GL1500 Please read this entire manual before proceeding with installation. What is in the box: (1) Set of preassembled MadStad adjustable windshield brackets (1) Gloss black mounting plate (4) M6 x 16 mounting screws...
- Page 2 MadStad adjustable brackets are designed to bolt to a curved surface like the adapter plate included in this kit. The new windshield attaches to the top of the brackets with M5 Philips truss screws. Loosening the two adjustment knobs allow you to change the windshield height and tilt without getting off of the bike, and without any tools.
- Page 3 The knobs on the brackets go to the insides (facing each other) with the knob sides up. When both brackets are installed it should look like the diagram below: The mounting plate then slides into the fairing in place of the stock shield and screws down with the original factory windshield screws.
- Page 5 Adjusting the Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
- Page 6 PIVOT SCREWS The MadStad brackets each have a pivot screw, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! April 13, 2018...
