Screws
Slot screw

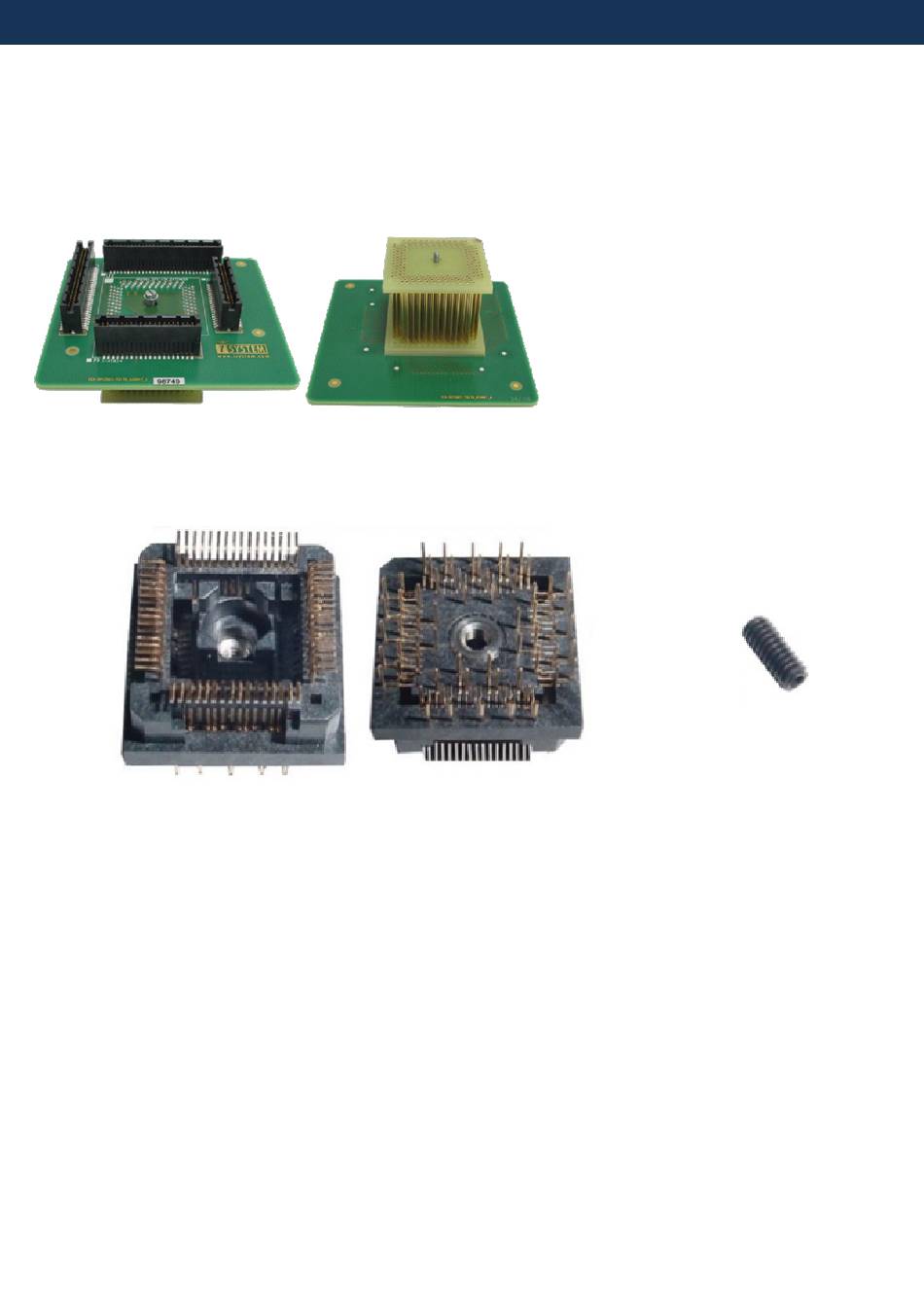

The Slot screw (30mm) is used to fix the Conversion board to the Solder part. The setup
becomes mechanically more robust.Screw the Conversion board to the Solder part first, before
the Emulation Adapter is attached on top and watch out not to break out the Solder part, e.g., if
you accidentally hit the Emulation Adapter from the side.
Short Hexagon socket screw
Short Hexagon socket screw, which comes with the Solder part, is not applicable with this
Emulation Adapter setup.
