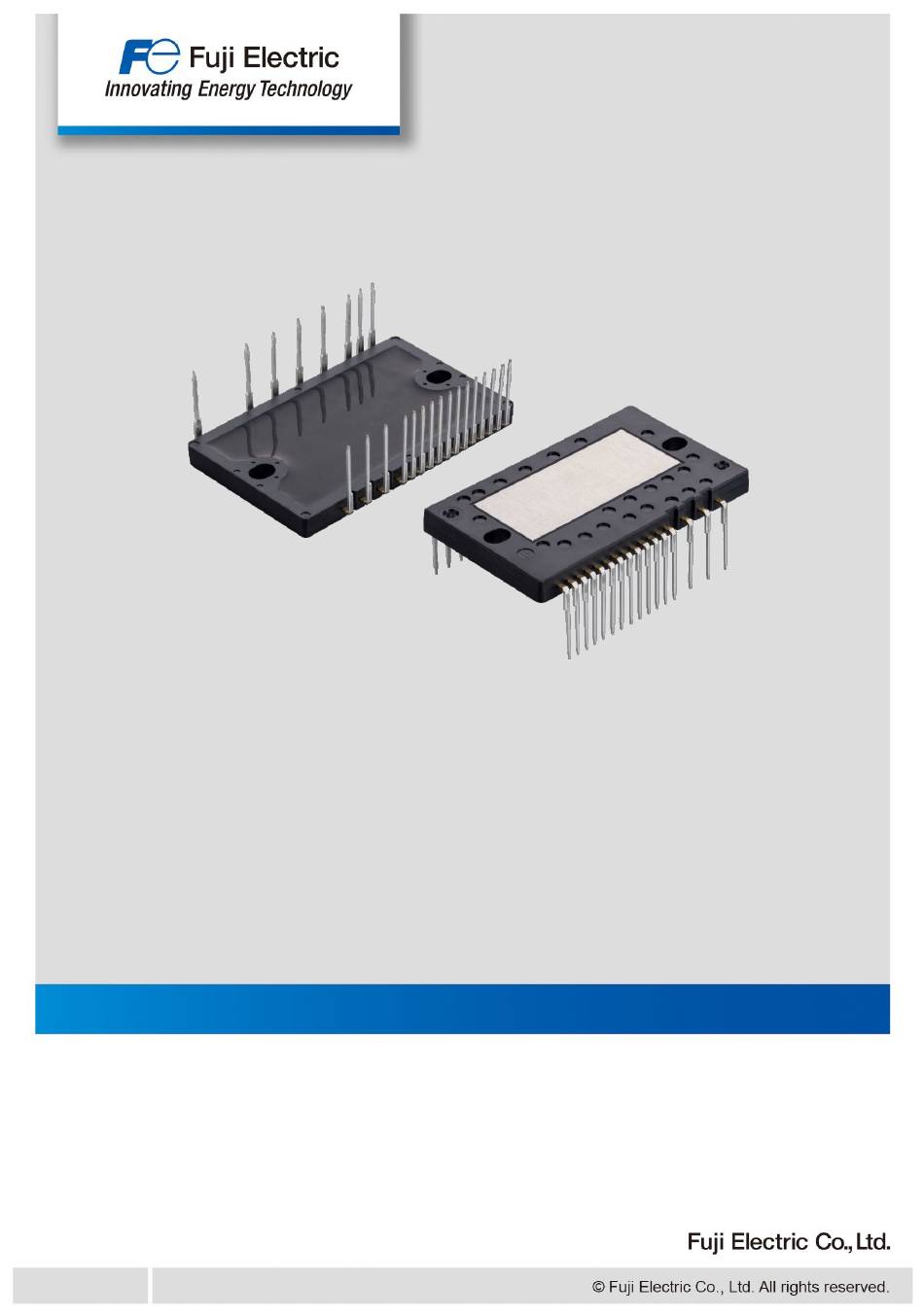

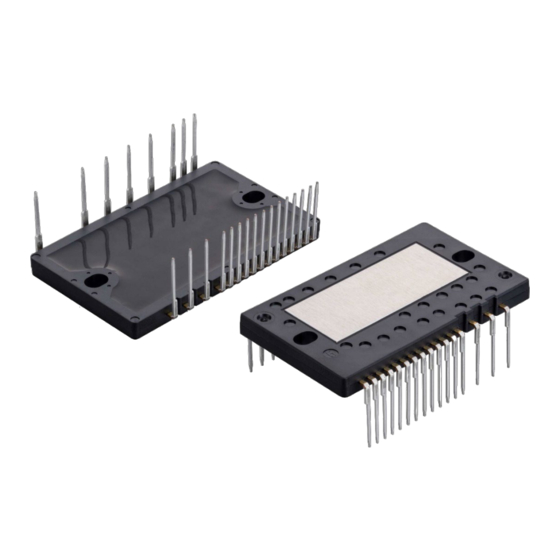

- Page 1 Small IPM (Intelligent Power Module) P633C Series 6MBP**XS*065-50 Application Manual August 2023 MT6M16945...
- Page 2 Fuji Electric Co., Ltd. If you have any question about any portion of this application note, ask Fuji Electric Co., Ltd. or its sales agencies. Neither Fuji Electric Co., Ltd. nor its agencies shall be liable for any injury or damage caused by any use of the products not in accordance with instructions set forth herein.
- Page 3 Chapter 6 Mounting Guideline and Thermal Design 1. Soldering to PCB 2. Mounting to Heat sink 3. Heat Sink Selection MT6M16945 © Fuji Electric Co., Ltd. All rights reserved.
- Page 4 • If the heat sink surface is concave, a gap occurs between the heat sink and the product, leading to deterioration of cooling efficiency. • If the flatness is +100µm/100 mm or more, the aluminum base of the product is deformed and cracks could occur in the internal isolating substrates. MT6M16945 © Fuji Electric Co., Ltd. All rights reserved.
- Page 5 (Fig. 6-3) is recommended to control the appropriate thermal grease thickness. Please refer to mounting instruction for the recommended characteristics, amount, stencil mask pattern, etc. of thermal grease. Fig. 6-3 Thermal grease application MT6M16945 © Fuji Electric Co., Ltd. All rights reserved.
- Page 6 For more detail about thermal design, please refer to IGBT MODULE APPLICATION MANUAL (REH984)” Contents: • Power dissipation loss calculation • Selecting heat sinks • Heat sink mounting precautions • Troubleshooting MT6M16945 © Fuji Electric Co., Ltd. All rights reserved.
