Fuji Small IPM (Intelligent Power Module)
P633A series
6MBP**XS*060-50
Mounting Instruction
th
15
of June, 2020 Rev.0
MT6M15589

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P633A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fuji Electric P633A Series

Summary of Contents for Fuji Electric P633A Series

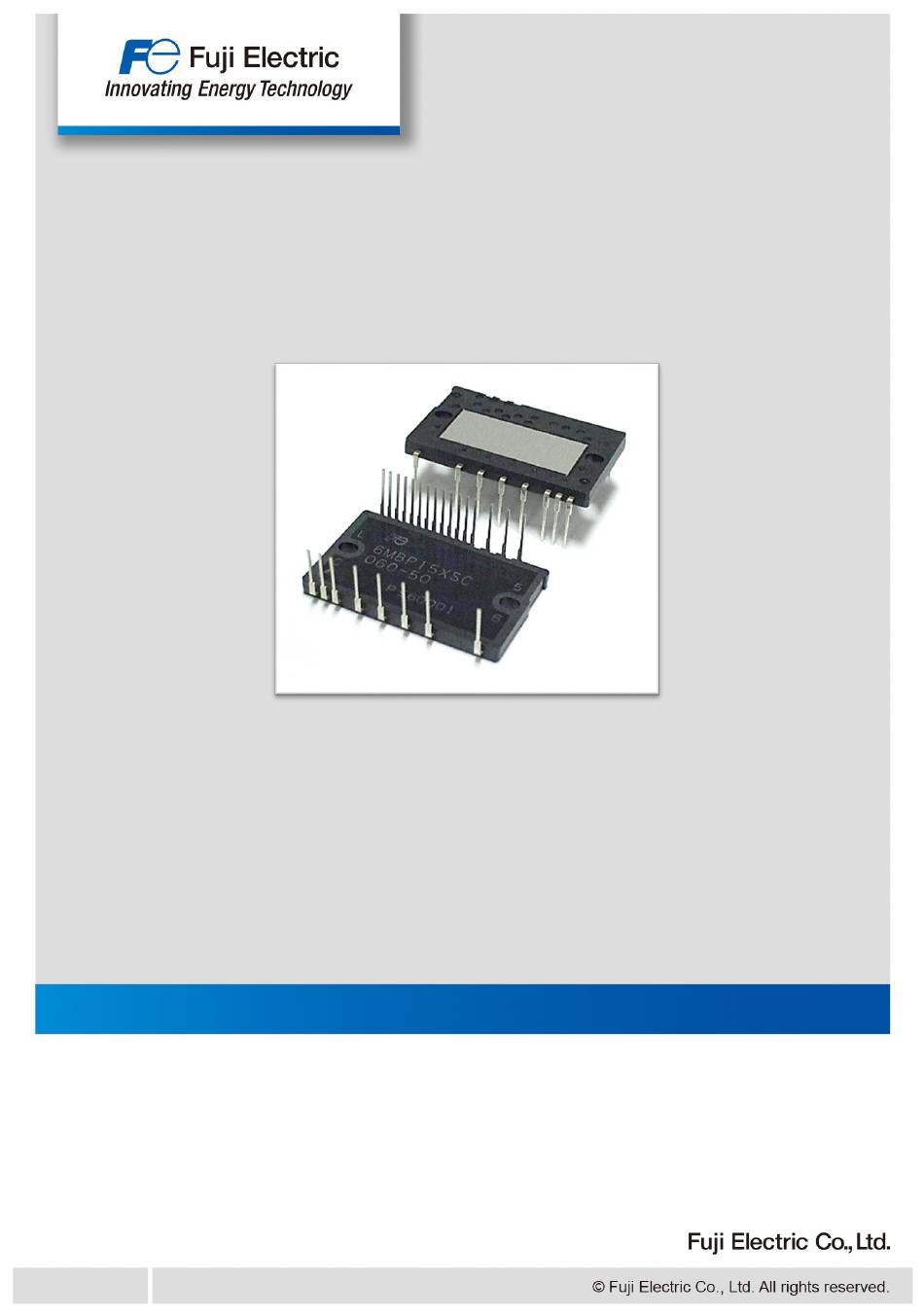

  • Page 1 Fuji Small IPM (Intelligent Power Module) P633A series 6MBP**XS*060-50 Mounting Instruction of June, 2020 Rev.0 MT6M15589...
  • Page 2 No right or license, either express or implied, under any patent, copyright, trade secret or other intellectual property right owned by Fuji Electric Co., Ltd. Is (or shall be deemed) granted. Fuji Electric Co., Ltd. makes no representation or warranty, whether express or implied, relating to the infringement or alleged infringement of other’s intellectual property rights which may arise from the use of the applications described herein.
  • Page 3 Fuji Electric Co., Ltd. If you have any question about any portion in this Instruction, ask Fuji Electric Co., Ltd. or its sales agents before using the product. Neither Fuji Electric Co., Ltd. nor its agents shall be liable for any injury caused by any use of the products not in accordance with instructions set forth herein.

  • Page 4: Table Of Contents

    1. Selection 2. Shape 3. Mounting (tightening) Chapter 7 Soldering to Printed Circuit Board Chapter 8 Appendix 1. Stencil mask drawing for thermal compound application (recommended) 2. Isolation distance of heat sink MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 5: Chapter 1 Precautions During Transportation And Storage

    • The containers and bags for storing the Small IPM should be non-static or conductive. • Under the above storage condition, use the Small IPM within one year. MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 6: Chapter 2 Precautions In Unpacking

    Remove the pin with the tube opening facing up. • It is recommended to use a remover (removal jig) to remove the pins. Page 2-2 shows how to remove the pins using the remover. MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.
  • Page 7 ④ Hold the pin with your finger and remove the pin with the tube opening facing up. (See Fig. 2-5, 2-6) Fig. 2-5 How to hold the pin Fig. 2-6 Tube opening orientation MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 8: Picking Out The Small Ipm From The Stick

    • When picking out the Small IPM, do not strongly collide the Small IPM with each other or touch the Small IPM terminals to the tube. A strong impact on the Small IPM may cause deforming or damage of the terminals of the Small IPM. MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 9: Chapter 3 Through Hole Design For Pcb

    Fig. 3-2 Power side through hole Fig. 3-1 Control side through hole dimensions dimensions Fig. 3-3 Through hole layout with standard Fig. 3-4 Through hole layout with terminals and short terminals zigzag pattern terminal MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 10: Chapter 4 Spacer

    Small IPM at the hatched area as shown in Fig. 4-1. • The spacer should be made of resin or metal, and select a material that does not cause contamination or corrosion. Fig. 4-1 Spacer installation position (recommended) MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 11: Chapter 5 Compound Application

    Product name :Shin-Etsu Chemical Co., Ltd. Oil compound G-747 Application position : 7.5mm apart from the edge of aluminum base Application quantity : 0.03g Fig. 5-1 Recommended an application position and application quantity MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 12: Chapter 6 Heat Sink Selection

    • For more detail design, please refer “IGBT Module Application Manual (REH984c)” and “Small IPM Application Manual (MT6M12343)”. Temperature sensor position Approx. 7.0 Approx. 6.3 Heat sink side Tc measurement position SIDE VIEW TOP VIEW Fig. 6-1 Temperature sensing and Tc measurement points MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 13: Shape

    1  2 Pre-screwing: 2  1 Final screwing: ±0.5 DETAIL A DETAIL B Note: the pre-screwing torque is set to 30% of the maximum torque rating. Fig. 6-3 Recommended screw fastening procedure MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 14: Chapter 7 Soldering To Printed Circuit Board

    • It is not recommended to reuse the device after it is removed from the circuit board. There is a possibility that the removed device was subjected to thermal or mechanical damage during the removal process. MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 15: Chapter 8 Appendix

    This figure shows the view from the aluminum base surface. ※ : Aluminum base centerline Metal mask thickness: T = 150 μm (Target compound thickness: T = approx. 75 μm) Fig. 8-1 Stencil mask drawing for thermal compound application (recommended) MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.

  • Page 16: Isolation Distance Of Heat Sink

    INV. side lead Ctrl. side lead 7.7mm 3.5mm (min.) (min.) Heat-sink Heat-sink Secure a creepage distance and clearance of 5.08 mm or more Fig. 8-2 Isolation distance of heat sink MT6M15589 © Fuji Electric Co., Ltd. All rights reserved.
