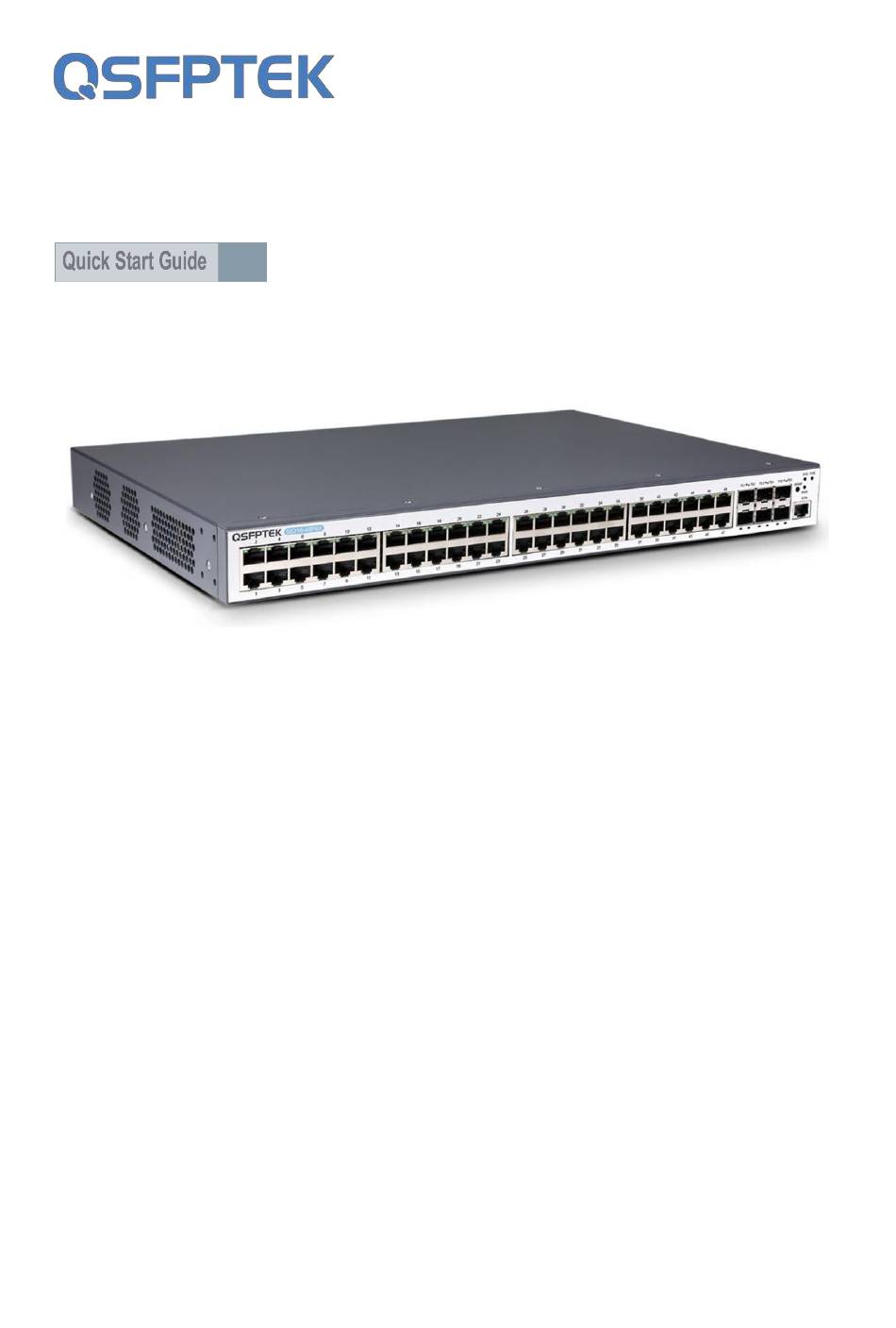

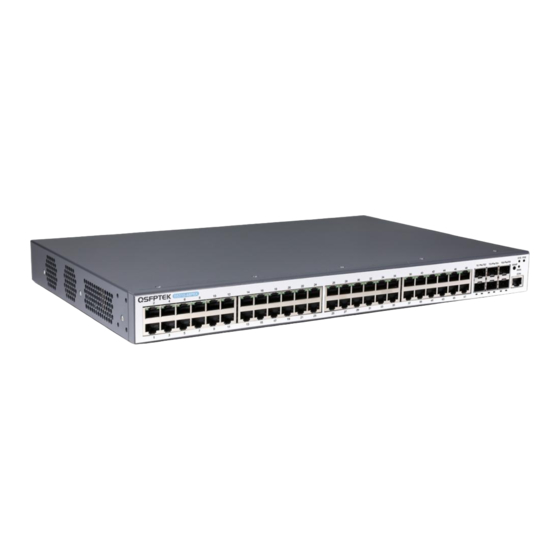

- Page 1 S5310-48P6X Quick Start Guide V2.0 48-Port Gigabit Ethernet L3 PoE+ Switch 48x 10/100/1000BASE-T PoE+ RJ45, with 6x 10G SFP+ Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 9...
- Page 2 IEEE 802.3af/at (30w max) for powering attached wireless access points, IP cameras, or other PoE and PoE+ standard terminal devices. The PoE switch can be easily managed through the CLI command line or WEB management. S5310-48P6X is a good choice for SMBs, surveillance systems, and campus networks.
-
Page 3: Hardware Overview
If the PWR indicator is always on, the device is powered on. POE LED Indicates whether the POE card is detected. Back Panel Abbrev Name Description AC POWER1 AC power supply Input voltage 100 to 240V www.qsfptek.com V2.0 3 / 9... - Page 4 discharged. Avoid damaging devices by following the electrostatic discharge prevention procedure. S5310-48P6X Hardware Installation Manual. Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed.
- Page 5 Connect one end of the Ethernet cable to the RJ45 port on networking equipment, such as PC, printer, server, storage, etc. Connect the other end of the Ethernet cable to the switch RJ45 port. www.qsfptek.com V2.0 5 / 9...
-
Page 6: Connecting The Management Ports
Connect the other end of the fiber to the device that you want to realize data communication. Connecting the Management Ports Connecting the Console Port Prepare a console cable. Insert the RJ45 connector of the console cable into the console port on the switch. www.qsfptek.com V2.0 6 / 9... -
Page 7: Configuring The Switch
255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 7 / 9... -
Page 8: Troubleshooting
Do the following checkups to help remove the fault: 1. When the power on-off is at the “ON” location, check whether the fan works normally. If the fan does not work well, check the fan. www.qsfptek.com V2.0 8 / 9... -
Page 9: Support And Other Resources
Product Warranty S5310 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
