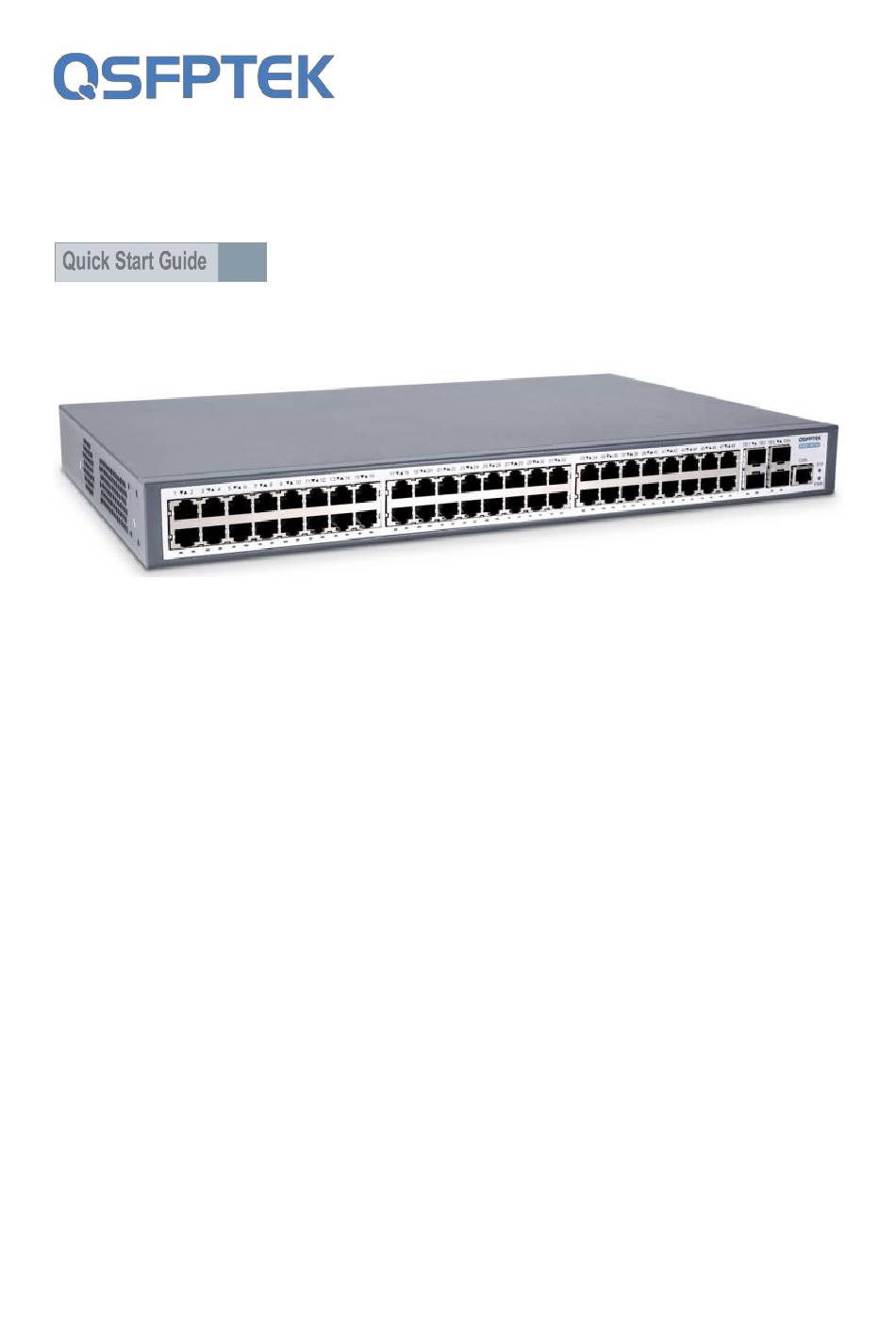

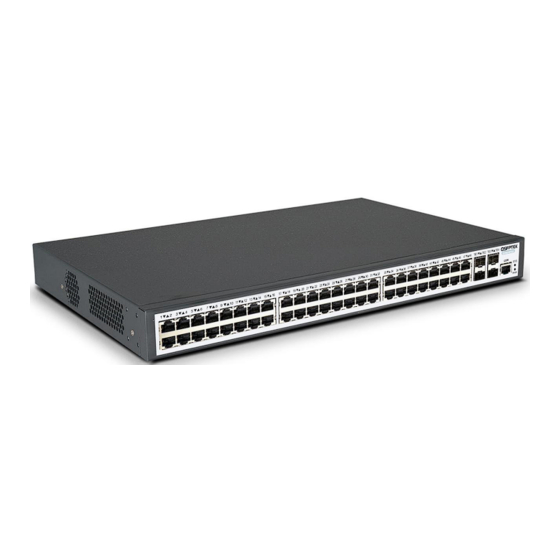

- Page 1 S5300-48T4X Quick Start Guide V2.0 48-Port Gigabit Ethernet L2+ Switch 48x 1G RJ45 Ports, with 4x 10G SFP+ Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 10...
- Page 2 Introduction The S5300-48T4X is a highly efficient Gigabit Ethernet L2+ access switch with 48x GE RJ45 downlinks and 4x 10GE SFP+ uplinks. Effortlessly control and manage the switch through both CLI and WEB interfaces. The S5300-48T4X access layer switch is an excellent choice for enterprise network requirements, campus networks, and SMBs.
-
Page 3: Hardware Overview
(Port 1-48) SFP+ 10G port link. (Port TE1-TE4) If the SYS indicator flickers, the SYS LED system works normally. If the PWR indicator is always PWR LED on, the device is powered on. Back Panel www.qsfptek.com V2.0 3 / 10... - Page 4 discharged Avoid damaging devices by following the electrostatic discharge prevention procedure. S5300-48T4X Hardware Installation Manual Put the machine box in a place where cool air can blow off the heat inside the machine box. Make sure the machine box is sealed.
- Page 5 Connecting the Power Plug the AC power cord to the switch power port on the back rear. Connect the other end of the power cord to an AC power source equipment. Connecting the RJ45 Ports www.qsfptek.com V2.0 5 / 10...
- Page 6 Insert the SFP+ module into the SFP+ port. Plug a fiber patch cable into the SFP+ transceiver. Connect the other end of the fiber to the device that you want to realize data communication. www.qsfptek.com V2.0 6 / 10...
-
Page 7: Connecting The Management Ports
Connect the DB9 female connector on the other end of the console cable to the serial port on the computer host. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 7 / 10... - Page 8 255.255.255.0. Step 3: Open a web browser and type http://192.168.0.2 in the address bar. Enter the default username and password (admin/admin). Step 4: Click sign-in to access the web-based configuration page. www.qsfptek.com V2.0 8 / 10...
-
Page 9: Troubleshooting
Faults Relative to Power and Cooling System Do the following checkups to help remove the fault: 1. When the power on-off is at the “ON” location, check whether the fan works normally. If the fan www.qsfptek.com V2.0 9 / 10... -
Page 10: Support And Other Resources
Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
