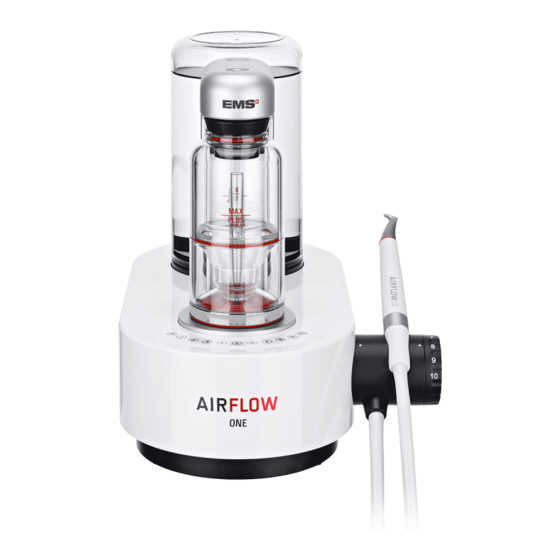

EMS AIRFLOW ONE Instructions For Use Manual

Hide thumbs Also See for AIRFLOW ONE:
Table of Contents

Advertisement

Quick Links

Download this manual
AIRFLOW
ONE
®
INSTRUCTIONS FOR USE
This IFU is only valid for the United States.

Advertisement

Table of Contents
loading

Related Manuals for EMS AIRFLOW ONE

Summary of Contents for EMS AIRFLOW ONE

  • Page 1 AIRFLOW ® INSTRUCTIONS FOR USE This IFU is only valid for the United States.

  • Page 2: Table Of Contents

    ...............19 ® ® INTENDED USERS ........................4 4.7.2- For the device ......................20 PATIENT POPULATION ......................5 4.8- To contact EMS service center .....................22 SUSTAINABILITY .........................22 INTENDED ENVIRONMENT ....................5 I- DISPOSAL OF WASTE ........................22 CONTRAINDICATIONS ......................5 II- SUSTAINABLE DESIGN ........................22 COMPATIBILITY ........................5...

  • Page 3: Before Use

    The single use nozzle must be used for one single patient only. Never reuse a nozzle because treatment will be ineffective The AIRFLOW One is intended for use in the cleaning and polishing of teeth by the projection of water, air, and dental powders and the risk of emphysema would increase.

  • Page 4: I- Equipment Included In The Box

    GBT ready cord 1x FV-122 2 x EL-308 2.4- Be aware 1x EM-145 The use of cables and accessories other than those supplied by EMS may negatively affect EMC performance. Use only parts supplied by EMS. AIRFLOW application PERIOFLOW ®...

  • Page 5: Install Accessories

    Pressure is automatically reduced for compatibility with subgingival treatments, including PERIOFLOW ® treatments (Supra applications also possible). Compatible EMS Powders: PLUS (refer to paragraph “Compatibility” for details). The handpiece cord is not fully connected. USE FORCE to lock in. CLASSIC The CLASSIC Powder chamber is designed for the CLASSIC Powder and can only be used for The system is well connected &...

  • Page 6: Iv- Water Supply And Water Bottle

    IV- WATER SUPPLY AND WATER BOTTLE In order to ensure perfect electronic connection, the individual components must be dry. What water should I include in my WATER bottle? EMS recommends the use of: Attaching the   Filtered drinking water AIRFLOW ®...

  • Page 7: Airflow ® Pressure Setting

    If a retractor is not used, 1.2- AIRFLOW BOOST ® EMS Nyon place cocoa butter or equivalent on the patient‘s lips. If PERIOFLOW treatment has to be performed, radiographs is mandatory to correlate ®...

  • Page 8: 2- Settings

    2.2.1.2- Settings 2.2.3- On the device Position the powder chamber. Pressurize the chamber. 20 to 60% Set the AIRFLOW power. ® Set the water flow. Take the AIRFLOW or PERIOFLOW Handpiece. ® ® Press the pedal to start treatment. [Step hard on the center of the BT pedal for BOOST.] Release the pedal to stop treatment.

  • Page 9: Cleaning And Reprocessing

    The instructions for use should be followed to ensure the appropriate water quality to help protect Always empty out and wash the water bottle used for rinsing before any new use. EMS recommends a weekly use of a bottle patients, staff and equipment.

  • Page 10: Airflow ® Handpiece Leakage

    4.5- Yearly maintenance and repair Clear the water channel with air EMS devices and products must only be maintained and/or repaired by EMS service center in Dallas. 2- Clean the air-powder channel with Easy Clean: A yearly preventive maintenance or 2000 hours usage maintenance (this is when the LED 1...
  • Page 11 Try again 5° If the device temperature is over 10°C, or the problem recurs, definitively stop using it and contact the EMS 2° Perform a new pairing. This procedure is explained in the paragraph “Pairing a new pedal”. Try again service center in Dallas 3°...
  • Page 12 Validated lifetime Handpieces (main bodies): 1000 sterilization cycles EMS declines the responsibility for the safety of the device and declares the warranty null and void if service or repair is carried Expected service life Device: 7 years, having regular yearly preventive maintenance out by an unauthorized third party or if non-genuine spare parts are used.
  • Page 13 IP ... Protection against water permeability Applied part, type B Manufacturer EC Importer EC Authorized Representative EC Authorized representative EMS France SARL 32 Rte de Pontarlier 39460 Foncine-Le-Haut FRANCE Manufacturing date Serial number Catalog number / Product reference Medical Device compliant with EU Directive 93/42/EEC...
  • Page 14 Proximity fields from RF wireless communications equipment ELECTROMAGNETIC COMPATIBILITY IEC 61000-4-3 The use of parts other than those supplied or listed as accessory may negatively affect EMC performance. Test Immunity test Band Maximum power Distance Frequency Service Modulation level The device has embedded a low power, 8 dBm EIRP max, Bluetooth 2.4 GHz module, for communication with the wireless ®...
  • Page 15 Al. Roździeńskiego 188H DE - 81829 München PL - 40-203 Katowice EMS devices have been designed and tested for exclusive use with EMS prophylaxis powders. T. +49 89 42 71 61 0 T. +48 32 4937060 F. +49 89 42 71 61 60 E-mail: info@ems-poland.com...
  • Page 16 W W W. E M S - D E N T A L . C O M...
