EMS AirFlow Master Installation Guide
This document is intended as a guide only.
IMPORTANT: This equipment should only be installed by a suitably trained person that has experience installing this
type of dental equipment. If in doubt DO NOT proceed with the installation.
Optident Limited will not be held accountable for any losses or damage resulting from improper installation of this
equipment.
Optident Limited recommends the services of Henry Schein Dental for installation of this equipment.
INTRODUCTION

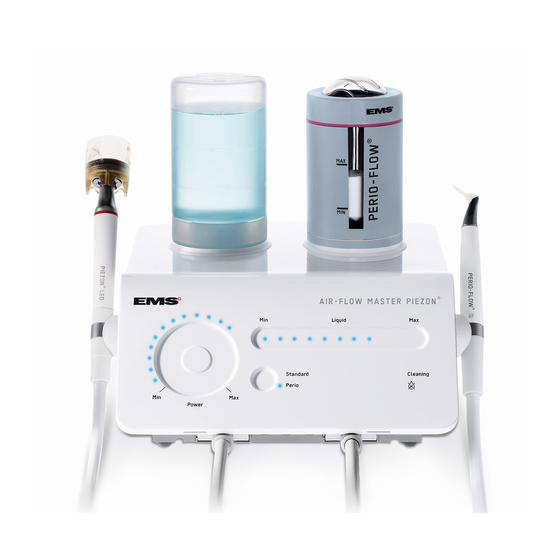

The EMS AirFlow Master & EMS AirFlow Master Piezon require a mains air and water supply, which is connected to
the unit via x2 6mm braided hoses supplied with the unit. The unit also requires connection to a mains electrical supply
using the UK Mains Power Cord also supplied.
AIR & WATER CONNECTIONS
The unit is supplied with x2 braided hoses, od 6mm, id 4mm:
The Red/Grey braided air hose supplied with the unit is fitted with
a Rectus Type 21 Q.D. coupling. This coupling is to connect to the
corresponding fitting on the rear of the unit labelled AIR.
The free end of the air hose is supplied blank. It will be necessary
for the installation engineer to supply suitable connections at this
end.
The Grey braided water hose supplied with the unit is fitted with
a Rectus Type 20 Q.D. coupling. This coupling is to connect to the
corresponding fitting on the rear of the unit labelled H2O.
The free end of the water hose is supplied blank. It will be
necessary for the installation engineer to supply suitable
connections at this end.
IMPORTANT: We recommend that the air and water connection fitted to the blank end of the braided air and water
hoses are of different design/fitment, so as to prevent accidental misconnection of the mains services i.e. air to water,
water to air. Misconnection of the mains services may result in serious damage to internal components of the unit.
An installation kit comprising of male and female fittings to connect the braided hose to a panel mount quick-
disconnect is available. See specification below. Order code: *********
Description:
1/4 Panel Mount Q.D. w/Shut-off, Female
1/4 Panel Mount Q.D. w/Shut-off, Male
6/4 Bulkhead Q.D, Female
6/4 Bulkhead Q.D, Male
Additional parts required to complete installation should be supplied by the installation engineer.
Connects to:
Water – Mains supply
Water – Braided hose
Air – Mains supply
Air – Braided hose
AIR
H2O
Qty:
1
1
1
1
