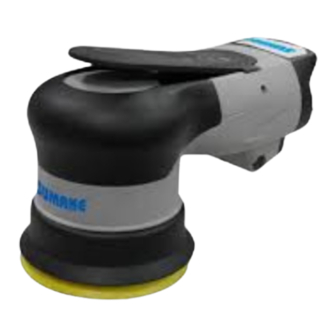

Low Profile Central-Vacuum Air Orbital Sander
Specification:
Free Speed
Orbit Diameter
Sanding Pad
Air Consumption
Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
W/3" Hook (Vinyl) Pad
LSC-30H(V)
12,000 r/min
5 mm
3" (76.2 mm)
15 CFM (430 L/min)
7.7" (196.5 mm)
1/4" (6.35 mm)
1/4" (6.35 mm)
90 psi (6.3 bar)
1.60 lbs (0.72 kg)
Noise and Vibration:
Vibration
EN ISO 28927-3
Sound Pressure Level
Load:
2.13 m/s²
Sound power level
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
load: 74 dB(A)
protector at
environment
load: 85 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
LSC-30H(V)-S-2210C-XPF
wear ear
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSC-30H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumake LSC-30H

Summary of Contents for Sumake LSC-30H

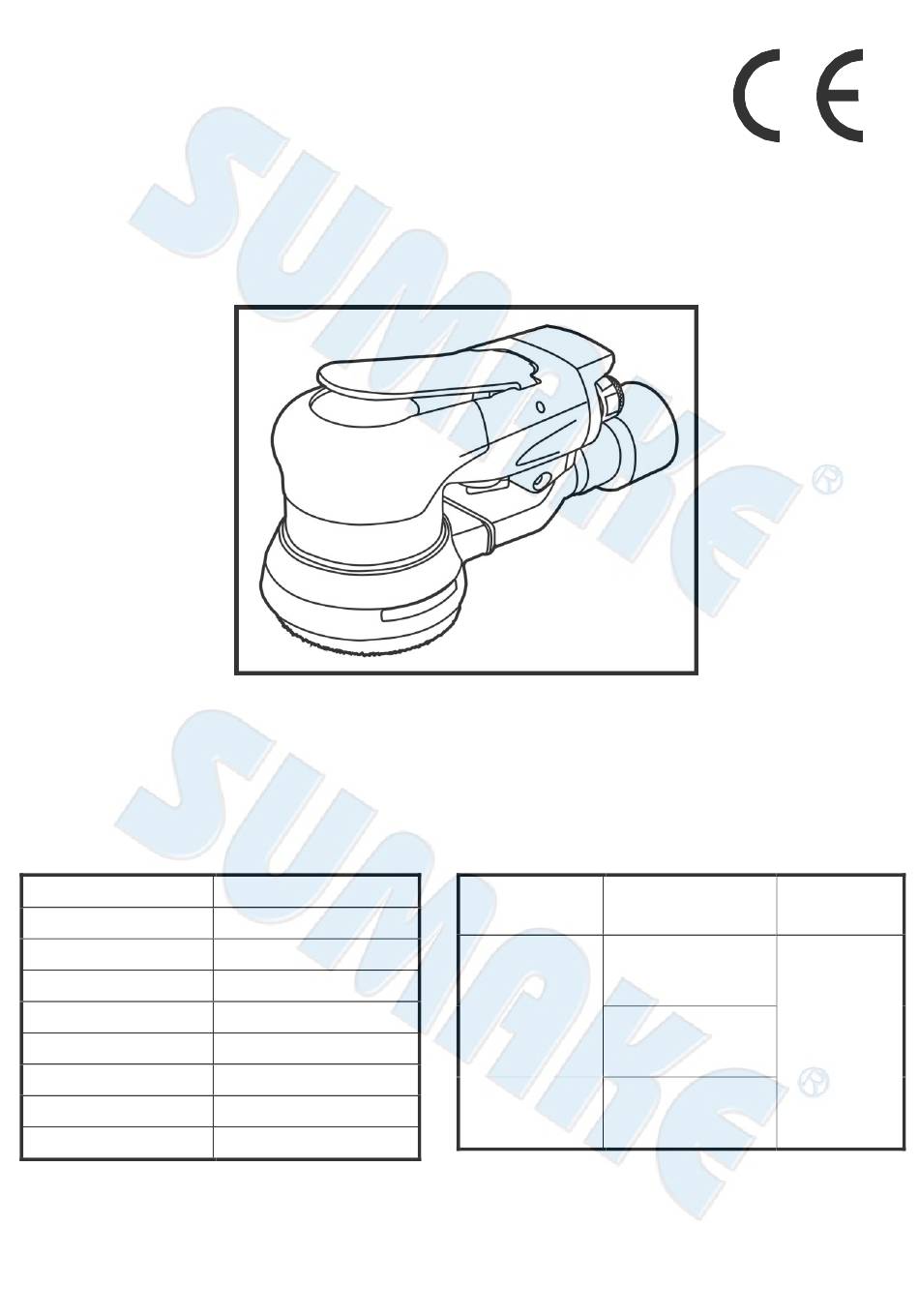

  • Page 1 Air Hose (I.D.) 1/4” (6.35 mm) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) K= 1.5 m/s K= 3dB ² Net Weight 1.60 lbs (0.72 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 LSC-30H(V)-S-2210C-XPF...
  • Page 2 Opt. XPA0392 Φ1" Vac Hose To 1"x1-1/2" Adaptor Coupler & Air Line Assembly Opt. Throttle Lever For 12,000 rpm, 2.5mm (3/32 in.) Orbit Sander [SUMAKE] XPA0031 Lever Spring Pin XPA0412 Φ1" Vac Hose To Double Bag Fitting And Airline Assembly [LSG] Opt.
  • Page 3 LSN-30H(V) LOW PROFILE NON-VACUUM AIR ORBITAL SANDER W/ 3" HOOK (VINYI) PAD LSC-30H(V) LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 3" HOOK (VINYI) PAD LSG-30H(V) LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/ 3" HOOK (VINYI) PAD LSN(C)(G)-30H(V)-P-1612A-XP...

  • Page 4: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 3" HOOK (VINYI) PAD Model/ Serial No.： LSC-30H(V) to which this declaration applies, complies with these normative documents: ...
  • Page 5 INSTRUCTION MANUAL LSN-30H(V) ITEM NO.: LOW PROFILE NON-VACUUM AIR ORBITAL SANDER W/ 3 HOOK(VINYI) PAD LSC-30H(V) ITEM NO.: LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 3” HOOK(VINYI) PAD LSG-30H(V) ITEM NO.: LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/ 3” HOOK(VINYI) PAD...

  • Page 6: Work Stations

    Work Stations The tool is intended to be operated as a hand held tool. It is always recommended that the tool be used when standing on a solid floor. It can be in any position but before any such use, the operator must be in a secure position having a firm grip and footing and be aware that the sander can develop a torque reaction.

  • Page 7: Motor Disassembly

    Back-Up Pads SUMAKE back-up pads are perfectly mated for use on the SUMAKE. Constructed from premium, industrial-quality materials and featuring a riveted fiberglass and steel hub with molded urethane, their durability and precise construction are the ideal complement to the performance of the SUMAKE. See "Product Configuration/Specifications" Table for the correct replacement pad for a particular model.

  • Page 8: Housing Assembly

    ASSEMBLY INSTRUCTIONS NOTE: All assembly must be done with clean dry parts and all bearings are to be pressed in place by the correct tools and procedures as outlined by the bearing manufacturers. Housing Assembly: Install Throttle Lever into Housing with the Spring Pin. Lightly grease the O-ring and place it on the Speed Control.

  • Page 9: Motor Assembly

    Motor Assembly: Use the larger end of the T-13 Bearing Press Sleeve to Press the front Bearing (with 2 Shields) onto the shaft of the Shaft Balancer. Slide the Front Endplate with the bearing pocket fac-ing down onto the Motor Shaft. Gently press the Front Endplate onto the front Bearing using the larger end of the T-13 Bearing Press Sleeve until the front Bearing is seated in the bearing pocket of the Front Endplate.

  • Page 10: Troubleshooting

    Troubleshooting: Symptom Possible Cause Solution Check air line pressure at the Inlet of Insufficient Air Pressure the Sander while the tool is running at free speed. It must be 90 PSI (6.3 Bar). See the "Housing Disassembly" section for Muffler removal. The Muffler can be back flushed with a clean, suitable cleaning solution until all contaminates Clogged Muffler(s)
  • Page 12 NOTE www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
