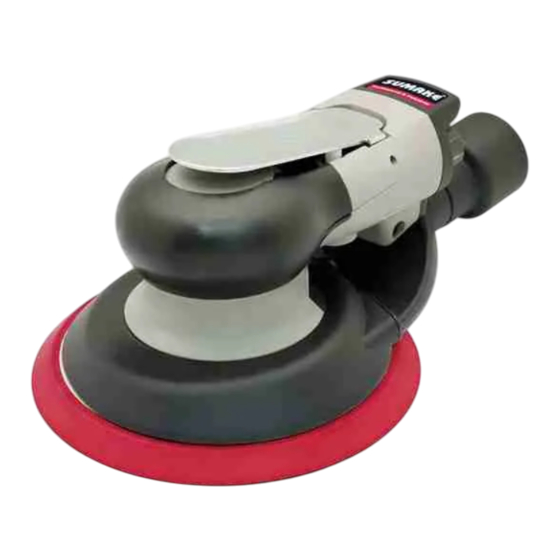

Sumake LSG-50HM-2.5 Manual

Low profile self generated vacuum air orbital sander w/5"-muiltihole hook pad, orbital: 2.5mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

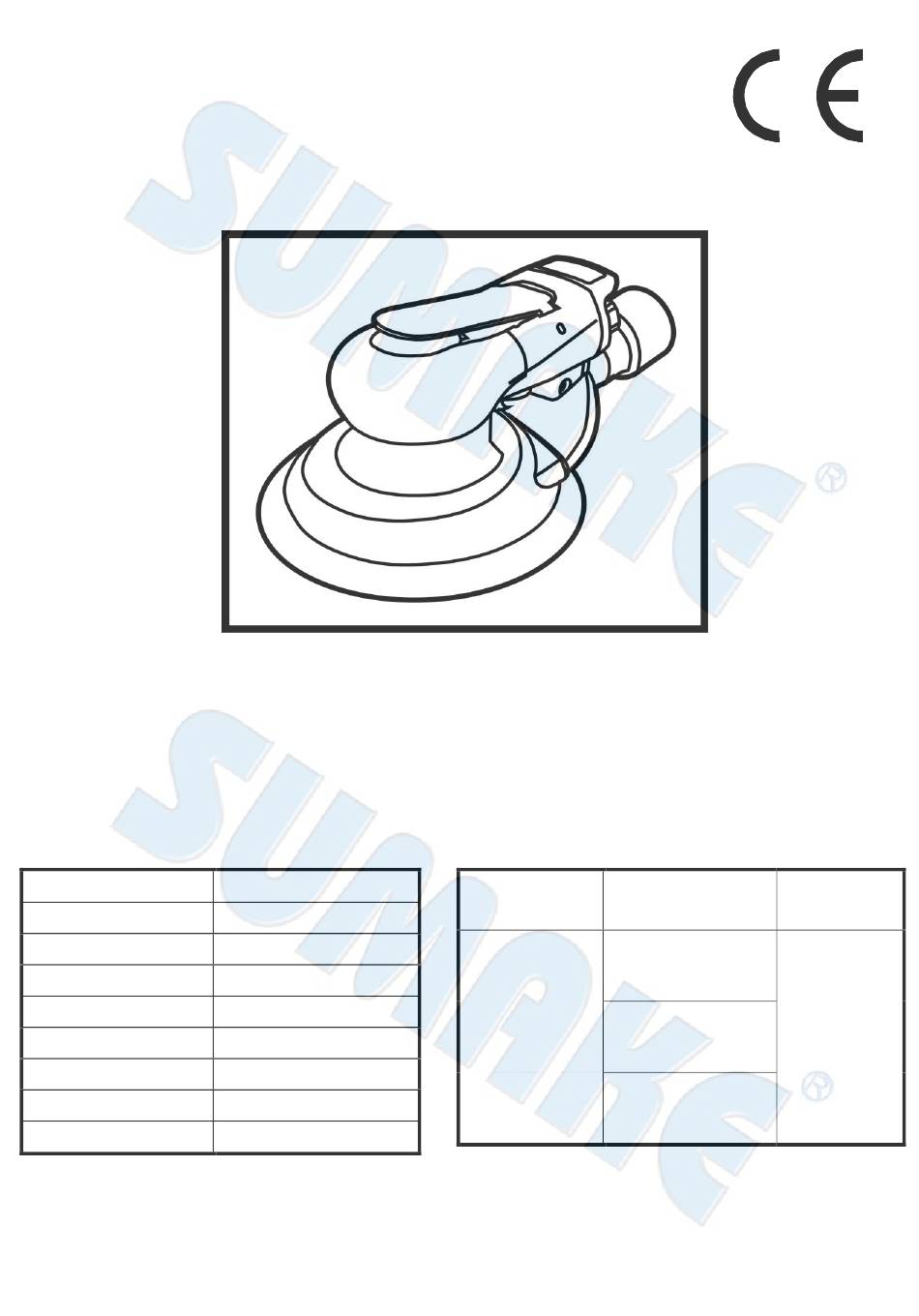

SUMAKE
Low Profile Self Generated Vacuum Air Orbital
Sander W/5"-Muiltihole Hook Pad,
Specification:
Free Speed
Orbit Diameter
Sanding Pad
Air Consumption
Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Orbital: 2.5mm
LSG-50HM-2.5
11,000 r/min
2.5 mm
5" (127 mm)
15 CFM (430 L/min)
9.9" (251 mm)
1/4" (6.35 mm)
1/4" (6.35 mm)
90 psi (6.3 bar)
1.97 lbs (0.89 kg)
Noise and Vibration:
Vibration
EN ISO 28927-3
Sound Pressure Level
Load:
2.15 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 83.5 dB(A)
protector at
environment
load: 94.5 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
LSG-50HM-2.5-S-1512B-XPF
Remark
wear ear
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSG-50HM-2.5 and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake LSG-50HM-2.5

Summary of Contents for Sumake LSG-50HM-2.5

  • Page 1 1/4” (6.35 mm) Air Hose (I.D.) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) ² K= 1.5 m/s K= 3dB Net Weight 1.97 lbs (0.89 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 LSG-50HM-2.5-S-1512B-XPF...
  • Page 2 LSN-50(60)H(V) LOW PROFILE NON-VACUUM AIR ORBITAL SANDER W/ 5"(6") HOOK (VINYI) PAD LSC-50(60)H(V) LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 5"(6") HOOK (VINYI) PAD LSC-50(60)HM LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 5"(6") -MUILTIHOLE HOOK PAD LSG-50(60)H(V) LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/ 5"(6") HOOK (VINYI) PAD LSG-50(60)HM LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/ 5"(6") -MUILTIHOLE HOOK PAD LSN(C)(G)-P-2008H-XP...
  • Page 3 Valve Spring XPA0043 9mm x 1.5mm O-Ring XPF0015 Non-Vacuum Cover (LSN) XPF0057 Throttle Lever For 12,000 rpm, 5mm(3/16") Orbit Sander [SUMAKE] XPG0013 5" Sgv Swivel Exhaust Fitting - 1" / 28mm Host [LSG-50H(HM)] XPA0031 Lever Spring Pin XPG0015 6" Sgv Swivel Exhaust Fitting - 1" / 28mm Host [LSG-60H(HM)]...

  • Page 4: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/5"-MUILTIHOLE HOOK PAD, ORBITAL:2.5mm Model/ Serial No.：...
  • Page 5 INSTRUCTION MANUAL LSN-50H(V), LSN-60H(V) ITEM NO.: LOW PROFILE NON-VACUUM AIR ORBITAL SANDER W/ 5”(6”) HOOK(VINYI) PAD LSC-50H(HM)(V), LSC-60H(HM)(V) ITEM NO.: LOW PROFILE CENTRAL-VACUUM AIR ORBITAL SANDER W/ 5”(6”) HOOK(MULTIHOLE HOOK)(VINYI) PAD LSG-50H(HM)(V), LSG-60H(HM)(V) ITEM NO.: LOW PROFILE SELF GENERATED VACUUM AIR ORBITAL SANDER W/ 5”(6”) HOOK(MULTIHOLE HOOK)(VINYI) PAD LSN(C)(G)-I-1611D-XP...

  • Page 6: Work Stations

    Work Stations The tool is intended to be operated as a hand held tool. It is always recommended that the tool be used when standing on a solid floor. It can be in any position but before any such use, the operator must be in a secure position having a firm grip and footing and be aware that the sander can develop a torque reaction.
  • Page 7 60LVM06 Service Tools and Accessories When an SUMAKE two handle needs to be serviced, we offer a tool kit to make the disassembly/assembly fast and easy. The Service Tools are highly recommended for use with the Overhaul Service Kit. NOTICE: To receive any expressed or implied warranty, the tool must be repaired by an authorized SUMAKE Service Center. The 5in.
  • Page 8 The XPF0036 SUMAKE Overhaul Service Kit contains all the replacement parts that naturally wear over time and a straightforward manual to make servicing an SUMAKE sander simple. Overhauling the Random Orbital Sander can be made even easier with the use of the above Service Tools.
  • Page 9 Sander Spare Parts Kits Low Profile Random Orbital Sander Service Instructions NOTICE: To receive any expressed or implied warranty, tool must be repaired by an authorized service center. The 5”(127mm) and 6”(150mm) Orbital Sander service instructions section provided is for use after completion of the warranty period. DISASSEMBLY INSTRUCTIONS Changing Grips: The Grip has two “tabs”...

  • Page 10: Housing Disassembly

    Puller and Bearings in a Bearing Separator and press out the Bearing Puller. The SUMAKE components are held in place by the light press fit of the Retainer. These components can be damaged during removal and may need to be replaced if removed. To remove the Retainer, use an O-ring pick or a #8 sheet metal screw to grip and pull out the Retainer.

  • Page 11: Housing Assembly

    Housing. Place the Nut into the cavity of the Housing and thread the Screw into the Nut until tight. Move onto the "Spindle. SUMAKE and Shaft Balancer Assembly" Section.

  • Page 12: Motor Assembly

    Apply a pin head size drop of #271 Loctite® or equivalent to the outside diameter of each of the bearings on the spindle assembly. Spread the drop of bearing locker around the bearing until distributed evenly. CAUTION: Only a very small amount of bearing locker is needed to prevent rotation of the bearing OD. Any excess will make future removal difficult.

  • Page 13: Troubleshooting

    Troubleshooting: Symptom Possible Cause Solution Check air line pressure at the Inlet of Insufficient Air Pressure the Sander while the tool is running at free speed. It must be 90 PSI (6.3 Bar). See the "Housing Disassembly" section for Muffler removal. The Muffler can be back flushed with a clean, suitable cleaning solution until all contaminates Clogged Muffler(s)
  • Page 14 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 15 9. Avoid direct contact with the moving sanding pad in order to prevent pinching or cutting of hands or other body parts. Wear suitable gloves to protect hands. 10. Never run the tool unless abrasive is applied to the workpiece. 11.

  • Page 16: Additional Safety Instructions For Pneumatic Power Tools

    If the tool is too seriously damage to be used anymore, recycle raw material instead of disposing as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling. Check with your local authority or retailer for recycling advice. www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
