Tensioning Guard Cloth; Moving The Guards Into The Working Position - Krone EasyCut F 360 CV Original Operating Instructions

Operation
Pos: 68.7 /BA/Bedienung /EasyCut/Schutze/Schutztuch spannen EC F 360 CV/CR @ 245\mod_1395934767761_78.docx @ 1915511 @ 2 @ 1
9.2

Tensioning Guard Cloth

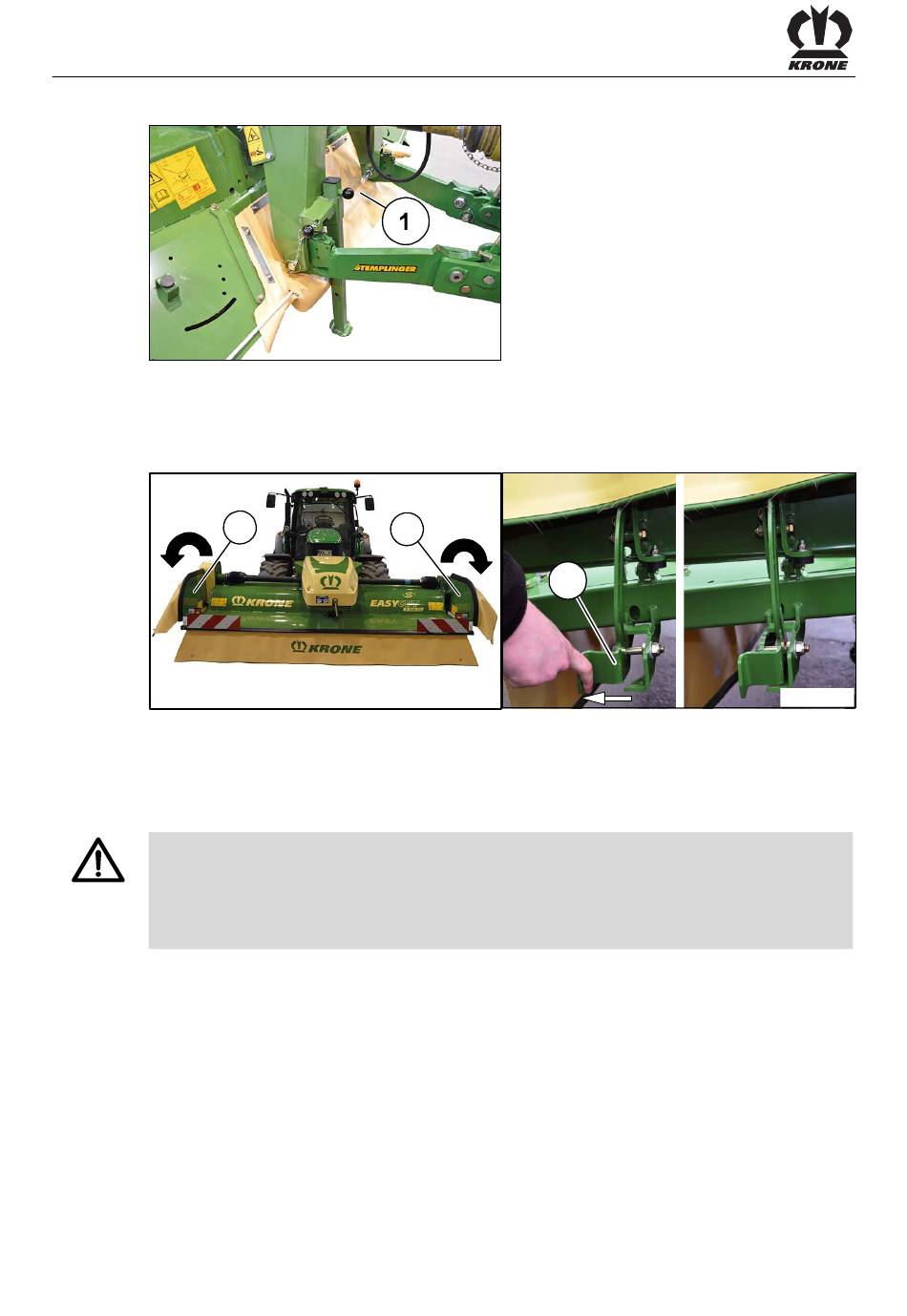

Fig. 35
Every time before using the mower, the guard cloth (1) must be tensioned so that it cannot be
caught by the CV roller.
Pos: 68.8 /Überschriften/Überschriften 2/P-T/Schutze in Arbeitsstellung bringen @ 35\mod_1257499551281_78.docx @ 329310 @ 2 @ 1
9.3

Moving the guards into the working position

Pos: 68.9 /BA/Bedienung /EasyCut/Schutze/Schutze in Arbeitsstellung bringen EC F 360 CV/CR @ 245\mod_1395934916074_78.docx @ 1915540 @ @ 1
Fig. 36
Move guard (1) right and left to working position before every use.
• Loosen locking (2).
• Fold down guard.
Pos: 68.10.1 /BA/Bedienung /EasyCut/Schutze/Bei Ausführung hydraulischer Seitenschutz @ 332\mod_1428387861893_78.docx @ 2536837 @ @ 1
With hydraulic side guards design
Pos: 68.10.2 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Warnung Quetschgefahr/Senken von Seitenschutz @ 331\mod_1427802696458_78.docx @ 2532405 @ @ 1
WARNING!
Crushing hazard when lowering the side guards
While lowering the hydraulic side guards, there is a danger of being crushed between side
guard and upper protective cover.
• While lowering the side guards, make sure that there is no one in the danger
Pos: 68.10.3 /BA/Bedienung /EasyCut/Schutze/Absenken hydraulischer Seitenschutz_Text @ 332\mod_1428387391162_78.docx @ 2536775 @ @ 1
• Fold down the side guards by means of double-action control unit (red1/blue1) of the
tractor.
Pos: 68.11 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
66
1
1
EC-495-0
2
EC-496-0
EC-428-0
zone.
