Page 1 Original operating instructions Document number: 150001049_02_us Version: 14/08/2020 RP701-20 Round baler Comprima F 155 From machine number: 1046859...
Page 2 Contact Mailing address Physical address Krone North America, Inc. Krone North America, Inc. P.O. Box 18880 3363 Miac Cove Memphis, TN 38181-0880 Memphis, TN 38118 Phone +1 901 842-6011 +1 901 842-6016 E-mail info@krone-northamerica.com Internet www.krone-northamerica.com Information for enquiries and orders...
Page 3: Table Of Contents
Overload protections on the machine .................. 42 Identification plate ........................ 43 Function description net wrapping ..................... 44 Function description net and chamber film wrapping .............. 45 Technical data .......................... 46 Consumables .......................... 47 5.1.1 Oils............................. 48 Comprima F 155 Original operating instructions 150001049_02_en...
Page 4 Connecting the KRONE ISOBUS terminal (CCI 800, CCI 1200).......... 67 7.13 Connecting foreign ISOBUS terminal .................. 69 7.14 Connecting the camera to the KRONE ISOBUS terminal CCI 800 or CCI 1200 ....... 71 Operation .......................... 72 Preparation before baling ...................... 72 Filling the bale chamber...................... 73 Improving bale chamber filling ....................
Page 5 KRONE Terminal DS 500 ....................... 118 10.1 Touchable display ........................ 118 10.2 Switching terminal on/off...................... 118 10.3 Design DS 500......................... 119 KRONE ISOBUS terminal (CCI 800, CCI 1200) .............. 121 11.1 Touchable display ........................ 121 11.2 Switching terminal on/off...................... 122 11.3 Design of display ........................ 123 11.4...
Page 6 Menu 13-1 “Customer counter”.................... 153 14.16.2 Menu 13-2 "Total counter" ....................... 155 14.17 Menu 14 "ISOBUS"........................ 156 14.17.1 Menu 14-5 "KRONE SmartConnect" .................. 156 14.17.2 Menu 14-6 "Configuring TIM software" (for "TIM 1.0" version) .......... 157 14.17.3 Menu 14-9 "Switching between terminals"................ 159 14.18 Menu 15 "Settings"...
Page 7 Overview of fuses ........................ 232 18.5.3 Remedying sensor/actuator error .................... 232 18.5.4 Error list............................ 233 18.6 Setting the tailgate lock...................... 256 Repairs, maintenance and settings by technicians ............ 257 19.1 Servicing the brake system...................... 257 Comprima F 155 Original operating instructions 150001049_02_en...
Page 8 Setting mechanical slack adjuster on the single axle .............. 259 19.1.5 Setting transmission linkage and brake lever on the tandem axle........... 260 19.2 Car jack contact points ...................... 263 Waste disposal........................ 264 Appendix.......................... 265 21.1 Hydraulic diagram ........................ 265 Index............................ 267 Comprima F 155 Original operating instructions 150001049_02_en...
Page 9: Information On This Document
Information on This Document Validity This document is valid for machines of type: RP701-20 (Comprima F 155) All information, illustrations and technical data in this document correspond to the latest state at the time of publication. We reserve the right to make design changes at any time and without notification of reasons.
Page 10: Figures
This arrow identifies the result of an action step or sequence of actions. This bullet point identifies an enumeration. If the bullet point is intended, it identifies the second level of the enumeration. Icons in figures The following icons can be used in illustrations: Comprima F 155 Original operating instructions 150001049_02_en...
Page 11 CAUTION The signal word CAUTION warns of a hazardous situation which will result in minor to moderate injuries if the warning sign is ignored. Example of a warning sign: Comprima F 155 Original operating instructions 150001049_02_en...
Page 12: Conversion Table
Volume flow Litres per minute L/min 0.2642 US gallons per minute Cubic metres m³/h 4.4029 per hour Force Newton 0.2248 Pound force Length Millimetre 0.03937 Inch Metre 3.2808 Foot Power Kilowatt 1.3410 Horsepower Comprima F 155 Original operating instructions 150001049_02_en...
Page 13 Kilometres per km/h 0.6215 Miles per hour hour Volumes Litres 0.2642 US gallon US gal. Millilitre 0.0338 US ounce US oz. Cubic centi- cm³ 0.0610 Cubic inch in³ metre Weight Kilogram 2.2046 Pound Comprima F 155 Original operating instructions 150001049_02_en...
Page 14: Safety
• Attachment of unauthorised or unapproved additional equipment • Use of spare parts which are not KRONE original spare parts • Stationary operation of the machine Unauthorised modifications to the machine may affect the properties of the machine or disrupt proper operation.
Page 15: Service Life Of The Machine
He has read the operating instructions and can implement the information in the operating instructions accordingly. • He is familiar with driving vehicles safely. • For road travel he has adequate knowledge of the highway code and has the stipulated driving licence. Comprima F 155 Original operating instructions 150001049_02_en...
Page 16: Personnel Qualification Of The Technicians
Additional equipment and spare parts that do not correspond to the requirements of the manufacturer may affect the operational safety of the machine and cause accidents. „ To ensure operational safety, use original parts or standard parts which correspond to the requirements of the manufacturer. Comprima F 155 Original operating instructions 150001049_02_en...
Page 17: Jobs On The Machine
„ Determine the cause of damage according to these operating instructions and repair the damage, if possible, Page 224. „ In case of damage which may affect operational safety and cannot be repaired according to these operating instructions: Have damage repaired by a qualified service centre. Comprima F 155 Original operating instructions 150001049_02_en...
Page 18: Danger Zones
Page 27. This also applies to brief inspection work. „ Consider the information in all relevant operating instructions: • the operating instructions of the tractor • the operating instructions of the machine • the operating instructions of universal shaft Comprima F 155 Original operating instructions 150001049_02_en...
Page 19 „ In case of dangerous situations, immediately switch off drives and instruct people to leave the danger zone. Danger zone due to trailing machine parts If machine parts are trailing, people may be seriously injured or killed. Comprima F 155 Original operating instructions 150001049_02_en...
Page 20: Ensuring Functionality Of Safety Devices
„ Use only personal protective equipment which is in proper condition and offers effective protection. „ Adjust personal protective equipment to the person, for example the size. „ Remove unsuitable clothing and jewellery (e.g. rings, necklaces) and cover long hair with a hairnet. Comprima F 155 Original operating instructions 150001049_02_en...
Page 21: Safety Markings On The Machine
„ Consider the overall width of the combined tractor and machine. „ Consider the larger swivel range when cornering. „ Adjust the driving speed when cornering. „ When turning, watch out for people, oncoming traffic and obstacles. Comprima F 155 Original operating instructions 150001049_02_en...
Page 22: Parking The Machine Safely
2.4.17 Dangers arising from environment Fire hazard Combustible materials may accumulate in the machine due to operation or animals, such as rodents or nesting birds, or dust resuspension. Comprima F 155 Original operating instructions 150001049_02_en...
Page 23 „ Jump away from the machine. Jump into a safe standing position. Do not touch the machine from the outside. „ Move away from the machine in very small steps keeping your feet close together. Comprima F 155 Original operating instructions 150001049_02_en...
Page 24: Sources Of Danger On The Machine
Damaged compressed-air hoses of compressor unit can tear off. Hoses moving in an uncontrolled manner can cause severe injuries. „ Contact a specialist workshop immediately if you suspect that the compressor unit is damaged. „ „Shut down and safeguard the machine, Page 27. Comprima F 155 Original operating instructions 150001049_02_en...
Page 25: Dangers In Connection With Certain Activities: Working On The Machine
„ Prior to any work, stop and safeguard the machine, Page 27. „ Make sure you stand securely. „ Use a suitable fall protection. „ Secure the area below the assembly point against falling objects. Comprima F 155 Original operating instructions 150001049_02_en...
Page 26: Dangers In Connection With Certain Activities: Working On Wheels And Tyres
The fitting of wheels and tyres requires adequate knowledge and approved mounting tools. „ If there is a lack of knowledge, have the wheels and tyres fitted by the KRONE dealer or by a qualified tyre service.
Page 27: Behaviour In Dangerous Situations And In Case Of Accidents
„ Before working on or under raised machine parts: Secure machine or machine parts against lowering by means of hydraulic shut-off device (e.g. stop cock) on machine side. „ Before working on or under raised machine parts: Safely support machine or machine parts. Comprima F 155 Original operating instructions 150001049_02_en...
Page 28: Carrying Out Oil Level Check And Oil And Filter Element Changes Safely
„ Lower raised machine parts or secure them against falling, Page 27. „ Shut down and secure the machine, Page 27. „ Cordon off the danger zone of the actuated moving machine parts in a clearly visible manner. Comprima F 155 Original operating instructions 150001049_02_en...
Page 29: Safety Labels On The Machine
Safety labels on the machine Every safety label is provided with an order number and can be ordered directly from the authorised KRONE dealer. Immediately replace missing, damaged and unrecognisable safety labels. When attaching safety labels, the contact surface on the machine must be clean and free of dirt, oil and grease to ensure optimum adhesion of the labels.
Page 30 Safety Safety labels on the machine Position and meaning of safety labels RPG000-104 Comprima F 155 Original operating instructions 150001049_02_en...
Page 31 • Do not push, feed twine, or unplug with feet or hands with bale running. 4. Order No. 27 008 201 0 (1x) WARNING Severe injuries to fingers and hands Wear protective gloves to remove/install blades! Comprima F 155 Original operating instructions 150001049_02_en...
Page 32 10. Ord. no. 939 125 1 (2x) Danger from sharp blades. There is danger of being cut when reaching into the danger zone of the blades „ Wear cut-resistant protective gloves. Comprima F 155 Original operating instructions 150001049_02_en...
Page 33 Do not loosen the screw connection. 16. Ord. no. 27 013 746 0 (1x) WARNING To avoid serious injury or death Always use the safety chain when driving with an attached machine. Read instructions regarding safety chain! Comprima F 155 Original operating instructions 150001049_02_en...
Page 34: Information Labels On The Machine
Each information label has an order number. You can order the labels directly from your KRONE dealer. Replace missing, damaged and illegible information labels immediately. Prior to attaching an information label, ensure that the contact surface on the machine is clean and free of dirt, oil and grease so that the label can adhere to properly.
Page 35 Location and meaning of the information labels RPG000-204 1. Ord. no. 942 111 0 (1x) This label shows the optimal way to fill the bale chamber in or- der to obtain an evenly shaped round bale, Page 73. Comprima F 155 Original operating instructions 150001049_02_en...
Page 36 6. Ord. no. 27 020 889 0 (1x) For "Net and chamber film wrapping" version The label tells you how to load the wrapping and tying material in the machine, Page 91. 27 020 889 2 Comprima F 155 Original operating instructions 150001049_02_en...
Page 37 11. Ord. no. 27 020 479 0 (2x) Attaching hoists to the tensioning rocker to lift the machine is not allowed. This can damage the machine. „ Use the lifting points to lift the machine, Page 174. 27 020 479 0 Comprima F 155 Original operating instructions 150001049_02_en...
Page 38 The lifting points on the machine are marked with this label, Page 174. 942 012 2 • Ord. no. 27 023 958 0 There are lashing points on the machine that are identified with this label, Page 175. 27 023 958 0 Comprima F 155 Original operating instructions 150001049_02_en...
Page 39: Safety Equipment
Page 62. • The country-specific regulations for using the safety chain during transportation of the machine must be observed. Catch loop • The catch loop is used for the additional protection of hitched machines. Comprima F 155 Original operating instructions 150001049_02_en...
Page 40: Smv Emblem
When driving the machine on public highways, the SMV emblem must be mounted. If the machine is transported on transport vehicles (for example lorry or train), the SMV emblem must be covered or dismounted. Comprima F 155 Original operating instructions 150001049_02_en...
Page 41: Data Memory
- if applicable in consultation with an expert. Additional functions regulated by a contractual agreement with the customer (e.g. remote maintenance) permit the transmission of certain machine data from the machine. Comprima F 155 Original operating instructions 150001049_02_en...
Page 42: Machine Description
„ To avoid early wear of the overload protection, switch the PTO shaft off if the overload protection responds for a longer period of time. „ „Shut down and safeguard the machine, Page 27. „ Remedy the malfunction, Page 224. Comprima F 155 Original operating instructions 150001049_02_en...
Page 43: Identification Plate
Page 212. Pick-up drive To prevent an overload, there is a cam clutch on the pick-up drive. This cam clutch has been set at the factory and must not be adjusted without consulting your KRONE service partner. Identification plate INFO The entire identification plate represents a legal document and should not be altered or...
Page 44: Function Description Net Wrapping
When the tying cycle of the set number of net layers is complete, the cutting unit (8) swings over the net and cuts the net. Comprima F 155 Original operating instructions 150001049_02_en...
Page 45: Function Description Net And Chamber Film Wrapping
When the tying cycle of the set number of net or film layers is complete, the cutting unit (10) swings over the wrapping material (net or film) and cuts the wrapping material (net or film). Comprima F 155 Original operating instructions 150001049_02_en...
Page 46: Technical Data
540 rpm Operating pressure of hydraulic system (max.) 200 bar Max. oil temperature 80 °C Minimum oil quality Oil ISO VG 46 Delivery capacity hydraulics (min.) 30 L/min Delivery capacity hydraulics (max.) 60 L/min Comprima F 155 Original operating instructions 150001049_02_en...
Page 47: Consumables
NOTICE Complying with change intervals for biooils To ensure high life expectancy of the machine, it is absolutely necessary to comply with change intervals for biooils due to the ageing of the oils. Comprima F 155 Original operating instructions 150001049_02_en...
Page 48: Oils
If oils, which have different specifications, are mixed with each other, the machine may be damaged. „ Never mix oils, which have different specifications, with each other. „ Contact your KRONE service partner before using an oil with a different specification after changing the oil. Biodegradable consumables can be used on request.
Page 49: Initial Operation
Page 54. ü The tensioning device is removed, Page 56. Scope of delivery The machine is delivered with the following additional parts which are in the storage compartment, under the machine or on the pick-up. Comprima F 155 Original operating instructions 150001049_02_en...
Page 50: Mounting Hose And Cable Support
2 Universal shaft 8 Mounting material 3 Ring spanner 9 Can of spray paint 4 Terminal (depending on version) 10 Test roll KRONE excellent, net for net wrapping 5 Small parts 11 Universal shaft bracket 6 7-pole connection cable for road travel...
Page 51: Preparing The Brake Disc Of The Wrapping Material Brake
To ensure that the pick-up evenly picks up the crops, the drawbar height of the machine must be adjusted to the tractor used. Comprima F 155 Original operating instructions 150001049_02_en...
Page 52 „ Loosen the screw connections (1) on the right and left sides of the drawbar until the drawbar (3) can be moved in the toothed disc connections (2). „ Adjust the drawbar (3) to the height of the tractor hitch. „ Ensure that the toothed disc connections (2) mesh. Comprima F 155 Original operating instructions 150001049_02_en...
Page 53: Universal Shaft
„ Take the protective cap (1) out of the storage compartment. „ Remove the screws (3) and washers (2) pre-assembled on the machine. „ Push the protective cap (1) over the PTO shaft and mount on the machine using the screws (3) and disks (2), tightening torques, Page 199. Comprima F 155 Original operating instructions 150001049_02_en...
Page 54: Mounting The Universal Shaft On The Machine
The machine could be damaged if the universal shaft length is not checked when changing the tractor. „ In order to avoid damage to the machine, check universal shaft length every time the tractor is changed and correct it, if necessary, Page 55. Comprima F 155 Original operating instructions 150001049_02_en...
Page 55: Mounting Universal Shaft Bracket
„ Take the universal shaft bracket (1) out of the storage compartment. „ To mount the universal shaft bracket (1), remove the screw connection (3). „ Clamp the ends of the bolt (2) on both sides in the boreholes in the drawbar beams. Comprima F 155 Original operating instructions 150001049_02_en...
Page 56: Removing The Tensioning Device
„ Slide the slip-on bushing (4) downwards and remove it. „ Remove the screw connection (5) and the connecting pipe (6). „ Mount bolt (1) on both machine sides at an equal height. „ Dispose of all removed parts properly. Reuse is not permitted. Comprima F 155 Original operating instructions 150001049_02_en...
Page 57: Commissioning
(e.g. ball-head hitch) must be in a horizontal position (+/- 3°) with respect to the ground so as not to obstruct the operational swivel angle between the mechanical connection devices. RP000-098 Example image Comprima F 155 Original operating instructions 150001049_02_en...
Page 58: Mounting The Universal Shaft On The Tractor
„ In order to avoid damage to the machine, check universal shaft length every time the tractor is changed and correct it, if necessary, Page 55. ü The machine is shut down and safeguarded, Page 27. Comprima F 155 Original operating instructions 150001049_02_en...
Page 59: Connecting Hydraulic Hoses
If foreign objects or liquids get into the hydraulic system, the hydraulic system may be severely damaged. „ When connecting the quick couplings, ensure that they are clean and dry. „ Check the hydraulic hoses for abrasion and pinch point and replace if required. RPG000-117 Comprima F 155 Original operating instructions 150001049_02_en...
Page 60: Connecting Hydraulic Brake (Export)
For this an additional single-action control valve is required. The brake is activated by actuating the control valve. The pressure can be adjusted with the machine's pressure limiting valve. The pressure limiting valve is set to approx. 50 bar. Comprima F 155 Original operating instructions 150001049_02_en...
Page 61: Connecting/Disconnecting Compressed Air Connections For The Compressed Air Brake
Observe the correct order when disconnecting the compressed air lines. „ Firstly, disconnect the supply line (2) (red coupling head). „ Then disconnect the brake line (1) (yellow coupling head). Adjusting drawbar eye For "drawbar eye bottom" version RP000-266 Comprima F 155 Original operating instructions 150001049_02_en...
Page 62: Connecting The Road Lighting
When using a incorrectly dimensioned safety chain, the safety chain may tear if the machine loosens unintentionally. This may result in serious accidents. „ Always use safety chain with a minimum tensile strength of 178 kN (40,000 lbf). Comprima F 155 Original operating instructions 150001049_02_en...
Page 63 ü The machine is shut down and safeguarded, Page 27. RP000-104 „ Mount the safety chain (1) on the machine. BP000-106 „ Install the safety chain (1) at a suitable position (for example: [I] or [II]) on the tractor. Comprima F 155 Original operating instructions 150001049_02_en...
Page 64: Connecting The Krone Ds 100 Operation Unit
Commissioning 7.10 Connecting the KRONE DS 100 operation unit 7.10 Connecting the KRONE DS 100 operation unit NOTICE Short circuit caused by impurities and moisture in the plug connection The machine may be damaged by a short circuit. „ Make sure that the plugs and sockets are clean and dry.
Page 65: Connecting Krone Terminal Ds 500
EQG003-124 ü The machine is shut down and safeguarded, Page 27. ü The accessories kit B290 “KRONE tractor retrofitting” is mounted. Connection terminal to tractor „ Connect the 9-pin plug (1) of the terminal to the 9-pin socket (2) (In-cab). Connection tractor to machine INFO The cable (5) can be ordered by quoting the order number 20 086 886 *.
Page 66 Commissioning 7.11 Connecting KRONE terminal DS 500 Tractors with integrated ISOBUS system EQ003-251 ü The machine is shut down and safeguarded, Page 27. Connection terminal to tractor „ Connect the 9-pin plug (2) of the cable (1) to the 9-pin socket (3) (In-cab). Connection tractor to machine INFO The cable (6) can be ordered by quoting the order number 20 086 886 *.
Page 67: Connecting The Krone Isobus Terminal (Cci 800, Cci 1200)
EQ003-252 ü The machine is shut down and safeguarded, Page 27. ü The accessories kit B290 “KRONE tractor retrofitting” is mounted. Connection terminal to tractor „ Connect the 9-pin plug (2) of the cable (1) to the 9-pin socket (3) (In-cab). Connection tractor to machine INFO The cable (6) can be ordered by quoting the order number 20 086 886 *.
Page 68 Commissioning 7.12 Connecting the KRONE ISOBUS terminal (CCI 800, CCI 1200) Tractors with integrated ISOBUS system CCI 1200 CCI 800 EQ001-173 ü The machine is shut down and safeguarded, Page 27. Connection terminal to tractor „ Connect the 12-pin plug (2) of the cable (3) to the 12-pin socket (1) of the terminal.
Page 69: Connecting Foreign Isobus Terminal
EQ001-181 ü The machine is shut down and safeguarded, Page 27. ü The accessories kit B290 “KRONE tractor retrofitting” is mounted. Connection terminal to tractor „ Connect the 12-pin plug (2) of the cable (3) to the 12-pin socket (1) of the terminal. „ Connect the 9-pin plug (4) of the cable (3) to the 9-pin socket (5) (In-cab).
Page 70 „ Connect the 11-pole socket (4) of the cable (2) to the 11-pole socket (3) of the machine. Connection terminal to tractor INFO For further details on terminal connection, observe operating instructions of ISOBUS terminal manufacturer. Comprima F 155 Original operating instructions 150001049_02_en...
Page 71: Connecting The Camera To The Krone Isobus Terminal Cci 800 Or Cci 1200
CCI 800 CCI 1200 EQ000-212 „ Insert the plug (4) on the camera (2) cable (3) into the connection C (1) of the KRONE ISOBUS terminal CCI 800 or CCI 1200 . „ To connect the plug (4) correctly, ensure that it is aligned with the marked points (5). Comprima F 155...
Page 72: Operation
ü The bale diameter is set. On the machine: see Page 177 and above the terminal: Page 147. ü The customer counter has been set to 0, Page 153. ü The working screen has been selected, Page 132. Comprima F 155 Original operating instructions 150001049_02_en...
Page 73: Filling The Bale Chamber
RP000-062 „ Travel longer sections on the left respectively right side of the swath (1). Observe a length of roughly X=20 m on one side. „ Avoid swerving (2). Comprima F 155 Original operating instructions 150001049_02_en...
Page 74: Improving Bale Chamber Filling
„ To largely prevent short, brittle straw from falling out of the bale chamber when driving from one swath to the next swath, switch off the PTO shaft in the meantime. Driving speed KRONE recommends a driving speed of 5-12 km/h The driving speed during the work must be adapted to the following conditions: •...
Page 75: Mounting Additional Driver Guide Rails On The Starter Roller
To increase reliable rotation of the round bales, 6 additional driver guide rails (1) can be mounted on the starter roller (2). The driver guide rails (1) on the starter roller must be mounted inside the bale chamber. The driver guide rails can be ordered from a KRONE service partner via the "conveyor bar" retrofit kit. 8.3.3...
Page 76: Completing The Baling Process, Starting Tying Cycle And Ejecting Round Bales
„ Pull out the securing pin (4), extend the parking support (2) and secure the position using the securing pin (4). „ Turn the support jack (2) anti-clockwise firmly down onto the ground using the crank handle (1) until the drawbar is relieved. Comprima F 155 Original operating instructions 150001049_02_en...
Page 77 „ Guide the bolt (1) with handle to the right into the opening (6) and turn it by 90° to the left so that the locking pin (3) locks. „ Actuate the double-acting control unit (green, 5-) until the support jack (5) is firmly on the ground and the drawbar eye is relieved. Comprima F 155 Original operating instructions 150001049_02_en...
Page 78: Using The Stop Cock Of The Tailgate
The tailgate stop cock (1) is located on the left side of the machine near the tailgate. ü The machine is shut down and safeguarded, Page 27. Comprima F 155 Original operating instructions 150001049_02_en...
Page 79: Releasing/Applying The Parking Brake
„ Apply the parking brake (2) until the resistance has increased noticeably. Releasing the parking brake (2) „ Push in the key (1) and press parking brake (2) all the way down. Attaching safety cable of the parking brake RP000-399 Comprima F 155 Original operating instructions 150001049_02_en...
Page 80: Fitting Wheel Chocks
Removing/mounting the safety device which prevents unauthorised The safety device is used to prevent unauthorised use when the machine has been switched off. ü The machine has been parked, Page 170. Comprima F 155 Original operating instructions 150001049_02_en...
Page 81: Operating Brake Force Regulator
(I). The following positions are possible: Position Brake force Full load (1/1) (II) Half load (1/2) (III) switched off (0) „ Turn the brake force regulator (1) in the direction of the arrow to the required position. Comprima F 155 Original operating instructions 150001049_02_en...
Page 82: Pick-Up
„ To preselect the pick-up, press the key on the terminal, Page 127. ð The key switches to „ To lift the pick-up into the transport position, actuate the control unit on the tractor (yellow, 3+). Comprima F 155 Original operating instructions 150001049_02_en...
Page 83: Setting The Pick-Up Working Height
ü The machine is shut down and safeguarded, Page 27. ü The pick-up is fully raised in transport position, Page 82. ü The guide wheels are folded upwards. Comprima F 155 Original operating instructions 150001049_02_en...
Page 84: Adjusting The Bearing Pressure Relief For The Pick-Up
To be able to negotiate uneven ground better, the pick-up is relieved on both sides of the machine with the aid of a spring (3). The spring (3) can be set on the ring screw (2). KRONE recommends the following setting: • Dimension X (left side of machine): 150 mm •...
Page 85: Setting The Crop Press Roller Unit
The height of the baffle sheet (1) on the crop press roller unit can be adjusted to the swath. Position (I) has been set at the factory. If the crops are very moist, it is recommended to move the baffle sheet into position (II). Comprima F 155 Original operating instructions 150001049_02_en...
Page 86: Removing/Mounting The Baffle Sheet On The Crop Press Roller Unit
In operation the baffle sheet must have been mounted on the crop press roller unit. The baffle sheet on the crop press roller unit can be briefly removed in the event of crop blockages. Removing crop blockages: see Page 95 RPG000-152 ü The machine is shut down and safeguarded, Page 27. Comprima F 155 Original operating instructions 150001049_02_en...
Page 87: Lifting/Lowering The Feeder Rotor Floor
Also observe the information on the package provided by the tying material manufacturer. INFO For trouble-free use in the field, KRONE recommends one of the "KRONE excellent" nets, see label on the machine with the number 27 016 326 *. Comprima F 155...
Page 88 „ Use a mounting lever (12) to push the net roll (9) in the required direction of the arrow until the net roll (9) is positioned in the centre. „ Push both adjusting rings (8, 11) each with a distance of 2-3 mm onto the sleeve (10) and fix them in this position. Comprima F 155 Original operating instructions 150001049_02_en...
Page 89: Insert Net
If the net tension is insufficient and the net is not pulled far enough to the outside of the round bale: „ Place the net (7) under the deflection tube on the cross tube (9). To set the feed, cutting and tying position, Page 163. To set the number of net layers, Page 145. Comprima F 155 Original operating instructions 150001049_02_en...
Page 90: Net And Chamber Film Wrapping
INFO For trouble-free use in the field, KRONE recommends one of the "KRONE excellent" nets or films, see label on the machine with the number 27 018 640 *. ü The machine is shut down and safeguarded, Page 27.
Page 91: Inserting The Net Or Film
„ Always wear protective gloves when inserting the wrapping and tying material and when working in the range of the cutting unit. „ When working in the range of the cutting unit, work particularly carefully and prudently. Comprima F 155 Original operating instructions 150001049_02_en...
Page 92 5 cm between the pressure shaft (2), covered with red foam, and the conical roller (1), Page 150. RP000-183 The feed plate (7), which is required to insert the wrapping material, is in the storage compartment on the right side. Comprima F 155 Original operating instructions 150001049_02_en...
Page 93: Notes On Operation
If possible, for initial operation, use a complete net roll first and tie the round bales with net. This way provides for previous removal of any sharp edges or paint residues. • KRONE recommends not to use chamber film wrapping for straw bales. There is a risk of condensation forming, resulting in mould. •...
Page 94: Checking The Tension Of The Inserted Film
Net and chamber film wrapping 8.15.4 Checking the tension of the inserted film The round bale must be tied with the appropriate film tension. KRONE recommends a pre- tension of 5-15%. You can check whether this pre-tension of 5-15% has been obtained as follows.
Page 95: Using The Bale Ejector
After the round bale has been laid down, the bale chamber is closed and whilst new crops are being taken in, the bale ejector must be positioned again on the axis. „ Have the setting of the bale ejector be checked by a KRONE service partner. 8.17 Removing crop blockages 8.17.1...
Page 96: Crop Blockage Under Feed Rotor
Operating the reversing device with crop blockages In the case of crop blockages the reversing device can be used to manually turn back the feed rotor. This allows the crop blockage to be removed more easily. Comprima F 155 Original operating instructions 150001049_02_en...
Page 97: Operating The Central Chain Lubrication System
„ Close the cover (1). „ Shut down and safeguard the machine, Page 27. „ Manually remove the crops which are still in the feed rotor or in the pick-up. 8.19 Operating the central chain lubrication system RPG000-078 Comprima F 155 Original operating instructions 150001049_02_en...
Page 98 Pick-up drive Pick-up/auger conveyor Dosing units on left side of machine RP000-405 The dosing units on the rail on the left side of the machine oil the chains of the following machine components: Comprima F 155 Original operating instructions 150001049_02_en...
Page 99 Bale formation conveyor drive Roller drive feed roller Pick-up/auger conveyor Setting oil quantity „ Loosen the screws (6). „ Turn the eccentric cam (5) until the arrow is on the required oil quantity. „ Tighten the screws (6). Comprima F 155 Original operating instructions 150001049_02_en...
Page 100 KRONE operation unit DS 100 Overview KRONE operation unit DS 100 For version with "Net wrapping" NOTICE Penetration of water in the operation unit could lead to malfunction. As a result, the machine can no longer be operated safely. „ Protect the operation unit from water.
Page 101: Krone Operation Unit Ds 100
KRONE operation unit DS 100 Overview Pos. Icon/designation Explanation Direction display arrows, see Page 103 LEDs A-H The LEDs indicate the direction or the progress of the tying cycle on the working screen. Additionally, the LEDs can indicate different set- tings.
Page 102: Switching The Operation Unit On/Off
KRONE operation unit DS 100 Switching the operation unit on/off Pos. Icon/designation Explanation • Preselect pick-up to be able to move pick-up into transport/working position via the control unit, see Page 82 • Preselect feed rotor floor to be able to lift/lower the feed rotor floor via the control unit, Page 87...
Page 103: Call Road Travel Screen
KRONE operation unit DS 100 Call road travel screen Call road travel screen After the operation unit is switched on , it is in road travel screen mode. In road travel screen mode, only the indicator lamp above the key emits light.
Page 104: Start Tying
KRONE operation unit DS 100 Start tying Icon Explanation Step 4: The bale chamber is filled very heavily on the left side. Steer the tractor to the left to pick up the swath on the right of the bale chamber.
Page 105: Switching The Working Lights On/Off
KRONE operation unit DS 100 Switching the working lights on/off Switching automatic tying on/off „ To switch automatic tying on, press the key. Æ The indicator lamp under the key lights up. The next tying cycles are started as soon as the set bale chamber filling level is reached.
Page 106: Setting Advance Signaling
KRONE operation unit DS 100 Setting advance signaling Setting advance signaling Pre-signaling is used to warn if the round bale in the bale chamber is near completion. On the operation unit, you can set the filling at which advance signaling starts.
Page 107: Setting The Baling Pressure
KRONE operation unit DS 100 Setting the baling pressure 9.11 How the bale chamber is optimally filled by the pick-up, Page 73. „ To call the "Sensitivity of direction display" menu, first press the key (3) and then the key twice.
Page 108: Setting The Number Of Net Layers
KRONE operation unit DS 100 9.12 Setting the number of net layers Releasing the baling pressure The baling pressure can be released for maintenance work at the baling belts or in the bale chamber. ü The working screen has been selected, Page 103.
Page 109: Displaying The Customer Counter
KRONE operation unit DS 100 Displaying the customer counter 9.14 EQ003-249 On the operation unit, the tying start delay can be set in milliseconds (ms) in the working screen. „ To call the "Tying start delay" menu, first press the ...
Page 110: Sensor Test For Digital And Analogue Sensors
KRONE operation unit DS 100 9.15 Sensor test for digital and analogue sensors ð The indicator lamp above the key and the corresponding LED emit light. ð The display (1) shows the number of the pressed round bales. „ To scroll between the customer counters, press the key to scroll up and the...
Page 111 KRONE operation unit DS 100 Sensor test for digital and analogue sensors 9.15 EQ003-530 „ To access the "Sensor test" menu, press the key (2). ð The indicator lamp above the key emits light. ð Digital sensors: The display (1) shows the sensor number on the left and the status of the sensor on the right.
Page 112: Calibrating Sensors
KRONE operation unit DS 100 9.16 Calibrating sensors An overview of the position of the sensors, actuators and control units is provided in the circuit diagram. „ To switch between the sensors, press the key to scroll up and the key to scroll...
Page 113: Actuator Test For Digital And Analogue Actuators
KRONE operation unit DS 100 Actuator test for digital and analogue actuators 9.17 Calibrating sensor B61 "Tying 1 (passive)" „ Call sensor B61. „ To change the value, press the keys. ð As soon as the sensor value is within a valid range, the indicator lamp under the ...
Page 114 KRONE operation unit DS 100 9.17 Actuator test for digital and analogue actuators The actuator test is used to test the actuators installed on the machine. An actuator can only be tested when current is flowing through it. Therefore, in the "Actuator test" menu, the actuator must be controlled manually for a short time in order to determine possible errors in the actuator system.
Page 115: Error Messages
KRONE operation unit DS 100 Error messages 9.18 Switching actuators on/off „ Press the key to switch the indicated actuator on. „ Press the key to switch the indicated actuator off. Increase/decrease the currents of the analogue actuators With the analogue actuators Q30 and Q41, the mA values of the current can be increased or decreased .
Page 116: Manual Operation Of The Tying System
KRONE operation unit DS 100 9.19 Manual operation of the tying system 9.19 Manual operation of the tying system EQ003-528 When the tying system is manually operated, the feed rocker arm can be manually moved. For an overview of the positions of the feed rocker arm, Page 178.
Page 117: Setting User Preferences
KRONE operation unit DS 100 Setting user preferences 9.20 9.20 Setting user preferences EQG003-123 The following is set in the user settings: • volume, • background lighting for day or night design, • display lighting for day or night design .
Page 118: Touchable Display
KRONE Terminal DS 500 10.1 Touchable display KRONE Terminal DS 500 NOTICE Penetration of water in the terminal could lead to malfunction. As a result, the machine can no longer be operated safely. „ Protect the terminal from water. „ If the machine is not used for an extended period of time (for example in winter), the terminal must be stored in a dry place.
Page 119: Design Ds 500
Design DS 500 10.3 10.3 Design DS 500 EQG003-110 The KRONE machine application is divided into the following areas: Status line (1) The status line (1) indicates current states of the machine (depending on how it is equipped), Page 126. Keys (2) The machine is operated by pressing the keys (2) via touch function,...
Page 120 KRONE Terminal DS 500 10.3 Design DS 500 Keys (6) The keys (6) can be used to open the main menu or the working screen and to confirm the error messages and set the brightness. Icon Designation Explanation Main menu Open the main menu of the terminal.
Page 121: Krone Isobus Terminal (Cci 800, Cci 1200)
KRONE machines, which have ISOBUS equipment, are coordinated with this system. EQG000-057 The electronic equipment of the machine consists essentially of the job computer (1), the terminal (2) and the control and function elements.
Page 122: Switching Terminal On/Off
KRONE ISOBUS terminal (CCI 800, CCI 1200) 11.2 Switching terminal on/off 11.2 Switching terminal on/off EQ001-174 KRONE ISOBUS terminal CCI 1200 KRONE ISOBUS terminal CCI 800 „ Before switching on the terminal for the first time, check that the connections are correct and tight.
Page 123: Design Of Display
„ For more details on how the terminal functions, follow the terminal operating instructions. 11.4 Design of the KRONE machine application EQG000-059 The KRONE machine application is divided into the following areas: Status line (1) The status line (1) indicates current states of the machine (depending on how it is equipped), Page 126.
Page 124: Setting Units On The Terminal
KRONE ISOBUS terminal (CCI 800, CCI 1200) 11.5 Setting units on the terminal Keys (2) The machine is operated by pressing the keys (2) via touch function, Page 127. Main window (3) Values (figures) shown in blue in the main window can be selected using the touch function.
Page 125: Foreign Isobus Terminal
KRONE ISOBUS terminal. Before commissioning, refer to the mode of operation of the KRONE ISOBUS terminal in the operating instructions. A major difference to the KRONE ISOBUS terminal is the arrangement and number of keys with functions determined by the selected external ISOBUS terminal.
Page 126: Terminal Machine Functions
If error messages are ignored and the malfunction is not remedied, people may be injured and/or the machine may be damaged seriously. „ Remedy the malfunction when the error message is displayed, Page 230. „ If the malfunction cannot be remedied, consult a KRONE service partner. 13.1 Status line INFO Using a terminal with a resolution of less than 480x480 pixels.
Page 127: Keys
Switching working lights The previously selected setting "Working off. lights switched off" or "Working lights switched on" is displayed on the key. Press the key to change the setting. Switch the working lights Comprima F 155 Original operating instructions 150001049_02_en...
Page 128: Displays On The Working Screen
13.3 Displays on the working screen EQG003-009 The available icons comply with the equipment of the machine. The following represented icons are not always available. Comprima F 155 Original operating instructions 150001049_02_en...
Page 129 • the positions of the feed rotor floor (4) • and the bale ejection by means of the opening tailgate (2). The feed rotor floor (4) can show the following positions: Comprima F 155 Original operating instructions 150001049_02_en...
Page 130 Net/chamber film wrapping is running. Net/chamber film wrapping has stopped. Net/film is cut off. Net/film was not cut off. Net/chamber film wrapping is complete. Net/film is pulled without a tying cycle having been actu- ated. Comprima F 155 Original operating instructions 150001049_02_en...
Page 131: Displays On The Information Bar
The direction display (1) shows the driver to which side and to what extent he must correct his direction when driving over the swath in order to ensure the bale chamber is filled evenly. The following displays are possible: Comprima F 155 Original operating instructions 150001049_02_en...
Page 132: Accessing The Working Screen
„ If the swath is too narrow, pick it up alternately (on left/right). Ensure that you do not move too far to the left or right 13.6 Accessing the working screen Road travel screen Example menu Comprima F 155 Original operating instructions 150001049_02_en...
Page 133: Automatic Call Of The Road Travel Screen
The terminal switches automatically to the Road travel screen after roughly five minutes when the following requirements are met: ü The PTO shaft is switched off. ü The tailgate is closed. ü The machine is in field mode. Comprima F 155 Original operating instructions 150001049_02_en...
Page 134: Adjusting The Baling Pressure
Adjusting the baling pressure via the touch-capable display „ Touch the blue value you want to change. ð An input field opens. „ Enter the desired value and press ð The value is saved and the input field is closed. Comprima F 155 Original operating instructions 150001049_02_en...
Page 135: Operating Tim 1.0 (Tractor Implement Management)
To bale the next round bale, the driver only has to approach the tractor. Then the tractor driver must independently drive at a speed adjusted to visibility, weather or ground conditions. 13.9.2 TIM displays and keys on the working screen STOP EQG003-096 The following TIM displays are possible: Comprima F 155 Original operating instructions 150001049_02_en...
Page 136: Activating Tim Functions
To activate the TIM functions, only the connection between machine and tractor must be established. ü In menu 14-5 "Configuring TIM software"(see Page 157) • the required TIM functions were selected and Comprima F 155 Original operating instructions 150001049_02_en...
Page 137: Pausing Tim Functions
ü The TIM status on the working screen is on „ Press Æ The TIM functions are paused and must be operated manually via the tractor control units. The TIM status switches to „ To reactivate the TIM functions, Page 136. Comprima F 155 Original operating instructions 150001049_02_en...
Page 138: Operating Machine Via Joystick
For further information, see the operating instructions for the terminal and tractor used. INFO The examples below represent a recommendation. The assignment of the joystick can be adapted to own desires. For further information, please refer to the operating instructions of the used terminal. Comprima F 155 Original operating instructions 150001049_02_en...
Page 139 Recommended configuration of a WTK joystick EQG003-040 The keys on the WTK joystick can be assigned on 2 levels. „ Change between the levels using the switch (2). Æ The LED (1) is lit green or red. Comprima F 155 Original operating instructions 150001049_02_en...
Page 140: Terminal Menus
Selection type of tying (for version with "Net wrapping and chamber film wrap- ping"), see Page 149 Manual operation, see Page 150 Counter, see Page 152 13-1 Customer counter, see Page 153 13-2 Total counter, see Page 155 Comprima F 155 Original operating instructions 150001049_02_en...
Page 141: Recurrent Icons
Explanation Up arrow Move up to select something. Down arrow Move down to select something. Right arrow Move right to select something. Left arrow Move left to select something. Disk Save the setting. Comprima F 155 Original operating instructions 150001049_02_en...
Page 142: Selecting A Menu Level
ð The selected menu is highlighted in colour. „ To call up the menu, press the key next to Æ The menu opens. INFO For version with "Touch-sensitive terminal", the icons can be pressed directly. Comprima F 155 Original operating instructions 150001049_02_en...
Page 143: Changing Value
ð An input mask opens. „ Turn the scroll wheel to increase or reduce the value. „ Press scroll wheel to save the value. Æ The setting is saved and the input mask closes. Comprima F 155 Original operating instructions 150001049_02_en...
Page 144: Changing Mode
„ To leave the menu, press 14.7 Tying in the menu level ü For The menu level is active, Page 142. For the “Net wrapping” version EQG003-008 Comprima F 155 Original operating instructions 150001049_02_en...
Page 145: Menu 1 "Number Of Tying Material Layers
Menu 1 "Number of tying material layers" EQG003-000 ü For The menu level is active, Page 142. „ To open the menu, press Æ The display shows the "Number of tying material layers" menu. Comprima F 155 Original operating instructions 150001049_02_en...
Page 146: Menu 3 "Advance Signalling
„ In order to save the value, press INFO KRONE recommends 3.5 – 4 film layers for optimum chamber film wrapping. The minimum required film layers depend on the condition of the crops. With round bales whose diameter measures more than 130 cm and/or very dry or very wet crops, KRONE recommends at least one additional film layer.
Page 147: Menu 5 "Bale Diameter
„ In order to save the value, press Special feature of chamber film wrapping The tying start delay is automatically set to 0.0 s for chamber film wrapping. KRONE recommends this setting. At high driving speeds, the tying start delay can be set to a minimum for chamber film wrapping: „...
Page 148: Menu 7 "Sensitivity Of Direction Display
How the bale chamber is optimally filled by the pick-up, Page 73. EQG003-017 ü For The menu level is active, Page 142. „ To open the menu, press Æ The display shows the "Sensitivity of direction display" menu. Comprima F 155 Original operating instructions 150001049_02_en...
Page 149: Menu 8 "Type Of Tying" (For The "Net And Chamber Film Wrapping" Version)
„ To open the menu, press Æ The display shows menu “Type of tying”. Changing the mode „ Select and save the mode, Page 144. The following modes can be selected: Icon Explanation Net wrapping Chamber film wrapping Comprima F 155 Original operating instructions 150001049_02_en...
Page 150: Menu 10 "Manual Operation" (For "Net Wrapping" Version)
Moving the tying actuator „ To move the tying actuator into the feed position, press „ To move the tying actuator to the tying position, press „ Press to move the tying actuator the end position. Comprima F 155 Original operating instructions 150001049_02_en...
Page 151: Menu 10 "Manual Operation" (For The "Net And Chamber Film Wrapping" Version)
Use the keys on the sides of the terminal to operate the following functions: Icon Explanation Move actuator for wrapping process (net/film) to feed position Move actuator for wrapping process (net/film) into tying position Move the actuator for wrapping process (net/ film) in end position Comprima F 155 Original operating instructions 150001049_02_en...
Page 152: Menu 13 "Counters
Æ The display shows the menu "Counter ". The "Counter" menu is divided into the following submenus: Menu Sub-menu Designation Counter, see Page 152 13-1 Customer counter, see Page 153 13-2 Total counter, see Page 155 Comprima F 155 Original operating instructions 150001049_02_en...
Page 153: Menu 13-1 "Customer Counter
„ To open the detailed view of a customer, navigate to the required customer and press Detailed view of a customer 13-1 NAME 03 EQG003-106 The icons displayed in the menu have the following meaning: Comprima F 155 Original operating instructions 150001049_02_en...
Page 154 „ To increase the number of bales, press „ To reduce the number of bales, press Setting customer counters to zero „ To set the customer counter to zero, hold down for at least 2 seconds. Comprima F 155 Original operating instructions 150001049_02_en...
Page 155: Menu 13-2 "Total Counter
Setting season counter 1 to zero Setting season counter 2 to zero Set season counter 1 or 2 to zero „ To set season counter 1 to zero, press „ To set season counter 2 to zero, press Comprima F 155 Original operating instructions 150001049_02_en...
Page 156: Menu 14 "Isobus
14-6 Configuring TIM software (for "TIM 1.0" version), Page 157 14-9 Switching between terminals, see Page 159 14.17.1 Menu 14-5 "KRONE SmartConnect" The access data for the KRONE SmartConnect (KSC) can be seen in this menu. Comprima F 155 Original operating instructions 150001049_02_en...
Page 157: Menu 14-6 "Configuring Tim Software" (For "Tim 1.0" Version)
00011501 WLAN-KEY: afbb2bfac5 PRODUCT-CODE: C0060000600011501 EQG000-064 ü One or more KRONE SmartConnects have been installed. ü The menu 14 “ISOBUS” has been selected, Page 156. „ To open the menu, press Æ The display shows the "SmartConnect" menu. 14.17.2 Menu 14-6 "Configuring TIM software" (for "TIM 1.0" version)
Page 158 Function Instance: 0 EQG003-095 When the TIM functions have been preselected, the checkboxes disappear and the TIM status is indicated on the display. The machine is being registered and authenticated with the tractor. Comprima F 155 Original operating instructions 150001049_02_en...
Page 159: Menu 14-9 "Switching Between Terminals
The loading process can take a few minutes. EQG003-035 ü The menu 14 “ISOBUS” has been selected, Page 156. „ To change to the next terminal, press Comprima F 155 Original operating instructions 150001049_02_en...
Page 160: Menu 15 "Settings
In the sensor test, the sensors installed on the machine are checked for faults. Furthermore the sensors can be correctly set in the sensor test. There is no guarantee the machine is working correctly until after the sensors have been adjusted. Comprima F 155 Original operating instructions 150001049_02_en...
Page 161 An overview of the sensors, actuators and control units is in the circuit diagram. Sensor Designation Speed of bale chamber Tying process active Slip floor conveyor Feed rotor floor top position Filling display left Comprima F 155 Original operating instructions 150001049_02_en...
Page 162: 14.18.1.1 Adjusting Sensor B09/B10 "Filling Display Left/Right
5,0V 1,5V 1,0V 1,0V 1,0V EQG003-041 The sensor (3) is located behind the rear side guard: • B09 on the left side of the machine • B10 on the right side of the machine. Comprima F 155 Original operating instructions 150001049_02_en...
Page 163: Adjusting Sensor B61 "Tying 1 (Passive)
Therefore, in the "Actuator test" menu, the actuator must be controlled manually for a short time in order to determine possible errors in the actuator system. Comprima F 155 Original operating instructions 150001049_02_en...
Page 164 Working lights net roll (for version "Net wrapping and chamber film wrapping” and "Working lights") Working lights chamber film wrapping (for the “Net and cham- ber film wrapping” version) E22/ E22/E23 Maintenance lighting side hood left/right Motor tying 1 (passive) Comprima F 155 Original operating instructions 150001049_02_en...
Page 165 The LED on the plug can also be checked directly on the actuator. „ Press to switch the actuator on. „ Press to switch the actuator off. Diagnostics of actuator for wrapping process 15-2 state: EQG000-053 Comprima F 155 Original operating instructions 150001049_02_en...
Page 166: Menu 15-3 "Software Info
All active and non-active errors are shown in this menu. The errors are shown with a number indicating how often the error occurred and the time on the operating hours counter when the error last occurred. Comprima F 155 Original operating instructions 150001049_02_en...
Page 167 Delete individual errors • The selected error is deleted. • Only non-active errors can be deleted. Delete all errors • All inactive errors are deleted. Recurring icons Page 141. Comprima F 155 Original operating instructions 150001049_02_en...
Page 168 Only non-active errors (highlighted grey) can be deleted. „ To select the error to be deleted, press „ To delete the error, press Delete all errors Only non-active errors (highlighted grey) can be deleted. „ To delete all errors, press Comprima F 155 Original operating instructions 150001049_02_en...
Page 169: Driving And Transport
If the brake force controller has been incorrectly set, there is a risk of accidents. „ When driving on public roads, ensure that full load (1/1) is set on the brake force regulator. „ When working for example on wet fields, deceleration may be reduced. Comprima F 155 Original operating instructions 150001049_02_en...
Page 170: Preparing The Machine For Road Travel
„ When using a safety chain as an additional safety precaution for trailed implements: Remove the safety chain. „ Disconnect the road lighting plug, Page 62. „ Remove the power supply cable for the terminal. Comprima F 155 Original operating instructions 150001049_02_en...
Page 171: Securing The Universal Shaft
„ Attach the universal shaft chain (1) to the support (3). With bottom suspension of the drawbar RPG000-137 „ Fold out the universal shaft bracket (1) and place the universal shaft (2) on the universal shaft bracket (1). Comprima F 155 Original operating instructions 150001049_02_en...
Page 172: Checking Road Travel Lighting
If the machine is not secured properly for transportation on a lorry or train, the parts may come loose unintentionally due to the airstream. This may result in serious accidents or damage to the machine. „ Carry out the following measures to secure moving machine parts. Comprima F 155 Original operating instructions 150001049_02_en...
Page 173: Securing The Side Hoods
The tensioning device is intended for single use only and must be properly disposed of afterwards. Reuse is not permitted. KRONE special tool (1) Order number Tensioning device of bale formation conveyor 20 062 406* Comprima F 155 Original operating instructions 150001049_02_en...
Page 174: Lifting The Machine
„ If work has to be performed under the machine, securely support the machine, Page 27. The machine is equipped with 3 suspension points. RPG000-216 There are 2 suspension points (1) at the top, next to the bale formation conveyor. Comprima F 155 Original operating instructions 150001049_02_en...
Page 175: Lashing The Machine
„ Before transporting the machine, secure it properly to the designated lashing points using suitable lashing material. The lashing points on the machine are identified with an information label, Page 34. RPG000-219 1 2 lashing points at the front Comprima F 155 Original operating instructions 150001049_02_en...
Page 176 Driving and transport 15.5 Preparing the machine for shipment RPG000-220 1 2 lashing points at the rear (one on the left and one on the right machine side) Comprima F 155 Original operating instructions 150001049_02_en...
Page 177: Settings
„ The safety routines must be read and observed to avoid accidents, Page 27. 16.1 Setting the baling pressure For "KRONE DS 100 operation unit" version „ Adjust the baling pressure via the operation unit, Page 107. For "Comfort 1.0" version „ Set the baling pressure via the terminal, Page 134.
Page 178: Checking And Setting The Position Of The Feed Rocker Arm
„ To move the feed rocker arm in the direction of the feed position, press „ To move the feed rocker arm in the direction of the end position, press „ Press Æ The set position is saved. Comprima F 155 Original operating instructions 150001049_02_en...
Page 179: Checking And Adjusting The Feed Position
„ Move the feed rocker arm in the direction of the feed position until the feed rocker arm (1) has approached the stop (2) up to a distance of X=3–5 mm. „ Save the new position. Comprima F 155 Original operating instructions 150001049_02_en...
Page 180: Checking And Setting End Position For Chamber Film Wrapping
„ Move the feed rocker arm in the direction of the end position until the conical roller (3) is positioned on the insulation of the pressure shaft (2) and the film is clamped between the insulation and conical shaft. „ Save the new position. Comprima F 155 Original operating instructions 150001049_02_en...
Page 181: Checking And Setting End Position For Net Wrapping
RP000-877 I For version with "Net wrapping" II For version with "Net wrapping and chamber film wrapping" After each tying process, the net should overhang by X=170–200 mm or the film by Y=230– 260 mm. Comprima F 155 Original operating instructions 150001049_02_en...
Page 182: Setting Wrapping Material Brake
Setting wrapping material brake RP000-878 Net wrapping: Dimension preset by KRONE Z=365 mm Chamber film wrapping: Dimension preset by KRONE Z=370-375 mm If the wrapping material overhang (1) is not X=170–200 mm or Y=230–260 mm, the wire rope (5) must be adjusted as follows. The greater the dimension Z of the wire rope (5), the greater the wrapping material overhang (1).
Page 183 Page 94. The pre-set dimension X for net wrapping and chamber film wrapping is X=21 mm. If "KRONE excellent" net or film is not used for the tying, the brake force may have to be adjusted at the eyelet bolt (3). ü The machine is shut down and safeguarded, Page 27.
Page 184: Setting The Brake Force Release When Feeding Wrapping Material
The wrapping material can be pulled with difficulty. central medium The wrapping material can be pulled with medium strength. KRONE re- commends this setting as an op- timum brake force release during the feeding of the wrapping material. bottom strong The wrapping material can be pulled easily.
Page 185: Checking And Setting The Axial Play Of The Brake Disc At The Wrapping Material Brake
„ Use shim rings to set the required axial play X. „ Mount the adjusting collar (1) and tighten the threaded pin (2). „ Push the brake disc (4) onto the roll holder (3) and swivel it back into the machine. Comprima F 155 Original operating instructions 150001049_02_en...
Page 186: Locking/Releasing The Tension Lever
„ To release the locking pin with ball head (3), turn the ball head anti-clockwise and pull the bolt in the direction of the arrow until the roll pin (4) moves through the slot and the bolt has engaged. Comprima F 155 Original operating instructions 150001049_02_en...
Page 187: Setting The Lock Of The Tapered Roller
„ To lock the conical roller (1) for net wrapping, pull the locking bar (2) and turn it anti- clockwise until it engages in position (I). „ To release the conical roller (1) for chamber film wrapping, pull the locking bar (2) and turn it clockwise until it engages in position (II). Comprima F 155 Original operating instructions 150001049_02_en...
Page 188: Checking The Retaining Comb For Net Wrapping
Make the following check on the right and left sides of the machine in the same way: „ Check whether the dimension X on the spring (2) is X=15 mm. „ If the dimension is not X=15 mm, set the dimension on the nut (3). Comprima F 155 Original operating instructions 150001049_02_en...
Page 189: Checking The Retaining Comb For Chamber Film Wrapping
Make the following check on the right and left sides of the machine in the same way: „ Check whether the dimension X on the spring is X=5 mm. „ If the dimension is not X=5 mm, set the dimension on the nut (3). Comprima F 155 Original operating instructions 150001049_02_en...
Page 190: Setting The Retaining Comb For Chamber Film Wrapping
Position II If the blue strips (1) are taken along by the first net feed roller with a delay or are not taken along, you can reverse the trapezoidal rubbers (4). This provides additional support. Comprima F 155 Original operating instructions 150001049_02_en...
Page 191: Setting The Working Lights
The interior working lights on the side hoods on the left- and right-hand side of the machine can be set as required. The working lights are turned on and off using the keys and the terminal, Page 127. RPG000-101 „ Turn the light (1) so that the desired area is illuminated. Comprima F 155 Original operating instructions 150001049_02_en...
Page 192: Maintenance
Page 76 Check hydraulic hoses see Page 223 Cleaning deflection pipes or conical tying roller see Page 205 Check the electrical connection cables and, if necessary, have them repaired or changed by a KRONE service partner Comprima F 155 Original operating instructions 150001049_02_en...
Page 193: Maintenance - After The Season
Have the slack adjuster of the brake system checked by KRONE service partners Check the hydraulic hoses for leaks and, if ne- see Page 223 cessary, have them replaced by a KRONE service partner. Cleaning bushing and drawbar eye see Page 207 17.1.4...
Page 194: Maintenance - Once After 500 Round Bales
Maintenance – every 500 hours Changing oil Main gearbox see Page 204 17.1.9 Maintenance – Every 2 years Components Have compressed-air tanks checked by KRONE service partner Have pneumatic brake cylinders serviced by KRONE service partner Comprima F 155 Original operating instructions 150001049_02_en...
Page 195: Lubrication Chart
„ Remove excess lubricating grease at the grease nipple. „ Remove old lubricating Lubricating Multi-purpose grease grease. „ Apply a coat of new lubricating grease thinly with a brush. „ Remove excessive lubricating grease. Comprima F 155 Original operating instructions 150001049_02_en...
Page 196 Maintenance 17.2 Lubrication chart Left side of machine RPG000-029 Every 20 operating hours (3) For "Tandem axle" ver- sion“ Comprima F 155 Original operating instructions 150001049_02_en...
Page 197 Maintenance Lubrication chart 17.2 Every 50 operating hours Right and rear side of machine RPG000-030 Comprima F 155 Original operating instructions 150001049_02_en...
Page 198 Maintenance 17.2 Lubrication chart Every 20 operating hours (3) For "Tandem axle" ver- sion“ Every 50 operating hours Comprima F 155 Original operating instructions 150001049_02_en...
Page 199: Lubricating The Universal Shaft
Deviations from the tables are marked accordingly. Metric thread screws with control thread INFO The table does not apply to countersunk screws with hexagon socket in case the countersunk screw is tightened via hexagon socket. Comprima F 155 Original operating instructions 150001049_02_en...
Page 200 Strength class on screw head Strength class 10.9 12.9 Tightening torque (Nm) 1,050 1,220 1,100 1,550 1,800 1,450 2,100 2,450 Metric thread screws with fine thread DV000-001 Thread size Strength class on screw head Comprima F 155 Original operating instructions 150001049_02_en...
Page 201 INFO The table applies only to countersunk screws with hexagon socket and metric thread tightened via hexagon socket. DV000-000 Thread size Strength class on screw head Strength class 10.9 12.9 Tightening torque (Nm) Comprima F 155 Original operating instructions 150001049_02_en...
Page 202: Checking/Maintaining Tyres
Inspect the tyres visually „ Visually inspect tyres for cuts or breaks. Æ If there are cuts or breaks in the tyres, have the tyres repaired or replaced by a KRONE service partner. Maintenance intervals for visual inspection of the tyres, Page 192.
Page 203 8 units 380 Nm 420 Nm M20x1.5 30 mm 8 units 380 Nm 420 Nm M22x1.5 32 mm 8/10 units 510 Nm 560 Nm M22x2 32 mm 10 units 460 Nm 505 Nm Comprima F 155 Original operating instructions 150001049_02_en...
Page 204: Servicing The Main Gearbox
Page 202. „ Pour in fresh oil via the inspection and filling hole (3) up to the inspection and filling hole (3). „ Screw the locking screw into the inspection and filling hole (3), tightening torque Page 202. Comprima F 155 Original operating instructions 150001049_02_en...
Page 205: Cleaning The Machine
This can prevent mechanical blockages. „ If required, repeat the cleaning several times a day. 17.8 Cleaning deflection pipes or conical tying roller The maintenance intervals can be found in the maintenance table, Page 192. Comprima F 155 Original operating instructions 150001049_02_en...
Page 206 Cleaning deflection pipes or conical tying roller For version with "Net wrapping" RP000-467 „ Remove any corrosion from all fixed deflection pipes (1) and from the brake surface of the brake disc (2) in the tying unit. Comprima F 155 Original operating instructions 150001049_02_en...
Page 207: Clean The Bushing And The Drawbar Eye
(1) in the drawbar eye (2) is X=43 mm. If the dimension X is exceeded, the drawbar eye (1) must be replaced by a KRONE service partner. „ To minimize wear, clean the bushing (1) and the drawbar eye (2) several times a day and coat with grease.
Page 208: Cleaning Drive Chains
„ Check whether the screw connections (1) or (2) have been tightened to the correct tightening torque. „ Tighten the screw connections (1) on the drawbar to the tightening torque 210 Nm. „ Tighten the screw connections (2) on the drawbar eye to the tightening torque 730 Nm. Maintenance interval, Page 192. Comprima F 155 Original operating instructions 150001049_02_en...
Page 209: Setting The Scraper And Stone Deflector
To set the scraper rail (1), loosen the scraper reinforcers (3): „ Loosen the screw connections (2). Æ The scraper reinforcers (3) can be moved slightly up or down in the oblong hole. Comprima F 155 Original operating instructions 150001049_02_en...
Page 210 ð The scraper rail (1) approaches the spiral roller (2). When the scraper rail is in contact with the spiral roller: „ Tighten the screw connections (3). „ Tighten the lock nuts of the setting screws (4). Comprima F 155 Original operating instructions 150001049_02_en...
Page 211: Adjusting The Scraper On The Deflection Shafts
All scrapers on the fixed deflection rolls must be regularly checked and adjusted. The following image shows the position of the fixed deflection rolls (1) in the bale chamber on which scrapers are mounted. Comprima F 155 Original operating instructions 150001049_02_en...
Page 212: Setting The Stone Deflectors
„ Switch off the PTO shaft. „ Switch on the PTO shaft at a lower idle speed until the cam clutch has engaged. „ Shift up the PTO shaft to rated speed. Comprima F 155 Original operating instructions 150001049_02_en...
Page 213: Adjust Drive Chains
„ To reduce the chain tension, turn nut (4) and (5) anti-clockwise until the dimension =60 mm and X =60 mm has been set. INFO The drive chain is supplied with oil via the central chain lubrication system, Page 97. Comprima F 155 Original operating instructions 150001049_02_en...
Page 214: Drive Chain Of The Intake
ü The right side hood is open. „ To tension the drive chain (1), use the nut on the eyelet bolt (3) to set the dimension X=200 mm. INFO The drive chain is supplied with oil via the central chain lubrication system, Page 97. Comprima F 155 Original operating instructions 150001049_02_en...
Page 215: Drive Chain Of The Bale Formation Conveyor
„ Ensure that the support (6) and stop rubber (7) do not touch each other and that there is a slight gap. INFO The drive chain is supplied with oil via the central chain lubrication system, Page 97. Comprima F 155 Original operating instructions 150001049_02_en...
Page 216: Drive Chain Of The Auger Conveyor
ü The right side hood is open. „ To tension the drive chain (1), use the nut (2) to set the dimension X=220 mm. INFO The drive chain is supplied with oil via the central chain lubrication system, Page 97. Comprima F 155 Original operating instructions 150001049_02_en...
Page 217: Checking The Bale Formation Conveyor Tension
The dimension X=440 mm has been set at the factory and must not be changed. „ Check whether the dimension X=440 mm. „ If the dimension is not X=440 mm, contact the KRONE service partner. 17.17 Checking and setting the axial play of the brake disc at the wrapping...
Page 218: Servicing Chain Lubrication Unit
„ When oil has run out, connect the hose to the pump (7). „ Open the bleed screw (2). „ Operate the pump (7) manually until the oil flowing out of the distributor block (1) is without air bubbles. „ Close the bleed screw (2). Comprima F 155 Original operating instructions 150001049_02_en...
Page 219: Cleaning The Dosing Units
„ Mount the spring and the shut-off valve (5). „ Screw on the cap (6) hand-tight. „ Insert the dosing unit (2) into the distributor block (3) and screw on hand-tight. „ Screw the cap nut (1) onto the dosing unit (2) and screw on hand-tight. Comprima F 155 Original operating instructions 150001049_02_en...
Page 220: Replacing The Hose On The Dosing Unit
The air filters (1) clean the compressed air and guard the compressed air brake from malfunctions. The compressed air brake remains functional in both directions of flow even when a filter element (3) is blocked. Comprima F 155 Original operating instructions 150001049_02_en...
Page 221: Drain Condensation Water From The Compressed Air Tank
Damage to compressed air reservoir caused by water in the compressor unit Water in the compressor unit leads to corrosion which damages the compressed air reservoir. „ Check and clean drain valve according to maintenance table,see Page 192. „ Immediately replace a defective drain valve. Comprima F 155 Original operating instructions 150001049_02_en...
Page 222: Retighten Tensioning Straps At The Compressed Air Tank
„ Visually inspect the drain valve (2) to ensure that it is not defective or soiled. Æ If the drain valve (2) is defective and is no longer sealed, immediately have the drain valve (2) replaced by a KRONE service partner. Æ If the drain valve (2) is soiled, clean the drain valve (2).
Page 223: Servicing The Hydraulic System
When checking hydraulic hoses, the state-specific conditions (e.g., BGVU) must be observed. Performing a visual inspection „ Visually inspect all hydraulic hoses for damage and leaks and have them replaced by an authorised specialist if necessary. Comprima F 155 Original operating instructions 150001049_02_en...
Page 224: Malfunction, Cause And Remedy
„ Set the machine correctly using the drawbar from the been set correctly with respect KRONE service partner, Page 51. to the tractor. The crop press roller unit has „ Set the crop press roller unit higher, Page 84. been set too low. Comprima F 155 Original operating instructions 150001049_02_en...
Page 225: Disturbances During Or After The Baling Process
Remedy The machine is hooked in too „ Check the setting of the drawbar. low at the front. „ If required, have the drawbar height adjusted by the KRONE service partner, Page 51. 18.2 Disturbances during or after the baling process Malfunction: The bale formation conveyor is rotating slower than it should.
Page 226: Disturbances At The Tying Unit Or During The Tying Cycle
Page 145. The wrapping material is torn. „ Use only wrapping material of the designated quality. KRONE recommends one of the "KRONE excellent" products, see label on the machine with the number 27 016 326 *. Malfunction: The round bale is barrel-shaped. This causes the wrapping material to tear open in the middle.
Page 227 The rotational speed is too „ Check the rotational speed. It must not be higher than 540 high. rpm. Malfunction: The net is not transported after tying starts. Possible cause Remedy Comprima F 155 Original operating instructions 150001049_02_en...
Page 228 Possible cause Remedy The cutting unit is blunt. „ Remove deposits from the cutting unit. „ If required, have the cutting unit replaced by a KRONE service partner. „ Remove deposits from the cutting unit. The cutting unit is not actu- ated.
Page 229: Malfunctions On The Chain Lubrication Unit
Malfunction: The oil consumption is too high. Possible cause Remedy The main tube is torn. „ Have the main tube repaired or replaced changed by a KRONE service partner. „ Use recommended oil, The oil is too thin. Page 47. Comprima F 155 Original operating instructions 150001049_02_en...
Page 230: Faults Of The Electrics/Electronics
„ Remedy the malfunction when the error message is displayed, Page 233. „ If the malfunction cannot be remedied, contact KRONE Customer Service. KMC - 521202- 5 EQG000-034 The display shows an error message if a malfunction occurs on the machine. At the same time, an audio signal will be heard (continuous horn sound).
Page 231: Possible Error Types (Fmi)
There is an abnormal update rate. There is an abnormal rate of change. The error cause is unknown. There is an internal error. The values of the calibration are outside the value range. Comprima F 155 Original operating instructions 150001049_02_en...
Page 232: Overview Of Fuses
A1.F10 ISOBUS-expansion ECU PWR 7.5 A A1.F5 ISOBUS-expansion PWR 15 A A1.F11 ECU plug X551 7.5 A A1.F6 Reserve 15 A 18.5.3 Remedying sensor/actuator error Components must be repaired or replaced by a qualified specialist workshop only. Comprima F 155 Original operating instructions 150001049_02_en...
Page 233 „ If a sensor is defective, run a sensor test to identify the sensor status, Page 160. The more information the dealer has, the easier it is to eliminate the cause of the error. 18.5.4 Error list >>> 2 Fehlerliste_D2515020105300016_en [} 234] Comprima F 155 Original operating instructions 150001049_02_en...
Page 234: Error List
Error list Software version: D2515020105400018_300 Control unit: KMC...
Page 235 Error number Error text Description Figure KMC-520192-19 CAN1 - CAN disturbance between There is a CAN disturbance between control units control units on CAN 1. KMC-520193-19 CAN2 - CAN disturbance between There is a CAN disturbance between control units control units on CAN 2. KMC-520194-19 CAN3 - CAN disturbance between There is a CAN disturbance between...
Page 236 Error number Error text Description Figure KMC-521102-4 Voltage group UB3 - Undervoltage The input voltage of the corresponding detected voltage group is too low. KMC-521102-5 Voltage group UB3 - Ground fault A ground fault has occurred on the supply voltage. KMC-521102-6 Voltage group UB3 - Overload The maximum load on the supply...
Page 237 Error number Error text Description Figure KMC-521107-3 Supply voltage - Overvoltage The power supply on the UE connection is too high. KMC-521107-4 Supply voltage - Undervoltage The power supply on the UE detected connection is too low. KMC-521108-11 Control unit - General disturbance The voltage group relay UB1 has not passed the self-test.
Page 238 Error number Error text Description Figure KMC-522000-7 Quick-stop switch - Logic fault The quick-stop switch has been mechanics activated. KMC-522001-7 Quick-stop retaining bracket - Logic The quick-stop retaining bracket has fault mechanics been activated. KMC-522005-2 Universal shaft - Logic error The universal shaft rotates and the electronics operating status is road mode.
Page 239 Error number Error text Description Figure KMC-522027-7 Tying net is being pulled - Logic fault The wrapping and tying material is mechanics being pulled from the bale even though tying has not started. KMC-522028-7 Tying net not cut off - Logic fault The wrapping and tying material has mechanics not been cut off.
Page 240 Error number Error text Description Figure KMC-522049-7 Tailgate open - Logic fault mechanics An open tailgate was detected, although no tying has occurred since it was last closed. KMC-522050-18 Rotational speed universal shaft - The PTO speed is too low. Lower limit value below minimum KMC-522051-7 Position of tailgate - Logic fault...
Page 241 Error number Error text Description Figure KMC-522079-18 Moisture measurement - Lower limit The lower moisture limit value was value below minimum below the minimum during the moisture measurement. KMC-522080-7 Tying film not pulled - Logic fault The wrapping and tying material was mechanics not received by/pulled from the bale when tying is activated.
Page 242 Error number Error text Description Figure KMC-522101-3 Sensor B01 Speed of bale chamber - Cable break KMC-522101-4 Sensor B01 Speed of bale chamber - Short circuit to ground or UB KMC-522102-3 Sensor B02 Tying process active - Cable break KMC-522102-4 Sensor B02 Tying process active - Short circuit to ground or UB KMC-522103-3...
Page 243 Error number Error text Description Figure KMC-522110-3 Sensor B10 Filling display on right - Short circuit after UB KMC-522110-4 Sensor B10 Filling display on right - Cable break or short circuit to ground KMC-522111-3 Sensor B11 Lock hook bale chamber on left - Cable break KMC-522111-4 Sensor B11 Lock hook bale chamber...
Page 244 Error number Error text Description Figure KMC-522122-4 Sensor B22 Left holding arm open - Short circuit to ground or UB KMC-522123-3 Sensor B23 Right holding arm open - Cable break KMC-522123-4 Sensor B23 Right holding arm open - Short circuit to ground or UB KMC-522124-3 Sensor B24 Film tear detection - Cable break...
Page 245 Error number Error text Description Figure KMC-522141-4 Sensor B41 Blade group B swivelled in - Short circuit to ground or UB KMC-522142-3 Sensor B42 Blade group A swivelled out - Cable break KMC-522142-4 Sensor B42 Blade group A swivelled out - Short circuit to ground or UB KMC-522143-3 Sensor B43 Blade group A swivelled in - Cable break...
Page 246 Error number Error text Description Figure KMC-522161-4 Sensor B61 Tying 1 (passive) - Cable break or short circuit to ground KMC-522162-3 Sensor B62 Tying 2 (active) - Cable break KMC-522162-4 Sensor B62 Tying 2 (active) - Short circuit to ground or UB KMC-522163-3 Sensor B63 Tying 3 (active) (twine) - Short circuit after UB...
Page 247 Error number Error text Description Figure KMC-522177-4 Sensor B77 Bale lifter position - Cable break or short circuit to ground KMC-522182-3 Sensor B82 Direction display - Short circuit after UB KMC-522182-4 Sensor B82 Direction display - Cable break or short circuit to ground KMC-522183-3 Sensor B83 Overload protection belt - Cable break...
Page 248 Error number Error text Description Figure KMC-522250-16 Sensor - B58 Weight measurement wrapping table at rear right - B59 Weight measurement wrapping table at front left - Upper limit value exceeded KMC-522250-18 Sensor - B58 Weight measurement wrapping table at rear right - B59 Weight measurement wrapping table at front left - Lower limit value below minimum...
Page 249 Error number Error text Description Figure KMC-522306-6 Actuator Q06 Drive wrapping arm - Short Cut to Ground KMC-522307-3 Actuator K07 Close bale chamber - Cable break or short circuit to UB KMC-522307-6 Actuator K07 Close bale chamber - Short Cut to Ground KMC-522308-3 Actuator K08 Open bale chamber - Cable break or short circuit to UB...
Page 250 Error number Error text Description Figure KMC-522316-6 Actuator K16 Open holding arms - Short Cut to Ground KMC-522317-3 Actuator K17 Close holding arms - Cable break or short circuit to UB KMC-522317-6 Actuator K17 Close holding arms - Short Cut to Ground KMC-522319-3 Actuator K19 Wrapping arm brake - Cable break or short circuit to UB...
Page 251 Error number Error text Description Figure KMC-522333-6 Actuator K55 Central lubrication grease - Short Cut to Ground KMC-522338-3 Actuator K38 Pilot valve 1 - Cable break or short circuit to UB KMC-522338-6 Actuator K38 Pilot valve 1 - Short Cut to Ground KMC-522339-3 Actuator K39 Pilot valve 2 - Cable...
Page 252 Error number Error text Description Figure KMC-522352-6 Actuator Q52 Pilot valve 3 - Short Cut to Ground KMC-522353-3 Actuator K53 Holding arms on left - Cable break or short circuit to UB KMC-522353-6 Actuator K53 Holding arms on left - Short Cut to Ground KMC-522353-6 Actuator K54 Holding arms on right -...
Page 253 Error number Error text Description Figure KMC-522402-3 Cable break or short circuit to UB KMC-522420-3 Lamp E20 Working lights net roll - Cable break or short circuit to UB KMC-522420-6 Lamp E20 Working lights net roll - Short Cut to Ground KMC-522421-3 Lamp E21 Working lights chamber film wrapping - Cable break or short...
Page 254 Error number Error text Description Figure KMC-522462-3 Actuator K12 Raise bale transfer - Cable break or short circuit to UB KMC-522462-6 Actuator K12 Raise bale transfer - Short Cut to Ground KMC-522463-3 Actuator K13 Lower bale transfer - Cable break or short circuit to UB KMC-522463-6 Actuator K13 Lower bale transfer - Short Cut to Ground...
Page 255 Error number Error text Description Figure KMC-522533-0 Measurement amplifier: Timeout of CAN messages from KMB 2 KMC-522534-0 Error from KMB module 3 KMC-522536-0 Error from KMB module 4 KMC-522537-0 Measurement amplifier: Timeout of CAN messages from KMB 4 KMC-522540-0 Error from LMO module 1 KMC-522541-0 Measurement amplifier: Timeout of CAN messages from LMO 3...
Page 256: Setting The Tailgate Lock
ð If the dimension is X=340 mm, the setting is correct. ð If the dimension X is not X=340 mm, the tailgate lock must be set. „ To set the tailgate lock, release or tighten the nut (1) until the dimension is X=340 mm. Comprima F 155 Original operating instructions 150001049_02_en...
Page 257: Repairs, Maintenance And Settings By Technicians
„ Only a machine with an intact brake system may be used for work in the field or for travelling on roads. „ Changes to the brake system must not be made without the approval of KRONE. „ KRONE does not accept any warranty claims for natural wear, defects caused by overload or changes made to the brake system.
Page 258: Checking The Pad Thickness Of The Brake Shoes
Checking the pad thickness of the brake shoes The pad thickness of the brake shoes must be at least 2 mm thick. If the pad thickness is less than 2 mm, the brake pads must be replaced by a KRONE service partner.
Page 259: Setting Mechanical Slack Adjuster On The Single Axle
Æ The unbraked wheels must be able to rotate freely without grinding noises. 19.1.4 Setting mechanical slack adjuster on the single axle Due to the naturally occurring wear of brake drums and brake pads, the brakes must be regularly checked and adjusted. Comprima F 155 Original operating instructions 150001049_02_en...
Page 260: Setting Transmission Linkage And Brake Lever On The Tandem Axle
Brake actuation has been set in the factory. An adjustment is required if • the braking effect decreases (e.g. due to the brake shoes wearing) and/or • the actuating stroke of the brake cylinder W is not within the range of W=25±5 mm. Comprima F 155 Original operating instructions 150001049_02_en...
Page 261 „ Turn the respective brake linkage (3.1) or (3.2) so that the respective brake linkage (3.1, 3.2) is extended. „ Always ensure to change the length of both brake linkages (3.1, 3.2). The brake linkages (3.1, 3.2) may have to be extended to a varying degree. Comprima F 155 Original operating instructions 150001049_02_en...
Page 262 „ Ensure that the brake levers are moved the same on both sides. „ Mount the retaining ring (3). „ Mount the brake linkage (3.1, 3.2). „ After moving the brake levers (1.1, 1.2), reset the brake linkages, Page 261. Comprima F 155 Original operating instructions 150001049_02_en...
Page 263: Car Jack Contact Points
1 Car jack contact point at rear left 2 Car jack contact point at rear right Example image of a tandem axle: RP000-869 1 Car jack contact point at rear left 2 Car jack contact point at rear right Comprima F 155 Original operating instructions 150001049_02_en...
Page 264: Waste Disposal
All synthetic materials must be brought to a recycling centre for synthetic materials. Rubber • Rubber parts (hoses, tyres, …) must be brought to a rubber recycling centre. Electronic scrap • All electronic parts must be brought to a disposal point for electronic scrap. Comprima F 155 Original operating instructions 150001049_02_en...
Page 265: Appendix
Raising/lowering blade cassette Blade group B (for the “Hydraulic blade group control system” version) Blade group A (for the “Hydraulic blade group control system” version) – Hydraulic support jack >>> 2 150102161_01 Comprima F [} 266] Comprima F 155 Original operating instructions 150001049_02_en...
Page 267: Index
Behaviour in dangerous situations and in case of accidents ............27 brake disc of the wrapping material brake Checking and setting axial play..185, 217 Bringing the pick-up to transport/working position ................82 Comprima F 155 Original operating instructions 150001049_02_en...
Page 268 Connecting the camera to the KRONE ISOBUS terminal CCI 800 or CCI 1200 ......71 Checking hydraulic hoses ........ 223 Connecting the KRONE DS 100 operation unit.. 64 Checking oil level, topping up oil and changing filter..............218 Connecting the KRONE ISOBUS terminal (CCI 800, CCI 1200)...........
Page 269 Delete all errors ..........168 Delete individual errors........168 Design DS 500 ..........119 Design of display ..........123 Design of the KRONE machine application..123 Diagnostics for digital actuators ....... 165 Direction display ........103, 131 Direction display sensitivity (terminal) ....148 Directories and references ........
Page 270 Inserting the net or film ........91 Error list (Terminal)........... 166 Inserting the net roll ..........87 Error messages ........115, 230 Intended use............14 ISOBUS settings (terminal) ......156 Jobs on the machine .......... 17 Comprima F 155 Original operating instructions 150001049_02_en...
Page 271 KRONE ISOBUS terminal (CCI 800, CCI 1200) Machine overview..........42 ................. 121 Maintenance ............. 192 KRONE operation unit DS 100 ......100 Maintenance – After the season....... 193 KRONE SmartConnect (Terminal) ....156 Maintenance – Before the season....192 KRONE Terminal DS 500......... 118 Maintenance –...
Page 272 Menu 13-2 "Total counter"........ 155 Setting sensor ........163 Menu 14 "ISOBUS" .......... 156 net wrapping ............87 Menu 14-5 "KRONE SmartConnect" ....156 Checking and setting axial play of the brake Menu 14-6 "Configuring TIM software" (for "TIM disc ..........185, 217 1.0"...
Page 273 ..............51 Preparing the machine for road travel ....170 Preparing the machine for shipment ....172 Pre-signalling (terminal) ........146 Protecting brake disc of the wrapping material brake from corrosion ........208 Comprima F 155 Original operating instructions 150001049_02_en...
Page 274 Switching the operation unit on/off ....102 Setting mechanical slack adjuster on the single axle ..............259 Switching the working lights on/off ....105 Setting the baffle sheet on the crop press roller unit ................85 Comprima F 155 Original operating instructions 150001049_02_en...
Page 275 Counter ..........152 Direction display sensitivity ....148 Error list ..........166 ISOBUS settings ........156 Validity ..............9 Varying functions to KRONE ISOBUS terminal 125 Manual operation ........150 Manual operation (net and chamber film wrapping) ..........151 Pre-signalling ......... 146 Warning signs.............
Page 276 Maschinenfabrik Bernard Krone GmbH & Co. KG * Heinrich-Krone-Straße 10 D-48480 Spelle * Postfach 11 63 D-48478 Spelle ' +49 (0) 59 77 / 935-0 6 +49 (0) 59 77 / 935-339 ü www.landmaschinen.krone.de...

This manual is also suitable for:

1046859

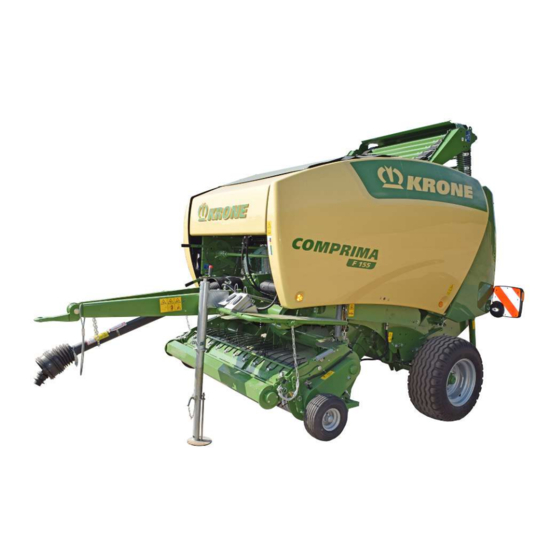

Krone Comprima F 155 Original Operating Instructions

1 Information on this Document

2 Safety

3 Data Memory

4 Machine Description

5 Technical Data

6 Initial Operation

7 Commissioning

8 Operation

9 KRONE Operation Unit DS 100

10 KRONE Terminal DS 500

11 KRONE ISOBUS Terminal (CCI 800, CCI 1200)

12 Foreign ISOBUS Terminal

13 Terminal Machine Functions

14 Terminal Menus

15 Driving and Transport

16 Settings

18 Malfunction, Cause and Remedy

19 Repairs, Maintenance and Settings by Technicians

20 Waste Disposal

Quick Links

Related Manuals for Krone Comprima F 155

Summary of Contents for Krone Comprima F 155
