13.2.2

Blade Quick-Fit Device

Pos: 106.29 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Beschreibung Messerwechsel Messerschnellverschluss @ 0\mod_1197271100500_78.docx @ 16616 @ @ 1

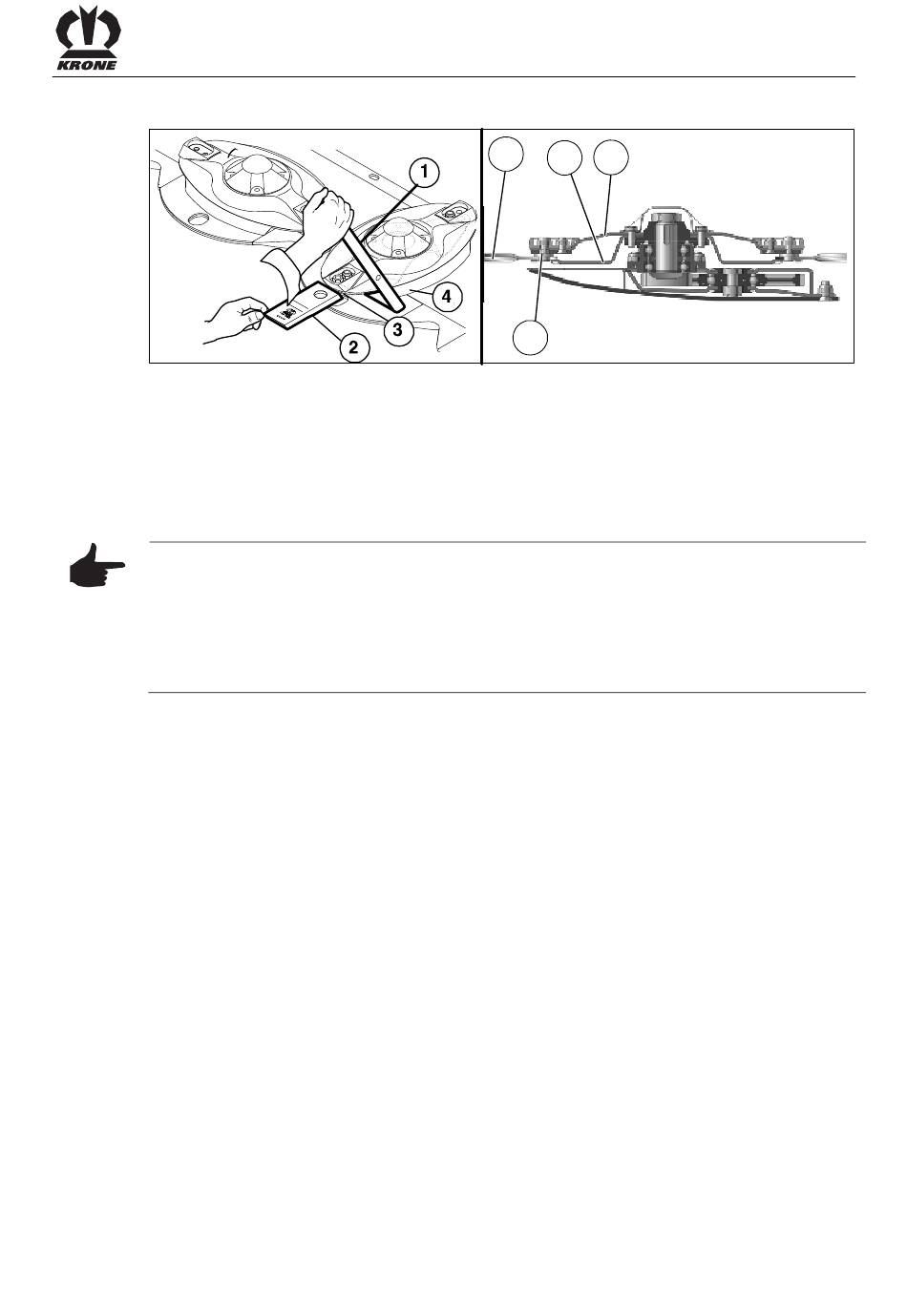

Fig. 71
• Clean the area.
• Remove damaged or worn blades.
• Push the special tool (1) {blade key} between the cutter disc (4) and leaf spring (3) and
press down with one hand.
• Guide a new blade (2) onto the retaining bolt and allow the blade key to return upwards.
• After fitting the blades, fold the protective device down again.
Note
• The cutter blades of anticlockwise rotating cutting discs / blade drums are different than
those of clockwise rotating ones. Make certain the direction of rotation is correct when
installing!
• The arrow on the cutter blades must match the direction of rotation of the corresponding
cutting discs / blade drums.
• The hex nut (4) used to secure the retaining bolts must not be used more than once.
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
