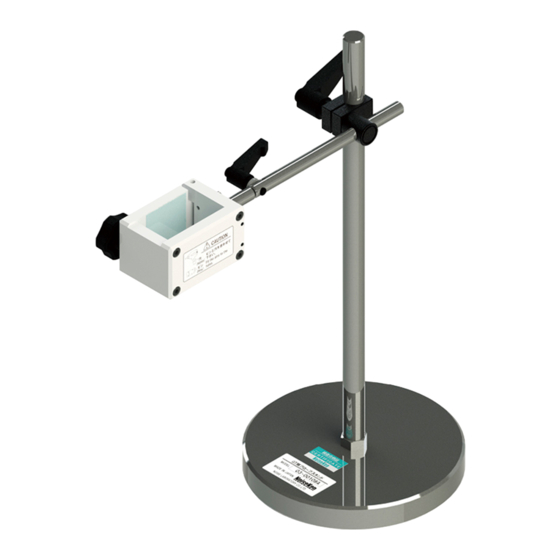

- Page 1 INSTRUCTION MANUAL ESS-801GL MODEL Description MODEL Insulation pallet 03-00024A Ground plane 03-00007A Floor type vertical coupling plane 03-00034A Discharge resistance cable 05-00054B NOISE LABORATORY CO., LTD. Edition 3.02 AEC00006-00E-2C...
- Page 2 NOTICE The contents of this booklet are subject to change without prior notice. No part of this booklet may be reproduced or transferred, in any form, for any purpose, without the permission of Noise Laboratory Co., Ltd. The contents of this booklet have been thoroughly checked. However, if a doubtful point, an error in writing or a missing is found, please contact us.
-
Page 4: Important Safety Precautions
1. IMPORTANT SAFETY PRECAUTIONS Thoroughly understand the following precautions before use, as they are important matters for handling this unit in safety. The purpose for this unit is to be used in the environment for electrostatic testing or immunity testing with other high voltages. Therefore please refer to the part of safety precautions on the attached manual for installing and operation of this unit. -
Page 5: Table Of Contents
2. CONTENTS 1. IMPORTANT SAFETY PRECAUTIONS ......1 3. INTRODUCTION .............. 3 .... 5 4. APPLICATION FORM FOR INSTRUCTION MANUAL 5. BASIC SAFETY PRECAUTIONS ........7 5-1 H ......................7 AZARD SYMBOLS 5-2 F ................7 UNDAMENTAL AFETY RECAUTIONS 6. CONFIGURATION ............9 7. -
Page 6: Introduction
We thank you very much for your purchase of ESS-801GL. The Model ESS-801GL is manufactured for test set-up for floor-standing equipment in accordance with IEC 61000-4-2. The ESS-801GL can also be used for usual electrostatic discharge tests or impulse noise tests. - Page 7 MEMO...
-
Page 8: Application Form For Instruction Manual
4. APPLICATION FORM FOR INSTRUCTION MANUAL To: Noise Laboratory Co., Ltd. We place an order for an instruction manual. ESS-801GL Model: Applicant: Company name: Address: Department: Person in charge: Tel No.: Fax No.: Cut off this page "APPLICATION FORM FOR INSTRUCTION MANUAL"... - Page 9 MEMO...
-
Page 10: Basic Safety Precautions
5-2 Fundamental Safety Precautions ESS-801GL shall be assembled before use. For assembling, follow the assembling instructions shown in a later part of this manual. Assembling can be performed only in a safe place and by two or more persons. Follow the general safety instructions of the users’... - Page 11 As the vertical coupling plane is a thin plate, carefully handle it. Otherwise you may suffer an injury. Pay special attention to handling of this plane.【Precautions for handling】 As the ground planes are thin plates, wear gloves when handling them. As they are weighty part, be careful not to drop it on your feet.
-
Page 12: Configuration
6. CONFIGURATION Insulation pallet (MODEL:03-00024A) ① ① Insulation pallet..1 pc 1200×1200×(H) 100 mm Material: Wood Ground plane (MODEL:03-00007A) ① ① Ground plane .... 3 pcs 1800×1000×(T) 1.5 mm Material ....Aluminum ② Screw M3 with washer..14 pcs (Spare 2pcs.) (For ground plane connection) ②... - Page 13 Floor type vertical coupling plane (MODEL:03-00034A) ① Base..........1 piece Material: Wood ② Column .......... 1 piece Material: Wood ③ Center adaptor......1 piece Material: Delrin ④ Clamp set plate......1 piece Material: Bakelite ⑤ Clamp..........4 pieces Material: Bakelite ⑥...
-
Page 14: How To Assemble
7. HOW TO ASSEMBLE 7-1. How to assemble the vertical coupling plane base Clamp T-plate Clamp set plate Knob Plate B Plate A Assemble step 1: Fix Clamp to Clamp Set Plate with M4 flat head screw as shown in the figure. Sliding column Assemble step 2: Knob... - Page 15 Front-to-back moving guide set screw Vertical moving guide set screw Vertical coupling plane Discharge resistance mounting terminal...
-
Page 16: How To Connect The Ground Plane
7-2. How to connect the ground plane M3 screw ground Plane φ4 hole M3 hole As shown in the above figure, fit the holes of the ground planes and fix them with the supplied M3 screws with washer. -
Page 17: Operation (For Reference)
Operation (for Reference) Electrostatic discharge test based on EN/IEC 61000-4-2 (EUT: Floor-standing devices) Location for indirect discharge vertical coupling plate To AC power supply for EUT ☆Isolation Protective ground transformer terminal 0.1m Ground line Electrostatic 0.1m test device Ground plane (three joined sheets) Location for direct discharge to EUT... - Page 18 6. If required, plug the AC power cable from the EUT into an isolating transformer (use of a NoiseKen NCT Series transformer is recommended). ☆ Although the EN/IEC 61000-4-2 standard does not allow use of an isolating transformer, the Japanese JIS C 61000-4-2 standard stipulates how to connect an isolating transformer when the EUT specifications and Japanese power supply conditions make this necessary.
- Page 19 Notes Even in the case of comparatively large floor-standing EUTs, if the EUT lacks a ground cable due to use of battery power, for example, the application of electrostatic discharges causes EUT itself to leave a residual charge, reduce the effectiveness of subsequent discharges and we will lose the validity of the test result.
-
Page 20: Warranty
9. WARRANTY Servicing terms The following terms are applicable to servicing by Noise Laboratory Co., Ltd., (hereafter referred to as the Company) provided to maintain the intended performance of its products. 1. Scope The following terms shall apply only to products made by the Company. 2. - Page 21 Limited warranty Noise Laboratory Co., Ltd. (hereafter referred to as the Company) warrants its products to be free from defects in materials and workmanship under normal use and service for a period of one year from date of delivery. In the event of failure of a product covered by this warranty, the Company will repair the product or may, at its option, replace it in lieu of repair without charge.
-
Page 22: Maintenance
10. MAINTENANCE When repair, maintenance or internal adjustment of the unit is required, a qualified service engineer takes charge of such work. Maintenance on the user side is restricted to the outside cleaning and functional check of the unit. When checking or replacing the fuse, turn off the switch of the unit and disconnect the plug socket beforehand. - Page 23 NOISE LABORATORY CO., LTD. 1-4-4, Chiyoda, Chuo-ku, Sagamihara City, Kanagawa Pref., 252-0237, Japan TEL: +81-(0)42-712-2051 FAX: +81-(0)42-712-2050 URL: http://www.noiseken.co.jp Printed in Japan...
