EP.V.32907.04 | 09/2022
EN

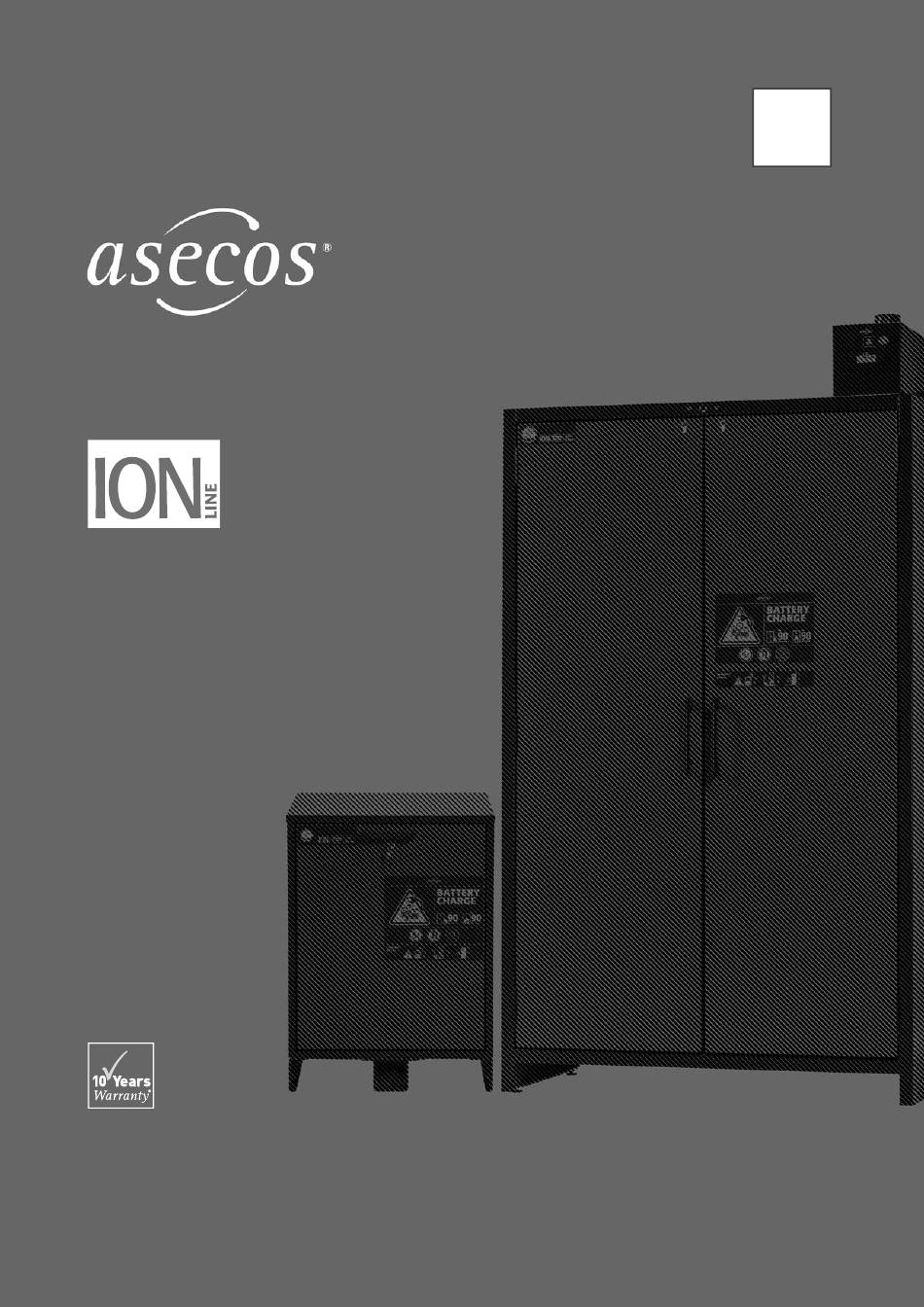

USER MANUAL
Safety storage cabinets for storage
and charging of lithium ion batteries
10 YEARS WARRANTY
Upon conclusion of an asecos service and maintenance agreement (PREMIUM
tari ), you will get a warranty extension for up to 10 years for your ION-LINE safety
storage cabinet.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for asecos ION-CLASSIC-90
Summary of Contents for asecos ION-CLASSIC-90
- Page 1 Safety storage cabinets for storage and charging of lithium ion batteries 10 YEARS WARRANTY Upon conclusion of an asecos service and maintenance agreement (PREMIUM tari ), you will get a warranty extension for up to 10 years for your ION-LINE safety storage cabinet.
- Page 2 ION-CHARGE-90 IO90.195.060.K9.WDC IO90.195.060.L8.WDC IO90.078.059.057.U9.S ION-CHARGE PRO-90 IO90.195.120.K3.WDC...
- Page 3 YOUR PERSONAL DOCUMENTATION TO THE asecos SAFETY CABINET Dear Customer, you have made a decisive investment in safety for your company by purchasing this asecos safety storage cabinet. You now own an innovative product made of top-quality materials guaranteeing the highest quality standards.
-
Page 4: Table Of Contents
1. NOTES • GUIDELINES • GUARANTEE ......... . .5 1.1. -
Page 5: Notes • Guidelines • Guarantee
The guarantee for this product is agreed between you (the customer) and your dealer (the seller). As the manufacturer, asecos guarantees the products listed in the operating instructions for a period of 24 months from the date of delivery. All model safety equipment are subject to a compulsory annual inspection by spe- cialised sta authorised by the manufacturer. -
Page 6: Transport
2. TRANSPORT CAUTION: Transport the cabinet in an upright position on a pallet truck, tied and secured against slipping, until the final place of installation is reached.The transport locks in the door joints may only be removed directly at the place of installation! Inappropriate transport can lead to concealed damage to the fire protection insulation! We can only guarantee the necessary quality if the cabinet is transported to the place of its use by our specially trained sta . -
Page 7: In-Plant Transport
2.3. IN PLANT TRANSPORT • In-plant transport is also possible without transport locks (inserted as standard in the door joints) ATTENTION: The doors must be locked prior to transport! The extraction unit is inside the cabinet and is only mounted after the in-plant transport to the place of use. -
Page 8: Titling Onto The Side Wall
2.5. TITLING ONTO THE SIDE WALL • Titling onto the side wall is only possible with the optionally available tilting bracket (order no. 29556). 3. INSTALLATION 3.1. ALIGNMENT OF THE CABINETS CAUTION: Door elements must not scrape against the fire prevention seals in the fold of the door when opening and closing! Doors with an automatic closing mechanism must close automatically from every position and the lock must be able to lock! IO90.195.120.K3.WDC... -
Page 9: Locker System
IO90.078.059.057.U9.S The drawer is not permanently self-closing. The cabinet has a cylinder lock with a locking status indicator. The drawer has a thermal release and closes automatically in the event of a fire. ATTENTION: The owner/user must ensure that all doors are kept closed whenever the contents of the cabinet are not being accessed. -
Page 10: Storage Levels With Power Socket Strips
5.2. STORAGE LEVELS WITH POWER SOCKET STRIPS LOAD CAPACITY KG/ IO90.195.120.K3.WDC DRUM PLATFORM max. 75 kg max. 50 kg max. 180 kg Standard interior equipment Only special Only interior interior equipment: equipment with grids: Order No. 38520 Order No. 38776 / 38772 Order No. -
Page 11: Ventilation
fire protection and CE conformity are maintained. For this purpose, the cabinet must be handed over to the main factory of asecos GmbH in Gründau, where the specialist department - depending on the degree of damage - makes an assessment of the economic e ciency and technical possibilities of a repair. -
Page 12: Fire Inside The Cabinet Battery Fire
8.1. FIRE INSIDE THE CABINET BATTERY FIRE • For fast transport the cabinets are equipped with a transport base. The cabinets are automatically disconnected from the mains supply in the case of transport. NOTE for 2-door tall cabinets Evacuation by at least 2 persons is recommended. CAUTION: The doors must be locked before transport! Depending on the door heights, it may be necessary to remove the ventilation attachment beforehand. -
Page 13: Opening The Cabinet After The Fire
This annual check can be carried out with the necessary care, and for securing your warranty claims in the case of fire, only by an authorised asecos employ- ee (refer also to our service brochure regarding this). -
Page 14: Io90.195.060.L8.Wdc
In the case of defects or complaints about our products (within and also after the warranty period), and for requesting safety checks or taking out a service contract, please contact our service hotline on: Tel: +44 1785 22 70-90 info@asecos.co.uk 10. TECHNICAL DATA IO90.195.060.K9.WDC... -
Page 15: Technical Drawing
11. TECHNICAL DRAWING Top view Top view Top view (155) (155) Fresh air Fresh air Exhaust air DN 75 Fresh air Exhaust air DN 75 1017 IO90.195.120.K3.WDC IO90.195.060.K9.WDC IO90.195.060.L8.WDC Top view Earthing link Fresh air Active exhaust air IO90.078.059.057.U9.S... -
Page 16: Io90.195.120.K3.Wdc
12. IO90.195.120.K3.WDC 12.1. INSTALLATION OF THE EXTRACTION UNIT The extraction unit is for the avoidance of a heat accumulation in the interior during the charging process inside the cabinet. The exhaust air from the cabinet is exhausted directly into the room. Connection to an exhaust duct is not necessary. -
Page 17: Self-Test
Retrofitting is easy due to the plug-in connection, so that no intervention in the electrical components is necessary. 12.3. SELF TEST Starts 5 seconds after connection to the mains supply 12.4. ERROR DURING SELF TEST ATTENTION: After pressing the reset button, the self-test begins again. If the error persists, please contact the asecos Service department. -
Page 18: Error And Alarm Overview
12.5. ERROR AND ALARM OVERVIEW EVENT LED GREEN LED RED ACOUSTIC ALARM ACTIONS Error during self-test turned on 5 signal tones 1.) Restart with RESET button if error persists: 2.) Contact Service Service interval reached flashing Contact Service Power failure Flashes 3 short signal tones every 60 Check power supply... -
Page 19: Warning Message
ATTENION: The complete warning/fire suppression system is active only with mains operation. The integrated smoke detector is part of the entire fire suppression system (direct power supply). 12.8. WARNING MESSAGE >50 °C if connected • Actions Immediate visual inspection of the system by the company’s own qualified personnel. Initiation of necessary actions. -
Page 20: Alarm Stage 2
fire protection and CE conformity are maintained. For this purpose, the cabinet must be handed over to the main factory of asecos GmbH in Gründau, where the specialist department - depending on the degree of damage - will make an assessment of the economic e ciency and technical possibilities of a repair. -
Page 21: Io90.195.060.K9.Wdc
13. IO90.195.060.K9.WDC 13.1. CONNECTION TO THE POWER SUPPLY Connections on the headpiece: Mains plug connector Potential-free switch contact Connection to the power supply 230 V Connection to the power supply with 400 V (optional with item 38038) 400 V NOTE: Retrofitting is easy due to the plug-in connection, so that no intervention in the electrical components is necessary. -
Page 22: Potential-Free Alarm Contact
13.3. POTENTIAL FREE ALARM CONTACT NOTE: The potential-free alarm contact is used to connect a signal to a control centre/control room. Direct integration into a fire alarm control panel (FACP) is not recommended or may only be carried out in consul- tation with the person responsible for the system. -
Page 23: Smoke Detector Maintenance
13.6. SMOKE DETECTOR MAINTENANCE ATTENTION In accordance with DIN 14676 the proper function of the smoke detector must be checked at least once per year. > 20 sec < 5 sec • The smoke detector is completely tested with the LED test button (fig. 1): battery function test, electronic smoke chamber test and a test of the evaluation electronics. -
Page 24: Io90.195.060.L8.Wdc
14. IO90.195.060.L8.WDC 14.1. CONNECTION TO THE POWER SUPPLY Connections on the headpiece: Mains plug connector Potential-free switch contact Connection to the power supply 230 V 14.2. ERROR AND ALARM OVERVIEW EVENT LED GREEN LED RED ACOUSTIC LED ON THE ACTIONS ALARM COMPARTMENT GREEN/RED... -
Page 25: Potential-Free Alarm Contact
14.3. POTENTIAL FREE ALARM CONTACT NOTE: The potential-free alarm contact is used to connect a signal to a control centre/control room. Direct integration into a fire alarm control panel (FACP) is not recommended or may only be carried out in consul- tation with the person responsible for the system. -
Page 26: Io90.078.059.057.U9.S
15. IO90.078.059.057.U9.S 15.1. CONNECTION TO THE POWER SUPPLY Mains plug connector Potential-free switch contact NOTE: Retrofitting is easy due to the plug-in connection, so that no intervention in the electrical components is necessary. Connection to the power supply 230 V Connection to the power supply with 400 V (optional with item 38038) -
Page 27: False Alarm Of The Smoke Detector
Connector (AC) / (DC) (AC) / (DC) Internal alarm contact (AC) / (DC) Connection instructions • Use only the supplied mating part (colour-coded brown) to the plug for the connection. • The connection must be done by a qualified electrician. •... - Page 28 +34 935 745911 +34 935 745912 info@asecos.es asecos Ltd. asecos asecos Schweiz AG asecos AB Safety and Environmental Protection Safety and Environmental Protection Inc. Sicherheit und Umweltschutz Säkerhet och miljöskydd Profile House 19109 West Catawba Avenue, Suite 200...
