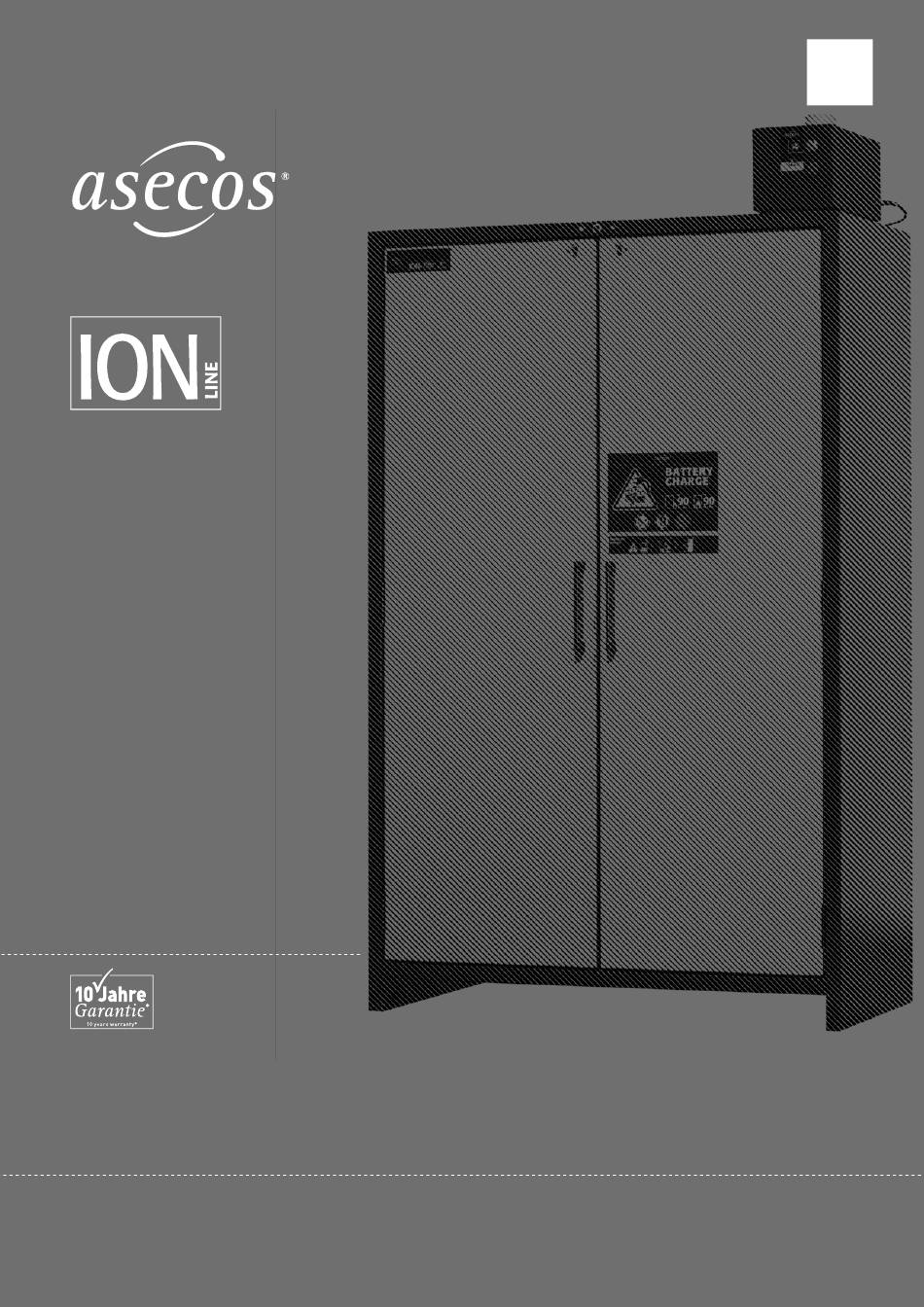

EP.V.32907.01 / 05.2020
BATTERY CHARGE
BATTERY CHARGE PRO
USER MANUAL

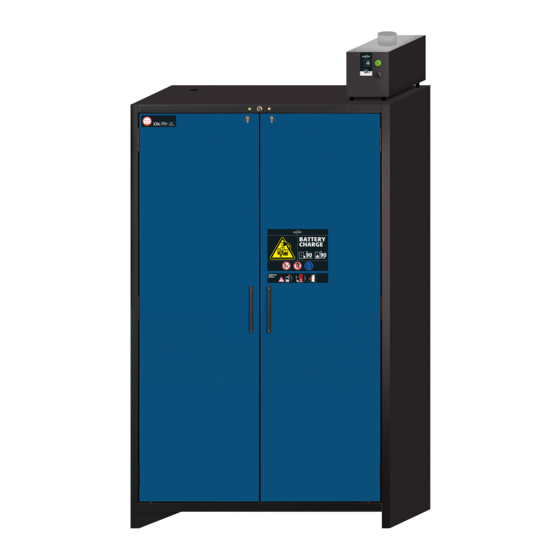

Safety storage cabinets for storage and
charging of lithium ion batteries
10 JAHRE GARANTIE*
* Bei jährlicher Beauftragung
des Premium-Tarifs verlängert
sich die Garantie für Ihren ION-
LINE Sicherheitsschrank auf bis
zu 10 Jahre.
Weitere Informationen zu unseren Garantieleistungen finden Sie unter
www.asecos.com/service-leistungen
For detailed information about our warranties please visit
www.asecos.com/service-conditions
10 YEARS WARRANTY*
* Upon conclusion of an asecos
service and maintenance
agreement (PREMIUM
tariff), you will get a warranty
extension for up to 10 years for
your ION-LINE safety storage
cabinet.
EN
EP.V. 10367
10/2013
1
Advertisement
Table of Contents
Related Manuals for asecos ION Series
Summary of Contents for asecos ION Series
- Page 1 Safety storage cabinets for storage and charging of lithium ion batteries 10 JAHRE GARANTIE* 10 YEARS WARRANTY* * Bei jährlicher Beauftragung * Upon conclusion of an asecos des Premium-Tarifs verlängert service and maintenance sich die Garantie für Ihren ION- agreement (PREMIUM...
- Page 2 YOUR PERSONAL DOCUMENTATION TO THE asecos SAFET Y CABINET Dear Customer, you have made a decisive investment in safety for your company by purchasing this asecos safety storage cabinet. You now own an innovative product made of top-quality materials guaranteeing the highest quality standards.
-
Page 3: General Safety Notes
Tilting the cabinet ..........6 • General damage to electronic components is to be repaired without delay by an asecos employee. 2.2. - Page 4 2. TRANSPORT 2.3. IN-PLANT TRANSPORT • is also possible without transport locks (inserted as standard in the door joints) ATTENTION: The doors must be locked prior to transport! The extraction unit must be removied from the top of the cabinet ATTENTION: Transport the cabinet in an upright position on a pallet truck, tied and secured against slipping, until the final place of installation is reached.
-
Page 5: Installation
5. INTERIOR EQUIPMENT 3. INSTALLATION 5.1. BOTTOM COLLECTING SUMP 3.1. ALIGNMENT OF THE CABINETS According to EN 14470-1: A bottom collecting sump must be installed below the lowest storage level. The bottom collecting sump must be able to hold a minimum volume of 10 % of all the containers stored in the cabinet or at least 110 % of the volume of the largest single container... - Page 6 CE conformity are retained. For this purpose the cabinet must be handed over to asecos GmbH‘s main factory in Gründau, where the specialist department – depending on the extent of the damage – will appraise the economic viability and technical ATTENTION: possibilities of a repair.
-
Page 7: Safety Checks
This annual check can be carried out with the necessary care, and for securing your warranty claims in the case of fire, only by an authorised asecos employee (refer also to our service brochure regarding this). -
Page 8: Potential-Free Alarm Contact
• The contact is designed for a max. DC voltage of 30 V or a max. AC voltage of 230 V After pressing the reset button, the self-test begins again. If the error persists, please contact the asecos • The maximum current load is 10 A Service Dept. -
Page 9: Warning Message
ATTENTION: Afterwards the complete system can only be assessed and if possible reset to normal operation by authorised asecos service technicians. At least the fire suppression unit and the smoke detector need to be replaced for this. 10.11. FALSE ALARM OF THE SMOKE DETECTOR •... -
Page 10: Connection To The Power Supply
11. IO90.195.060.K9.WDC 11.3. POTENTIAL-FREE ALARM CONTACT NOTE: 11.1. CONNECTION TO THE POWER SUPPLY The potential-free alarm contact is for connecting a signal to a control room/control centre. A direct connection to a fire alarm system is not recommended or may only be done in consultation with those responsible for the system. -
Page 11: Technical Data
12. TECHNICAL DATA 11.6. SMOKE DETECTOR – MAINTENANCE IO90.195.060.K9.WDC IO90.195.120.K3.WDC ATTENTION: Type minutes Dimensions B x T x H exterior 599 x 615 x 1953 1193 x 615 x 1953 In accordance with DIN 14676 the proper function of the smoke detector must be checked at Dimensions B x T x H interior 450 x 522 x 1647 1050 x 522 x 1647... - Page 13 GmbH Abt. Kundendienst Weiherfeldsiedlung 16-18 D-63584 Gründau Fax: +49 60 51 – 92 20-10 www.asecos.com Ihr Fachhändler: Your partner: Uw partner: Votre partenaire : Su distribuidor: su richiesta: SPECIFIC NOTES: BATTERY CHARGE PRO...
