asecos UB-S-90 User Manual

Safety storage under bench cabinets
Hide thumbs Also See for UB-S-90:
Table of Contents

Advertisement

Quick Links

Download this manual

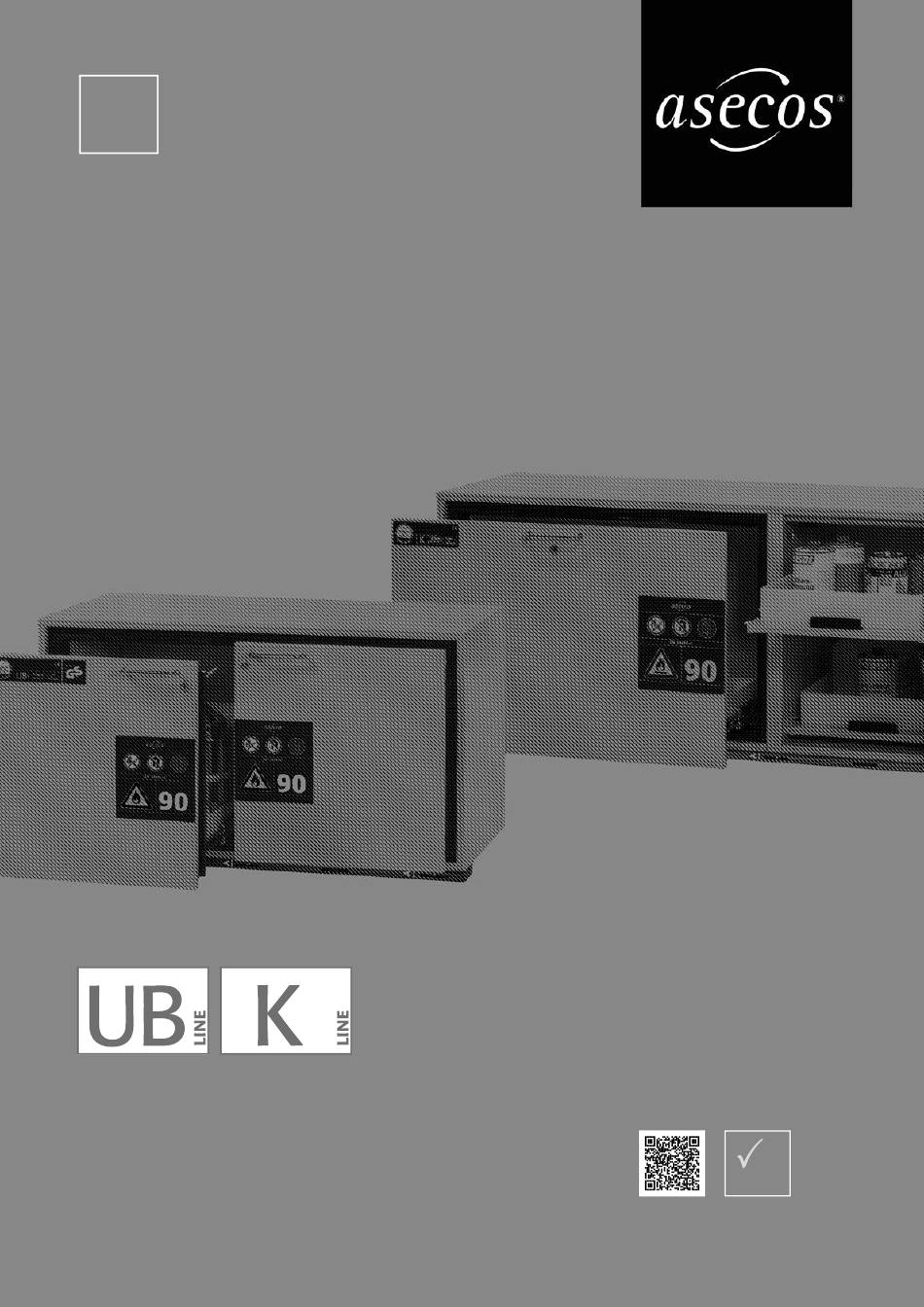

EP.V.34170.00 | 09/2023
EN
USER MANUAL
Safety storage under bench cabinets according to EN 14470-1
5 YEARS WARRANTY
Upon conclusion of an asecos service
and maintenance agreement (BasicPlus
tari ) with a fixed term of 5 years, you
will get a warranty extension for a
maximum of 5 years for your safety
storage cabinet.
For detailed information about our
warranties please visit:
5
Years
Warranty
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UB-S-90 and is the answer not in the manual?

Questions and answers

Related Manuals for asecos UB-S-90

Summary of Contents for asecos UB-S-90

  • Page 1 EP.V.34170.00 | 09/2023 5 YEARS WARRANTY Upon conclusion of an asecos service and maintenance agreement (BasicPlus tari ) with a fixed term of 5 years, you will get a warranty extension for a maximum of 5 years for your safety storage cabinet.
  • Page 2 UB-S-90 UB90.060.140.2S UB90.060.110.2S UB90.060.110.S UB90.060.089.S UB90.060.059.S UB90.060.140.UL.2S UB90.060.110.UL.2S UB90.060.110.UL.S UB90.060.089.UL.S UB90.060.059.UL.S UB90.060.140.050.2S UB90.060.110.050.2S UB90.060.110.050.S UB90.060.089.050.S UB90.060.059.050.S UB90.060.140.050.UL.2S UB90.060.110.050.UL.2S UB90.060.110.050.UL.S UB90.060.089.050.UL.S UB90.060.059.050.UL.S UB90.080.110.060.2S UB90.080.059.060.S UB-T-90 UB-ST-90 UB90.060.110.2T UB90.060.089.2T UB90.060.059.T UB90.060.140.S2T UB90.060.110.ST UB90.060.110.UL.2T UB90.060.089.UL.2T UB90.060.059.TR UB90.060.140.UL.S2T UB90.060.110.UL.ST UB90.060.110.050.2T UB90.060.089.050.2T UB90.060.059.UL.T UB90.060.140.050.S2T UB90.060.110.050.ST UB90.060.110.050.UL.2T...
  • Page 3 YOUR PERSONAL DOCUMENTATION TO THE asecos SAFETY CABINET Dear Customer, you have made a decisive investment in safety for your company by purchasing this asecos safety storage cabinet. You now own an innovative product made of top-quality materials guaranteeing the highest quality standards.

  • Page 4: Table Of Contents

    Many thanks Your asecos team 1. NOTES • GUIDELINES • GUARANTEE ......... . .5 1.1.

  • Page 5: Notes • Guidelines • Guarantee

    The guarantee for this product is agreed between you (the customer) and your dealer (the seller). As the manufacturer, asecos guarantees the products listed in the operating instructions for a period of 24 months from the date of delivery. All model safety equipment are subject to a compulsory annual inspection by spe- cialised staff authorised by the manufacturer.

  • Page 6: Transport

    If the distance between door/drawer and floor is greater than 40 mm and less than 120 mm, appropriate door panels can be used to avoid possible crushing hazards in the foot area. The matching panels for the cabinet model can be requested free of charge at service@asecos.com.

  • Page 7: Mobile Plinth

    If the distance between door/drawer and floor is greater than 40 mm and less than 120 mm, appropriate door panels can be used to avoid possible crushing hazards in the foot area. The matching panels for the cabinet model can be requested free of charge at service@asecos.com. 3.3. COMMISSIONING •...

  • Page 8: Closing Mechanisms

    drawers 4. CLOSING MECHANISMS 4.1. TYPES OF CLOSING UB-LINE Standard operation: Event of fire: Thermal doors/drawers must be release, open doors/ opened and closed manually drawers close automat- ically K-UB-90 Standard operation: Event of fire: Thermal drawers/doors must be release, open doors/ opened and closed manually drawers close automat- (all compartments)

  • Page 9: Perforated Insert

    5.2. PERFORATED INSERT For use as a storage level in the bottom collecting sump / drawer sump. 5.3. SHELVES (MODELS WITH WING DOOR) • additional storage level inside the cabinet • is installed in a fixed position in the cabinet •...

  • Page 10: Pull-Out Shelves (Models K-Line)

    Normal operation Event of fire 5.6. PULL-OUT SHELVES (MODELS K-LINE) Right compartment (for inflammable hazardous materials – acids and bases) • Pull-out shelves are are permanently installed in the cabinet and have a pull-out protection. • They have to be pushed into the cabinet by hand after us. •...

  • Page 11: Storage

    drawer drawer behind door pull-out shelf with sump 6. STORAGE Applicable for all models: Depending on the type class of the cabinet, observe the  respective valid national regulations! 6.1. MODELS UB-LINE For passive storage of flammable liquids in work rooms (see point 1.3) •...

  • Page 12: Grounding Premium

    The UB-LINE and K-UB-90 models have an earth connection on the rear wall. The body panels are connected to one another in a metallically conductive manner via the earth connection. The earth connection is prepared for the creation of the on-site equipotential bonding. 7.1.

  • Page 13: Fire • Disposal

    This annual check can be carried out with the necessary care, and for securing your warranty claims in the case of fire, only by an authorised asecos employ- ee (refer also to our service brochure regarding this).

  • Page 14: Technical Drawing

    11. TECHNICAL DRAWING Fresh air Extraction air DN 50 Fresh air Extraction air DN 50 Fresh air Extraction air DN 50 Earthing link Earthing link Earthing link UB90.060.140.2S UB90.060.140.UL.2S UB90.060.110.2S UB90.060.110.UL.2S UB90.080.110.075.2T UB90.060.140.050.2S UB90.060.140.050.UL.2S UB90.060.110.050.2S UB90.060.110.050.UL.2S UB90.060.140.S2T UB90.060.140.UL.S2T UB90.060.110.S UB90.060.110.UL.S UB90.060.140.050.S2T UB90.060.140.050.UL.S2T UB90.060.110.050.S...

  • Page 15: Technical Data

    12. TECHNICAL DATA 12.1. TABLE WITH TECHNICAL DATA The surface load is calculated by dividing the total weight of the cabinet (empty cabinet plus load) by its loading area. This is calculated by multiplying the width of the cabinet by the depth (sum of the depth of the cabinet and 1000 mm of space in front of it).
  • Page 16 UB-LINE Technical data UB90.060.059.050.TR 593 x 502 x 600 mm 470 x 382 x 502 mm UB90.060.059.050.UL.T 593 x 502 x 600 mm 470 x 382 x 502 mm UB90.060.059.050.UL.TR 593 x 502 x 600 mm 470 x 382 x 502 mm UB30.060.140.2S 1402 x 574 x 600 mm 1279 x 452 x 502 mm...
  • Page 17 UB-LINE Interior equipment 1 shelf 4 drawer 7 drawer 2 perforated insert 5 Drawer (disposal) 3 bottom collecting sump 6 Second level drawer UB90.060.110.050.ST 10/11 UB90.060.110.050.UL.ST 10/11 UB90.060.089.S 20/21 18/19 UB90.060.089.UL.S 20/21 18/19 UB90.060.089.050.S 16,5/17,5 15/15,5 UB90.060.089.050.UL.S 16,5/17,5 15/15,5 UB90.060.089.2T 20/22 18/20 20,5...
  • Page 18 +34 935 745911 +34 935 745912 info@asecos.es asecos Ltd. asecos asecos Schweiz AG asecos AB Safety and Environmental Protection Safety and Environmental Protection Inc. Sicherheit und Umweltschutz Säkerhet och miljöskydd Profile House c/o Schumann Burghart LLP Gewerbe Brunnmatt 5...
