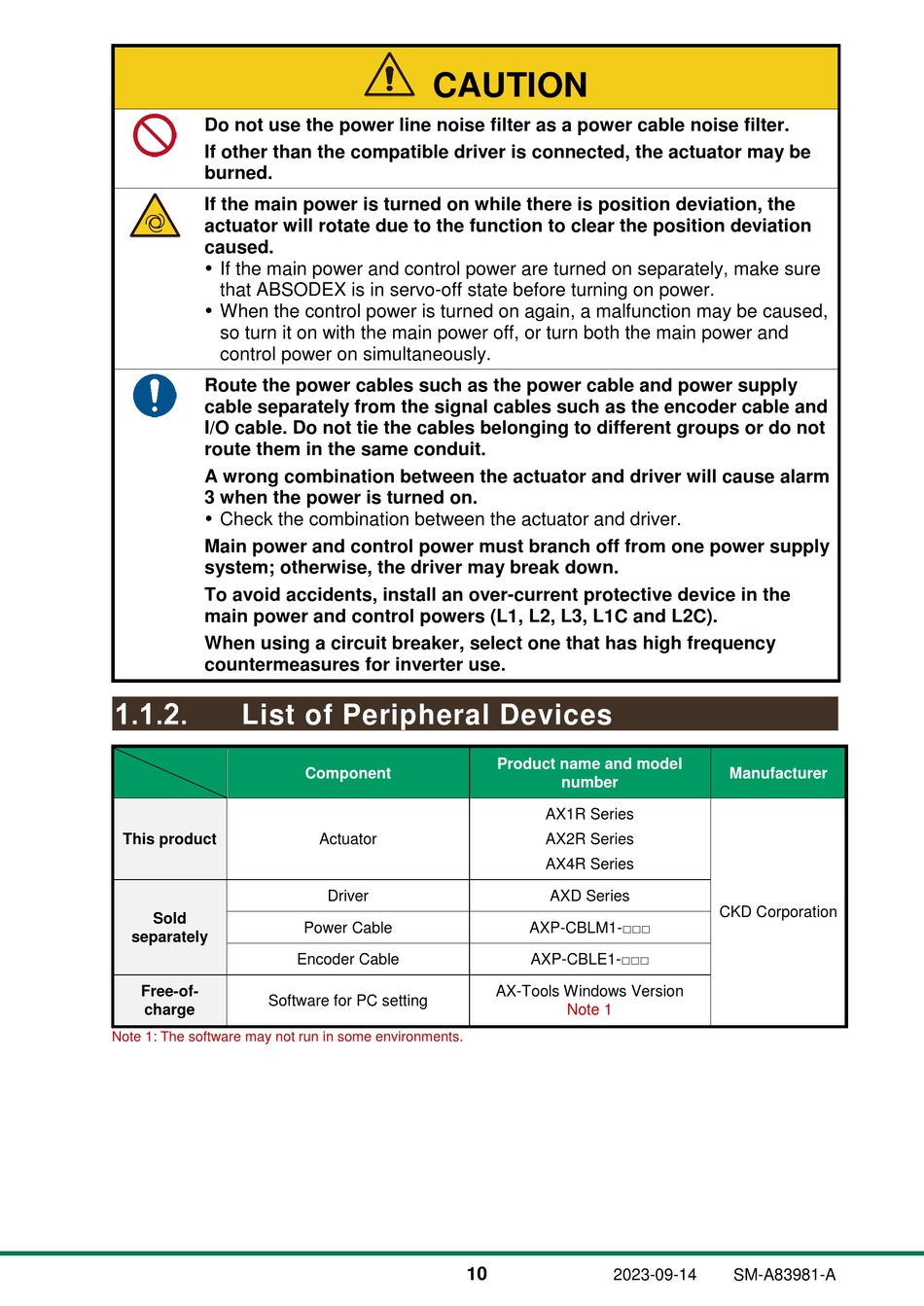

CKD AX1R Series Instruction Manual page 10

Do not use the power line noise filter as a power cable noise filter.
If other than the compatible driver is connected, the actuator may be
burned.
If the main power is turned on while there is position deviation, the
actuator will rotate due to the function to clear the position deviation
caused.
 If the main power and control power are turned on separately, make sure
that ABSODEX is in servo-off state before turning on power.
 When the control power is turned on again, a malfunction may be caused,
so turn it on with the main power off, or turn both the main power and
control power on simultaneously.
Route the power cables such as the power cable and power supply
cable separately from the signal cables such as the encoder cable and
I/O cable. Do not tie the cables belonging to different groups or do not
route them in the same conduit.
A wrong combination between the actuator and driver will cause alarm
3 when the power is turned on.
 Check the combination between the actuator and driver.
Main power and control power must branch off from one power supply
system; otherwise, the driver may break down.
To avoid accidents, install an over-current protective device in the
main power and control powers (L1, L2, L3, L1C and L2C).
When using a circuit breaker, select one that has high frequency
countermeasures for inverter use.
List of Peripheral Devices
This product
Sold
separately
Free-of-
Software for PC setting
charge
Note 1: The software may not run in some environments.
CAUTION
Component
Actuator
Driver
Power Cable
Encoder Cable
10
Product name and model
number
AX1R Series
AX2R Series
AX4R Series
AXD Series
AXP-CBLM1-□□□
AXP-CBLE1-□□□
AX-Tools Windows Version
Note 1
