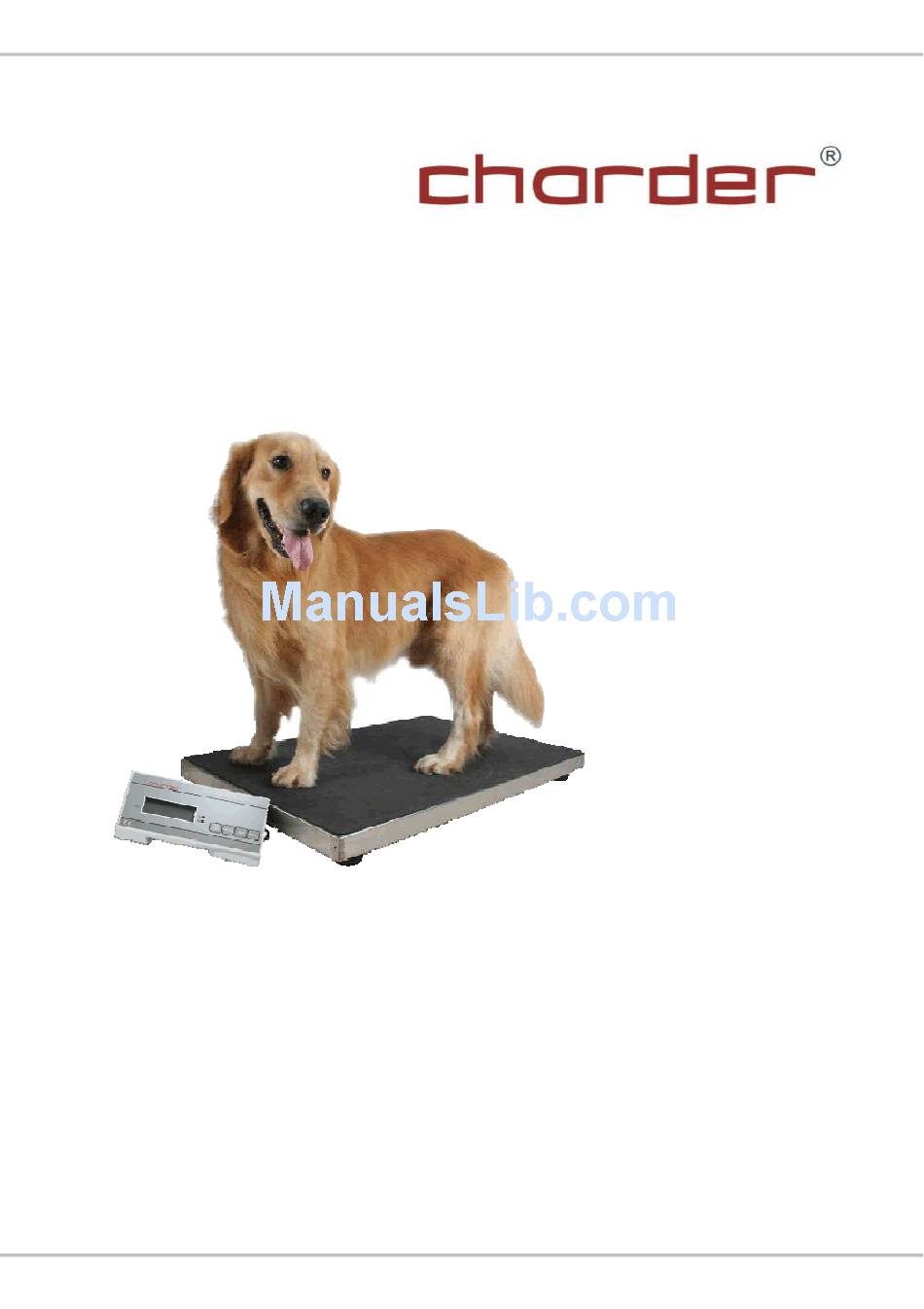

Page 1: User Manual
MS 2210R USER MANUAL Please keep the instruction manual at hand all the time for future reference. -
Page 2: Table Of Contents
TABLE OF CONTENTS PREFACE ..................2 GENERAL INFORMATION .............. 2 SAFETY INSTRUCTION..............2 ENVIROMENTAL ................3 CLEANING ..................3 MAINTENANCE ................3 WEIGHING OPERATION..............3 WARRANTY-LIABILITY ..............4 DISPOSING OF THE SCALE............5 SPECIFICATION................5 KEY FUNCTIONS ................6 INSTRUCTION OF USE ..............7 INSTRUCTION OF CONNECTING WIRELESS SCALE.... -
Page 3: Preface
This device is designed for use indoors. Observe the permissible ambient temperatures for use The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values specified in the applicable standards. If you have any problem, contact your local CHARDER MEDICAL service partner. -
Page 4: Enviromental
However, we recommend checking the scale’s accuracy at regular intervals. The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact your local dealer or CHARDER MEDICAL service partner. WEIGHING OPERATION... -
Page 5: Warranty-Liability
CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid. -
Page 6: Disposing Of The Scale
You can obtain further details from your local council, your municipal waste disposal company or the firm which you purchased the product. SPECIFICATION MODEL MS 2210R 150kg x 50g 300kg x100g ; 150kg x 50g CAPACITY without waving 660lb x 0.2lb 330lb x 0.1lb... -
Page 7: Key Functions
KEY FUNCTIONS Face plate with waving tare function Face plate without waving tare function Description ON/OFF Press to switch scales ON &OFF HOLD Press to lock the weight of measured subject. Press to switch between kg or lb measuring unit. UNIT TARE Press to tare the weight of subject on platform. -
Page 8: Instruction Of Use
INSTRUCTION OF USE Press button to switch on the scale. First, the LCD displays program version and zero symbol has shown at bottom left. Then LCD displays “0.0kg” Loading the animal. LCD displays the weight of animal Press button to lock the weight of animal while it’s moving. Weight will be locked and display on LCD while weight is stable. -
Page 9: Instruction Of Connecting Wireless Scale
INSTRUCTION CONNECTING WIRELESS SCALE 1. Charder wireless scale MS2210R has a wireless display which has three wireless channels can serve total three wireless platforms at one time. 2. Switch channel between 1, 2 or 3 channel at bottom of platform before connecting to display. -
Page 10: Switching Between Wireless Channel
SWITCHING BETWEEN WIRELESS CHANNEL To switch wireless channel at wireless platform, please find the dip switch at the bottom of the scale. To select any of three channels please follow drawing below. ***Pin 4 is not in use. Channel 1 Channel 2 Channel 3... -
Page 11: Instruction Of Power Supply By Adaptor
INSTRUCTION OF POWER SUPPLY BY ADAPTOR Adaptor charge here. INSTALLING BATTERY... -
Page 12: Power Supply On Deck
POWER SUPPLY ON DECK Locate adaptor plug under platform Install 4 AA 1.5V batteries at bottom of deck. -
Page 13: Ms2210R Environment Set Up
MS2210R ENVIRONMENT SET UP Important Note before use: Let RF sensor outward from wall. WALL RF sensor WRONG SETUP WALL RF sensor against wall. - Page 14 Direct signal transmission is recommended. 15kg RF sensor Indirect signal transmission may have signal latency. 15kg RF sensor...
-
Page 15: Error Message
ERROR MESSAGE LOW BATTERY If it is running out of battery, the display shows . Please use AC adaptor as power supply for operation. OVER LOAD If the total load exceeds the maximum capacity of scale, the display will show the “Err” message. - Page 16 Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412 , Taiwan (R.O.C) IN-1233 [12188C] 04/2016...
