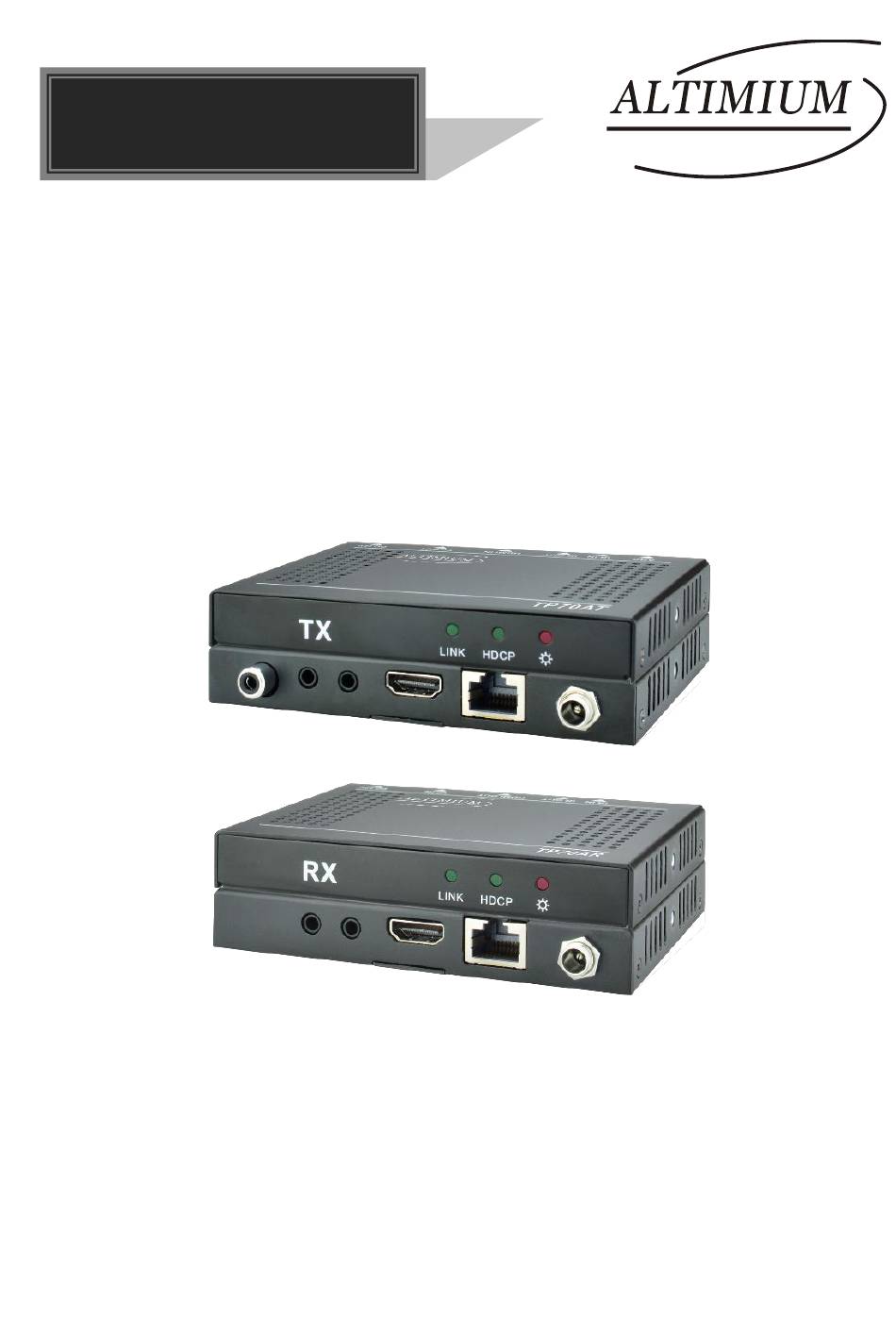

- Page 1 User Manual TP70A HDBaseT Extender All Rights Reserved Version: TP70A_2016V1.0...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com...
-
Page 4: Table Of Contents
HDBaseT Extender Contents 1. Introduction ......................... 1 1.1 Introduction to TP70A ..................1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 TP70AT (TX) ...................... 2 2.2 TP70AR (RX) ..................... 3 3. System Connection ..................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to TP70A TP70A is a mini-size extender set consists of a transmitter and a receiver. DMI signals are input into the transmitter and HDBaseT technology is used to transmit high-resolution 1080p/ 4k signal to the receiver up to 70/40 m via a Cat5e/Cat6A cable. -
Page 6: Panel Description
CAT6A cable, support bi-directional PoC Insert a DC 12V power adapter here, equiped with faulty power ⑨ DC 12V protection, protect the unit from burnt when insertted power adapter with wrong specification ⑩ Dial switch for ARC mode Altimium www.altimium.com... -
Page 7: Tp70Ar (Rx)
Insert a DC 12V power adapter here, equiped with faulty power protection, protect the unit from burnt when insertted power ⑧ DC 12V adapter with wrong specification (not necessary when TX is connected with power adapter) Pictures shown in this manual are only for reference. Altimium www.altimium.com... -
Page 8: System Connection
Step3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver with HDMI cable. Step4. When using the bi-directional IR control, do the following. a) Connect an IR receiver to the IR IN port at either the transmitter or the receiver. Altimium www.altimium.com... -
Page 9: Poc Solution
3.4 PoC Solution TP70A boasts HDBT port which support PoC. Connect the DC adapter to either the transmitter or the receiver, the other end is able to be energized synchronously (see in the following figure): Figure 3- 2 PoC Connection 3.5 ARC Solution... - Page 10 When the ARC switcher switched as “10”, connect the devices abiding by the following figure: Figure 3- 3 System Connection (ARC “10”) When the ARC switcher switched as “00”, connect the devices abiding by the following figure: Figure 3- 4 System Connection (ARC “00”) Altimium www.altimium.com...
-
Page 11: Application
Make sure the ARC switcher is switched to ON when using ARC function. 3.6 Application TP70A has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. -
Page 12: Specification
0~ 50℃ Reference Humidity 10% ~ 90% Power Supply DC 12V, 1A Power Consumption 3.3W 6.4W Dimension (W*H*D) 115 x 16x 84 mm 115 x 16x 84 mm Weight 140g 140g All nominal levels are at ± 10%. Altimium www.altimium.com... -
Page 13: Supported Resolution
1680x1050 60Hz 16:10 1440x900 60Hz 1360x768 60Hz 1280x800 60Hz 1600x1200 60/65/70/75/85Hz 1400x1050 60Hz 1280x1024 60/75/85/96Hz 1024x768 60/70/75/85Hz 800x600 56/60/72/75/85Hz 640x480 60/72/75Hz Note: TP70A supports 4k HDMI signal, please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission. Altimium www.altimium.com... -
Page 14: Panel Drawing
HDBaseT Extender 5. Panel Drawing LINK HDCP 115 mm 12 mm 9 mm 8.3 mm TP70AT (TX) LINK HDCP 115 mm 12 mm 9 mm TP70AT (RX) Altimium www.altimium.com... -
Page 15: Troubleshooting & Maintenance
Check the grounding and make sure all the components are properly grounded to a common ground. Improper grounding may cause damage to the receiver. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com... -
Page 16: After-Sales Service
Product version and name. Detailed failure situations. The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor. Altimium www.altimium.com... - Page 20 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
