HDBaseT Extender Table of Contents 1. Introduction ......................... 1 1.1 Introduction to TP411-4K ................... 1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Panel Description ......................2 2.1 Transmitter ......................2 2.2 Receiver ......................3 3. System Connection ..................... 5 3.1 Usage Precautions .................... -
Page 5: Introduction

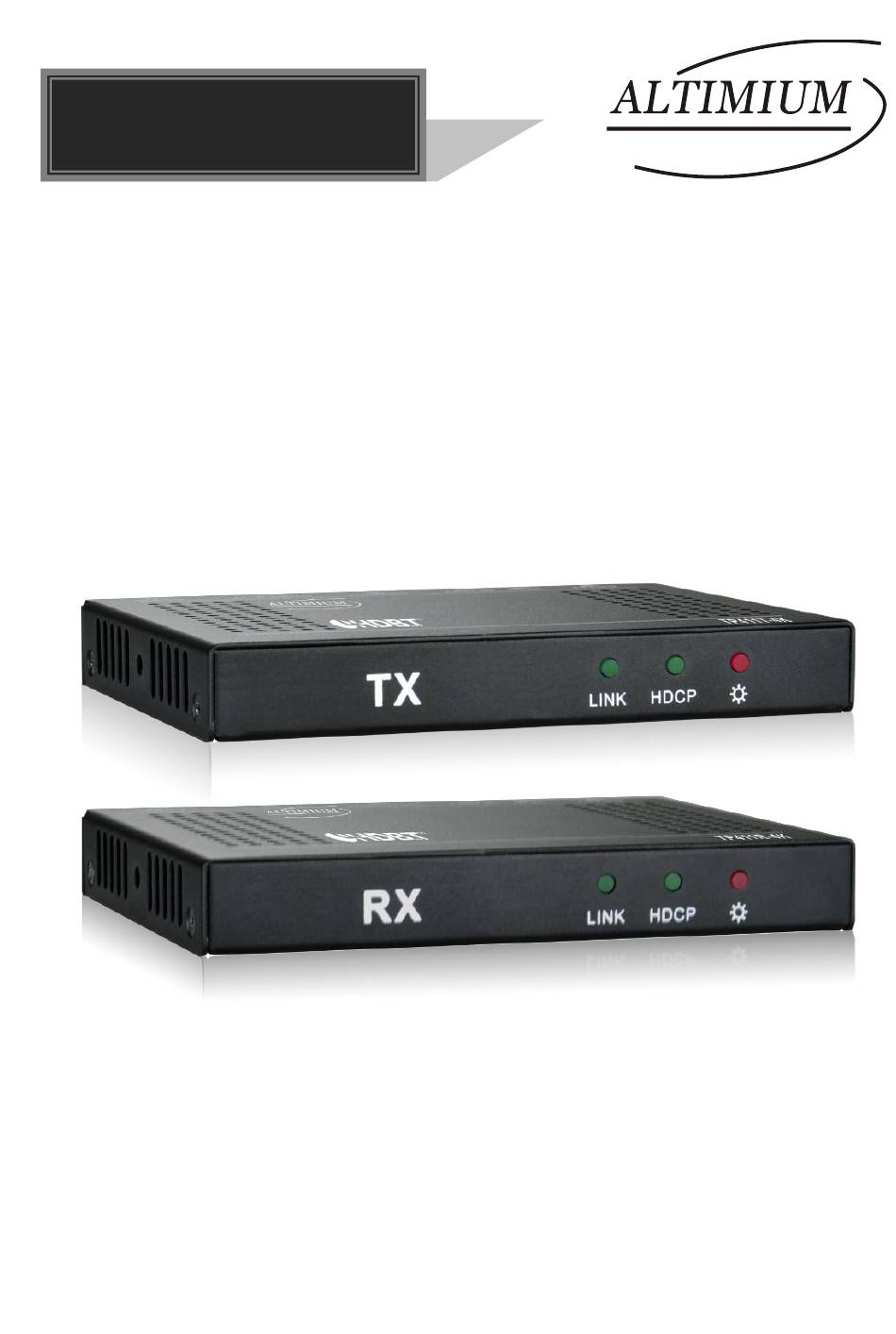

TP411-4K is a mini-size extender set consists of transmitter and receiver. HDBaseT technology is used to transmit high-resolution 1080p/ 4k signal from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m.Moreover, TP411-4K support CEC, bi-directional RS232&IR control, and unidirectional PoH function. -
Page 6: Panel Description
Connect with 5V IR Emitter to send infrared signal, work with ⑥ IR OUT far-end IR IN port ⑦ HDMI IN Connect with HDMI source Connect to the HDBT IN socket on the Receiver via CAT5e/ CAT6a ⑧ HDBT OUT cable, support unidirectional PoH. Altimium www.altimium.com... -
Page 7: Receiver
Connect with 5V IR receiver (with carrier) to collect infrared signal, ⑤ IR IN work with far-end IR OUT port Connect with 5V IR Emitter to send infrared signal, work with ⑥ IR OUT far-end IR IN port Altimium www.altimium.com... - Page 8 Connect to the HDBT OUT socket on the transmitter via CAT5e/ ⑧ HDBT IN CAT6a cable. Connect with power supply (Not necessary if transmitter connects ⑨ DC 24V with power). Pictures shown in this manual are only for reference. Altimium www.altimium.com...
-
Page 9: System Connection
Step4. Both transmitter and receiver have IR IN and OUT. When one end is used as an IR receiver, the signal sent from the end can only be transmitted via the other end. For example: When “IR IN” of transmitter connects with an IR receiver, the IR Altimium www.altimium.com... -
Page 10: Application
Step6. Connect with DC24V power adaptor(s) (One is enough if transmitter is connected with adapter as its PoH function). 3.4 Application TP411-4K has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. -
Page 11: Specification
Impedance Temperature -20 ~ +70℃ Humidity 10% ~ 90% Power Supply Input: 100VAC~240VAC, 50/60Hz Output: DC 24V, 1.25A Power Consumption Case Dimension W115xH16x D84mm W115xH16x D84mm Net Weight 150g 150g NOTE: All nominal levels are at ± 10%. Altimium www.altimium.com... -
Page 12: Supported Resolution
1024x576 60Hz 1920x1200 60Hz 1680x1050 60Hz 16:10 1360x768 60Hz 1280x800 60Hz 1600x1200 60/65/70/75/85Hz 1280x1024 60/75/85/96Hz 1024x768 60/70/75/85Hz 800x600 56/60/72/75/85Hz 640x480 60/72/75Hz Note: TP411-4K supports 4k HDMI signal, please adopt quality HDMI cables compliant with HDMI2.0 for reliable transmission. Altimium www.altimium.com... -
Page 13: Panel Drawing
HDBaseT Extender 5. Panel Drawing 115.00 mm LINK HDCP HDBT OUT 5-1 Transmitter 115.00 mm LINK HDCP HDBT IN 5-2 Receiver Altimium www.altimium.com... -
Page 14: Troubleshooting & Maintenance
Check the grounding and make sure all the components are properly grounded to a common ground. Improper grounding may cause damage to the receiver. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com... -
Page 15: After-Sales Service
Product version and name. Detailed failure situations. The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor. Altimium www.altimium.com... - Page 16 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
