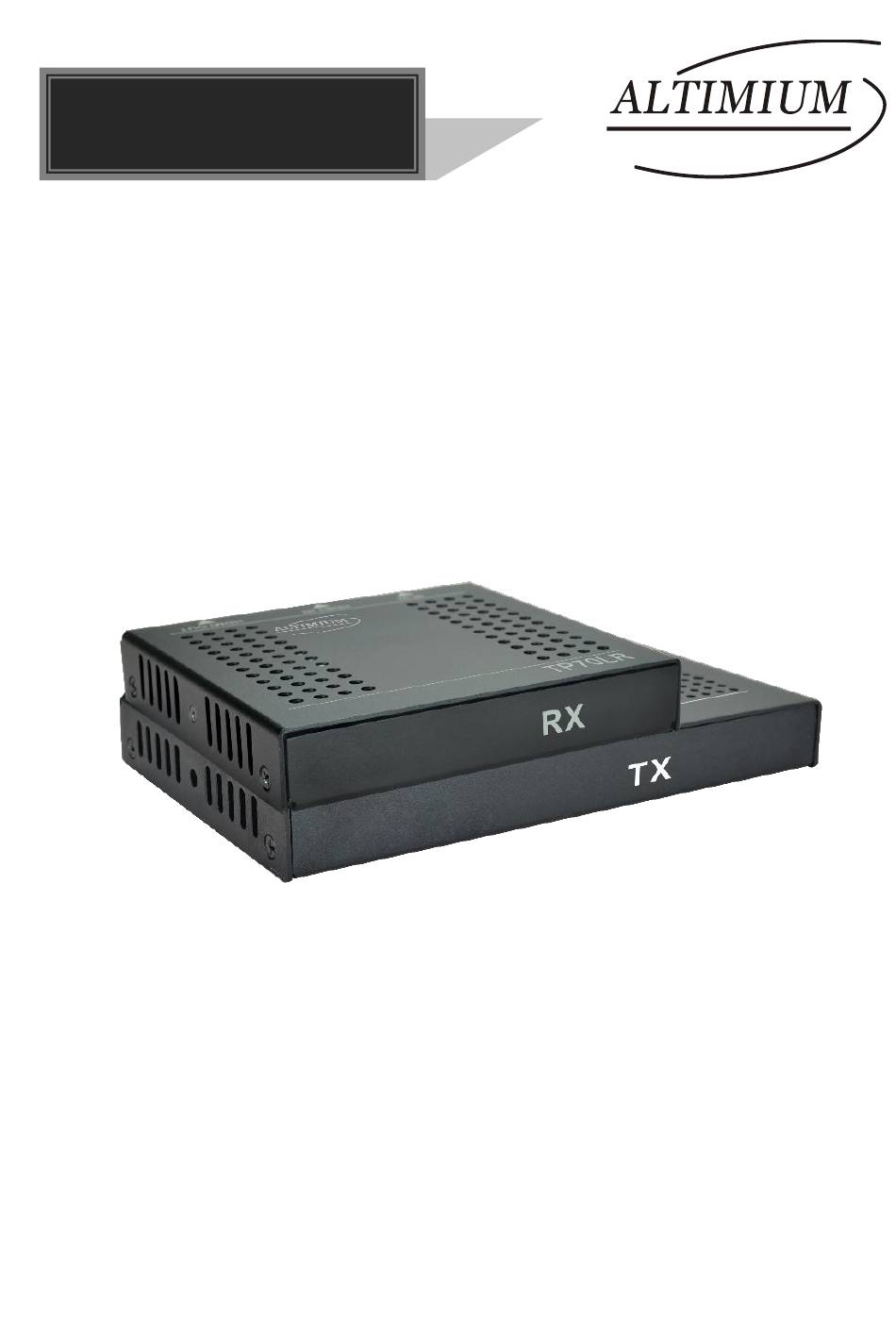

- Page 1 User Manual TP70L HDBaseT Extender All Rights Reserved Version: TP70L2016V1.1...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com...
-
Page 4: Table Of Contents
HDBaseT Extender Contents 1. Introduction ......................... 1 1.1 Introduction to TP70L ..................1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Transmitter ......................2 2.2 Receiver ......................3 3. System Connection ..................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to TP70L Low-cost TP70L is a mini-size extender set consists of a Transmitter and a Receiver. HDMI signals are input into the transmitter and HDBaseT technology is used to transmit high-resolution 1080p/ 4k signal to the receiver up to 70/40m via a Cat5e/ Cat6A cable. -
Page 6: Panel Description
OFF: No Link YELLOW: Link Successful Blinking YELLOW: Link abnormal HDMI ④ Connect with HDMI display. LOOP ⑤ HDMI IN Connect with HDMI source ⑥ DC 12V Insert a DC 12V 2A power adapter here. Altimium www.altimium.com... -
Page 7: Receiver
IR OUT port of Transmitter. Connect to the HDBT OUT socket on the Transmitter via CAT5e/ ③ HDBT IN CAT6A cable. ④ HDMI OUT Connect with HDMI display. Pictures shown in this manual are only for reference. Altimium www.altimium.com... -
Page 8: System Connection
Step1. Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of the Transmitter with an HDMI cable. Step2. Connect HDBT OUT port of the Transmitter to HDBT IN port of the Receiver through a CAT5e/CAT6A cable. Altimium www.altimium.com... -
Page 9: Application
Step5. Connect a DC 12V power adaptor to the power port of the transmitter; the receiver will be energized synchronously. 3.4 Application TP70L has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. -
Page 10: Specification
Temperature 0~ 50℃ Reference 10% ~ 90% Humidity Power Supply DC 12V, 2A Power 11W(Max) Consumption Dimension 128 x 16x 84 mm 90 x 16x 84 mm (W*H*D) Weight 157g 116g All nominal levels are at ± 10%. Altimium www.altimium.com... -
Page 11: Panel Drawing
HDBaseT Extender 5. Panel Drawing 128 mm HDCP LINK 5-1 Transmitter (TP70LT) HDBT IN 90 mm HDCP LINK 5-2 Receiver (TP70LR) Altimium www.altimium.com... -
Page 12: Troubleshooting & Maintenance
Check the grounding and make sure all the components are properly grounded to a common ground. Improper grounding may cause damage to the Receiver. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com... -
Page 13: After-Sales Service
Product version and name. Detailed failure situations. The formation of the cases. Remarks: For any questions or problems, please try to get help from your local distributor. Altimium www.altimium.com... - Page 16 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
