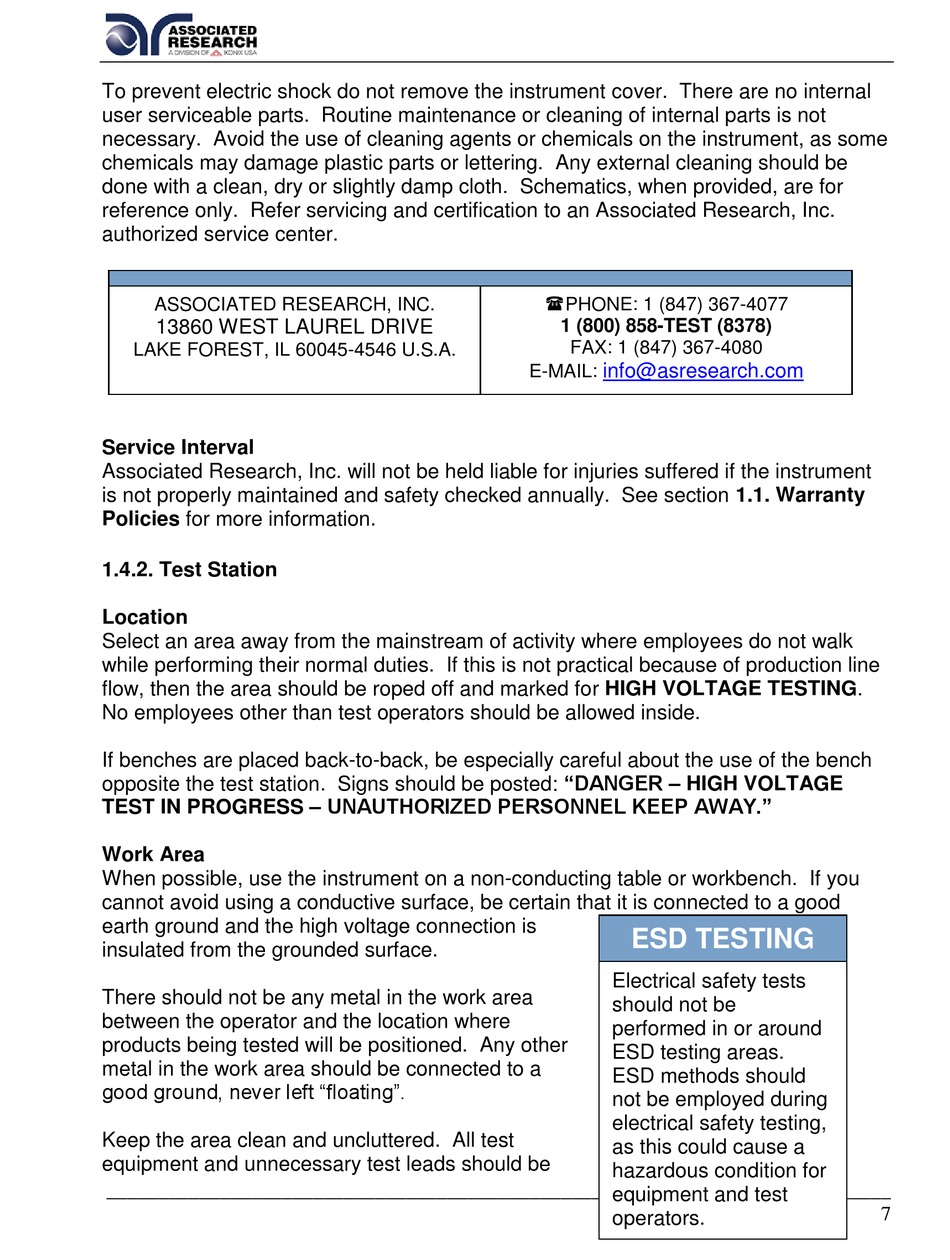

To prevent electric shock do not remove the instrument cover. There are no internal
user serviceable parts. Routine maintenance or cleaning of internal parts is not
necessary. Avoid the use of cleaning agents or chemicals on the instrument, as some
chemicals may damage plastic parts or lettering. Any external cleaning should be
done with a clean, dry or slightly damp cloth. Schematics, when provided, are for
reference only. Refer servicing and certification to an Associated Research, Inc.
authorized service center.
ASSOCIATED RESEARCH, INC.
13860 WEST LAUREL DRIVE
LAKE FOREST, IL 60045-4546 U.S.A.
Service Interval
Associated Research, Inc. will not be held liable for injuries suffered if the instrument
is not properly maintained and safety checked annually. See section 1.1. Warranty
Policies for more information.

1.4.2. Test Station

Location
Select an area away from the mainstream of activity where employees do not walk
while performing their normal duties. If this is not practical because of production line
flow, then the area should be roped off and marked for HIGH VOLTAGE TESTING.
No employees other than test operators should be allowed inside.
If benches are placed back-to-back, be especially careful about the use of the bench
opposite the test station. Signs should be posted: "DANGER – HIGH VOLTAGE
TEST IN PROGRESS – UNAUTHORIZED PERSONNEL KEEP AWAY."
Work Area
When possible, use the instrument on a non-conducting table or workbench. If you
cannot avoid using a conductive surface, be certain that it is connected to a good
earth ground and the high voltage connection is
insulated from the grounded surface.
There should not be any metal in the work area
between the operator and the location where
products being tested will be positioned. Any other
metal in the work area should be connected to a
good ground, never left "floating".
Keep the area clean and uncluttered. All test
equipment and unnecessary test leads should be
____________________________________________________________________________
PHONE: 1 (847) 367-4077
1 (800) 858-TEST (8378)
FAX: 1 (847) 367-4080
info@asresearch.com
E-MAIL:
ESD TESTING
Electrical safety tests
should not be
performed in or around
ESD testing areas.
ESD methods should
not be employed during
electrical safety testing,
as this could cause a
hazardous condition for
equipment and test
operators.
7
