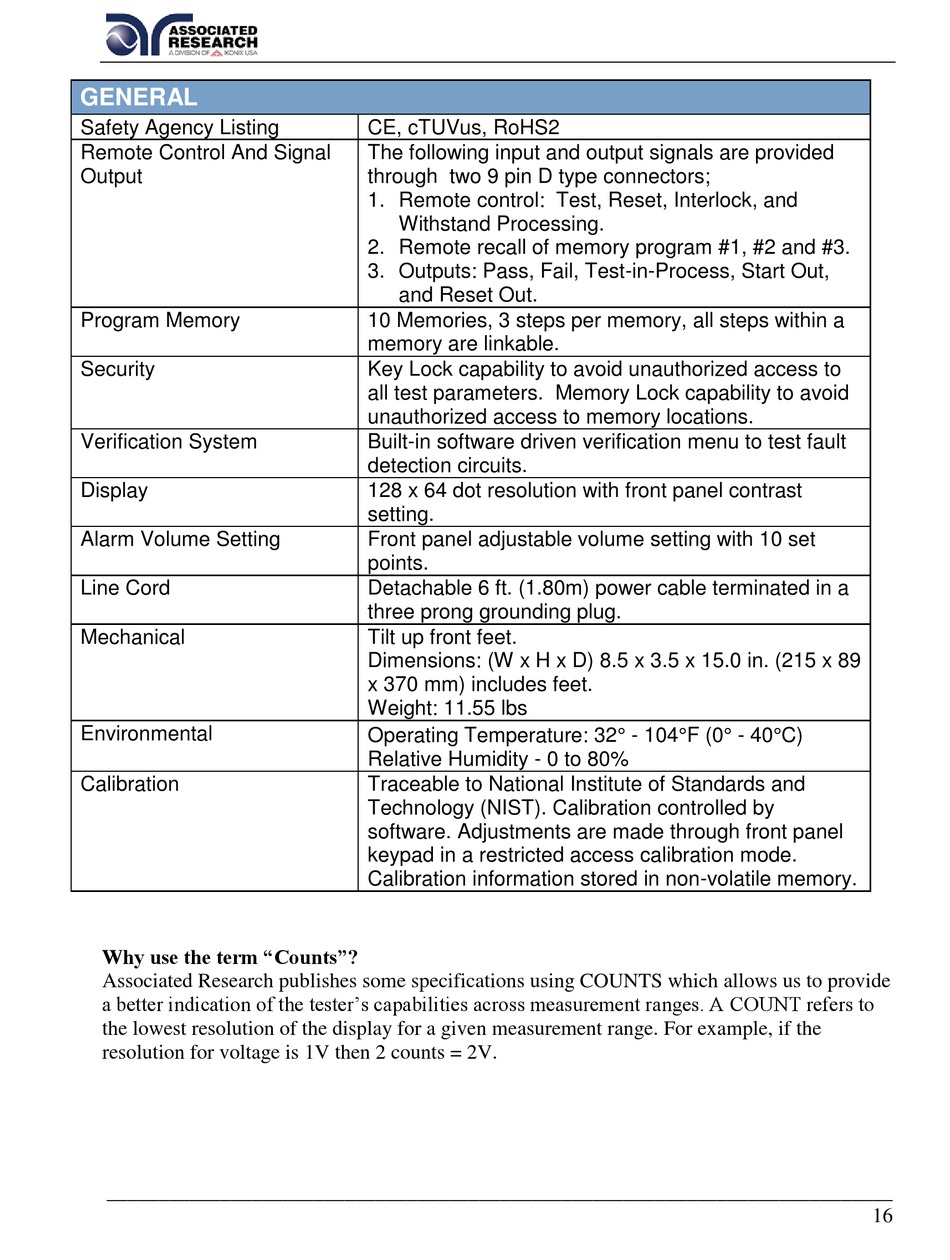

GENERAL
Safety Agency Listing
Remote Control And Signal
Output
Program Memory
Security
Verification System
Display
Alarm Volume Setting
Line Cord
Mechanical
Environmental
Calibration
Why use the term "Counts"?
Associated Research publishes some specifications using COUNTS which allows us to provide
a better indication of the tester's capabilities across measurement ranges. A COUNT refers to
the lowest resolution of the display for a given measurement range. For example, if the
resolution for voltage is 1V then 2 counts = 2V.
____________________________________________________________________________
CE, cTUVus, RoHS2
The following input and output signals are provided
through two 9 pin D type connectors;
1. Remote control: Test, Reset, Interlock, and
Withstand Processing.
2. Remote recall of memory program #1, #2 and #3.
3. Outputs: Pass, Fail, Test-in-Process, Start Out,
and Reset Out.
10 Memories, 3 steps per memory, all steps within a
memory are linkable.
Key Lock capability to avoid unauthorized access to
all test parameters. Memory Lock capability to avoid
unauthorized access to memory locations.
Built-in software driven verification menu to test fault
detection circuits.
128 x 64 dot resolution with front panel contrast
setting.
Front panel adjustable volume setting with 10 set
points.
Detachable 6 ft. (1.80m) power cable terminated in a
three prong grounding plug.
Tilt up front feet.
Dimensions: (W x H x D) 8.5 x 3.5 x 15.0 in. (215 x 89
x 370 mm) includes feet.
Weight: 11.55 lbs
Operating Temperature: 32 - 104F (0 - 40C)
Relative Humidity - 0 to 80%
Traceable to National Institute of Standards and
Technology (NIST). Calibration controlled by
software. Adjustments are made through front panel
keypad in a restricted access calibration mode.
Calibration information stored in non-volatile memory.
