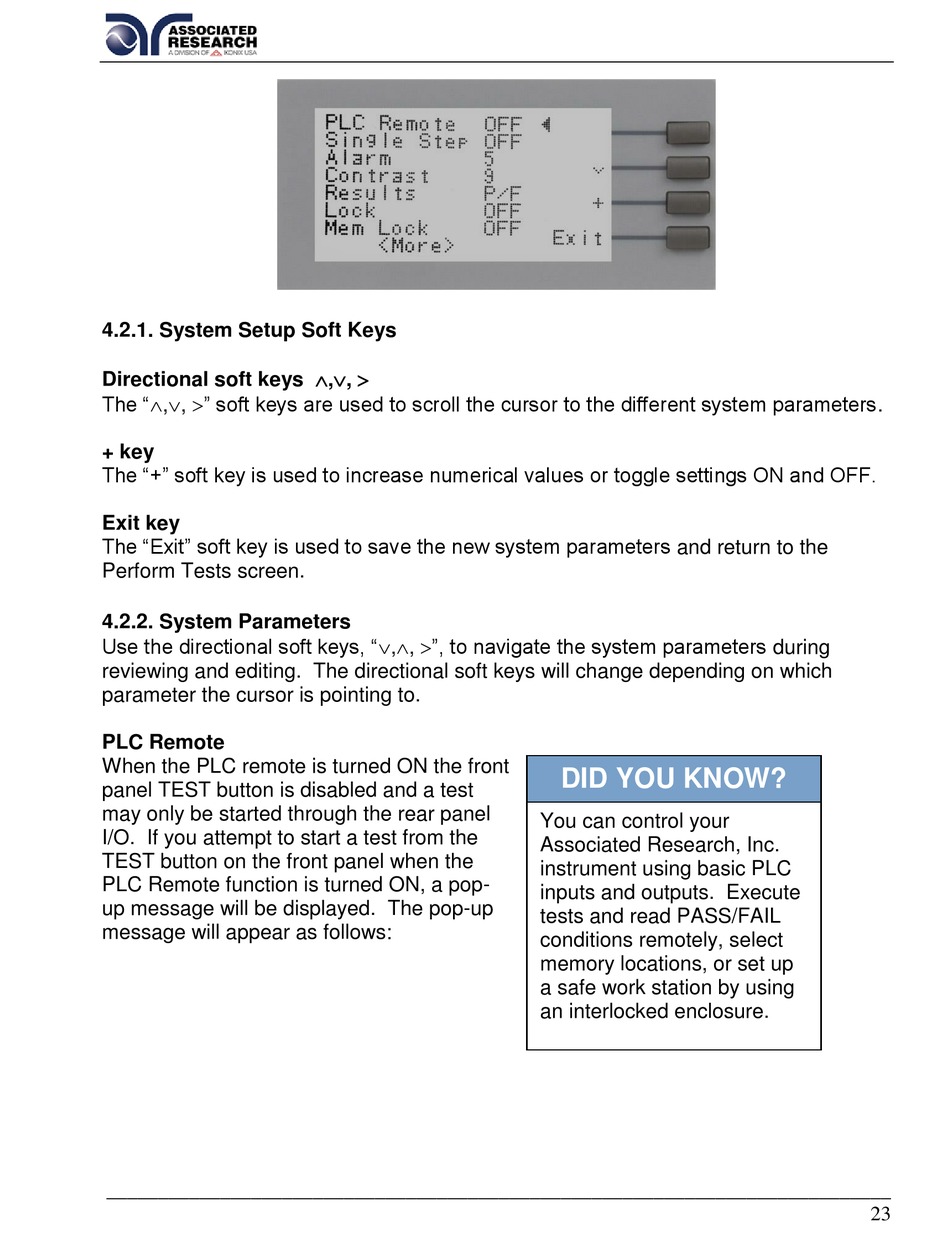

4.2.1. System Setup Soft Keys

Directional soft keys ,, 
The ",, " soft keys are used to scroll the cursor to the different system parameters.
+ key
The "+" soft key is used to increase numerical values or toggle settings ON and OFF.
Exit key
The "Exit" soft key is used to save the new system parameters and return to the
Perform Tests screen.

4.2.2. System Parameters

Use the directional soft keys, ",, ", to navigate the system parameters during
reviewing and editing. The directional soft keys will change depending on which
parameter the cursor is pointing to.
PLC Remote
When the PLC remote is turned ON the front
panel TEST button is disabled and a test
may only be started through the rear panel
I/O. If you attempt to start a test from the
TEST button on the front panel when the
PLC Remote function is turned ON, a pop-
up message will be displayed. The pop-up
message will appear as follows:
____________________________________________________________________________
DID YOU KNOW?
You can control your
Associated Research, Inc.
instrument using basic PLC
inputs and outputs. Execute
tests and read PASS/FAIL
conditions remotely, select
memory locations, or set up
a safe work station by using
an interlocked enclosure.
