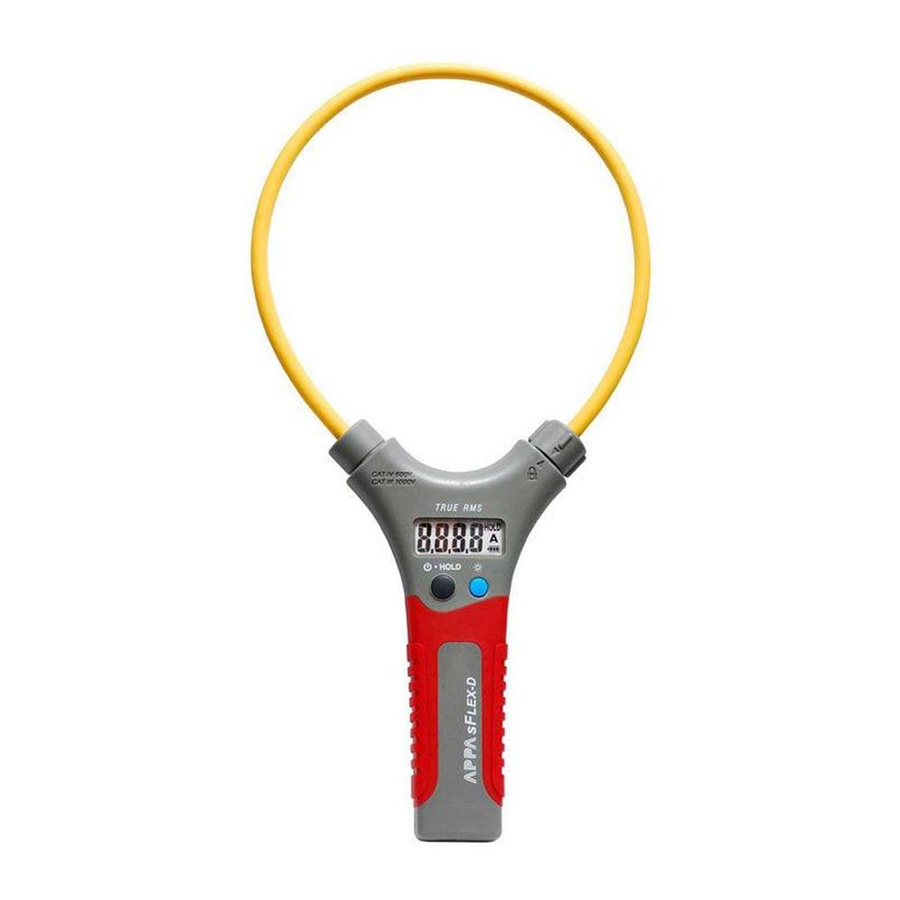

APPA sFLEX-D - Flexible Current Meter Manual

Maintenance

Do not attempt to repair this Clamp Meter. It contains no user-serviceable parts.
Repair or servicing should only be performed by qualified personnel.

Cleaning

Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents.

Power on/off

Flexible AC current probe

Do not touch the area above the LCD during measurement

Auto Power off Function

The meter automatically turns the power off after powering up and no operation for 20 minutes ± 30 seconds.

Disable Auto Power off Function

Press "Power" button, and during the LCD shows battery capacity, press "backlight" button until the LCD shows "AoFF" to disable Auto Power Off Function.

Backlight

Data Hold

Replacing Batteries

Remove Meter from conductor and turn off power before opening the battery cover.

General Specifications

Display: 3000 counts.
Over range Display: "OL"
Dimensions (W x H x D):
10" coil: Approx. 120mm x 280mm x 25mm
18" coil: Approx. 130mm x 350mm x 25mm
Weight(without Battery):
10" coil: 170g
18" coil: 200g
Power Requirements: AAA Size Battery x 2
Battery Life: 200 hours ALKALINE Battery
Low Batteries Indication: Voltage drops below operating voltage, will flash.
Maximum Conductor Size: coil size
Safety Standard:
EN61010-1, EN61010-2-032, EN61326-1
CAT IV 600V, CAT III 1000V
Conversion Rate: 4 times/second

Environmental Specifications

Indoor Use.
Pollution Degree: 2
Maximum operating altitude: 2000m (6562 ft)
Operating temperature & Relative Humidity:
0°C - 30°C, ≦80%RH
30°C - 40°C, ≦75%RH
40°C - 50°C, ≦45%RH
Storage temperature:
-20°C - 60°C, 0 to 80% RH (no batteries).
Temperature coefficient:
0.2 x (Specified accuracy) / °C, < 18°C, > 28°C
Shock vibration: Sinusoidal vibration MIL-PRF-28800F (5-55 Hz, 3g max.)
Drop Protection: 4 feet drop to hardwood on concrete Floor

Electrical Specifications

Accuracy is given as ±(% of reading + counts of least significant digit) at 23°C ± 5°C, with relative humidity Less than 80% R.H.
Accuracy is specified for a period of one year after calibration.

Position Error of Clamp:
Accuracy and position error assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.

LCD displays 0 counts when the reading < 10 counts.
Frequency Response: 45 - 500Hz (Sine Wave)

AC Function
ACA specifications are ac coupled, true R.M.S.
For non-sinusoidal waveforms, Additional Accuracy by Crest Factor (C.F.):
Add 3.0% for C.F. 1.0 - 2.0.
Add 5.0% for C.F. 2.0 - 2.5.
Add 7.0% for C.F. 2.5 - 3.0.
