Extron electronics PVT CV User Manual

Twisted pair transmitters, rack mount
Hide thumbs Also See for PVT CV:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
PVT CV, PVT RGB CV,
PVT RGB and PVT SW RGB
PoleVault
Twisted Pair Transmitters
™
(Rack Mount Models)
68-1310-01
Rev. C
04 07
Get other manuals https://www.bkmanuals.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVT CV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics PVT CV

Summary of Contents for Extron electronics PVT CV

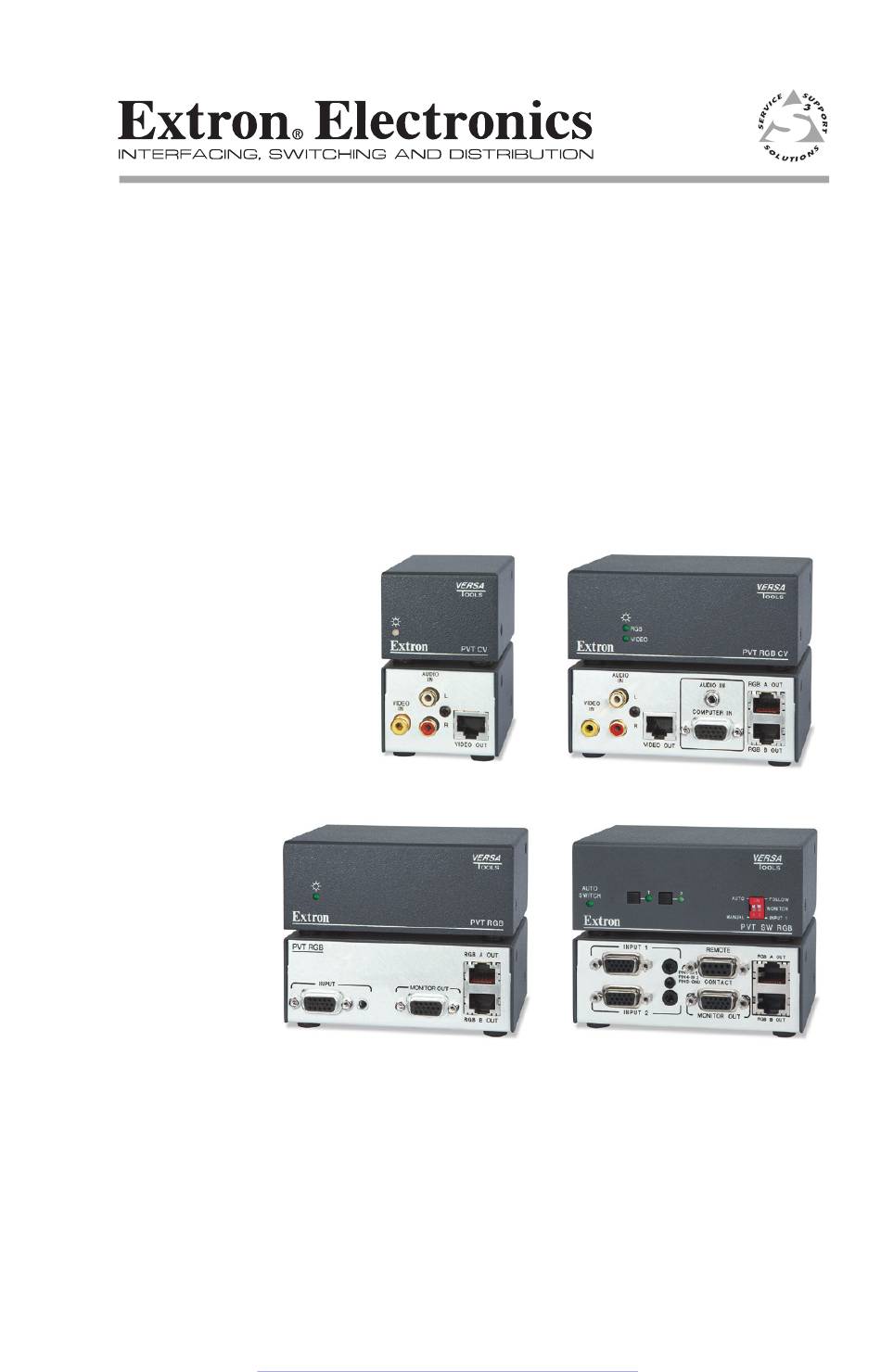

  • Page 1 User’s Guide PVT CV, PVT RGB CV, PVT RGB and PVT SW RGB PoleVault Twisted Pair Transmitters ™ (Rack Mount Models) 68-1310-01 Rev. C 04 07 Get other manuals https://www.bkmanuals.com...
  • Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source This symbol is intended to alert the user of important indicated on the product. This equipment is intended to be used with a main power operating and maintenance (servicing) instructions in system with a grounded (neutral) conductor.
  • Page 3 Precautions Get other manuals https://www.bkmanuals.com...
  • Page 4 This page was deliberately left blank. Get other manuals https://www.bkmanuals.com...

  • Page 5: Table Of Contents

    Chapter One • Introduction ............. 1-1 About the PVT Transmitters ............ 1-2 Transmission distance ............. 1-2 About the PVT CV..............1-3 About the PVT RGB ..............1-3 About the PVT RGB CV............1-4 About the PVT SW RGB............1-4 Application Diagram .
  • Page 6 Table of Contents, cont'd This page was deliberately left blank. PVT Series (Rack Mount Models) • Table of Contents Get other manuals https://www.bkmanuals.com...

  • Page 7: Chapter One • Introduction

    PVT Series (Rack Mount Models) Chapter One Introduction About.the.PVT.Transmitters Application.Diagram Get other manuals https://www.bkmanuals.com...

  • Page 8: About The Pvt Transmitters

    19" or standard rack shelves, or mounted under or on desks. The PVT series rack mount models are as follows: PVT CV — Transmits composite video and stereo audio. PVT RGB, PVT SW RGB — Transmits computer (RGB) video and stereo audio.

  • Page 9: About The Pvt Cv

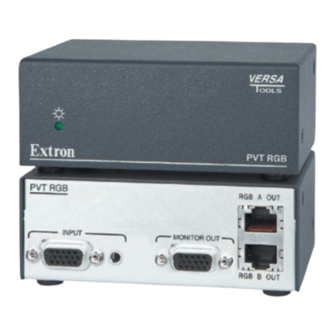

    AUDIO VIDEO VIDEO OUT PVT CV Figure 1-1 — PVT CV face and rear panel About the PVT RGB The P�T RGB Twisted Pair Transmitter is a 1/4 rack mounting model that can transmit high resolution (RGB) video and an associated stereo audio signal to the PVS 204SA switcher.

  • Page 10: About The Pvt Rgb Cv

    Introduction, cont’d About the PVT RGB CV The P�T RGB C� Twisted Pair Transmitter is a 1/4 rack mounting model that can transmit high resolution (RGB) video and composite video, and two associated stereo audio signals to the PVS 204SA switcher. This model can also be mounted under a desk or shelf, or on certain projector poles.

  • Page 11: Application Diagram

    V ID Aux. Video Source Figure 1-5 — Typical PVT series system application using PVT RGB CV and PVT CV transmitters with the PVS 204SA and other Extron devices PVT Series (Rack Mount Models) • Introduction Get other manuals https://www.bkmanuals.com...
  • Page 12 Introduction, cont'd This page was deliberately left blank. PVT Series (Rack Mount Models) • Introduction Get other manuals https://www.bkmanuals.com...

  • Page 13: Chapter Two • Installation

    PVT Series (Rack Mount Models) Chapter Two Installation UL/Safety.Requirements Installing.the.PVT.Twisted.Pair.Transmitters Connections.and.Settings Get other manuals https://www.bkmanuals.com...

  • Page 14: Ul/Safety Requirements

    Installation Installation UL/Safety Requirements The Underwriters Laboratories (UL) requirements listed below pertain to the safe installation and operation of the transmitters. Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth.

  • Page 15: Installing The Pvt Twisted Pair Transmitters

    (figure 2-1) or on a standard 1U rack shelf (RSU 129, part #60- 190-01 or RSB 129, #60-604-01) (figure 2-2). On standard rack shelves, the PVT CV can be mounted in one of eight locations to the rear or the front of the rack, and the PVT RGB and RGB CV in one of four locations to the rear or front of the rack.
  • Page 16 Installation, cont’d To rack mount a PVT transmitter, do the following: If installed, remove the feet from the bottom of the PVT. Mount the PVT using two 4-40 x 3/16" screws in opposite (diagonal) corners to secure the PVT to the shelf. Install blank panel(s) or other unit(s) to the rack shelf.

  • Page 17: Furniture Mounting

    Furniture mounting Use the optional mounting kit (MBU 123, under desk mounting kit, part #70-212-01) to mount the PVT as follows: If installed, remove the feet from the bottom of the PVT. Attach the mounting brackets to the PVT with the machine screws provided (figure 2-3).

  • Page 18: Connections And Settings

    MTP system. Front panel features The front panel features are the same for the PVT CV, PVT RGB, and PVT RGB CV. The PVT SW RGB features are unique to that model. PVT CV...
  • Page 19 Dual color power LED — This LED lights amber when power only (no signal) is applied to the PVT, and green when power and a signal are both present. AUTO Auto switch LED (P�T SW RGB only) — This LED SWITCH lights green when the unit is in auto switch mode.

  • Page 20: Rear Panel Features

    Rear panel features For all PVT rack mount models, the input connectors and the output connectors are on the rear panel (see figure 2-5). AUDIO VIDEO VIDEO OUT PVT CV RGB A OUT AUDIO AUDIO IN VIDEO COMPUTER IN VIDEO OUT...

  • Page 21: Cable Termination For Composite Video And Audio Transmission

    Composite video input (C� and RGB C� models) — To input a composite video signal from a suitable source, connect a male RCA plug to this yellow female RCA jack. Audio (left and right) input (C� and RGB C� models) — For unbalanced left and right audio input, insert male RCA plugs from the audio source, into these two female RCA jacks (white = left, red = right).
  • Page 22 White-brown Audio R + 1&2 Brown Audio R – 3&6 4&5 7&8 Figure 2-7 — Wiring the twisted pair composite video and audio cable PVT CV PVT RGB CV PVS 204SA RGB A OUT AUDIO AUDIO AUDIO IN VIDEO VIDEO...

  • Page 23: Cable Termination For Rgb Video And Audio Transmission

    RGB video input (RGB C�, RGB, and SW RGB models) — Connect a computer video source to this 15-pin HD connector for high resolution RGB video input. ä cable A output — (RGB C�, RGB, and SW RGB models) Using TP cable, connect this RJ-45 female output port, labeled "RGB A out", to one of the two input ports (labeled 1A and 2A) on the PVS 204SA switcher.
  • Page 24 Installation, cont’d PVT SW RGB REMOTE TP Cable from INPUT 1 RGB A OUT TP Cable from output A PVS 204SA output A PVT RGB PIN 1 — IN 1 CONTACT PIN 4 — IN 2 PIN 5 — GND RGB A OUT INPUT 2 RGB B OUT...

  • Page 25: Appendix A • Reference Material

    PVT Series (Rack Mount Models) Appendix A Reference Material Specifications Part.Numbers Optional.Accessories Get other manuals https://www.bkmanuals.com...

  • Page 26: Specifications

    Reference Material Specifications These transmitters are compatible only with the Extron PVS 204SA. They are not compatible with other models of twisted pair receivers. Video — RGB (RGB models) Gain ..........Unity Video input and loop-through — RGB (RGB models) Number/signal type ..... 1 VGA-UXGA RGBHV, RGBS (2 for PVT SW RGB, and 1 buffered loop through) Connectors ........1 female 15-pin HD (2 for PVT SW RGB) Nominal level ........
  • Page 27 General External power supply ....Remote power from PVS 204SA Power input requirement ..... 5 VDC, TBD A Rack mount PVT CV PVT RGB PVT SW RGB PVT RGB CV ...... Yes, with optional 1U rack shelf, part # 60-190-01, or Versa Tools rack shelf, part # 60-190-02 or 60-604-20.

  • Page 28: Part Numbers

    Reference Material, cont’d Enclosure dimensions PVT CV 1/8 rack Versa Tools ..1.7" H x 2.2" W x 3.0" D 4.3 cm H x 5.6 cm W x 7.6 cm D PVT RGB, PVT SW RGB, PVT RGB CV 1/4 rack Versa Tools ..1.7" H x 4.3" W x 3.0" D 4.3 cm H x 10.9 cm W x 7.6 cm D...

  • Page 29: Optional Accessories

    Optional Accessories Item Part number MBU 123, under desk mounting kit 70-212-01 MBB 100, back of rack mounting kit 70-367-01 RSF 123, 3.5" deep rack shelf mounting kit 60-190-20 RSB 123, 3.5" deep basic rack shelf mounting kit 60-604-20 RSU 129, 9.5" deep rack shelf mounting kit 60-190-01 RSB 129, 9.5"...
  • Page 30 Reference Material, cont’d This page was deliberately left blank. PVT Series (Rack Mount Models) • Reference Material Get other manuals https://www.bkmanuals.com...
  • Page 31 In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
  • Page 32 3821 AH Amersfoort, The Netherlands PM Industrial Bldg., Singapore 368363 Chiyoda-ku, Tokyo 102-0082 800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 Japan FAX 714.491.1517 FAX +31.33.453.4050 FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656 www.extron.com © 2007 Extron Electronics. All rights reserved. Get other manuals https://www.bkmanuals.com...

This manual is also suitable for:

Pvt rgb cvPvt rgbPvt sw rgb
