Extron electronics PVT CV D User Manual

Pvt series polevault twisted pair transmitters (decora and aap models)
Hide thumbs Also See for PVT CV D:
Table of Contents

Advertisement

Quick Links

Download this manual
im Vertrieb von
User's Guide
PVT CV AAP, and PVT RGB AAP
www.camboard.de
CAMBOARD Electronics
PVT CV D, PVT RBG D,
PoleVault
Tel. 07131 911201
ce-info@camboard.de
Fax 07131 911203
™
Twisted Pair Transmitters
(Decora
and AAP Models)
®
68-1259-01
Rev. B
01 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVT CV D and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics PVT CV D

Summary of Contents for Extron electronics PVT CV D

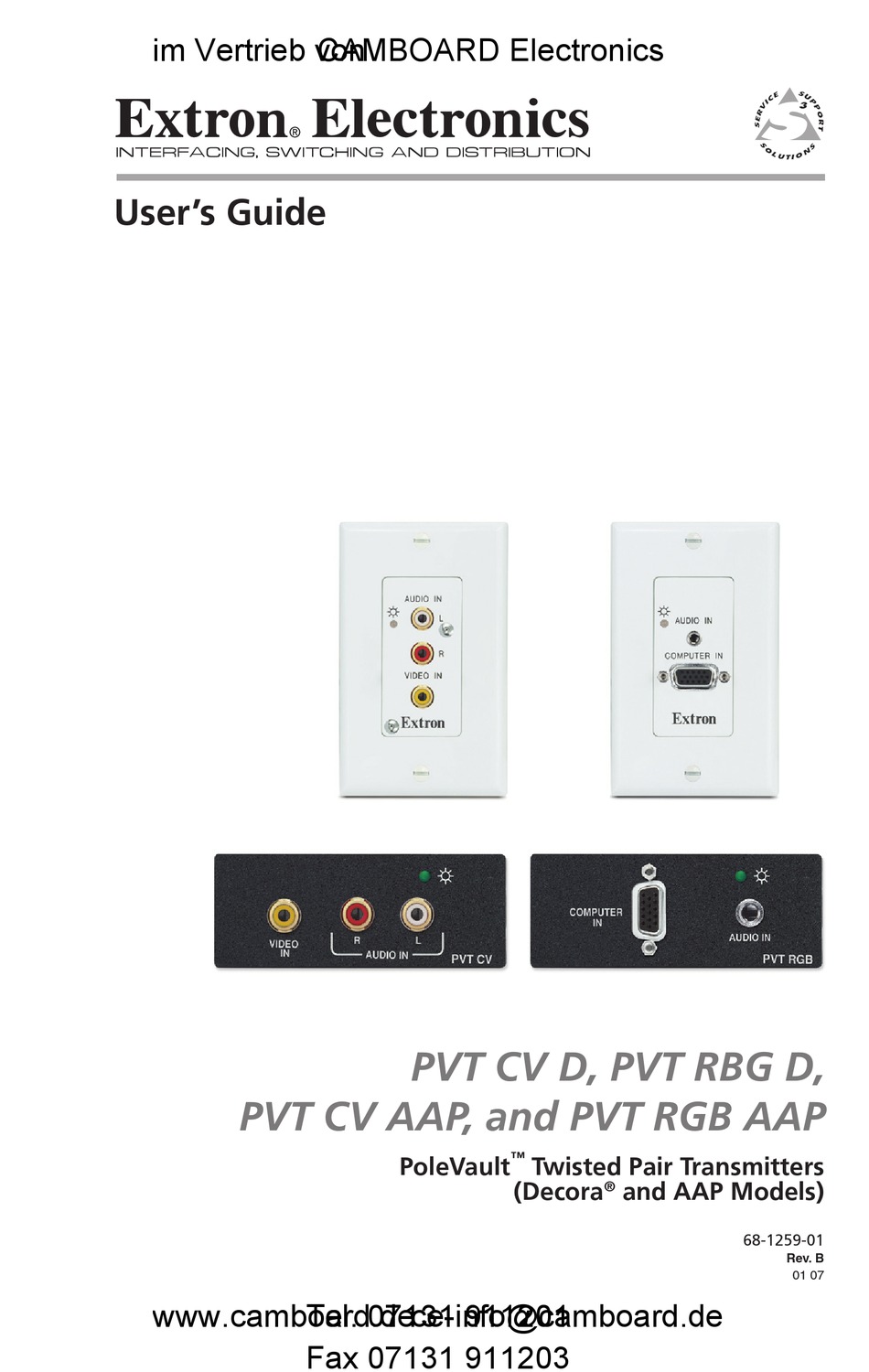

  • Page 1 Vertrieb von CAMBOARD Electronics User’s Guide PVT CV D, PVT RBG D, PVT CV AAP, and PVT RGB AAP ™ PoleVault Twisted Pair Transmitters (Decora and AAP Models) ® 68-1259-01 Rev. B 01 07 www.camboard.de Tel. 07131 911201 ce-info@camboard.de...
  • Page 2 im Vertrieb von CAMBOARD Electronics Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source This symbol is intended to alert the user of important indicated on the product. This equipment is intended to be used with a main power operating and maintenance (servicing) instructions in system with a grounded (neutral) conductor.
  • Page 3 im Vertrieb von CAMBOARD Electronics Precautions www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
  • Page 4 im Vertrieb von CAMBOARD Electronics This page was deliberately left blank www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 5: Table Of Contents

    ............2-1 UL/Safety Requirements ............2-2 Important safety instructions..........2-2 Installing the PVT CV D and PVT RGB D ......2-3 Preparing the site and installing the wall box ....2-3 Final installation..............2-4 Installing the PVT CV AAP and PVT RGB AAP ....
  • Page 6 im Vertrieb von CAMBOARD Electronics Table of Contents, cont'd This page was deliberately left blank www.camboard.de Tel. 07131 911201 ce-info@camboard.de PVT Series (D and AAP models) • Table of Contents Fax 07131 911203...

  • Page 7: Chapter One• Introduction

    im Vertrieb von CAMBOARD Electronics PVT Series (D and AAP models) Chapter One Introduction About.the.PVT.Transmitters Application.Diagram www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 8: About The Pvt Transmitters

    Decora-style face plates or in AAP openings in wall or device face plates. The model types are as follows: PVT CV D, PVT CV AAP — Transmit composite video and stereo audio. PVT RGB D, PVT RGB AAP — Transmit computer (RGB) video and stereo audio.

  • Page 9: About The Pvt Cv D

    AUDIO IN VIDEO IN VIDEO IN Figure 1-1 — PVT CV D face and rear panel About the PVT CV AAP The P�T C� AAP (PoleVault Twisted Pair Transmitter) fits a standard double space AAP opening and is capable of transmitting composite video and stereo audio to the PVS 204SA switcher.

  • Page 10: About The Pvt Rgb D

    im Vertrieb von CAMBOARD Electronics Introduction, cont’d About the PVT RGB D The P�T RGB D (PoleVault Twisted Pair Transmitter) is a wall or furniture mountable model that fits any single opening Decora style wall plate. It is capable of transmitting computer (RGB) video and stereo audio to the PVS 204SA switcher.

  • Page 11: Application Diagram

    Projector tr o Extron MLC 104 IP Plus MediaLink Controller Projector on/off control, input switching, and volume control Extron Line Level PVT CV D Audio Composite Video D IO w/ Audio UTP TI VE M UT M IC Transmitter...
  • Page 12 im Vertrieb von CAMBOARD Electronics Introduction, cont'd This page was deliberately left blank www.camboard.de Tel. 07131 911201 ce-info@camboard.de PVT Series (D and AAP models) • Introduction Fax 07131 911203...

  • Page 13: Chapter Two • Installation

    im Vertrieb von CAMBOARD Electronics PVT Series (D and AAP models) Chapter Two Installation UL/Safety.Requirements Installing.the.PVT.CV.D.and.PVT.RGB.D Installing.the.PVT.CV.AAP.and.PVT.RGB.AAP Connections.and.Settings www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 14: Ul/Safety Requirements

    im Vertrieb von CAMBOARD Electronics Installation Installation UL/Safety Requirements The Underwriters Laboratories (UL) requirements listed below pertain to the safe installation and operation of these devices. Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water.

  • Page 15: Installing The Pvt Cv D And Pvt Rgb D

    CAMBOARD Electronics Installing the PVT CV D and PVT RGB D The PVT CV D and PVT RGB D can be each installed in a one-gang electrical wall box with a Decora wall plate cover (supplied). If a suitable wall box is already installed, follow steps 5 through 8 below.

  • Page 16: Final Installation

    im Vertrieb von CAMBOARD Electronics Installation, cont’d Connect the output device (PVS 204SA) cables to the rear of the PVT wall plate. See "Rear Panel Features", later in this manual, for connector wiring details. Connect input devices (see "Front Panel Features", later in this manual, for connector details), restore the power supply, and test the wall plate.

  • Page 17: Installing The Pvt Cv Aap And Pvt Rgb Aap

    im Vertrieb von CAMBOARD Electronics Wall Box Decora Faceplate D IO Wall opening is flush with edge of box. Extron PVT RGB D Figure 2-2 — Mounting the PVT RGB D Installing the PVT CV AAP and PVT RGB AAP The PVT CV AAP and PVT RGB AAP must be attached to a device faceplate or AAP wall plate and cabled before the device or wall plate is tested and installed in a wall or furniture.

  • Page 18: Connections And Settings

    Connections and Settings Do not connect these devices to a computer data or telecommunications network. Front panel features The front panel features are the same within these groups: a) PVT CV D and PVT CV AAP, and b) PVT RGB D and PVT RGB AAP: AUDIO IN VIDEO IN VIDEO...
  • Page 19 im Vertrieb von CAMBOARD Electronics Dual color power LED (all models) — This LED lights amber when power only (no signal) is applied to the PVT, and green when power and signal are both present. Audio (left and right) input (C� D and C� AAP models) — For unbalanced left and right audio input, plug male RCA audio plugs into these two female RCA jacks (white = left, red = right).

  • Page 20: Rear Panel Features

    Rear panel features All models have the output connectors on the rear panel. PVT CV models PVT CV AAP PVT CV D Figure 2-7 — PVT CV models rear panel features using Composite video output — For composite video output,...
  • Page 21 Composite Video Input Connectors on Rear Panel Rear Panel Rear Panel of PVS 204SA Figure 2-9 — Connecting the PVT CV D transmitter to the PVS 204SA switcher www.camboard.de Tel. 07131 911201 ce-info@camboard.de PVT Series (D and AAP models) • Installation...

  • Page 22: Pvt Rgb Models

    im Vertrieb von CAMBOARD Electronics Installation, cont’d PVT RGB models RGB OUT PVT RGB AAP PVT RGB D Figure 2-10 — PVT RGB models rear panel features Ç A output — Using CAT 5 UTP cable, connect this RJ-45 female output port labelled “RGB A out” to one of the two input ports (labelled 1A and 2A) on the PVS 204SA switcher.
  • Page 23 im Vertrieb von CAMBOARD Electronics Clip Down Side Pins 2 3 4 5 6 7 8 RJ-45 TP Cable and CAT 5 Connector Connector 568A Cable B Cable A Wire Color White-green V. sync + Red + Green V. sync – Red –...
  • Page 24 im Vertrieb von CAMBOARD Electronics Installation, cont’d This page was deliberately left blank www.camboard.de Tel. 07131 911201 ce-info@camboard.de PVT Series (D and AAP models) • Installation 2-12 Fax 07131 911203...

  • Page 25: Appendix A • Reference Material

    im Vertrieb von CAMBOARD Electronics PVT Series (D and AAP models) A ppendix A Reference Material Specifications Part.Numbers Optional.Accessories Template.Dimensions www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...

  • Page 26: Specifications

    im Vertrieb von CAMBOARD Electronics Reference Material Specifications These transmitters are compatible only with the Extron PVS 204SA. They are not compatible with other models of twisted pair receivers. Video — RGB (RGB models) Gain ..........Unity Video input and loop-through — RGB (RGB models) Number/signal type ..... 1 VGA-UXGA RGBHV, RGBS Connectors ........1 female 15-pin HD Nominal level ........

  • Page 27: Audio Input

    im Vertrieb von CAMBOARD Electronics Video output — composite video (CV models) Number/signal type ..... 1 analog proprietary signal Connectors ........1 female RJ-45 Sync — composite video (CV models) Standards ........NTSC 3.58, NTSC 4.43, PAL, SECAM Audio input Number/signal type .....

  • Page 28: Part Numbers

    MTBF ..........30,000 hours Warranty ........3 years parts and labor All nominal levels are at ±10%. Specifications are subject to change without notice. Part Numbers Item Part number PVT CV D, white 68-819-03 PVT RGB D, white 60-820-03 PVT CV AAP, black, white, RAL9010 70-579-02, 03, 05 PVT RGB AAP, black, white, RAL9010...

  • Page 29: Optional Accessories

    im Vertrieb von CAMBOARD Electronics Optional Accessories Item Part number Enhanced Skew-Free A/V UTP cables 26-569-xx Enhanced Skew-free A/v UTP cables-plenum 26-570-xx CAT 5 cable, 35', plenum 26-637-35 CAT 5 cable, 50', plenum 26-637-50 CAT 5 cable, 75', plenum 26-637-75 CAT 5 cable, 100', plenum 26-637-100 AAP accessories...

  • Page 30: Template Dimensions

    Do not scale up or print to use as a template. 2.79" (7.09 cm) Panel 1.9" (4.83 cm) 4.50" To install a (11.43 cm) 1-gang PVT CV D or PVT RGB D SURFACE CUT-OUT directly into AREA FOR furniture or FURNITURE MOUNT wall, cut along this line. www.camboard.de Tel. 07131 911201 ce-info@camboard.de...
  • Page 31 In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
  • Page 32 PM Industrial Bldg., Singapore 368363 Chiyoda-ku, Tokyo 102-0082 800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 Japan FAX 714.491.1517 FAX +31.33.453.4050 FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656 www.extron.com www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2007 Extron Electronics. All rights reserved. Fax 07131 911203...

This manual is also suitable for:

Pvt rbg dPvt cv aapPvt rgb aap
