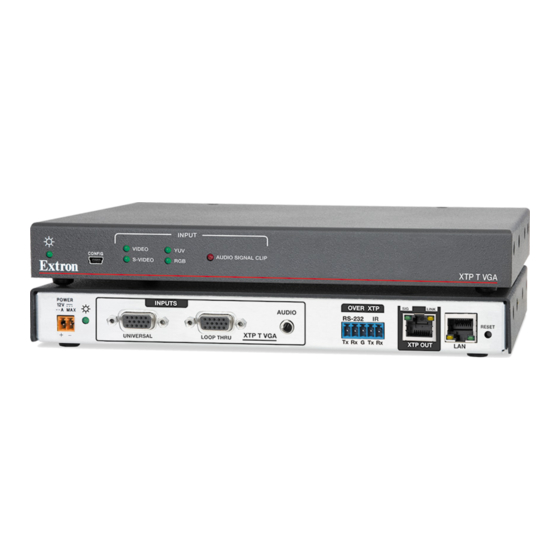

Extron electronics XTP T VGA User Manual
  1. Manuals
  2. Brands
  3. Extron electronics Manuals
  4. Transmitter
  5. XTP T VGA
  6. User manual

Extron electronics XTP T VGA User Manual

Xtp vga transmitter
Hide thumbs Also See for XTP T VGA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
User Guide
XTP Systems
XTP T VGA
XTP VGA Transmitter
68-2091-01 Rev. E
01 19

Advertisement

Table of Contents
loading

Related Manuals for Extron electronics XTP T VGA

Summary of Contents for Extron electronics XTP T VGA

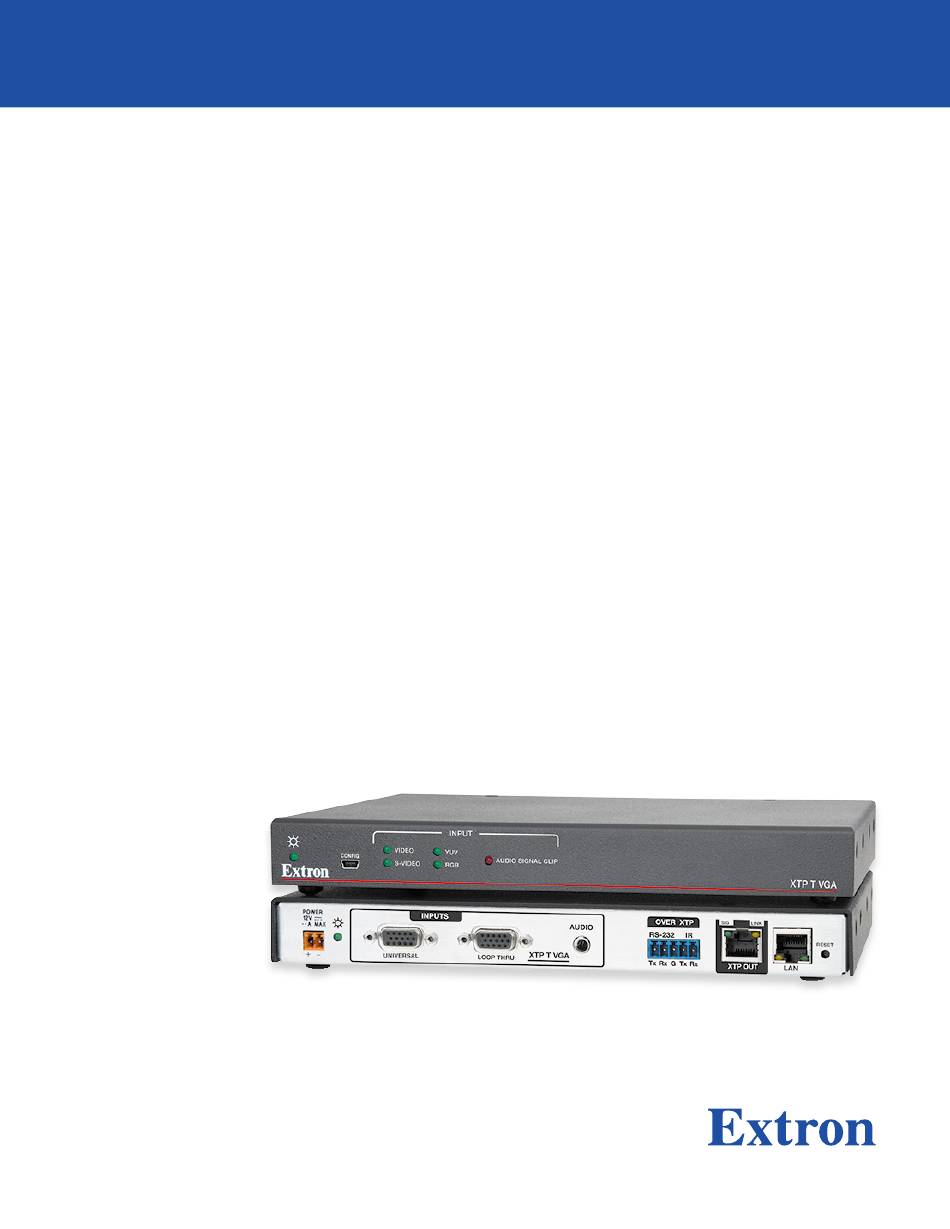

  • Page 1 User Guide XTP Systems XTP T VGA XTP VGA Transmitter 68-2091-01 Rev. E 01 19...
  • Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING: This symbol, ,when used on the product, is avvertire l’utente della presenza di tensione non isolata pericolosa intended to alert the user of the presence of uninsulated dangerous all’interno del contenitore del prodotto che può...
  • Page 3 より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright www.extron.com © 2014-2019 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information.

  • Page 7: Table Of Contents

    Introduction ..........1 Software Installation........... 21 Guide Overview ........... 1 Software Download Center Page ....21 XTP T VGA Transmitter Description ...... 1 Software Product Page ........22 System Compatibility ........... 2 Software Operation..........23 Features .............. 2 Connections ..........23 Menu Bar ............
  • Page 8 XTP T VGA Transmitter • Contents...

  • Page 9: Introduction

    Guide Overview This guide provides installation, operation, control, and reference information for the XTP T VGA Transmitter. In this guide, the terms “transmitter” and “XTP T VGA” are used interchangeably to refer to the XTP T VGA Transmitter. XTP T VGA Transmitter Description...

  • Page 10: System Compatibility

    The following diagram shows one way the XTP T VGA can be integrated in an XTP point-to-point application. The transmitter can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications and configuration).
  • Page 11 Ethernet pass-through port to reduce the amount of independent network drops required within a system. Remote power capability — Allows the XTP T VGA to be powered by an XTP matrix switcher or XTP power injectors to simplify integration.

  • Page 12: Installation

    • Rear Panel Connectors • Connection Details The XTP T VGA can be placed on a tabletop or mounted in a rack or under a desk (see Mounting on page 33). Rear Panel Connectors Audio Plugs.eps LINK...
  • Page 13 • Ethernet communication • System communication • Signal LED indicator — Lights green when the XTP T VGA outputs a Signal video signal or a test pattern. Link LED indicator — Lights yellow when XTP devices are connected Link and communication is established.

  • Page 14: Connection Details

    Y return L return Video return return Blue return Blue return Blue return B-Y return C return Ground Ground Ground connection connection connection EDID/DDC EDID/DDC EDID/DDC H sync C sync V sync EDID/DDC EDID/DDC EDID/DDC XTP T VGA Transmitter • Installation...

  • Page 15: Tp Cable Termination And Recommendations

    Connector Figure 5. Twisted Pair Cable Termination Supported cables The XTP T VGA is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products.
  • Page 16 Do not comb the cable for the first 20 m, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. XTP T VGA Transmitter • Installation...

  • Page 17: Rs-232 And Ir Over Xtp Communication

    Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws. • S’ils sont un peu plus courts, ils peuvent être tirés facilement, même s’ils sont correctement serrés par les borniers à vis. XTP T VGA Transmitter • Installation...

  • Page 18: Power Connection

    (5 mm) Max. Smooth Ridges Power Supply Output Cord Figure 7. Power Wiring The XTP T VGA can be powered by a local power supply. See the notifications on the next page for local power considerations. XTP T VGA Transmitter • Installation...
  • Page 19 La longueur idéale est de 5 mm (3/16 inch). TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out. XTP T VGA Transmitter • Installation...
  • Page 20 Remote power The XTP T VGA can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: • XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.

  • Page 21: Operation

    -3 dBFS or above. The light remains lit for 200 ms after the audio input signal drops below -3 dBFS. EDID To manage EDID on the XTP T VGA, use the XTP System Configuration Software (see EDID Minder on page 31). The transmitter can record and save EDID in a user memory location on the transmitter.

  • Page 22: Reset Mode

    1 reset by Reset latest firmware version. DO mistake, cycle power to NOT operate the firmware the device to return to the version that results from this firmware version running prior mode reset. to the reset. XTP T VGA Transmitter • Operation...

  • Page 23: Sis Configuration And Control

    Error Responses When the XTP T VGA receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the receiver returns an error response to the host.

  • Page 24: Using Command And Response Tables For Sis Commands

    = Carriage return and line feed = Carriage return with no line feed = Pipe (can be used interchangeably with the character). = Space • = Escape key = Can be used interchangeably with the character. XTP T VGA Transmitter • SIS Configuration and Control...

  • Page 25: Command And Response Tables For Sis Commands

    1 dB increments ( = default) = Audio level X& = 720p @ 50 Hz = Black video signal resolution = 720p @ 60 Hz (default) = 1080p @ 60 Hz XTP T VGA Transmitter • SIS Configuration and Control...

  • Page 26: Picture Adjustment Commands

    Increase the pixel phase value by one. +PHAS Phas Decrease value Decrease the pixel phase value by one. -PHAS Phas View pixel phase Show the pixel phase value. PHAS Phas KEY: = default) = Picture adjustment XTP T VGA Transmitter • SIS Configuration and Control...

  • Page 27: Preset Commands

    NOTE: For EDID management, use the XTP System Configuration Software (see EDID Minder on page 31). KEY: = default) 65535 32768 = Horizontal or vertical shift = Preset number = disabled = Enable or disable = enabled (default) XTP T VGA Transmitter • SIS Configuration and Control...

  • Page 28: Advanced Configuration Commands

    = off (default) = Test pattern = 720p @ 50 Hz = 720p @ 60 Hz = 1080p @ 60 Hz = no input detected = Input signal presence = input detected XTP T VGA Transmitter • SIS Configuration and Control...

  • Page 29: Xtp System Configuration Software

    Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software. The XTP T VGA can also be controlled with SIS commands (see SIS Configuration and Control on page 15). Topics in this section include: •...

  • Page 30: Software Product Page

    Open the executable (.exe) file from the save location. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder. XTP T VGA Transmitter • XTP System Configuration Software...

  • Page 31: Software Operation

    Software Operation The XTP T VGA can be controlled directly from the front panel configuration port (see figure on page 13) or remotely from a connected XTP matrix switcher. Connections When opening the XTP System Configuration Software, the screen opens Connections first.

  • Page 32: Menu Bar

    NOTE: The options are not Backup and Restore Commissioning Report available when directly connected to the device. See an XTP matrix switcher user guide (www.extron.com) for more information on these features. XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 33 This option resets all disabled confirmation dialogs to the default settings. From the menu, select . The Tools Software Preference Software Preference dialog box opens. Figure 20. Software Preference Dialog Box Click the button. The dialog box closes. Reset XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 34 This option opens the XTP System Configuration Software Help File in a Web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a Web browser. From the menu, select Help Extron Website XTP T VGA Transmitter • XTP System Configuration Software...

  • Page 35: Device Settings

    Input/Output tab Click the tab (see figure 24, ) to open the screen. It Input/Output Input/Output contains input configuration, image settings, preset management, and output configuration options. Figure 24. Input/Output Tab XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 36 ) to enable a color bar test pattern. When the test pattern is enabled, the drop-down list becomes available. From the drop-down Signal Type Signal Type list, select the desired resolution and refresh rate. XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 37 27) to reset the transmitter to Factory Reset factory settings except for firmware. NOTE: This is the same as the SIS command (see Reset mode ZXXX page 20). XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 38 EDID — Display the current EDID selected. Audio Information section Audio Only — Displays whether the black video signal for audio-only transmission is enabled. Analog Audio Gain — Displays the analog audio gain in dB. XTP T VGA Transmitter • XTP System Configuration Software...

  • Page 39: Edid Minder

    Navigate to and select the desired EDID file and click . The EDID file appears in the Open panel ( Available EDID Assign the EDID file from the panel to import the EDID to the device. Available EDID XTP T VGA Transmitter • XTP System Configuration Software...
  • Page 40 (located to the right of the panel) appears, Common Timings Connected Outputs listing the EDID settings common among the selected outputs. Select the desired common EDID. The EDID is shown in the panel. Available EDID XTP T VGA Transmitter • XTP System Configuration Software...

  • Page 41: Reference Information

    This section contains mounting information. Mounting The XTP T VGA can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure.
  • Page 42 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
