MECHANISCHER EINBAU | MECHANICAL INSTALLATION
Sicherungsset 01 – Best. Nr. 0Z122Z000204
Locking set 01 – 0Z122Z000204
1 Kette 4 x 32 DIN 5685 (ca. 1 m)
2 Schraubglied NG 5
3 Schelle DN15 nach DIN 11850
Flow Meter | FC50-EX-CA
1
1 chain 4 x 32 DIN 5685 (approx. 1 m)
2 catch for chain NG 5
3 clip with screw and nuts DN15 to DIN 11850
2 3

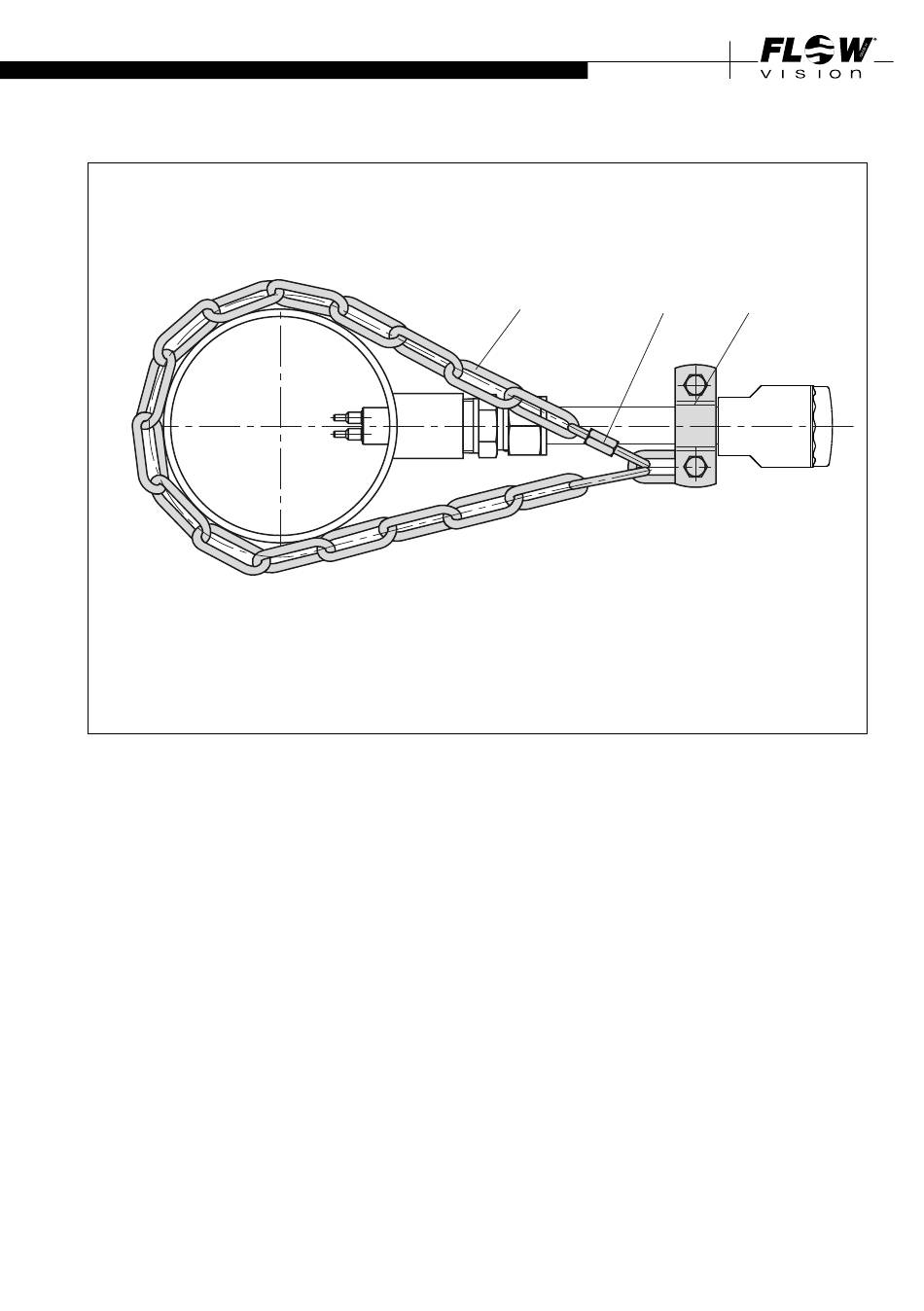

Fig. 9
